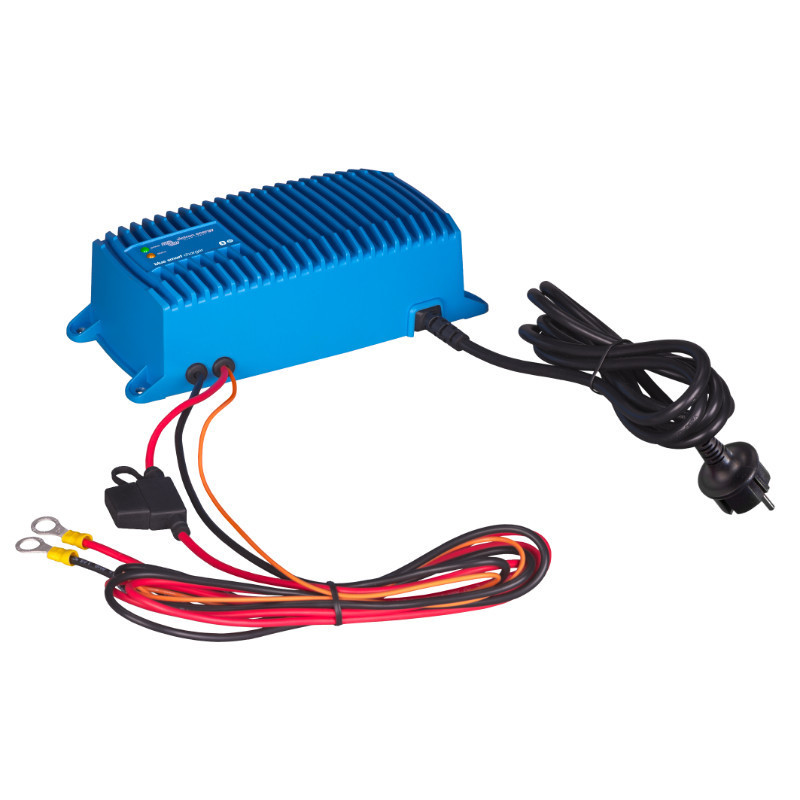

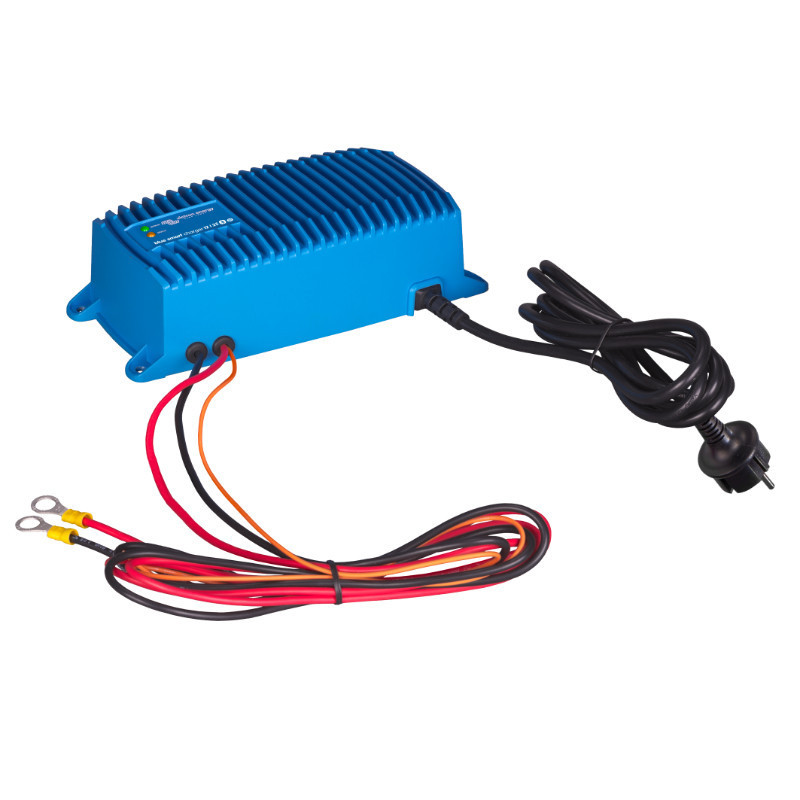

Blue Smart IP67 Charger 12/25 (1)

The Blue Smart IP67 12/25 charger from Victron Energy is an advanced device designed to safely and efficiently charge 12V batteries, with a maximum output current of 25A. Thanks to integrated Bluetooth technology, the charger allows for full parameter management via a smartphone app, allowing for remote monitoring and optimization of the charging process.

Modern technological solutions

The device stands out thanks to its seven-stage charging algorithm, which automatically adjusts the charging process to the battery's condition. This intelligent approach ensures longer battery life and optimal performance in various conditions. Furthermore, the Blue Smart IP67 charger has a function to regenerate deeply discharged batteries, making it unique among its competitors.

Safety and durability

The robust die-cast aluminum construction, combined with resin-encapsulated electronics, makes the charger fully waterproof (IP67), dust-proof, shock-proof, and ignition-proof. Regardless of weather conditions, the device remains fully functional, making it ideal for use in harsh environments such as boats or RVs.

Extreme energy efficiency

With 95% efficiency, the charger generates minimal heat, significantly reducing energy consumption. Once the battery is fully charged, power consumption drops to just 0.5W, one of the best results in its class. An integrated energy-saving feature further minimizes operating costs.

Versatility and versatility

The Blue Smart IP67 is ideal for charging various battery types, including popular LiFePO4 batteries. A simple button on the housing allows users to quickly adjust the charger's operating mode to the specific requirements of a given battery. A start interrupt function protects the system against sudden voltage spikes, ensuring stable and safe operation.

Technical specifications:

• Input voltage range and frequency: 180-265 VAC, 45-65 Hz


• Efficiency: 95%


• No-load power consumption: 0.5 W


• Absorption charging voltage:



  • Normal: 14.4V


  • High: 14.7V


  • Li-ion: 14.2V






• Float charging voltage:



  • Normal: 13.8V


  • High: 13.8V


  • Li-ion: 13.5V






• Storage charging voltages:



  • Normal: 13.2V


  • High: 13.2V


  • Li-ion: 13.5V






• Charging current, normal mode: 25 A


• Charging current, low mode (LOW): 10 A


• Charging algorithm: 5-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: -30°C to +60°C (full power up to 40°C, 3% reduction for each °C above 40°C)


• Humidity: Up to 100%


• Abort Start Option (Si): Yes


• Short circuit resistance: Current limit to 0.5 A


• Output voltage: Maximum 1V lower than the main output


• Material and color: Aluminum (blue RAL 5012)


• Battery connection: Black and red cable, 1.5 meters long


• 230V AC connection: 1.5 metre cable with CEE 7/7 plug


• Protection category: IP67


• Libra: 2.4 kg


• Dimensions (H x W x D): 99 x 219 x 65 mm

The Victron Energy Blue Smart IP67 charger is a reliable solution for demanding users, ensuring high efficiency, safety and ease of use in all conditions.
