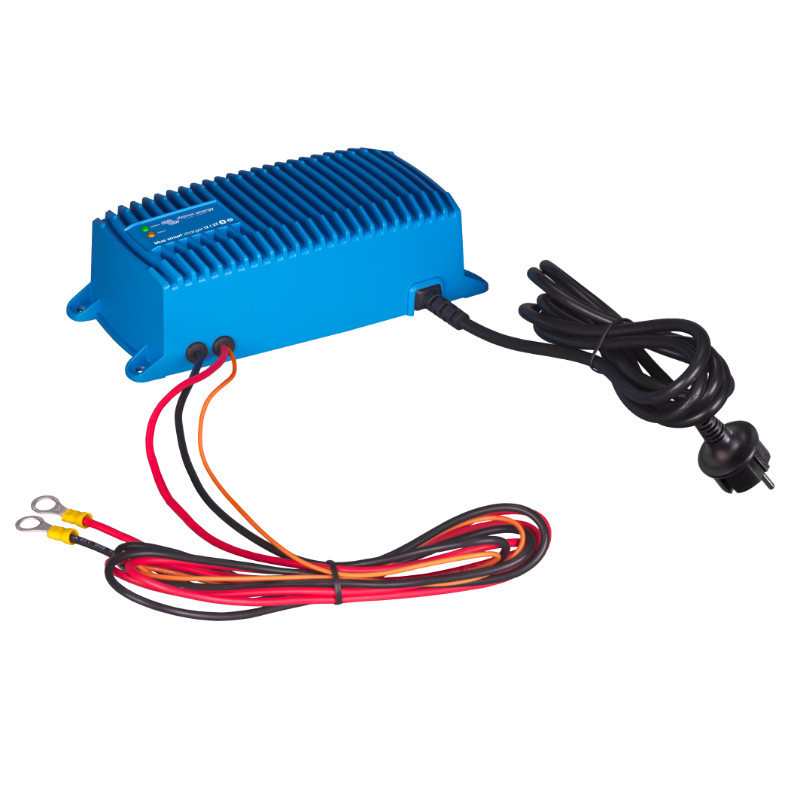

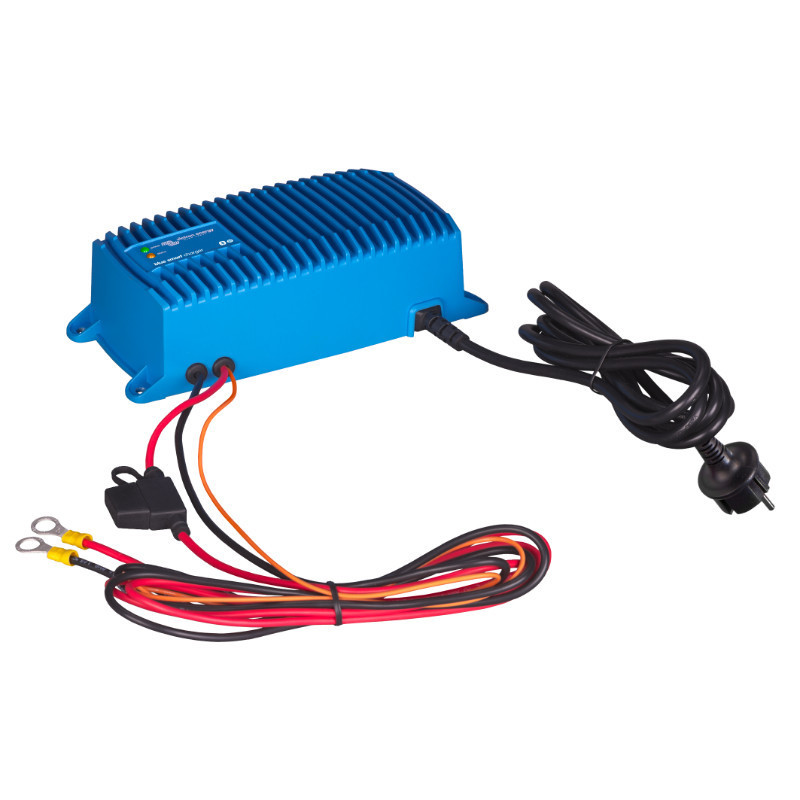

Blue Smart IP67 Charger 12/17 (1)

The Blue Smart IP67 12V/17A charger is an advanced device from Victron Energy that enables fast and efficient charging of 12V batteries with a charging current of 17A. Thanks to built-in Bluetooth technology, the charging process can be managed from a smartphone using the Victron Connect app. This modern tool is ideal for a variety of applications, such as motor vehicles, classic cars, motorcycles, and boats.

Remote management and control via application

The charger offers full remote management, allowing you to monitor and adjust charging parameters in real time. The Victron Connect app allows for easy setup, and Bluetooth ensures a reliable wireless connection.

Regeneration function for deeply discharged batteries

One of the charger's key features is its ability to recondition deeply discharged batteries. The charger uses a forced, low-current charge to gradually restore the battery to full capacity.

Intelligent charging and battery protection

The device uses a seven-stage charging algorithm that automatically adjusts the charging process based on the battery's condition. This means the charger maintains the battery in optimal condition, providing it with adequate power and extending its lifespan.

Efficiency and energy savings

The charger boasts a high energy efficiency of 95%, significantly reducing energy loss and minimizing heat generation. Once charging is complete, the device enters power saving mode, consuming less than 1 watt of energy.

Battery storage mode and maintenance

By lowering the float voltage, the storage mode significantly reduces the risk of corrosion and gassing of the battery plates, extending its lifespan. Once a week, the voltage is automatically increased to equalize the battery, preventing sulfation and electrolyte stratification.

Waterproof and durable construction

The charger's housing is designed for harsh environments. The fully enclosed, waterproof aluminum construction protects the device from water, dust, and oil. IP67 certification guarantees protection against spills and shocks, making the device ideal for outdoor use.

Compatibility with LiFePO4 batteries

The Blue Smart IP67 supports lithium iron phosphate (LiFePO4) batteries. Users can easily select the appropriate charging mode using the button on the housing, ensuring complete versatility and safety for use with various battery types.

Technical specifications:

• Model: Blue Power IP67 12V/17A


• Input voltage range and frequency: 180-265 VAC, 45-65 Hz


• Efficiency: 95%


• No-load power consumption: 0.5 W


• Absorption charging voltage:



  • Normal: 14.4V


  • High: 14.7V


  • Li-ion: 14.2V






• Float charging voltage:



  • Normal: 13.8V


  • High: 13.8V


  • Li-ion: 13.5V






• Charging voltage in the "storage" phase:



  • Normal: 13.2V


  • High: 13.2V


  • Li-ion: 13.5V






• Charging current, normal mode: 17 A


• Charging current, LOW: 6 A


• Loading algorithm: 5-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: -30°C to +60°C (full rated power up to 40°C, derating 3% for each °C above 40°C)


• Humidity: Up to 100%


• Start abort option (Si): Yes


• Short circuit resistance: Current limit 0.5 A


• Output voltage: Maximum 1V lower than the main output


• Material and color: Aluminum, blue (RAL 5012)


• Battery connection: Black and red cable, 1.5 m long


• 230 V AC connection: 1.5 m cable with CEE 7/7 plug


• Protection category: IP67


• Libra: 2.4 kg


• Dimensions (H x W x D): 99 x 219 x 65 mm

The Blue Smart IP67 12V/17A charger from Victron Energy is an advanced device for charging 12V batteries with a high output of 17A. Remotely controlled via smartphone using the Victron Connect app, it offers full control over the charging process thanks to Bluetooth technology. Equipped with a regeneration function for deeply discharged batteries, it automatically adjusts the charging process using a seven-stage algorithm, maximizing efficiency and extending battery life. The charger features a waterproof and durable housing that meets IP67 standards, making it ideal for use in harsh environments.
