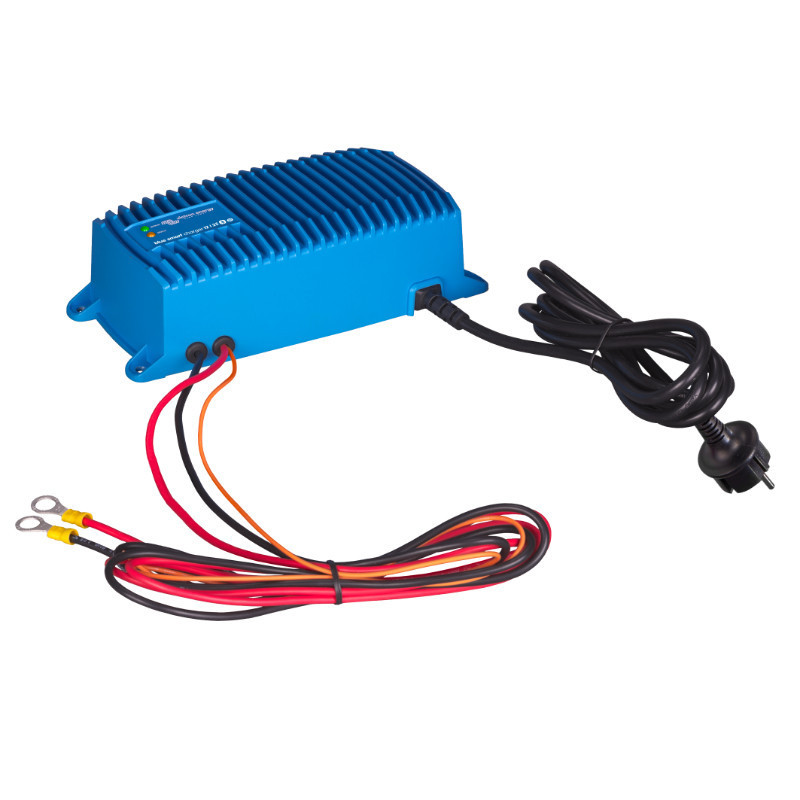

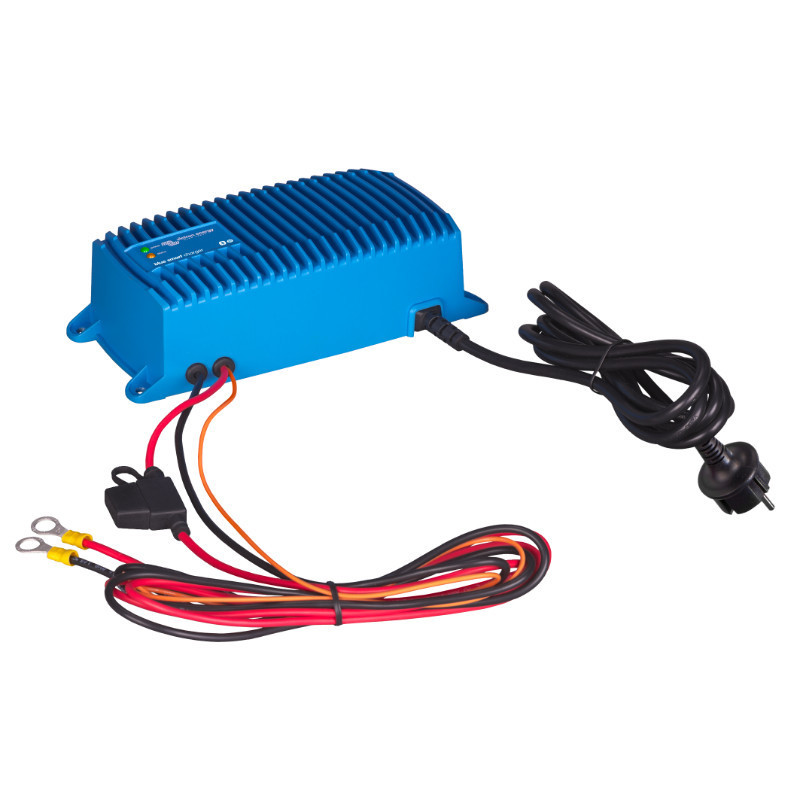

Blue Smart IP67 Charger 12/13 (1)

The Victron Energy Blue Smart IP67 12V/13A charger is an advanced device designed for charging 12V batteries. It offers full control from your smartphone thanks to built-in Bluetooth technology. Its durable, waterproof design and exceptional energy efficiency make it ideal for use in a variety of environments, both in workshops and in vehicles such as cars, motorcycles, and boats.

Remote management and intelligent features

With the Victron Connect app, users can remotely monitor and manage the charging process, allowing for precise adjustments to the battery's needs. A seven-stage charging algorithm optimizes the process, ensuring optimal results and extending battery life.

Regeneration of deeply discharged batteries

The Victron Energy charger can recharge batteries that other devices would consider faulty, restoring them to full working order. This feature gently delivers a low-intensity current, allowing even deeply discharged batteries to be safely charged.

High efficiency and energy savings

With 93% efficiency, the Blue Smart IP67 generates minimal heat during operation, resulting in lower energy consumption and better battery protection. Once charging is complete, the device enters power saving mode, consuming less than one watt of energy.

Storage mode

The charger automatically switches to storage mode when the battery is left unused for an extended period. Reducing the float voltage minimizes the risk of corrosion and plate gassing, while regular voltage boosts prevent electrolyte stratification and sulfation.

Waterproof and durable construction

The charger's housing is made of durable aluminum, and all electronics are sealed against water, dust, and oil, making the device ideally suited for use in harsh environments. Meeting the IP67 standard, the charger is splash- and shock-resistant, making it a reliable solution for outdoor use.

Compatibility with LiFePO4 batteries

The charger supports lithium iron phosphate (LiFePO4) batteries, allowing the user to quickly switch to the appropriate charging mode by pressing a button on the housing.

Technical specifications:

• Model: Blue Power IP67 Charger 12V/13A


• Input voltage range and frequency: 180-265 VAC, 45-65 Hz


• Efficiency: 93%


• No-load power consumption: 0.5 W


• Absorption charging voltage:



  • Normal: 14.4V


  • High: 14.7V


  • Li-ion: 14.2V






• Float charging voltage:



  • Normal: 13.8V


  • High: 13.8V


  • Li-ion: 13.5V






• Charging voltage in the "storage" phase:



  • Normal: 13.2V


  • High: 13.2V


  • Li-ion: 13.5V






• Charging current (normal mode): 13 A


• Charging current (low mode): 4 A


• Loading algorithm: 5-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: -30°C to +60°C (full rated power up to 40°C, derating 3% for each °C above 40°C)


• Humidity: Up to 100%


• Start abort option (Si): Yes


• Short circuit resistance: Current limit 0.5 A


• Output voltage: Maximum 1V lower than the main output


• Material and color: Aluminum, blue (RAL 5012)


• Battery connection: Black and red cable, 1.5 m long


• 230 V AC connection: 1.5 m cable with CEE 7/7 plug


• Protection category: IP67


• Libra: 1.8 kg


• Dimensions (H x W x D): 85 x 211 x 60 mm

The Blue Smart IP67 12V/13A charger is the perfect choice for users looking for a durable, efficient and easy-to-use solution for charging batteries in harsh conditions.
