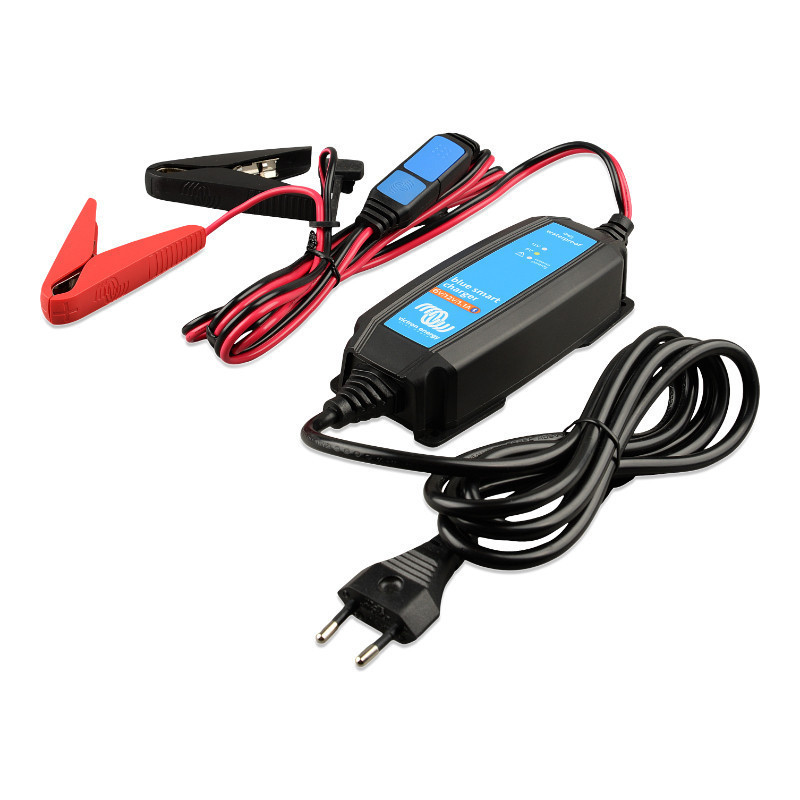

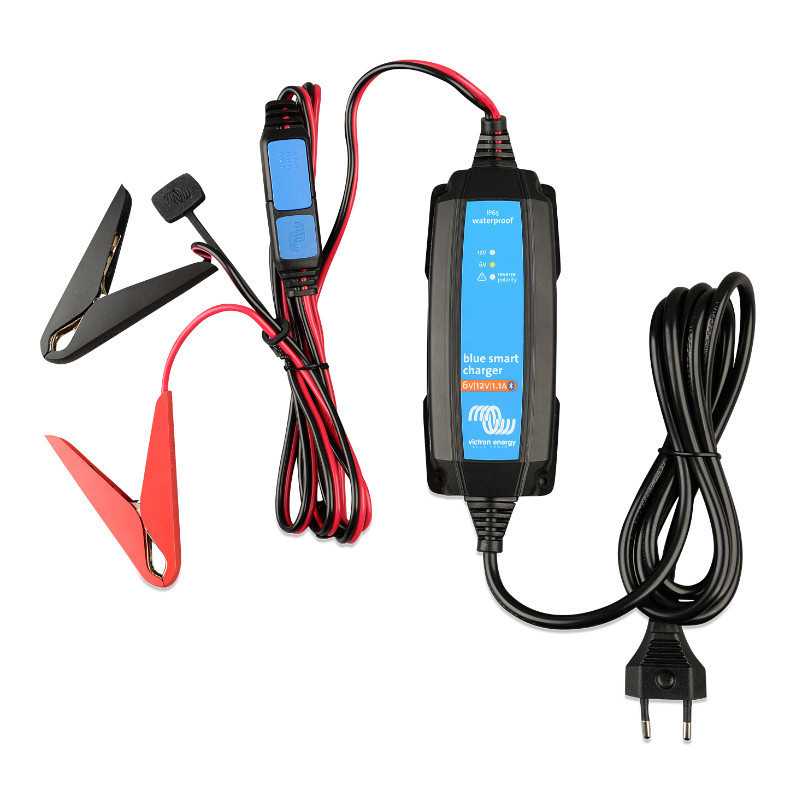

Blue Smart IP65 Charger 6V / 12V-1.1 + DC connector

companies Victron Energy is an advanced solution for users looking for a smart way to charge batteries. Thanks to integrated Bluetooth technology and full app management, Victron Connect, charging batteries has never been so simple and effective. The set includes alligator clips, and thanks to the built-in DC connector, users can freely connect their devices without worrying about compatibility.
This charger is ideal for 6V and 12V batteries, offering a charging current of 1.1A This tool is designed for versatility, from charging classic vehicles to more demanding applications like boats, motorcycles, and RVs. Victron Energy also took care of the simplicity of use by adding M8 connectors for convenient installation, which allows for long-term battery connection without the need for frequent disconnection.

Innovative Features of the Blue Smart IP65 Charger

Thanks seven-stage charging algorithm, charger Blue Smart IP65 ensures not only optimal battery performance but also extends its lifespan. The device analyzes the battery condition and selects the appropriate power, minimizing the risk of damage and improving operating efficiency. Furthermore, storage mode is especially helpful when the battery is not used for a long time - the automatic reduction of the backup voltage prevents unfavorable processes such as gassing or plate corrosion. This function is especially important for those who want to keep the battery in good condition for years.
Another advantage is the possibility of recovery deeply discharged batteries, which sets this charger apart from others available on the market. This feature allows you to revive batteries that other chargers would consider permanently damaged. This makes Blue Smart IP65 is not only a smart device, but also a rescue tool in emergency situations.

Energy Efficiency and Battery Protection

Performance at the level 82% and low energy consumption in standby mode (only 0.5W ) are some of the key features of this charger. This means minimal heat is generated during charging, which positively impacts the device's lifespan. When the battery is fully charged, Blue Smart IP65 switches to the minimum power consumption mode, which makes it one of the most energy-efficient devices in its class.
In addition, the charger is equipped with overheating protection function - If the device temperature exceeds a certain level, the output current will automatically be reduced, ensuring safe and stable charging even in extreme conditions. Additionally, thanks to compatibility with lithium iron phosphate (LiFePO4) batteries, Blue Smart IP65 becomes the ideal choice for a wide range of users.

Technical specifications

• Model: Blue Smart Charger 6V/12V - 1.1A


• Input voltage range and frequency: 100 - 250 VAC | 45 - 65 Hz


• Efficiency: 82%


• Power consumption in standby mode: 0.5 W


• Minimum battery voltage: Starts charging with voltage dropping down to 0V


• Charging voltage "absorption":



  • Normal: 7.2V | 14.4V


  • High: 7.35V | 14.7V


  • Li-ion: 7.1V | 14.2V






• "Buffering" the charging voltage:



  • Normal: 6.9V | 13.8V


  • High: 6.9V | 13.8V


  • Li-ion: Disabled






• Charging voltage in the "storage" phase:



  • Normal: 6.6V | 13.2V


  • High: 6.6V | 13.2V


  • Li-ion: 6.75V | 13.5V






• Charging current: 1.1 A


• Low current mode: 0.5 A


• Temperature compensation (lead-acid batteries only): 8 mV/°C | 16 mV/°C


• Power supply mode: Yes


• Reverse current discharge: 0.1 Ah/month (140 µA)


• Security: Reverse polarity, output short circuit, over temperature


• Operating temperature range: from -30 to +50 °C (full rated capacity up to 30 °C)


• Humidity (non-condensing): Max 95%


• Loading algorithm: Intelligent, 7-step


• Bluetooth: -4 dBm, 2402 - 2480 MHz


• Battery connection: 1.5 m black and red cable


• Power connection: 1.5-metre cable with CEE 7/16 or AS/NZS 3112 plug


• Protection category: IP65 (splash and dust proof)


• Libra: 0.4 kg


• Dimensions (H x W x D): 38 x 64 x 153 mm

This advanced tool is designed for demanding users, offering full smartphone control and an intelligent charging algorithm that ensures battery longevity and efficiency. High performance, low energy consumption, and the ability to operate in harsh environments make it ideal for both professional and everyday use. With its protection features and compatibility with a variety of battery types, this charger is an invaluable addition to any garage or workshop.
