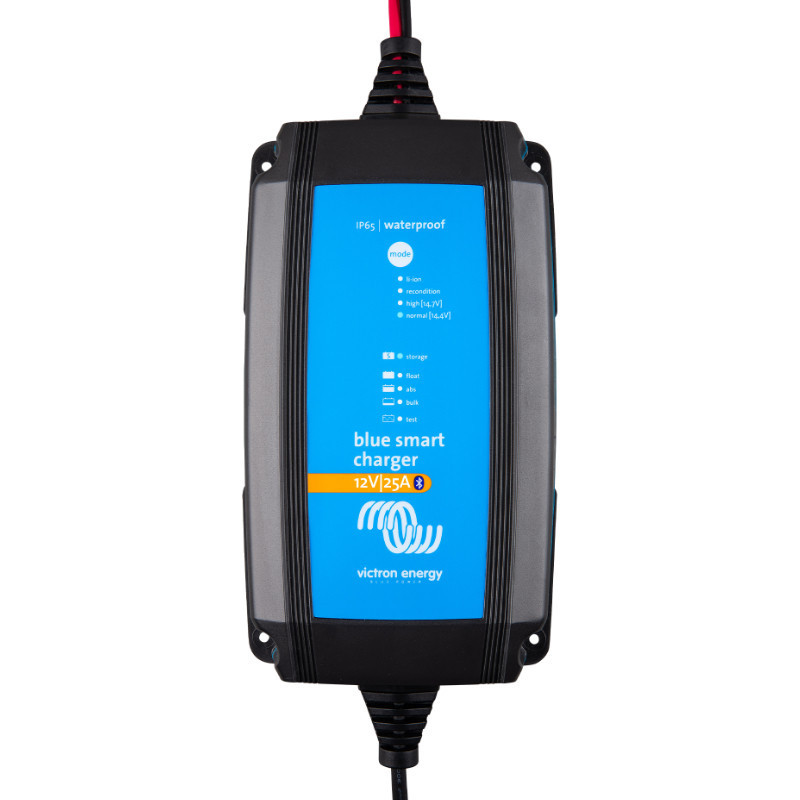

Blue Smart IP65 Charger 12/25 + DC connector

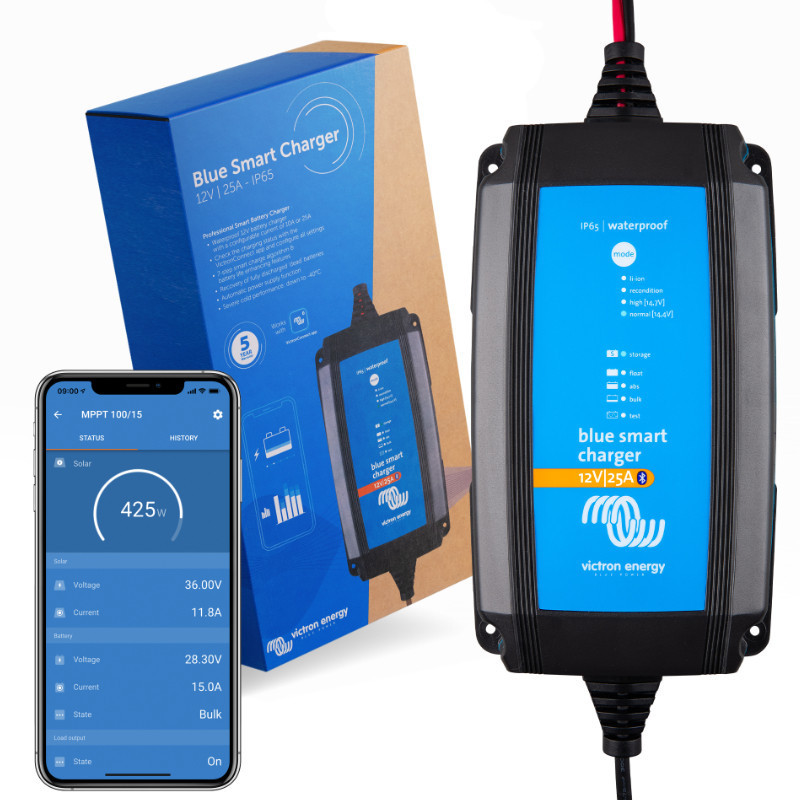

The Victron Energy Blue Smart IP65 12V/25A charger is an advanced battery charger that delivers maximum performance while remaining easy to use. Thanks to the built-in Bluetooth interface, you can remotely monitor and manage the charging process using the Victron Connect app. This modern solution is ideal for motor vehicles, workshops, and boats, ensuring reliable operation in a variety of conditions.

Intelligent charging system

The Blue Smart IP65 charger uses a seven-stage charging algorithm that automatically adjusts charging parameters to optimize battery performance. This algorithm ensures longer battery life by keeping it in ideal operating condition for longer.

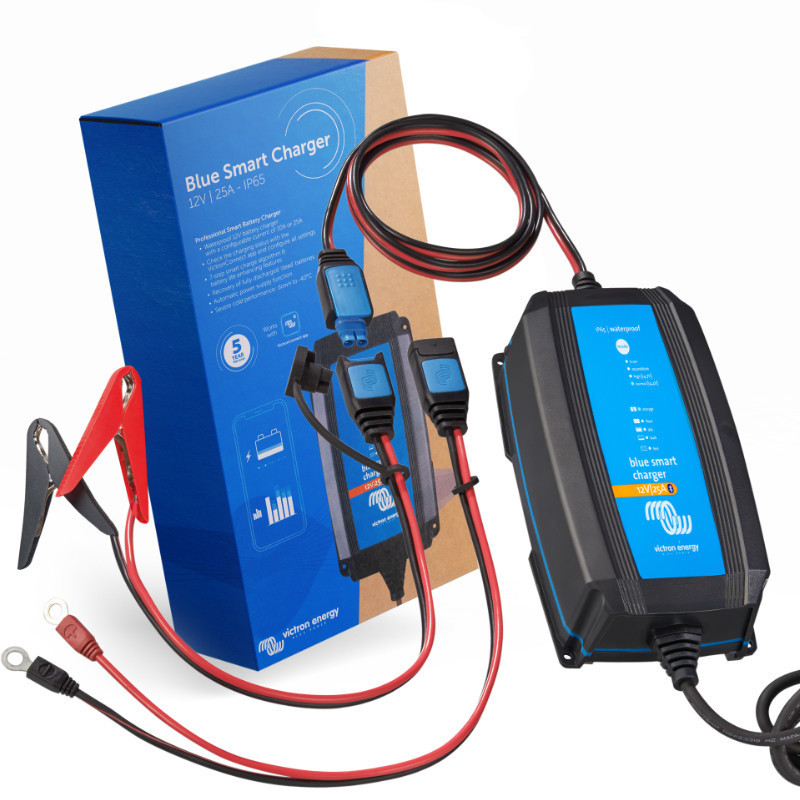

M8 alligator clips and eyelets

The included alligator clips and M8 eyelet terminals make connecting the charger to the battery quick and easy. The battery can also be left permanently connected, which is useful for long-term use in workshops or other environments.

Storage mode

The charger automatically enters storage mode after 24 hours of inactivity, minimizing the risk of battery plate corrosion and sulfation. Once a week, the voltage is increased to the absorption level, protecting the battery from electrolyte stratification and extending its life.

Regeneration function for deeply discharged batteries

The Blue Smart IP65 can revive deeply discharged batteries. Many other chargers would struggle to cope, but this charger works to revive them with a precisely controlled charging process.

Overheating protection

High temperatures don't shut down the device; instead, the charger automatically reduces the output current to prevent damage. This solution ensures longer operation without the risk of overheating and component damage.

Compatibility with LiFePO4 batteries

Lithium iron phosphate (LiFePO4) battery support allows for a wide range of applications. Simply use the button on the housing to select the appropriate mode for your battery type.

Technical specifications:

• Model: Blue Smart Charger 12V/25A


• Input voltage range and frequency: 230 VAC


• Efficiency: 94%


• Power consumption in standby mode: 0.5 W


• Minimum battery voltage: Starts charging when voltage drops to 0V


• Absorption charging voltage:



  • Normal: 14.4V


  • High: 14.7V


  • Li-ion: 14.2 V






• Charging voltage "buffering":



  • Normal: 13.8V


  • High: 13.8V


  • Li-ion: 13.5V






• Charging voltage in the "storage" phase:



  • Normal: 13.2V


  • High: 13.2V


  • Li-ion: 13.5V






• Charging current: 25 A


• Low current mode: 10 A


• Temperature compensation: 16 mV/ºC (for lead-acid batteries only)


• Power supply mode: Yes


• Reverse current discharge: 0.7 Ah/month (1 mA)


• Security: Reverse polarity, output short circuit, over temperature


• Operating temperature range: From -40°C to +60°C (full performance up to 30°C, cable flexibility at low temperatures)


• Humidity (non-condensing): Max 95%


• Loading algorithm: Intelligent, 7-step


• Bluetooth: -4 dBm, 2402 - 2480 MHz


• Battery connection: 1.5 meter black and red cable


• 230 VAC power connection: 1.5 metre cable with CE 7/16, CE 7/17, BS 1363 (UK) or AS/NZS 3112 plug


• Protection category: IP65 (splash and dust proof)


• Libra: 1.9 kg


• Dimensions: 75 x 140 x 240 mm

The Victron Energy Blue Smart IP65 12V/25A charger offers advanced battery management and protection features, making it the ideal solution for those looking for a reliable, intelligent and safe charging device.
