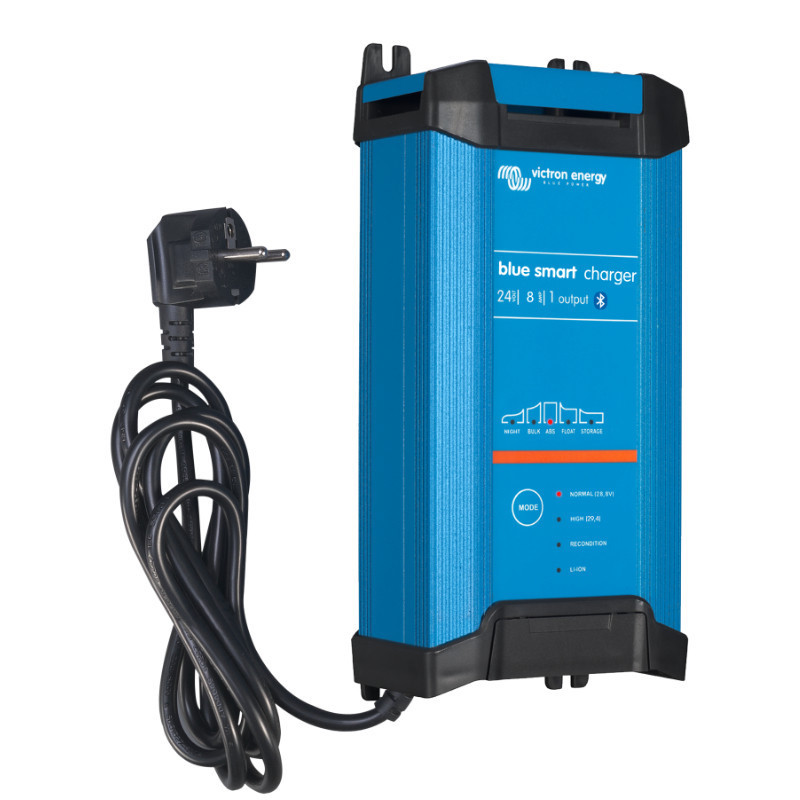

Blue Smart IP22 Charger 24/8 (1)

Charger Blue Smart IP22 24V/8A from Victron Energy is a modern device designed for efficient charging of 24V batteries. Thanks to Bluetooth technology, users can manage the charging process remotely using an app. Victron Connect, which provides convenient control over the device.

High energy efficiency

The charger achieves an impressive 94% efficiency, significantly reducing heat loss during operation. Once charging is complete, the device consumes just 0.5W of energy, making it exceptionally economical and effective for long-term use.

Advanced charging technology

Equipped with a six-stage charging algorithm, the charger Blue Smart IP22 automatically adjusts the charging process to the current battery condition, ensuring optimal charging and extending battery life. The adaptive function dynamically responds to user needs, offering precise charging management.

Protection and security

The device offers numerous protective features, such as reverse polarity protection, short circuit protection, and overheating protection, which enhances user safety. If the temperature rises too high, the charging current automatically reduces to prevent component overheating.

Solid construction

The compact, durable housing is crafted from blue aluminum (RAL 5012) for durability and protection against dust and moisture. The IP22 rating ensures resistance to light splashes, making the charger suitable for both indoor and outdoor use.

Technical specifications:

• Input voltage range: 180 - 265 VAC


• Charging current (normal mode): 8 A


• Charging current (NIGHT/LOW mode): 4 A


• Efficiency: 94%


• No-load power consumption: 0.5 W


• Frequency: 45 - 65 Hz


• Number of outputs: 1


• Absorption charging voltage:



  • Normal: 28.8V


  • High: 29.4V


  • Li-ion: 28.4 V






• Float charging voltage:



  • Normal: 27.6V


  • High: 27.6V


  • Li-ion: 27.0 V






• Storage charging voltage:



  • Normal: 26.4 V


  • High: 26.4V


  • Li-ion: 27.0 V






• Charging algorithm: 6-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: -40 to +60°C (full rated power up to 40°C)


• Humidity (non-condensing): Max 98%


• Material and color: Aluminum (blue RAL 5012)


• Battery connection: Screw terminals 16 mm² / AWG6


• 230 VAC connection: 1.5 metre cable with CEE 7/7, BS 1363 (UK) or AS/NZS 3112 (AU/NZ) plug


• Protection category: IP22


• Libra: 1.3 kg


• Dimensions (H x W x D): 235 x 108 x 65 mm

Charger Blue Smart IP22 24V/8A is an ideal solution for users who expect high performance, safe operation and remote control of battery charging.
