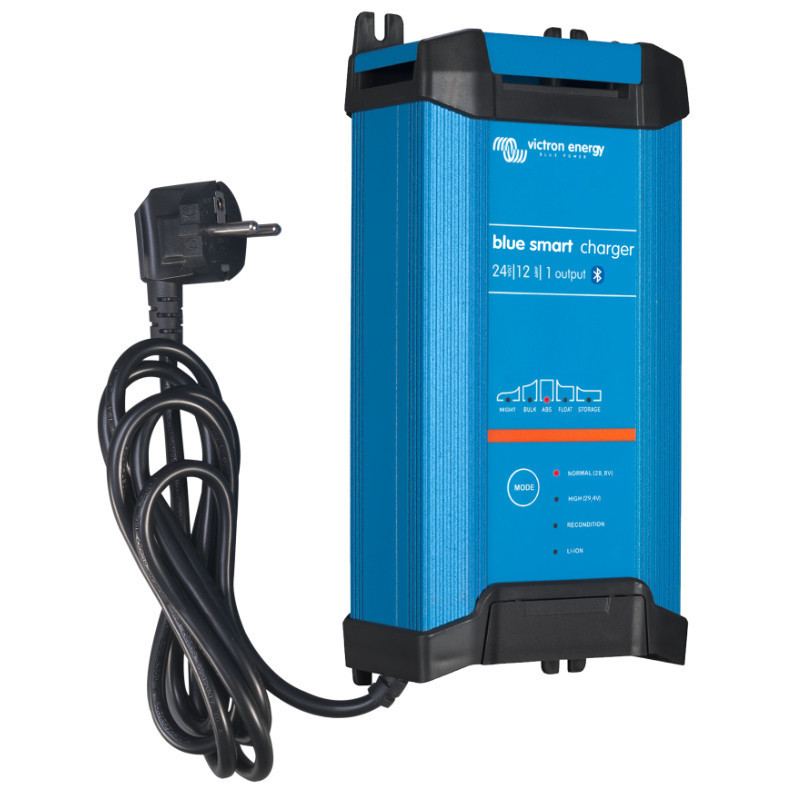

Blue Smart IP22 Charger 24/12 (1)

Charger Blue Smart IP22 24V/12A (1) Victron Energy is an advanced device designed to charge 24V batteries with a current of 12A. The device is equipped with a Bluetooth interface, allowing full control and monitoring of charging parameters via an app. Victron Connect from your smartphone.

Reliable and efficient

Thanks to its high efficiency of 94%, the charger minimizes energy loss, which helps reduce heat generation. Once charging is complete, power consumption drops to a minimum of 0.5W, resulting in low energy consumption.

Intelligent charging management

The charger uses a 6-stage charging algorithm that dynamically adapts to the battery's condition, ensuring optimal charging and extending its life. Microprocessor control enables precise monitoring of all charging stages, and the adaptive function automatically adjusts the process to the specific battery usage.

Safety and security

The charger is equipped with advanced safety features that protect your device from potential damage. Reverse polarity, short circuit, and overload protection ensure the safety of both the battery and the charger. Additionally, if the temperature increases, the charging current automatically reduces to prevent overheating.

Solid construction for versatile use

The charger's housing is made of durable blue aluminum (RAL 5012), providing resistance to dust and moisture. Its IP22 rating means the device is protected against water droplets and dust, allowing for use both indoors and in harsh outdoor conditions.

Technical specifications:

• Input voltage range: 180 - 265 VAC


• Charging current (normal mode): 12 A


• Charging current (NIGHT/LOW mode): 6 A


• Efficiency: 94%


• No-load power consumption: 0.5 W


• Frequency: 45 - 65 Hz


• Number of outputs: 1


• Absorption charging voltage:



  • Normal: 28.8V


  • High: 29.4V


  • Li-ion: 28.4 V






• Float charging voltage:



  • Normal: 27.6V


  • High: 27.6V


  • Li-ion: 27.0 V






• Storage charging voltage:



  • Normal: 26.4 V


  • High: 26.4V


  • Li-ion: 27.0 V






• Charging algorithm: 6-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: -40 to +60°C (full rated power up to 40°C)


• Humidity (non-condensing): Max 98%


• Material and color: Aluminum (blue RAL 5012)


• Battery connection: Screw terminals 16 mm² / AWG6


• 230 VAC connection: 1.5 metre cable with CEE 7/7, BS 1363 (UK) or AS/NZS 3112 (AU/NZ) plug


• Protection category: IP22


• Libra: 1.3 kg


• Dimensions (H x W x D): 235 x 108 x 65 mm

Charger Blue Smart IP22 24V/12A (1) is the perfect solution for professional battery charging, ensuring a high level of control and safety.
