Blue Smart IP22 Charger 12/30 (1)

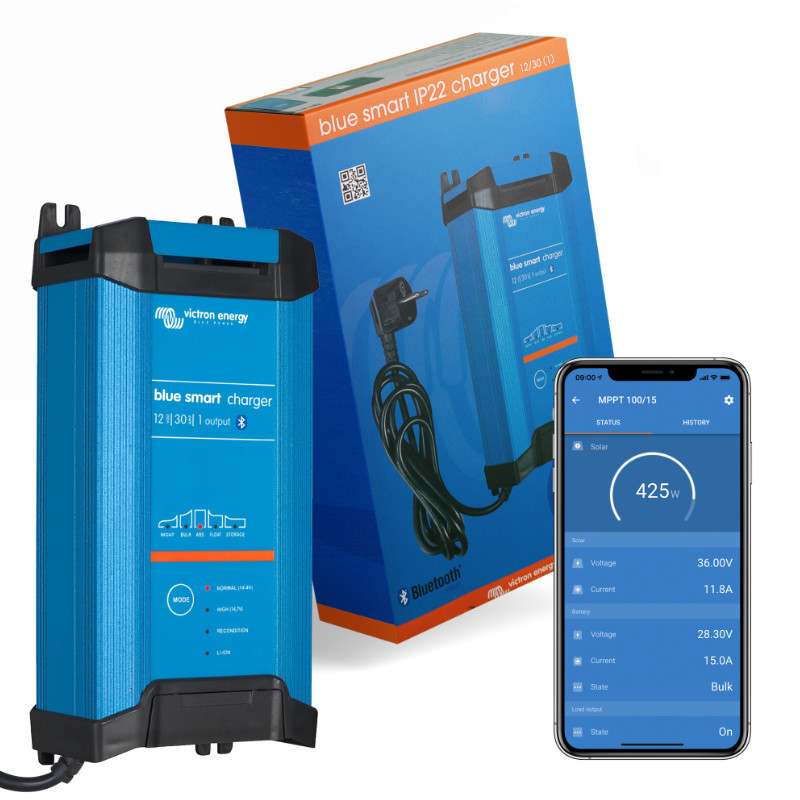

Charger Blue Smart IP22 12V/30A Victron Energy is a modern solution for charging 12V batteries, offering a charging current of 30A. The device is equipped with advanced technologies that not only increase its efficiency but also enable remote management via an app. Victron Connect Thanks to the built-in Bluetooth interface, all settings and parameters can be controlled wirelessly via smartphone, ensuring complete convenience of use.

Highest efficiency and energy savings

Blue Smart IP22 achieves an efficiency of 93%, which significantly reduces energy loss in the form of heat, and after a full battery charge, power consumption drops to just 0.5 W. This efficiency makes the device one of the most economical solutions on the market, reducing energy consumption by up to 75% compared to other chargers.

Smart charging with adaptive algorithm

The charger uses an advanced, six-stage charging algorithm that automatically adjusts the operating mode based on the battery's condition and usage. This optimizes the charging process, resulting in longer battery life and improved performance.

Top-level security

Operational safety is ensured by a range of built-in protection features. The charger features reverse polarity protection, output short circuit protection, and overheating protection. This protects both the device and the connected batteries from damage, significantly increasing its reliability in harsh environments.

Versatile use and durable construction

The Blue Smart IP22 charger is an excellent choice for use in vehicles, workshops, or boats, offering high resistance to harsh environmental conditions. Its housing is made of durable aluminum in a blue (RAL 5012) color and provides an IP22 rating, meaning the device is resistant to dust and water droplets.

Technical specifications:

• Input voltage range: 180 - 265 VAC


• Charging current (normal mode): 30 A


• Charging current (NIGHT or LOW mode): 15 A


• Efficiency: 93%


• No-load power consumption: 0.5 W


• Frequency: 45 - 65 Hz


• Number of outputs: 1


• Absorption charging voltage:



  • Normal: 14.4V


  • High: 14.7V


  • Li-ion: 14.2 V






• Float charging voltage:



  • Normal: 13.8V


  • High: 13.8V


  • Li-ion: 13.5V






• Storage charging voltage:



  • Normal: 13.2 V


  • High: 13.2V


  • Li-ion: 13.5V






• Charging algorithm: 6-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: -40 to +60 °C (full rated power up to 40 °C)


• Humidity (non-condensing): Max 98%


• Material and color: Aluminum (blue RAL 5012)

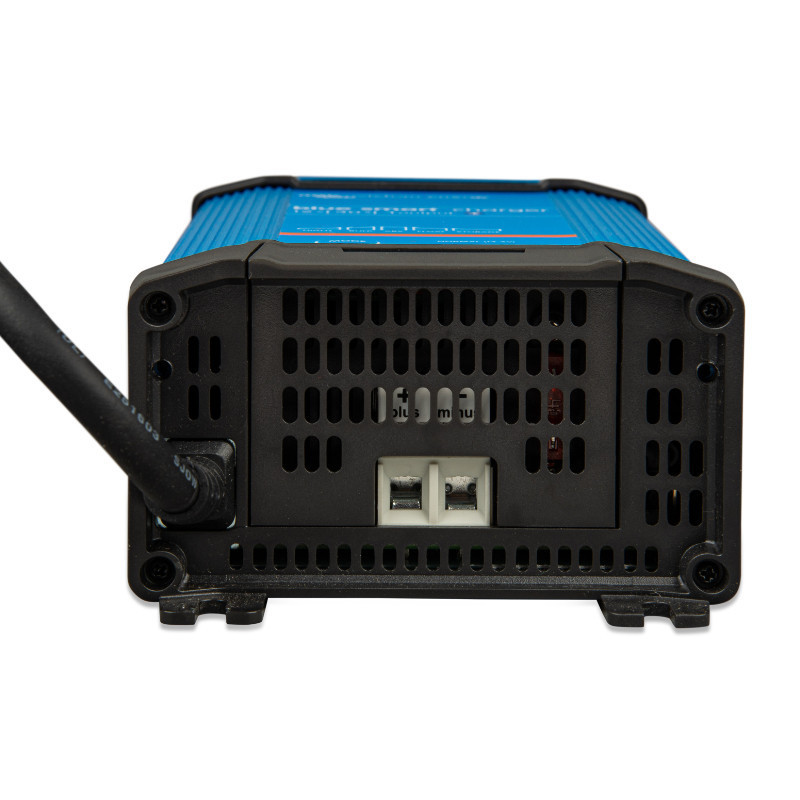

• Battery connection: Screw terminals 16 mm² / AWG6


• 230 VAC connection: 1.5 metre cable with CEE 7/7, BS 1363 (UK) or AS/NZS 3112 (AU/NZ) plug


• Protection category: IP22


• Libra: 1.3 kg


• Dimensions (H x W x D): 235 x 108 x 65 mm

This versatile device not only provides reliable charging, but also safety and energy savings, making it an ideal choice for a wide range of applications.
