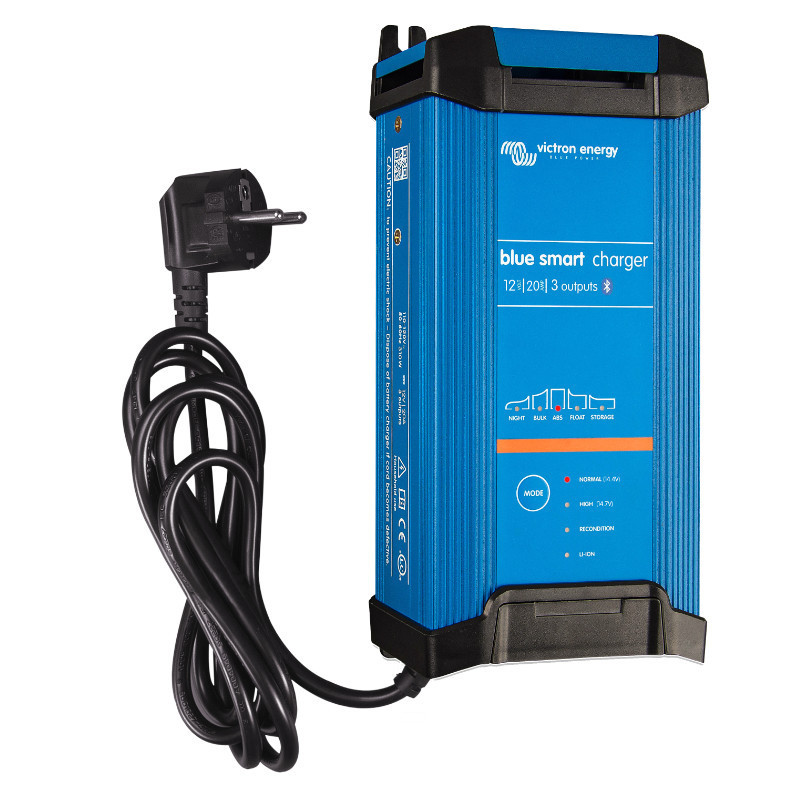

Blue Smart IP22 Charger 12/20 (3)

Charger Blue Smart IP22 12V/20A (3 outputs) Victron Energy is an advanced device that allows for the simultaneous charging of three 12V batteries with a charging current of 20A. Thanks to integration with Bluetooth technology, the user can remotely monitor and control the charging process using an app. Victron Connect, which gives you full control over the device from your phone.

Optimal efficiency and low energy consumption

With an efficiency of 93%, the charger generates minimal energy loss in the form of heat, increasing its efficiency. Once the battery is fully charged, power consumption drops to just 0.5W, making it exceptionally energy-efficient.

Intelligent charging management

The advanced six-stage charging algorithm automatically adapts to the battery's condition, ensuring longer battery life and better performance. The adaptive function also enables optimal charging for a variety of battery types, including LiFePO4 Microprocessor control ensures complete precision at every stage of charging.

Safety at the highest level

The charger has built-in safety features that protect both the device and the batteries from potential damage. Reverse polarity, short circuit, and overheating protection ensure reliable operation in all conditions. If the temperature rises, the charging current automatically reduces to prevent overheating.

Solid construction and weather resistance

The housing is made of durable blue aluminum (RAL 5012) and provides protection against dust and moisture, while the IP22 rating makes the charger resistant to water drops and other adverse external factors. This makes the charger ideal for indoor and outdoor use in harsh environments.

Technical specifications:

• Input voltage range: 180 - 265 VAC


• Charging current (normal mode): 20 A


• Charging current (NIGHT/LOW mode): 10 A


• Efficiency: 93%


• No-load power consumption: 0.5 W


• Frequency: 45 - 65 Hz


• Number of outputs: 3


• Absorption charging voltage:



  • Normal: 14.4V


  • High: 14.7V


  • Li-ion: 14.2 V






• Float charging voltage:



  • Normal: 13.8V


  • High: 13.8V


  • Li-ion: 13.5V






• Storage charging voltage:



  • Normal: 13.2 V


  • High: 13.2V


  • Li-ion: 13.5V






• Charging algorithm: 6-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: -40 to +60 °C (full rated power up to 40 °C)


• Humidity (non-condensing): Max 98%


• Material and color: Aluminum (blue RAL 5012)


• Battery connection: Screw terminals 16 mm² / AWG6


• 230 VAC connection: 1.5 metre cable with CEE 7/7, BS 1363 (UK) or AS/NZS 3112 (AU/NZ) plug


• Protection category: IP22


• Libra: 1.3 kg


• Dimensions (H x W x D): 235 x 108 x 65 mm

Charger Blue Smart IP22 12V/20A (3 outputs) is the perfect solution for charging three batteries simultaneously, offering advanced management features and exceptional reliability in all conditions.
