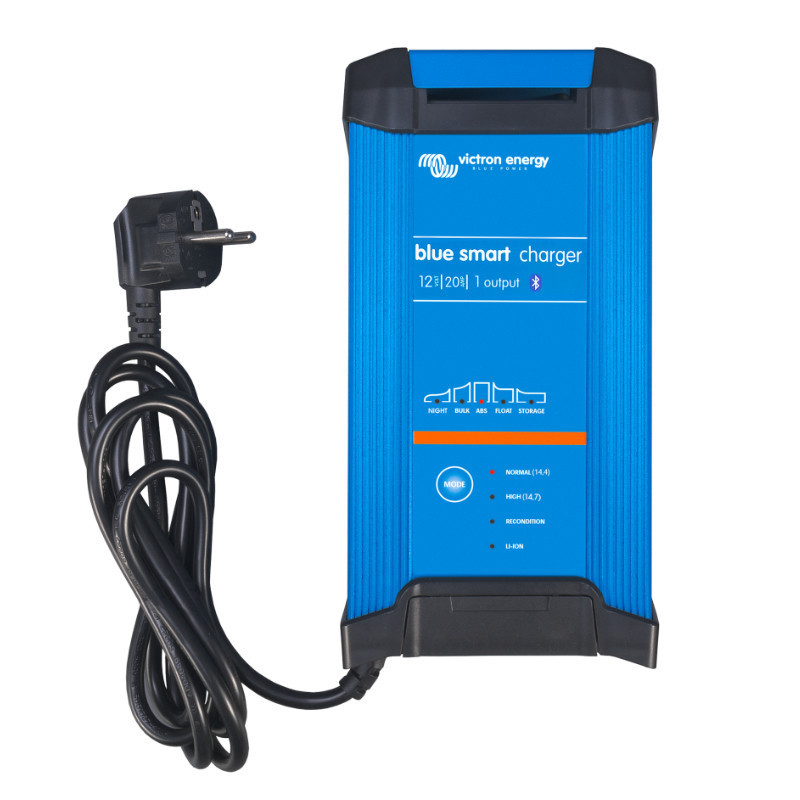

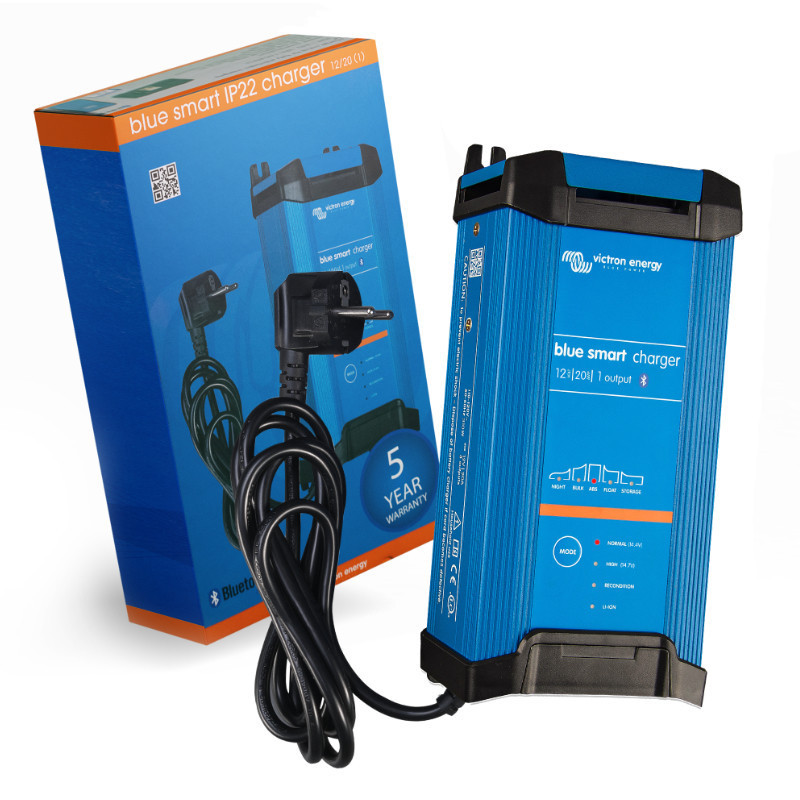

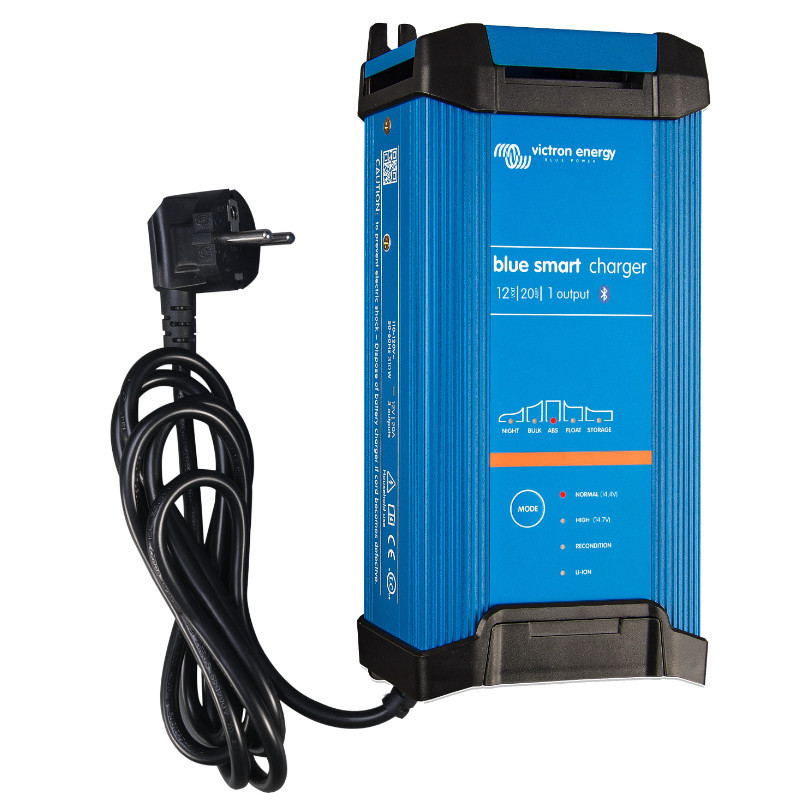

Blue Smart IP22 Charger 12/20 (1)

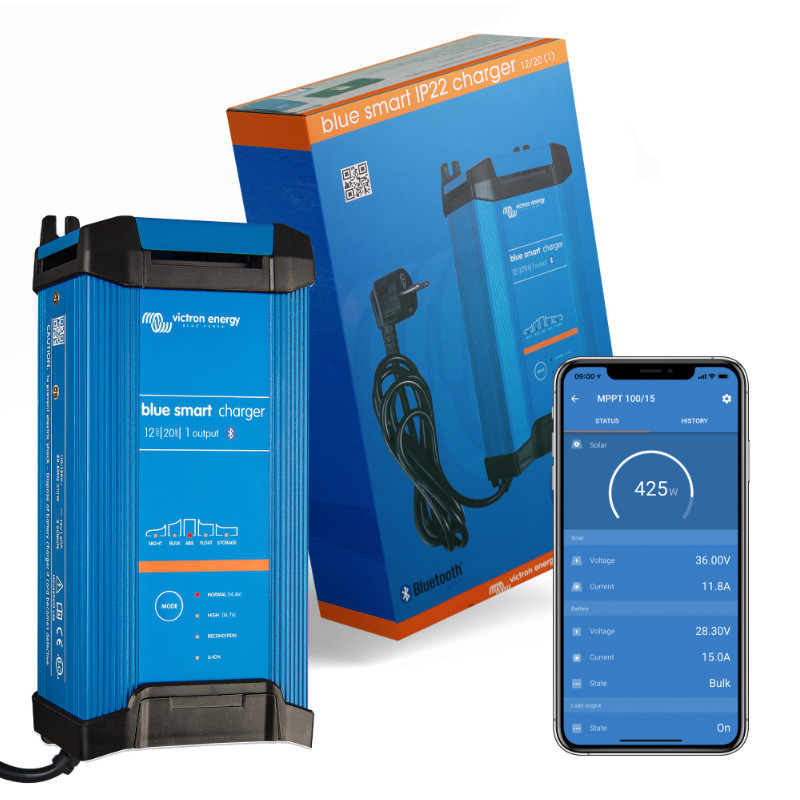

Charger Blue Smart IP22 12V/20A from Victron Energy is an advanced device dedicated to charging 12V batteries, with the ability to deliver a maximum current of 20A. Thanks to Bluetooth technology support, users can manage the charging process from their smartphone using an app. Victron Connect This modern solution provides full control over the charger without the need for direct access to the device.

Efficiency and energy savings

Designed for maximum efficiency, the charger Blue Smart IP22 achieves 93% efficiency. This means it generates less heat than standard devices, which translates into longer component life. Additionally, once the battery is fully charged, power consumption drops to a minimum of 0.5W.

Intelligent charging management

The device is equipped with a six-stage charging algorithm that dynamically adjusts the charging process to the battery's condition. Adaptive charging management makes the process more efficient, allowing for longer and more reliable battery life. The algorithm automatically optimizes all charging stages.

Security and durability

It offers comprehensive protection against reverse polarity, output short circuit, and overheating. This means users can be confident that the battery and charger are adequately protected from unexpected events. Furthermore, the device is resistant to moisture and dust, making it suitable for use in a variety of environments.

Application in various conditions

The charger's compact and robust design, made of blue aluminum (RAL 5012), is perfectly protected against external damage. With an IP22 rating, the device is resistant to external factors such as water droplets and dust. This makes it ideal for both indoor and outdoor use.

Technical specifications:

• Input voltage range: 180 - 265 VAC


• Charging current (normal mode): 20 A


• Charging current (NIGHT/LOW mode): 10 A


• Efficiency: 93%


• No-load power consumption: 0.5 W


• Frequency: 45 - 65 Hz


• Number of outputs: 1


• Charging voltage (absorption):



  • Normal: 14.4V


  • High: 14.7V


  • Li-ion: 14.2 V






• Charging voltage (float):



  • Normal: 13.8V


  • High: 13.8V


  • Li-ion: 13.5V






• Charging voltage (storage):



  • Normal: 13.2 V


  • High: 13.2V


  • Li-ion: 13.5V






• Charging algorithm: 6-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: -40 to +60 °C (full rated power up to 40 °C)


• Humidity (non-condensing): Max 98%


• Material and color: Aluminum (blue RAL 5012)


• Battery connection: Screw terminals 16 mm² / AWG6


• 230 VAC connection: 1.5 metre cable with CEE 7/7, BS 1363 (UK) or AS/NZS 3112 (AU/NZ) plug


• Protection category: IP22


• Libra: 1.3 kg


• Dimensions (H x W x D): 235 x 108 x 65 mm

Charger Blue Smart IP22 12V/20A combines modern technology and advanced functionality, ensuring reliable battery charging in all conditions.
