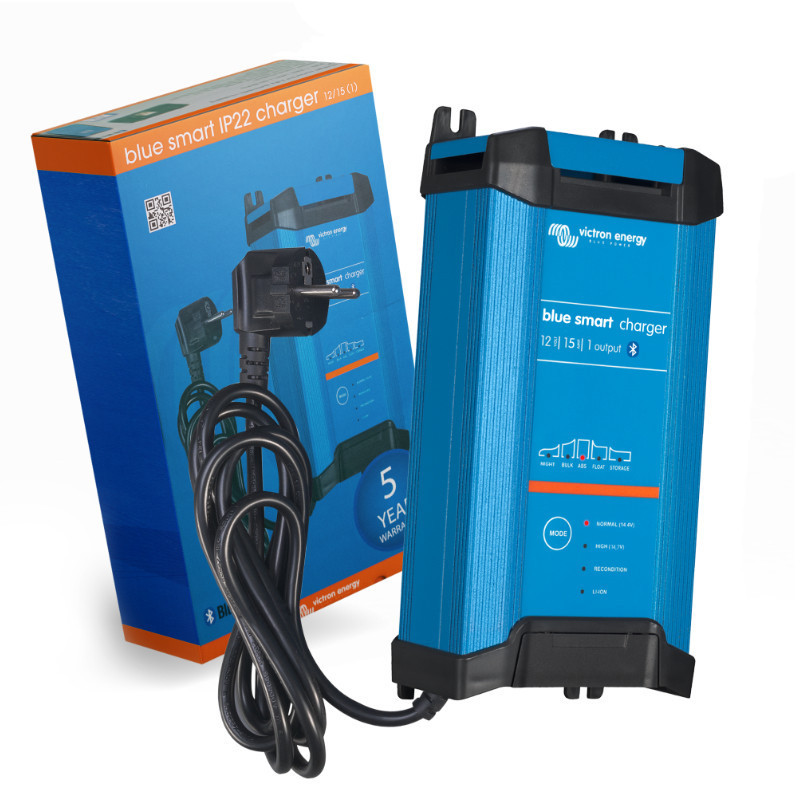

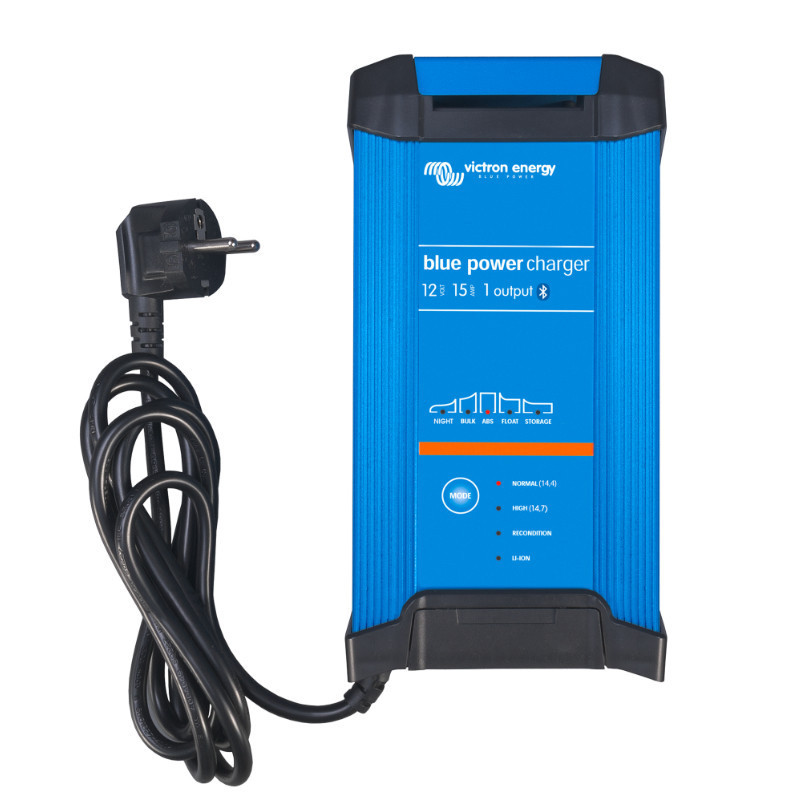

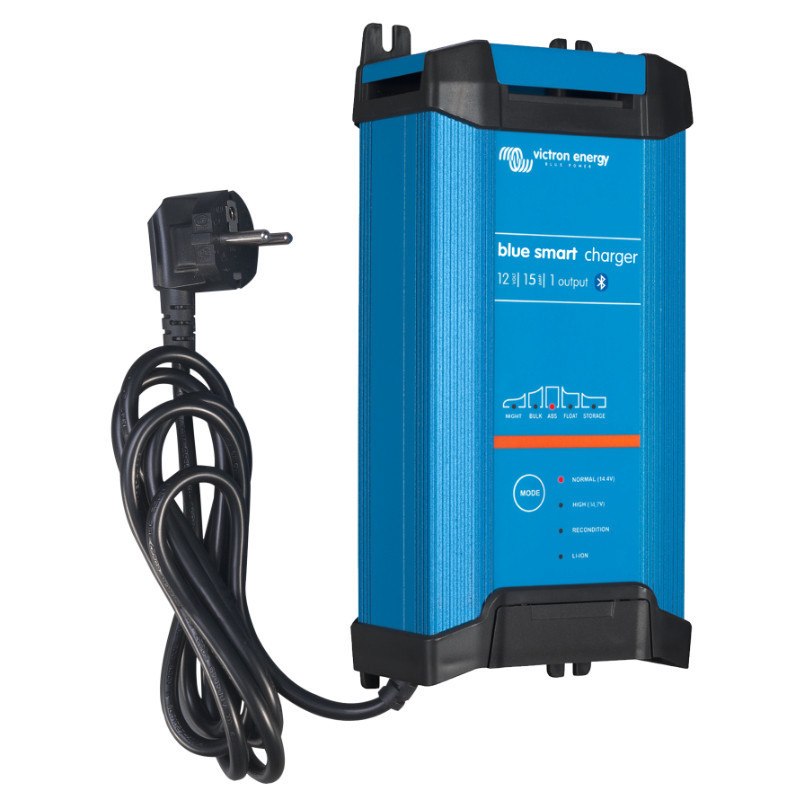

Blue Smart IP22 Charger 12/15 (1)

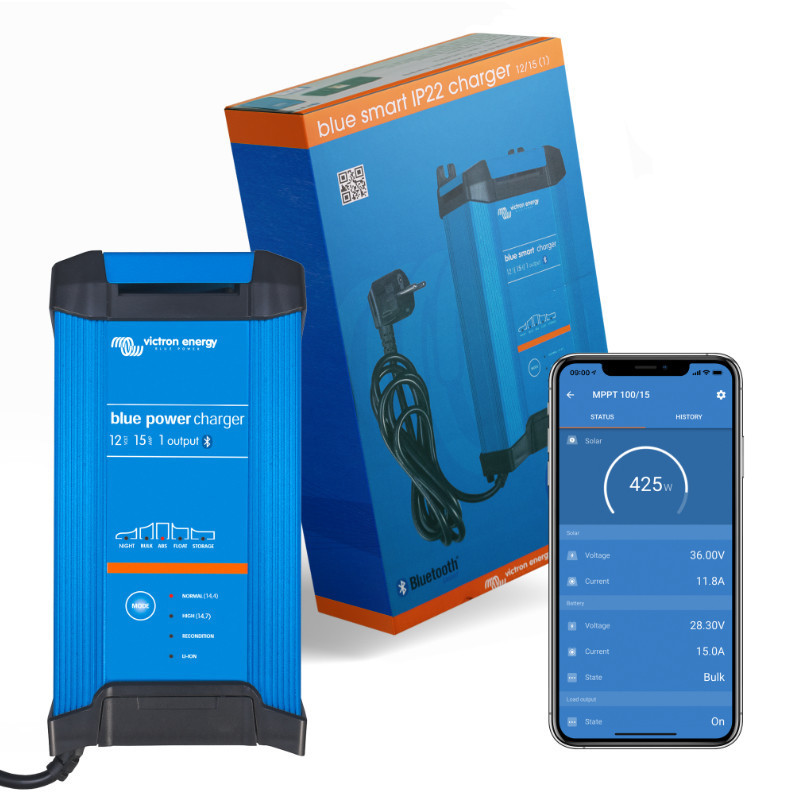

From Victron Energy is a modern charger designed for 12V batteries, offering a charging current of 15A. Thanks to the integrated Bluetooth interface and full app control, Victron Connect, charging management becomes exceptionally simple and convenient. It's not just a classic charger, but an advanced tool for monitoring and optimizing the charging process in real time, available at your fingertips.
This charger is characterized by high efficiency, reaching up to 94%. This means it generates less heat, extending the life of both the device and the battery. Compared to conventional chargers, this model is four times more efficient in terms of heat emission. Furthermore, once charging is complete, power consumption drops to a minimum of 0.5W, saving energy, reducing operating costs, and minimizing environmental impact.

Smart charging technology

uses advanced charging algorithm, which provides adaptive battery management. Thanks microprocessor control, the charger automatically adjusts the charging process depending on the current condition and usage of the battery. This solution helps keep the battery in perfect technical condition, which in turn extends its lifespan and performance. An additional benefit is storage mode which reduces the float voltage, minimizing the risk of battery plate corrosion and sulfation. This function works automatically to prevent premature battery wear.
Thanks solid and compact housing, resistant to dust and moisture, the charger works perfectly in various conditions, both indoors and outdoors. Protection class IP22 It is resistant to small water drops and dust, making it ideal for use in harsh environments such as workshops and outdoor applications. This device is not only practical but also highly reliable and durable, making it suitable for a variety of work environments.

Protection and safety features

Built-in protection features such as short circuit protection, reverse polarity and overload, make Blue Smart IP22 is an extremely safe charger. You can be sure that both your batteries and the device itself will be properly protected against damage, which translates into long-lasting and trouble-free operation. Additionally, if the temperature rises above 50°C, the charger will automatically reduce the output current without shutting down, which protects against overheating.
This versatile charger also supports LiFePO4 batteries (lithium iron phosphate), so you can easily switch between different battery types, adapting the charging process to your specific needs. Simply press the button on the housing to activate the appropriate settings for that battery type, making the device extremely flexible and convenient to use.

Technical specifications

• Model: Blue Smart IP22 12V/15A


• Input voltage range: 180 - 265 VAC


• Charging current (normal mode): 15 A


• Charging current (NIGHT/LOW mode): 7.5 A


• Efficiency: 93%


• No-load power consumption: 0.5 W


• Frequency: 45 - 65 Hz


• Number of outputs: 1


• Absorption charging voltage: Normal: 14.4V, High: 14.7V, Li-ion: 14.2V


• Float charging voltage: Normal: 13.8V, High: 13.8V, Li-ion: 13.5V


• Storage charging voltage: Normal: 13.2V, High: 13.2V, Li-ion: 13.5V


• Charging algorithm: 6-step adaptation


• Can be used as a power supply: Yes


• Security: Reverse battery polarity (fuse), output short circuit, overtemperature


• Operating temperature range: -40 to +60 °C (full rated power up to 40 °C)


• Humidity (non-condensing): Max 98%


• Material and color: Aluminum (blue RAL 5012)


• Battery connection: Screw terminals 16 mm² / AWG6


• 230 VAC connection: 1.5 metre cable with CEE 7/7, BS 1363 (UK) or AS/NZS 3112 (AU/NZ) plug


• Protection category: IP22


• Libra: 1.3 kg


• Dimensions (H x W x D): 235 x 108 x 65 mm

This exceptionally functional and reliable charger provides excellent performance and safety. Thanks to advanced adaptive technology and extensive app management options, it's ideal for a variety of conditions and battery types. It will not only extend battery life but also minimize the risk of damage and operating costs.
