be quiet! SFX POWER 3 450W power supply unit

be quiet! SFX POWER 3 450W. Total power: 450 W, AC input voltage: 100 - 240 V, Peak power: 500 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Compliance certificates: RoHS, WEEE
SFX Power 3 450W, the compact PSU from be quiet! that gives you more for your mini or media PC. It provides enough power to support powerful PCIe graphics cards while offering the ideal combination of power, quietness and reliability. That makes it the perfect choice for compact PC systems that perform beyond the ordinary.

Power

Total power: 450 W
Peak power: 500 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 6/2.5 A
Maximum input current (@110V): 6 A
Maximum input current (@220V): 2.5 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 85 W
Combined power (+12V): 450 W
Combined power (+5V): 85 W
Max output current (+3.3V): 16 A
Max output current (+12V1): 37.5 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 21 ms
Efficiency: 85.9%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 3
SATA power cable length: 300,450,600 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 300,450 mm
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 55 cm
Floppy drive power connector: 1
Floppy disk drive cable length: 60 cm
PCI Express connector: Yes
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 3.42
EPS version: 2.92

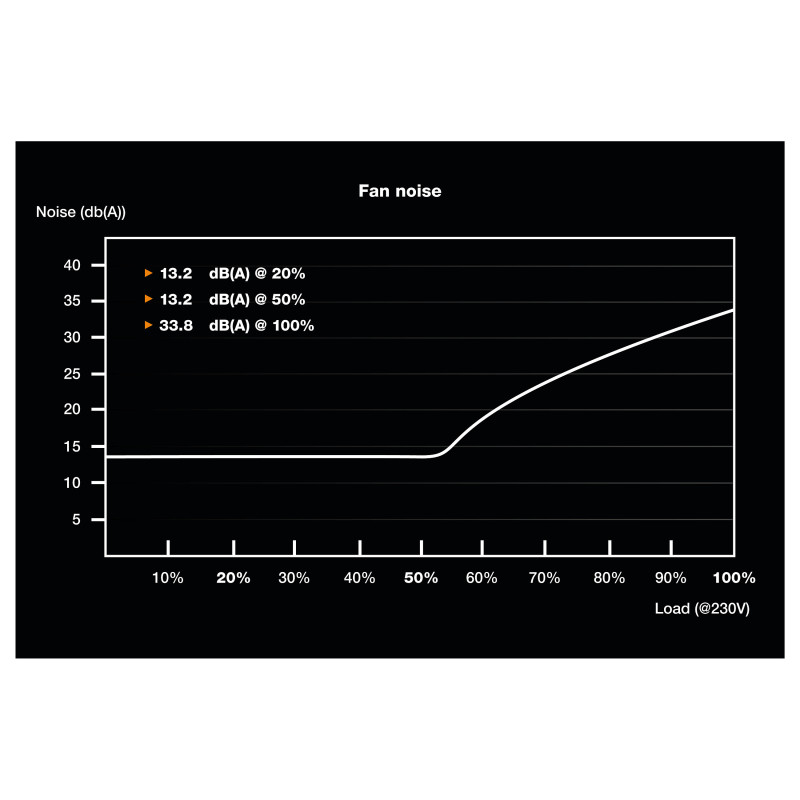

Noise level: 33.8 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 8 cm
Number of fans: 1 fan(s)
Illumination: No
On/off switch: Yes

Certificates

Compliance certificates: RoHS, WEEE

Safety regulation standards

Safety: CE, CB, TÜV, CU

Weight dimensions

Width: 125 mm
Depth: 100 mm
Height: 64 mm
Weight: 890 g

Packaging data

Package width: 197 mm
Package depth: 75 mm
Package height: 207 mm
Package weight: 1.24 kg
Package type: Box

Technical details

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, ErP

Logistics data

Shipping (inner) case length: 45.7 cm
Shipping (inner) case width: 26.5 cm
Shipping (inner) case height: 23.3 cm
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 8.19 kg
Harmonized System (HS) code: 84733020
