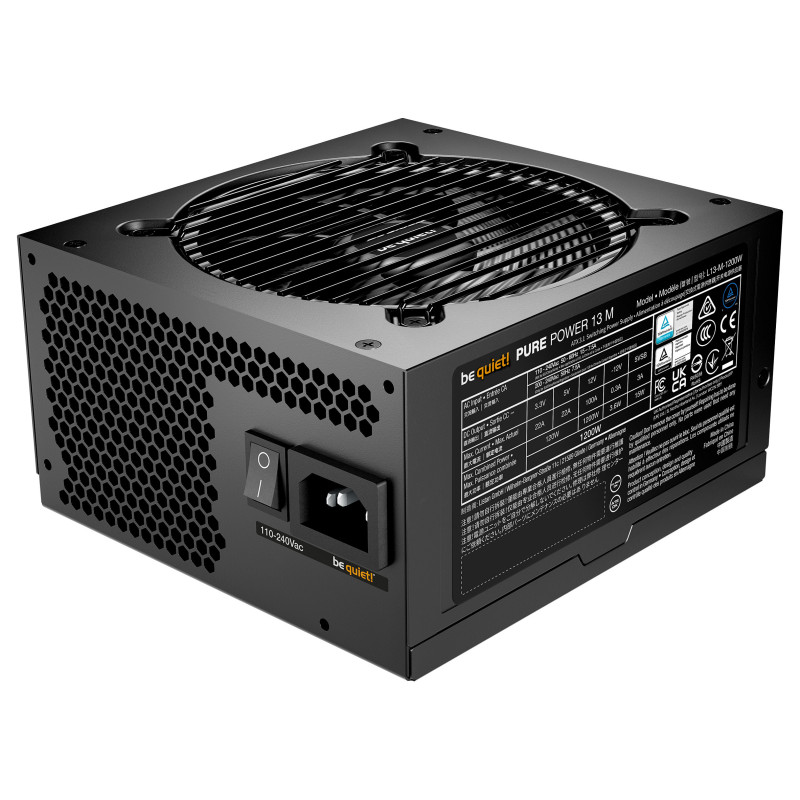

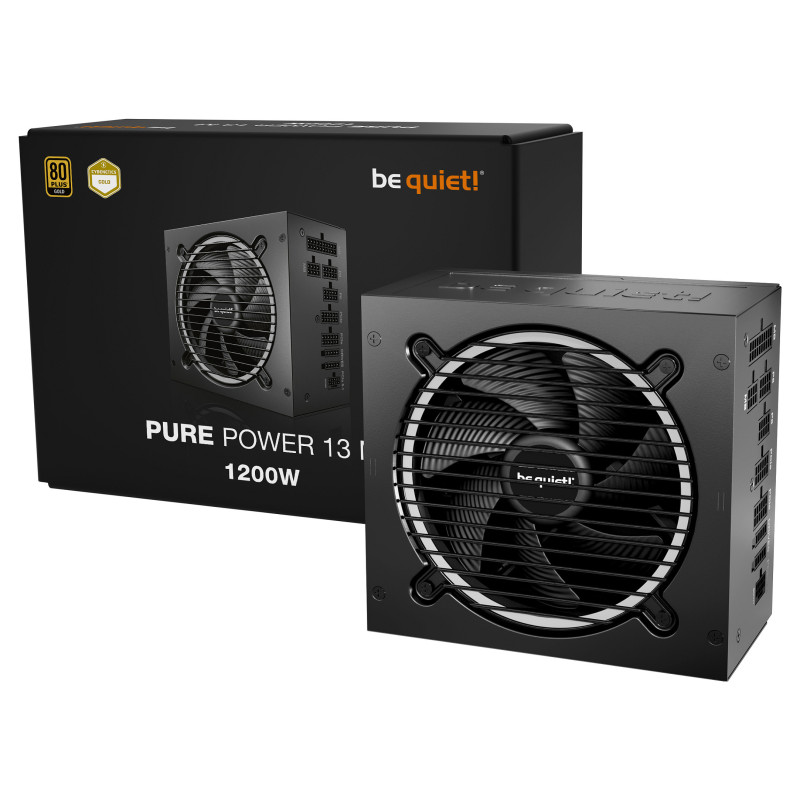

be quiet! Pure Power 13 M, 1200W power supply unit

be quiet! Pure Power 13 M | 1200W. Total power: 1200 W, AC input voltage: 110 - 240 V, Peak power: 1250 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Exceptional quiet, superior features
Pure Power 13 M 1200W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1200W offers the best combination of features with outstanding compatibility.

Power

Total power: 1200 W
Peak power: 1250 W
AC input voltage: 110 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 15 A
Maximum input current (@220V): 7.5 A
Power factor: 0.97
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 100 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 19.11 ms
Efficiency: 90.8%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge inrush protection (SIP), Under voltage

Ports interfaces

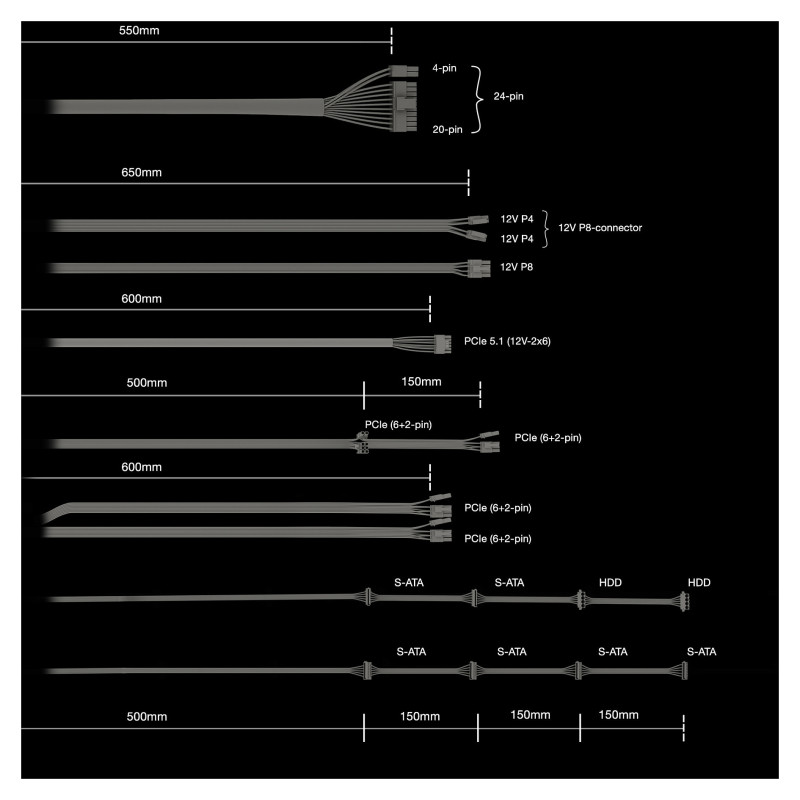

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 500,650,800,950 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 800,950 mm
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 60 cm
CPU P4 connector (4-pin): 2
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 32.3 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2700 RPM
Illumination: No
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 95%

Packaging content

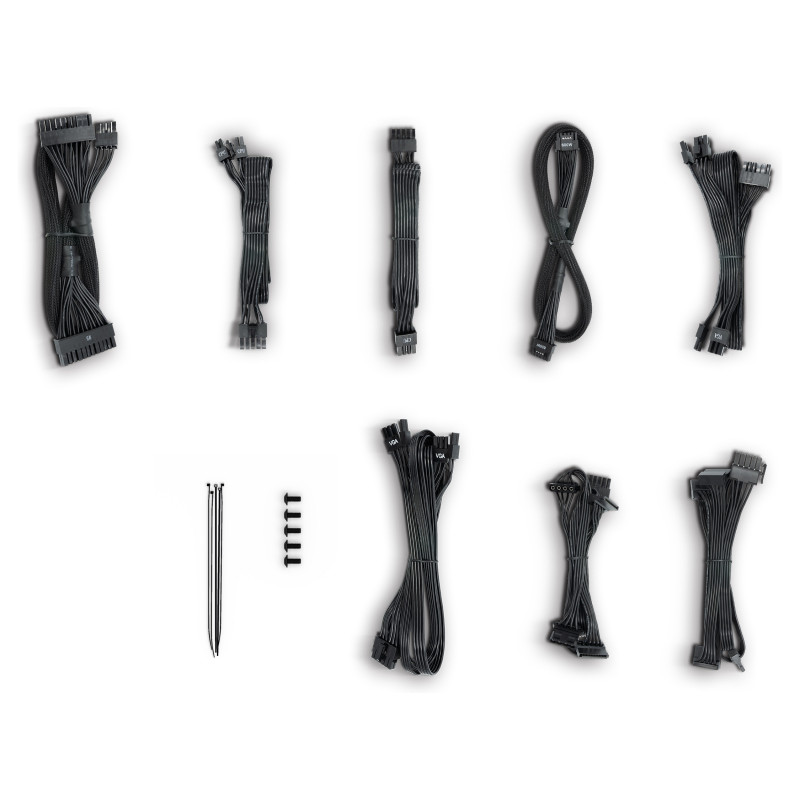

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus

Weight dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 2.69 kg

Packaging data

Manual: Yes
Manual languages: German, English, Spanish, French, Polish, Russian, Ukrainian
Package width: 220 mm
Package depth: 284 mm
Package height: 100 mm
Package weight: 3.14 kg
Package type: Box

Technical details

Sustainability certificates: ENERGY STAR, ErP

Logistics data

Shipping (inner) case length: 59 cm
Shipping (inner) case width: 32 cm
Shipping (inner) case height: 24.5 cm
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 20.8 kg

Other features

Screws included: Yes
Cable ties included: Yes
