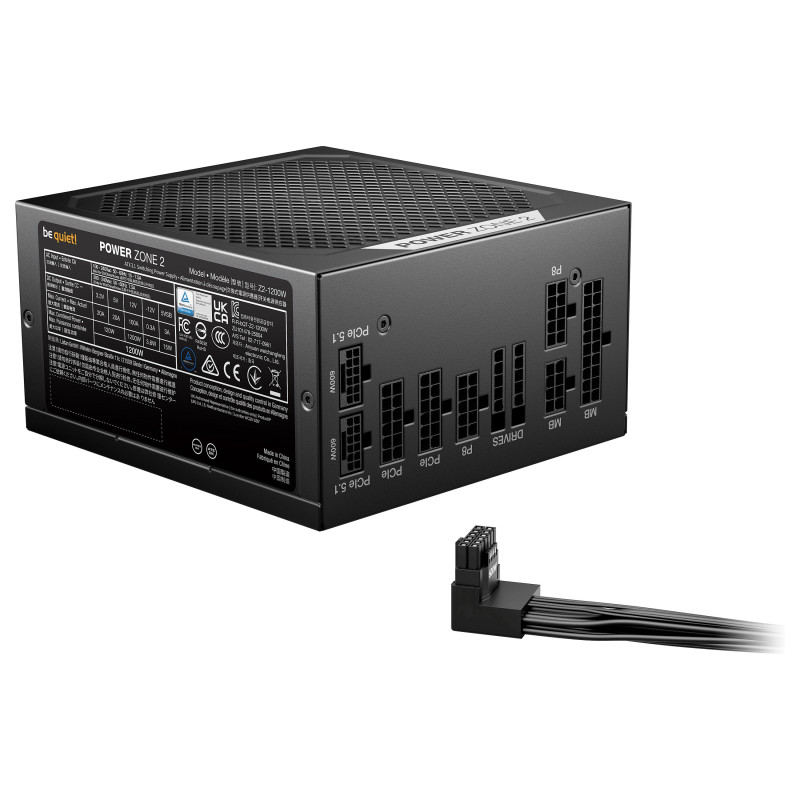

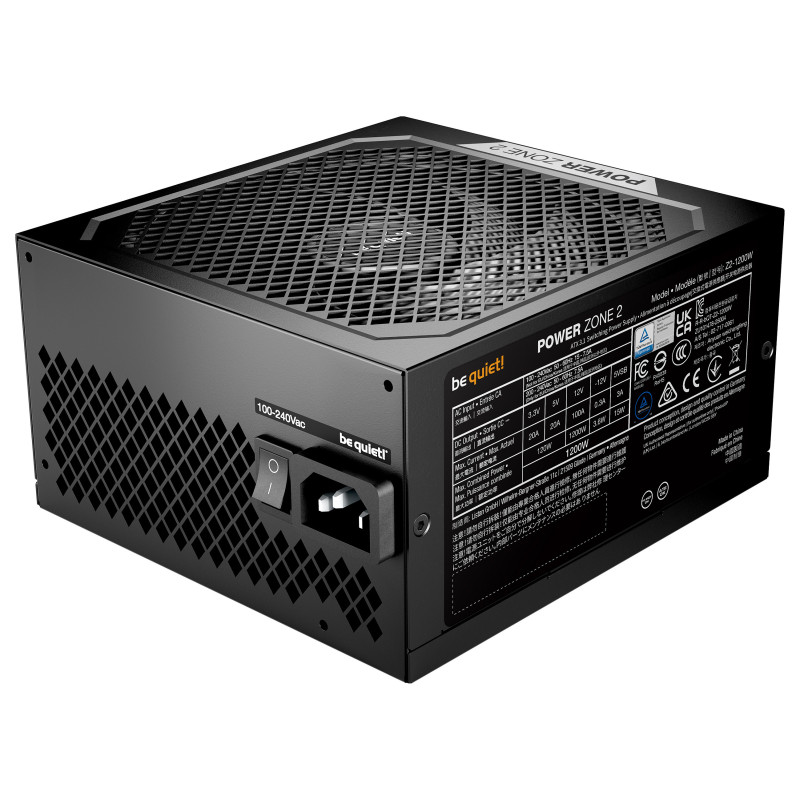

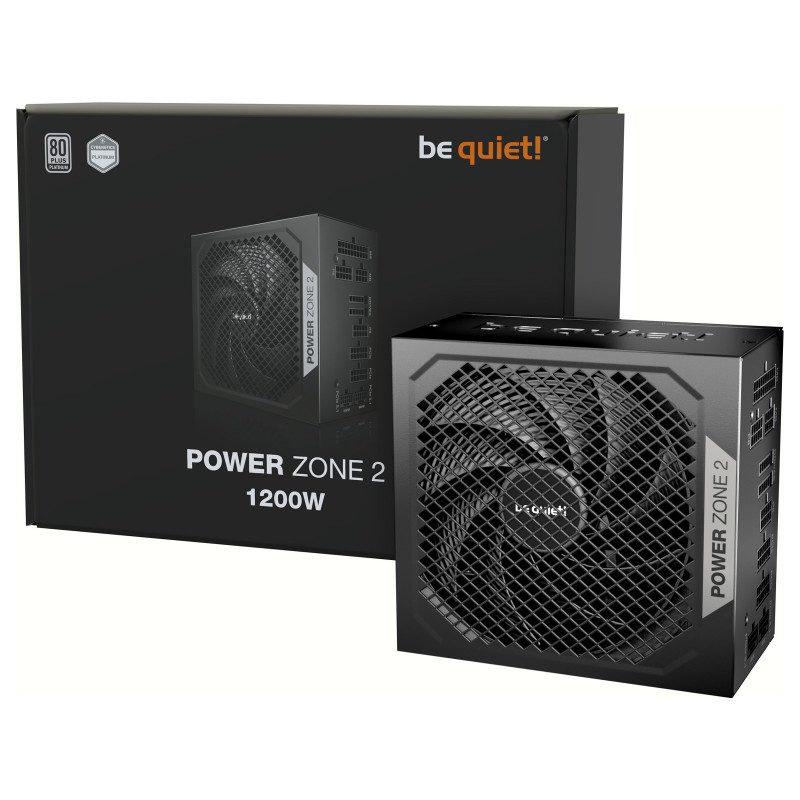

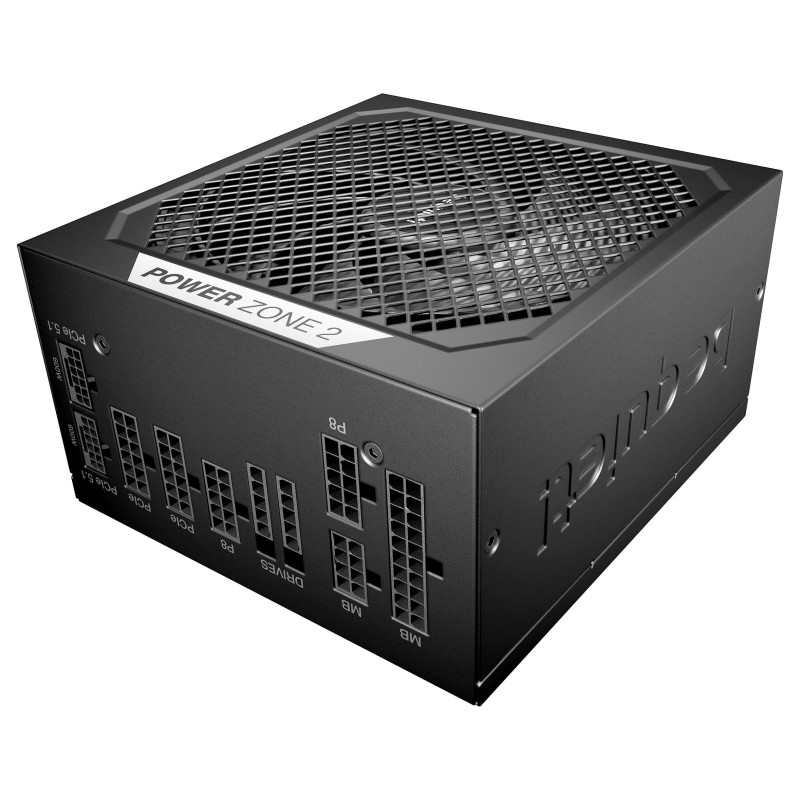

be quiet! POWER ZONE 2, 1200 W power supply unit

be quiet! POWER ZONE 2 | 1200 W. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1270 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE

Exceptional efficiency for Gamers
Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. With 90° angled 12V-2x6 connectors in the scope of delivery and PCIe 5.1/ATX 3.1 compatibility, Power Zone 2 supports the latest graphics cards and constitutes a reliable investment for the future.

Power

Total power: 1200 W
Peak power: 1270 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 15 A
Maximum input current (@220V): 7.5 A
Power factor: 0.97
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 20.42 ms
Efficiency: 92.7%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage

Ports & interfaces

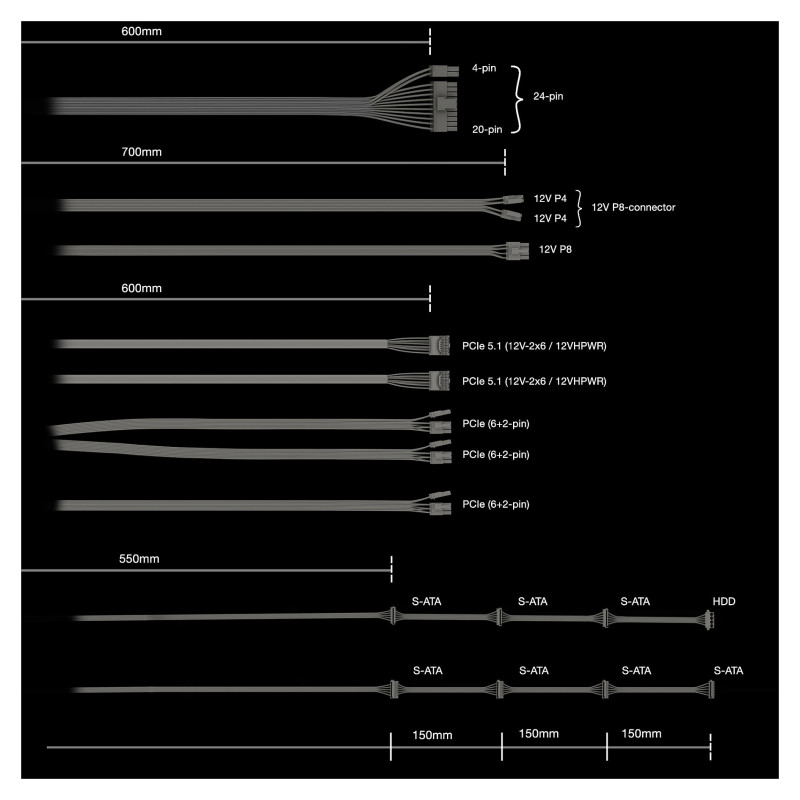

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 7
SATA power cable length: 550,700,850,1000 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 1000 mm
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12-pin): 2
PCI Express power cable length: 60 cm
CPU P4 connector (4-pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: PCI Express connector

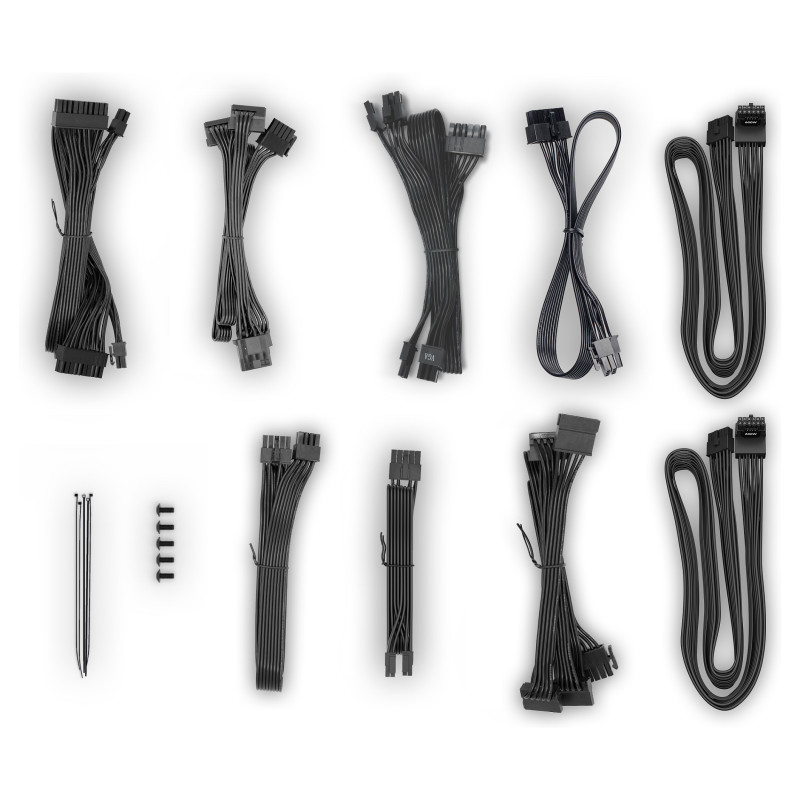

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

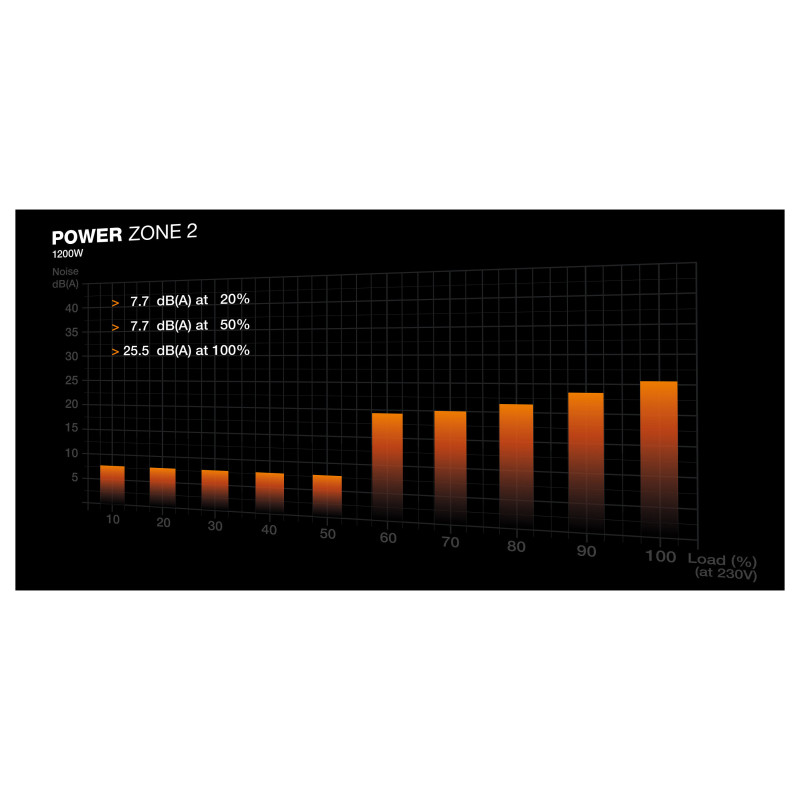

Noise level: 25.5 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2100 RPM
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 95%

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.88 kg

Packaging data

Feature: Manual
Manual languages: German, English, Spanish, French, Polish, Russian, Ukrainian
Package width: 248 mm
Package depth: 328 mm
Package height: 102 mm
Package weight: 3.5 kg
Package type: Box

Technical details

Sustainability certificates: ENERGY STAR, ErP, Triman

Logistics data

Shipping (inner) case length: 43 cm
Shipping (inner) case width: 26.5 cm
Shipping (inner) case height: 34 cm
Products per shipping (inner) case: 4 pc(s)
Shipping (inner) case gross weight: 14.9 kg

Other features

Feature: Screws included
Feature: Cable ties included
