be quiet! POWER ZONE 2 1000W power supply unit

be quiet! POWER ZONE 2 1000W. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1070 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE

Exceptional efficiency for Gamers
Power Zone 2 1000W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.

PLATINUM CERTIFIED
Highly efficient operation
Power Zone 2 1000W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.0%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.

SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence
A large Pure Wings 3 140mm fan is keeping Power Zone 2 1000W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.

PURE WINGS 3 FAN
Specially designed for Power Zone 2
No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 1000W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.

FUTURE-PROOF YOUR SYSTEM

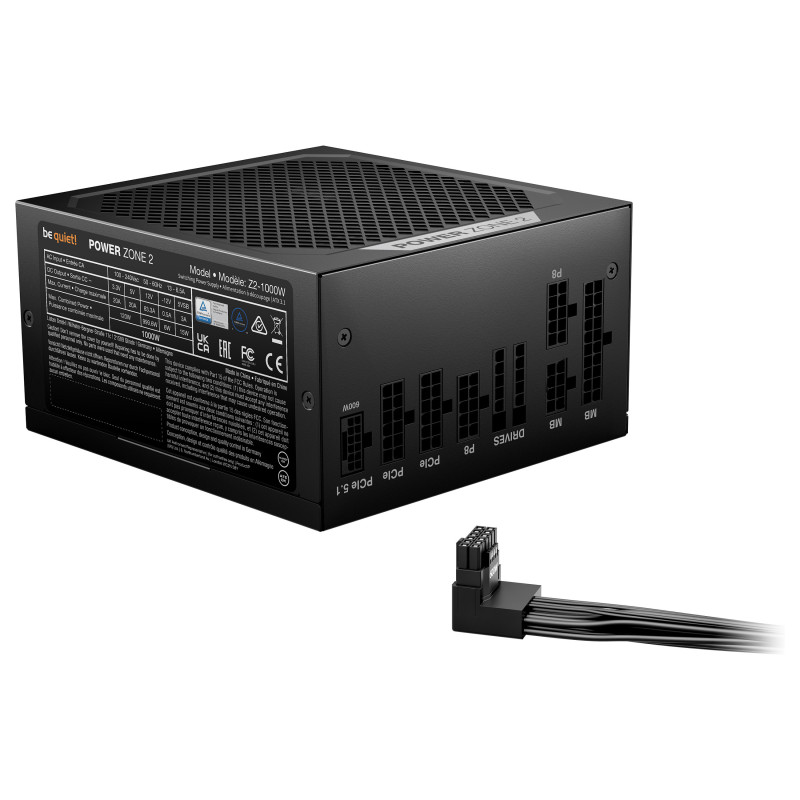

With 90° angled 12V-2x6 connector in scope of delivery
Power Zone 2 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 1000W extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Power Zone 2 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

HIGH-CLASS TECHNOLOGIES
All packed in a stunning design
With its LLC topology, the Power Zone 2 1000W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 1000W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU's case for a long-lasting impression and an unparalleled look and feel.

Power

Total power: 1000 W
Peak power: 1070 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 13 A
Maximum input current (@220V): 6.5 A
Power factor: 0.98
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 999.6 W
Combined power (+5V): 120 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83.3 A
Max output current (+5V): 20 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Hold time: 22.7 ms
Efficiency: 92.6%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage

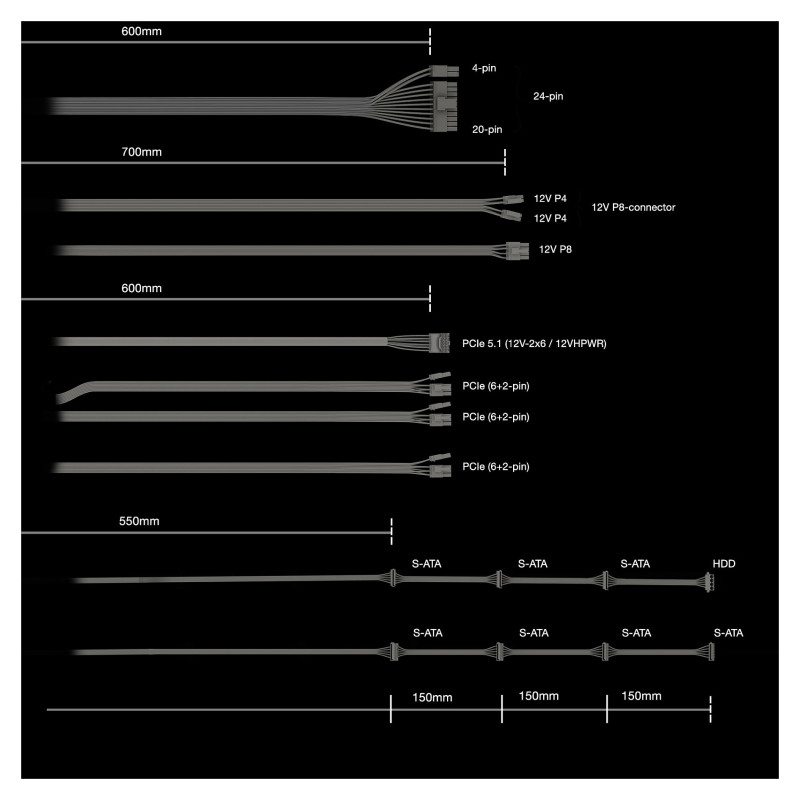

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 7
SATA power cable length: 550,700,850,1000 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 1000 mm
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 60 cm
CPU P4 connector (4-pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: PCI Express connector

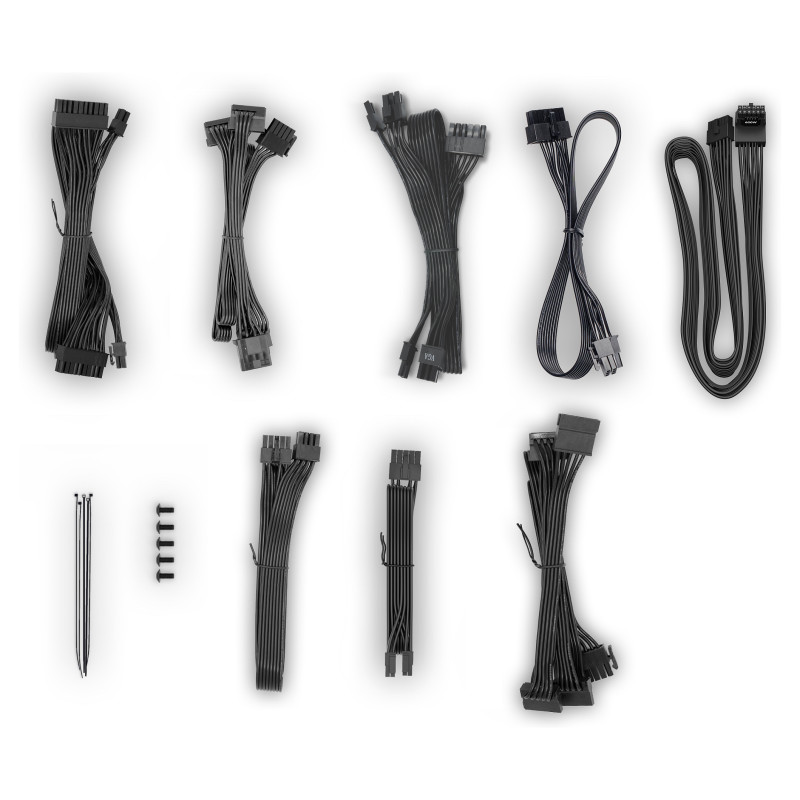

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

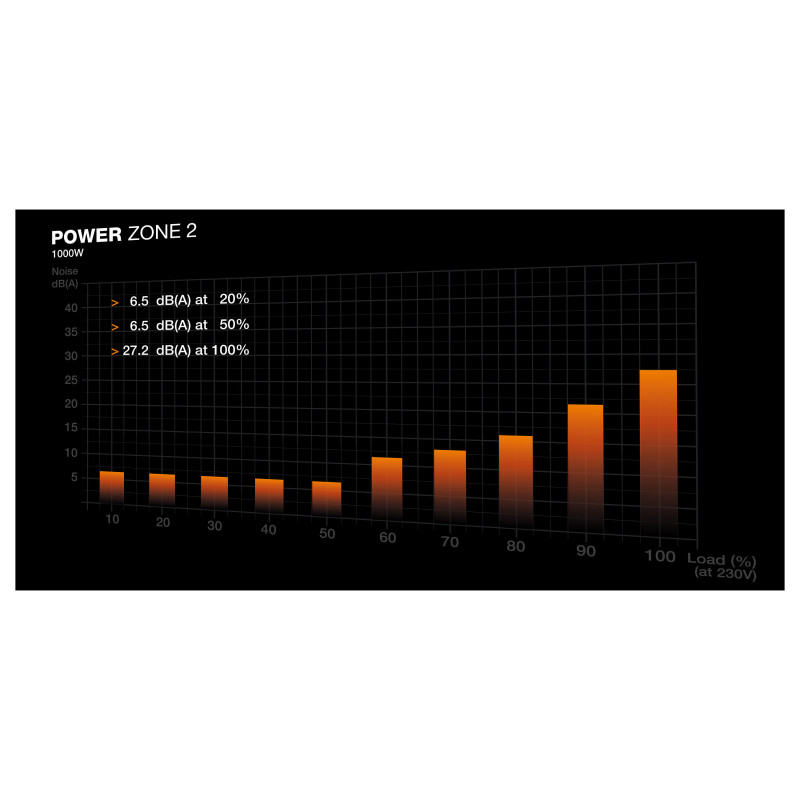

Noise level: 27.2 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 95%

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 2.82 kg

Packaging data

Feature: Manual
Manual languages: German, English, Spanish, French, Polish, Russian, Ukrainian
Package width: 248 mm
Package depth: 328 mm
Package height: 102 mm
Package weight: 3.28 kg
Package type: Box

Technical details

Sustainability certificates: ENERGY STAR, ErP, Triman

Logistics data

Shipping (inner) case length: 65.1 cm
Shipping (inner) case width: 28.2 cm
Shipping (inner) case height: 34.6 cm
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 19.6 kg

Other features

Feature: Screws included
Feature: Cable ties included
