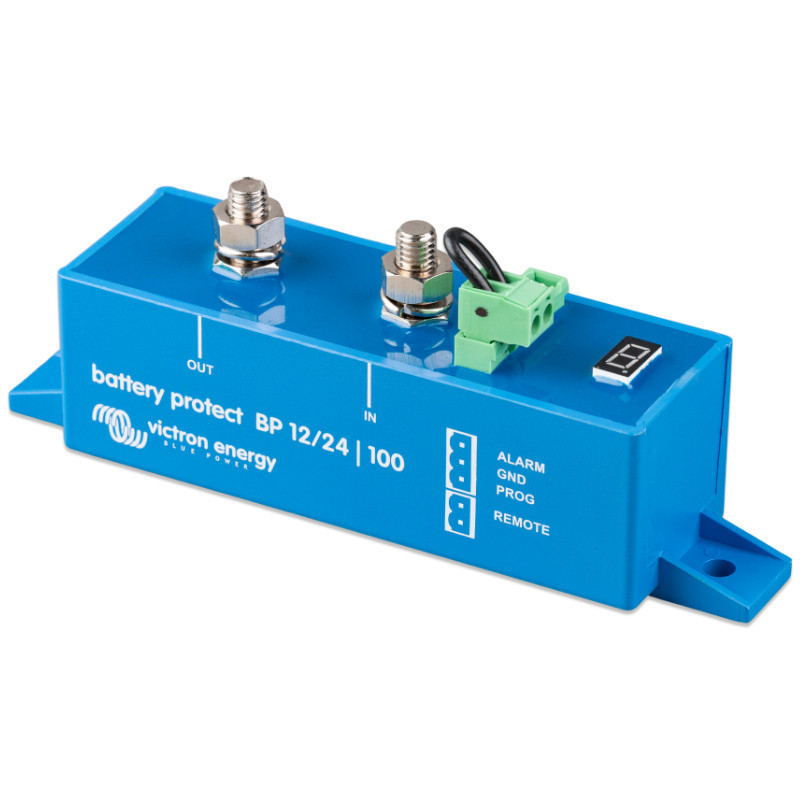

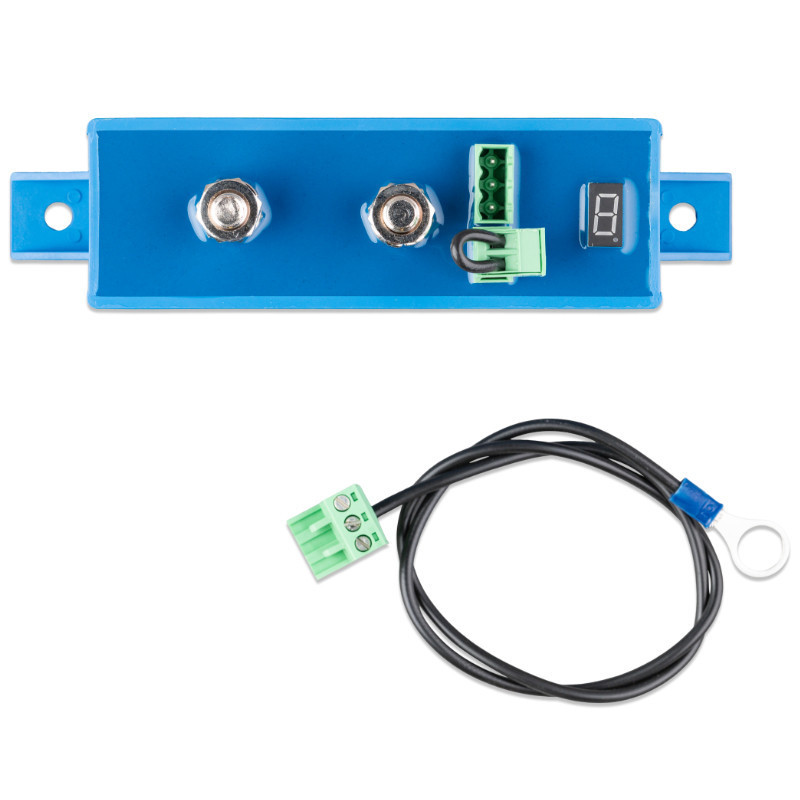

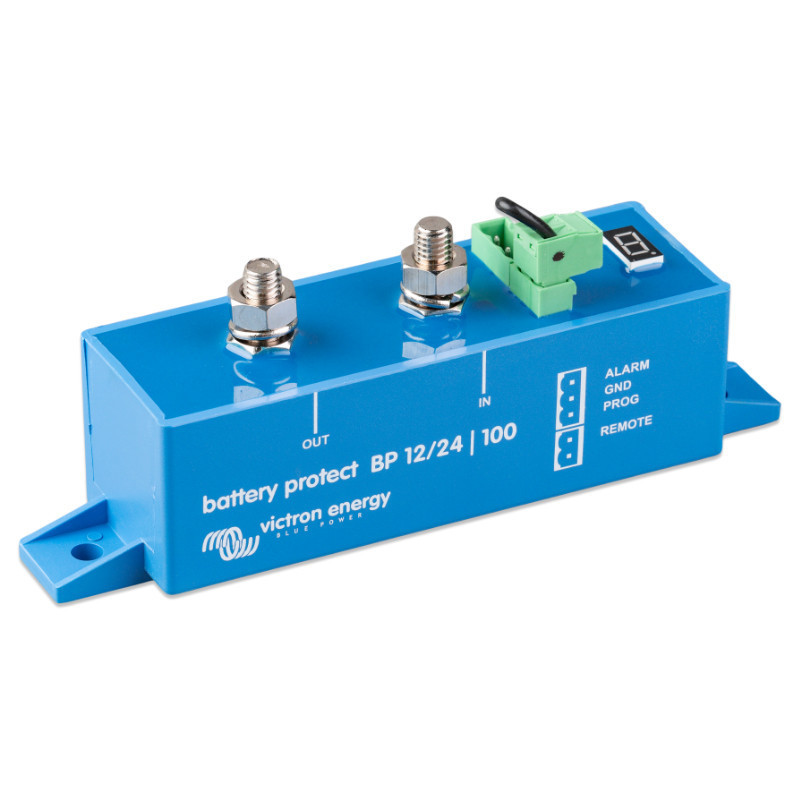

BatteryProtect 12 / 24V-100A

BatteryProtect 12/24V 100A from Victron Energy is an innovative device designed to protect your battery from harmful deep discharge, which can impact its lifespan. When the voltage drops below a pre-set threshold, the device automatically disconnects the load, ensuring continuous battery protection.

Automatic Battery Protection

BatteryProtect monitors system voltage and automatically disconnects the battery before it reaches a level that could permanently damage it. This ensures your system is always protected, regardless of the operating status of your battery-powered devices.

Flexible Programming

The device offers fully configurable voltage thresholds, allowing for perfect adjustment to individual needs. A seven-segment display shows selected settings, and the advanced interface allows for easy programming of disconnection and connection parameters, maximizing operational efficiency.

Overload Protection

The BatteryProtect disconnect switch automatically disconnects the load when the current exceeds a safe 100A limit, preventing overloads and protecting devices connected to the battery. It also works with high-power inverters, ensuring stable operation at loads up to 3000W/12V and 6000W/24V.

Low Energy Consumption

Thanks to MOSFET technology, BatteryProtect boasts ultra-low power consumption—1.5 mA when on and only 0.6 mA when the system is off or disconnected due to low voltage. This makes the device extremely energy-efficient, resulting in a longer system lifespan.

Sparkless Work

The use of MOSFET technology ensures spark-free switching, which increases the operational safety of the entire system. This is particularly important in installations where safe handling of sensitive electrical components is required.

Alarm Functions

BatteryProtect features an alarm output that can be used to connect an LED or audible alarm, informing the user about the device's current operating status. Delays in power on and off further enhance system reliability.

Technical Specifications:

• Model: Battery Protect 12/24V 100A


• Maximum continuous load current: 100A


• Peak current (30 seconds): 600A


• Operating voltage range: 6 - 35V


• Power consumption:



  • When on: 1.5 mA


  • When switched off or low voltage cut-off: 0.6 mA






• Alarm output delay: 12 seconds


• Maximum load of the alarm output: 50 mA (short circuit proof)


• Load shedding delay: 90 seconds (immediately after triggering by the VE.Bus BMS system)


• Load reconnection delay: 30 seconds


• Default thresholds:



  • Disconnect: 10.5V (12V) / 21V (24V)


  • Switching on: 12V (12V) / 24V (24V)






• Operating temperature range:



  • Full load: -40°C to +40°C


  • 60% of nominal load at 50°C






• IP protection class:



  • Electronics: IP67 (potted)


  • Connections: IP00






• Connection: M8


• Mounting torque: 9 Nm


• Libra: 0.5 kg


• Dimensions (H x W x D): 59 x 42 x 115 mm

BatteryProtect 12/24V 100A provides reliable battery protection against discharge, overload, and other hazards. With programmable voltage thresholds and low power consumption, it's an excellent solution for advanced power systems.
