Battery Shunt Renogy 300 BT

Battery Shunt Renogy 300 BT (Smart Shunt 300A) - battery monitor with Bluetooth

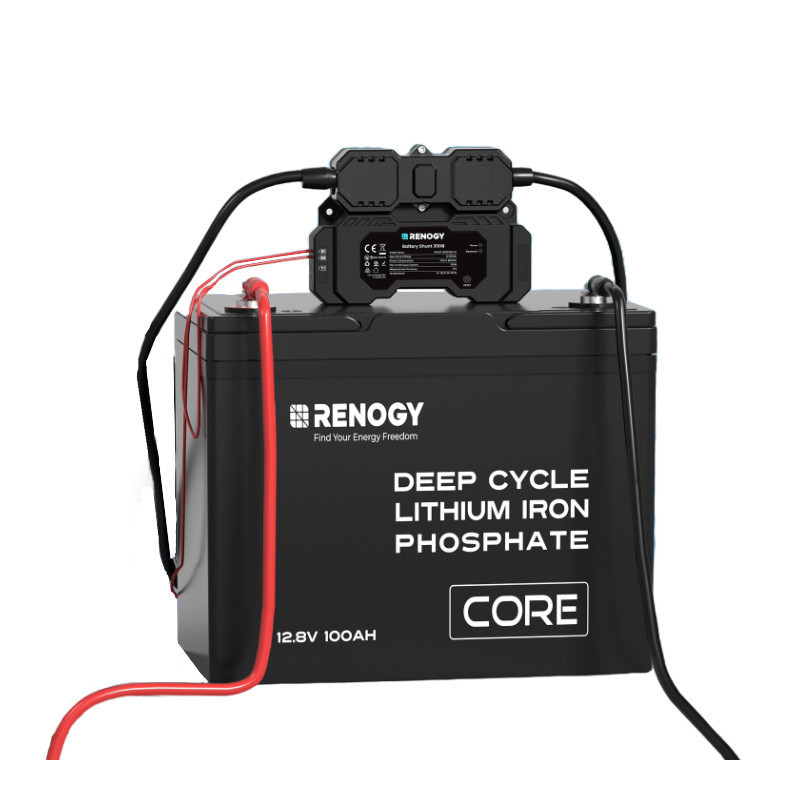

Renogy Shunt 300 BT is an advanced battery monitor (shunt) for precise measurement and analysis of power bank performance.
It is compatible with many battery types, including lead-acid (AGM, GEL), LiFePO (LFP), Li-ion and Ni-MH.

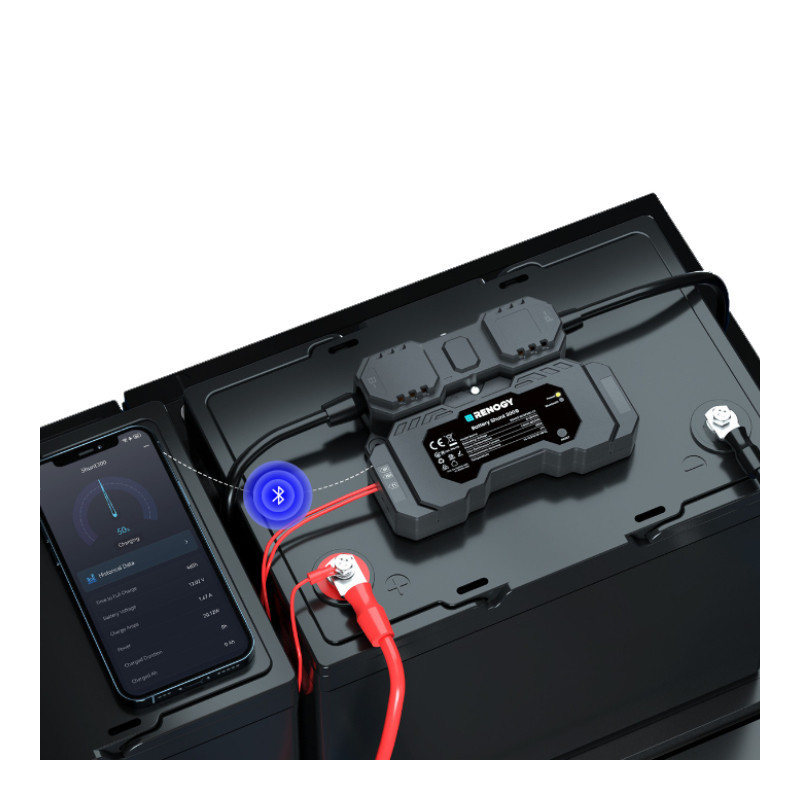

It allows remote viewing of the state of charge (SOC), voltage, current and temperature in the app. DC Home and integration
with the Renogy ONE ecosystem. Additionally, it records historical data and provides alerts on abnormal conditions, helping to protect
batteries and optimize the entire power system.

Key benefits

• Universal compatibility - works with AGM, GEL, LFP, Li-ion, Ni-MH and other types of batteries.


• Accurate SOC monitoring - control of the charge status and battery operating parameters.


• Bluetooth LE + BLE Mesh - remote viewing in the DC Home application and cooperation with Renogy ONE.


• Battery protection - historical data log and alerts about irregularities in the application.


• Temperature sensor - battery temperature measurement for better diagnostics.


• Quick assembly - possibility of wall installation, connection to the battery with M10 screws.

Main features

• State of Charge (SOC) monitoring


• Measurement of battery current, voltage and temperature


• Historical data recording


• DC Home app anomaly alerts


• Remote monitoring and control via Bluetooth


• Designed for campers, trailers and boats (RV/marine)


• Material compliance with UL94V-0 (increased flammability resistance)

Technical specifications

• Parameters / Model: Battery Monitor RSHST-B02P300-G1


• Power supply: 8 - 120 VDC


• Power consumption: < 0.1 W


• Communication: Bluetooth LE and BLE Mesh


• Maximum continuous current: 300 A


• Maximum peak current: 500 A (< 10 s)


• Current measurement accuracy: ±1%


• Current measurement resolution: 0.01 A


• Input voltage range: 8 - 60V


• Voltage measurement resolution: 10 mV


• Temperature sensor accuracy: ±1%


• Operating temperature: -20°C to 50°C


• Working humidity: 0% to 95% RH


• Working height: below 2000 m above sea level


• Installation: on the wall


• Battery connection: M10 screws


• Dimensions: 134 × 97 × 31 mm


• Libra: 260 g

Warranty and certificates

• Guarantee: 1 year


• Certificates: CE, FCC ID, IC ID, RCM, TSCA, RoHS, UN38.3, TELEC
