Barošanas bloks Asus ATS Gold 850W (90YE04A0-B0NC00)

Zdroj ASUS 850W-ATS Gold provides efficient and durable power for versatile computers with a variety of configurations.
Double ball bearing fan, which lasts up to twice as long as designs with sliding bearings.
Certification 80 Plus Gold is the result of electrolytic capacitors with low ESR and other premium components.
Leptané káble sa dajú pochás instalation lágő ohnő.
3-ročná warranty in price.
Model
ASUS-ATS-850G_
Intel Form Factor
ATX12V
PFC Type
Active PFC
Dimensions
140 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
gt; 120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
110-240Vac_
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 70.83A 0.3A 3A
Combined Load
100W 100W 750W 3.6W 15W
Total Output
850W

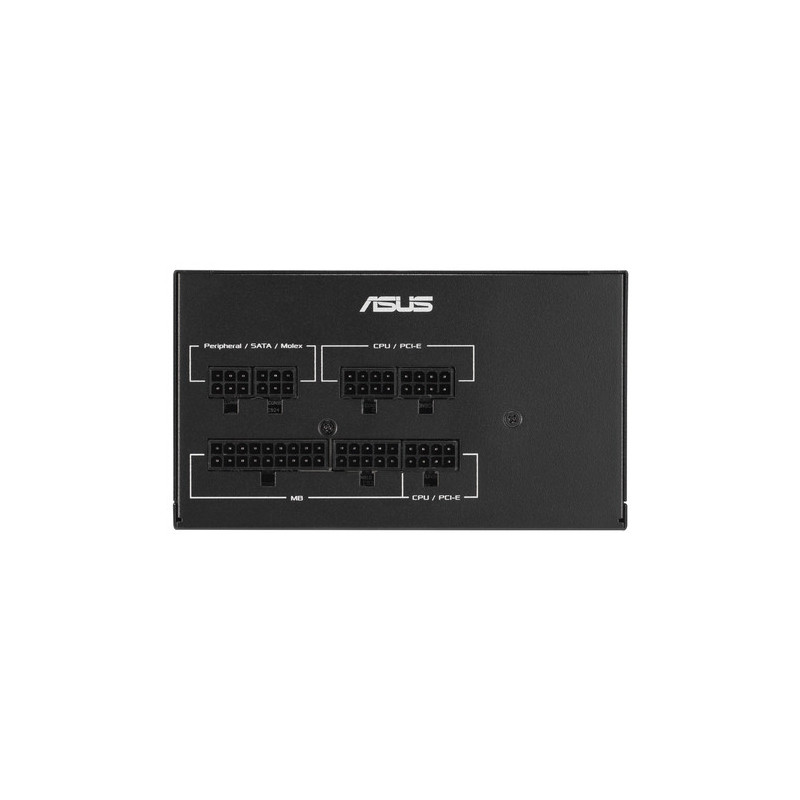

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 2
SATA x 3
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (550mm)
CPU 1-to-2 Cable x 1 (650+100mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675+100mm)
PCI-E Gen 5 (8-pin-8-pin-to-16-pin) Cable x 1 (675mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+120+120mm)
Chassis Screws Package x 1
Quick Start Guide x 1
Weight
1.529 kg (single PSU)
0dB Technology
No
0dB Fan Button
No, this product is without 0dB technology.
