Avārijas barošanas bloks 3P Ellipse 1300 USB DIN
Product reference:
3-3553340621390
Avārijas barošanas bloks 3P Ellipse 1300 USB DIN
Avārijas barošanas bloks 3P Ellipse 1300 USB DIN
Product reference:
3-3553340621390
Avārijas barošanas bloks 3P Ellipse 1300 USB DIN
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days

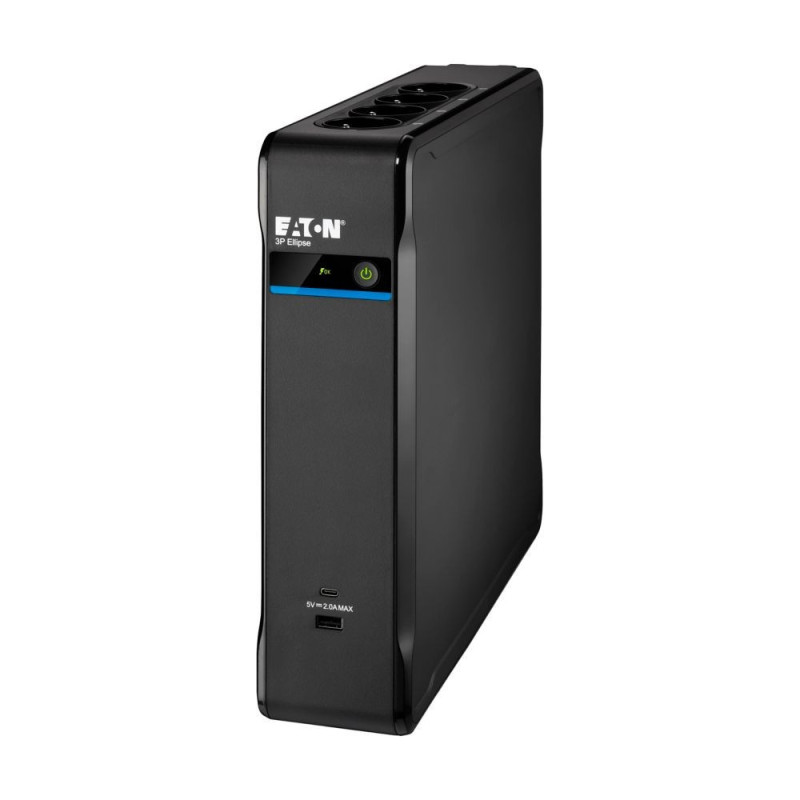

Eaton 3P Ellipse UPS USB DIN, 1300 VA, 840 W, Input: C14, Outputs: (4) Schuko, (4) Schuko surge only, USB charge, Tower
- Convenient extra-flat design for easy installation in any office environment
- High performance surge-protection device compliant with IEC 61643-11 standard
- 8 outlets to connect your PC + peripherals
- 2 USB charging ports
- Card slot for optional Cloud connection
- HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
- Easy to replace battery helps to extend UPS service life
| Summary: | Eaton 3P Ellipse UPS. UPS topology: Standby (Offline), Output power capacity: 1.3 kVA, Output power: 840 W. AC outlet types: C13 coupler, AC outlets quantity: 8 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product color: Black, Control type: Buttons. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm |
| Vendor Homepage: | https://www.eaton.com/il/en-gb/skuPage.3P1300UD.html |
| Category Code: | UPW |
| CnCode: | 85044095 |
| Unit Box Height: | 0.38 |
| Unit Box Length: | 0.36 |
| Unit Box Width: | 0.14 |
| Auto shut-off: | Yes |
| Efficiency: | 97% |
| Efficiency (ECO mode): | 97% |
| Input frequency: | 46/70Hz |
| Input operation voltage (max): | 284V |
| Input operation voltage (min): | 161V |
| Noise level: | 25dB |
| Number of input phases: | 1 |
| Number of output phases: | 1 |
| Output frequency: | 50/60Hz |
| Output operation voltage (max): | 284V |
| Output operation voltage (min): | 161V |
| Output power: | 840W |
| Output power capacity: | 1.3kVA |
| Output power factor: | 0.6 |
| Power consumption (average operating): | 26W |
| Surge protection: | Yes |
| UPS topology: | Standby (Offline) |
| Waveform: | Stepwise |
| AC outlet types: | C13 coupler |
| AC outlets quantity: | 8AC outlet(s) |
| Ethernet LAN (RJ-45) port: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB port: | Yes |
| Battery capacity: | 7Ah |
| Battery voltage: | 12V |
| Control type: | Buttons |
| Display type: | LED |
| Form factor: | Tower |
| Product colour: | Black |
| Operating temperature (TT): | 0 - 40°C |
| Cables included: | USB cable |
| Certification: | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm |
| Compliance certificates: | CB/CE/RoHS/WEEE |
| Quick installation guide: | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance: | Yes |
| Depth: | 312mm |
| Height: | 305mm |
| Weight: | 7000g |
| Width: | 81mm |
| Package type: | Box |
| Input connection type: | C14 |
| Nominal input voltage: | 220-240V |
| Relative humidity: | 0 - 95% |
| Model: | 3P1300UD |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.01915m³ |
| Unit Calculated Weight: | 8.05kg |
