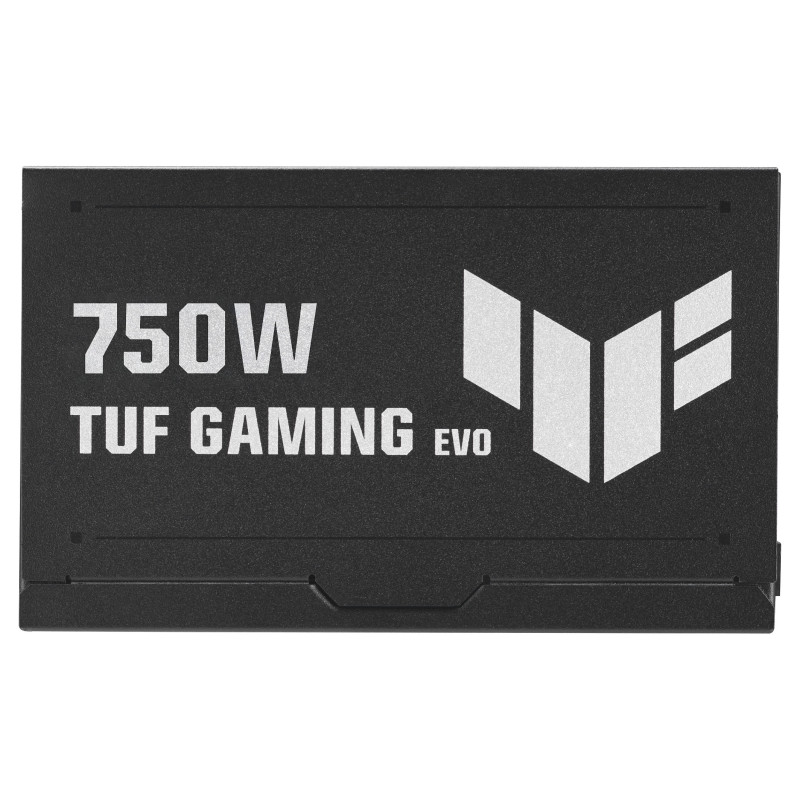

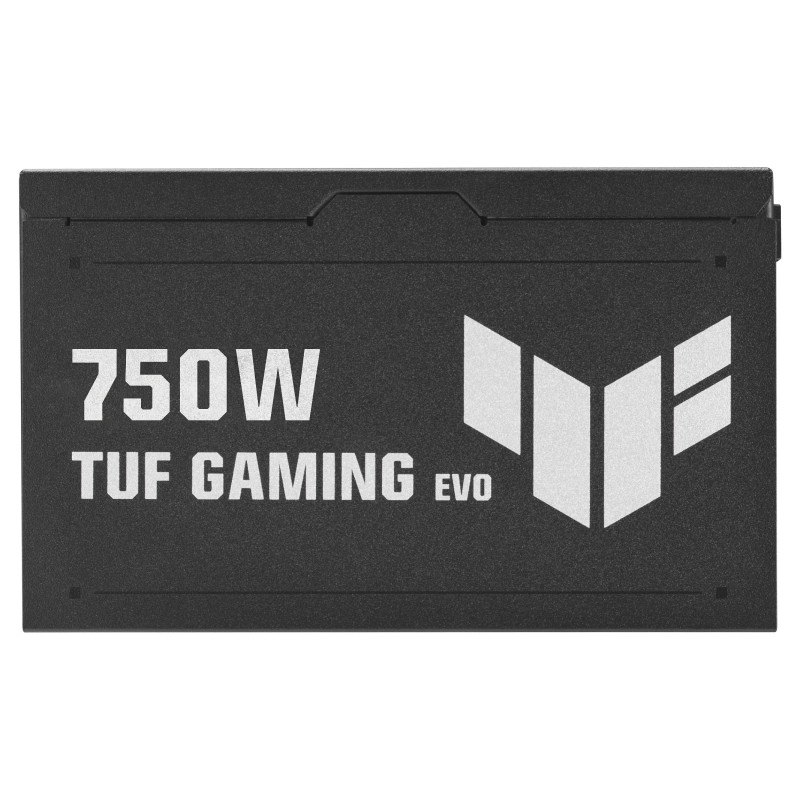

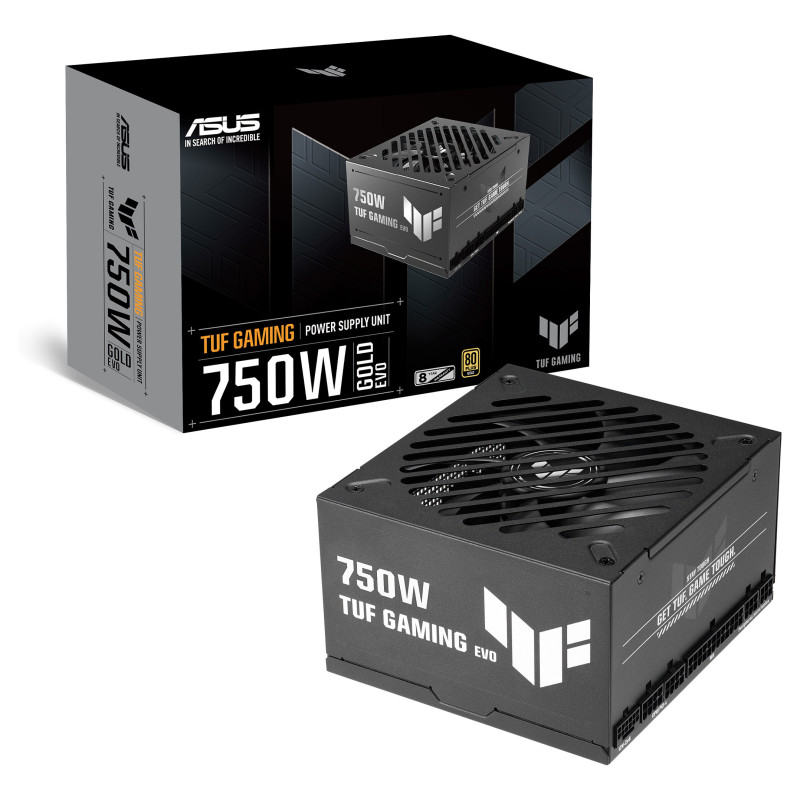

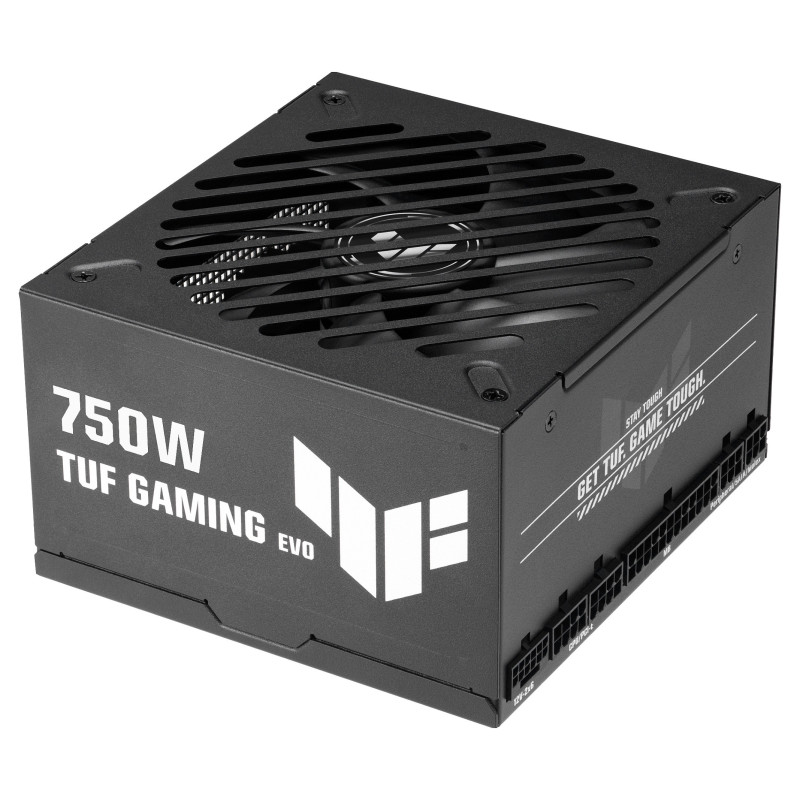

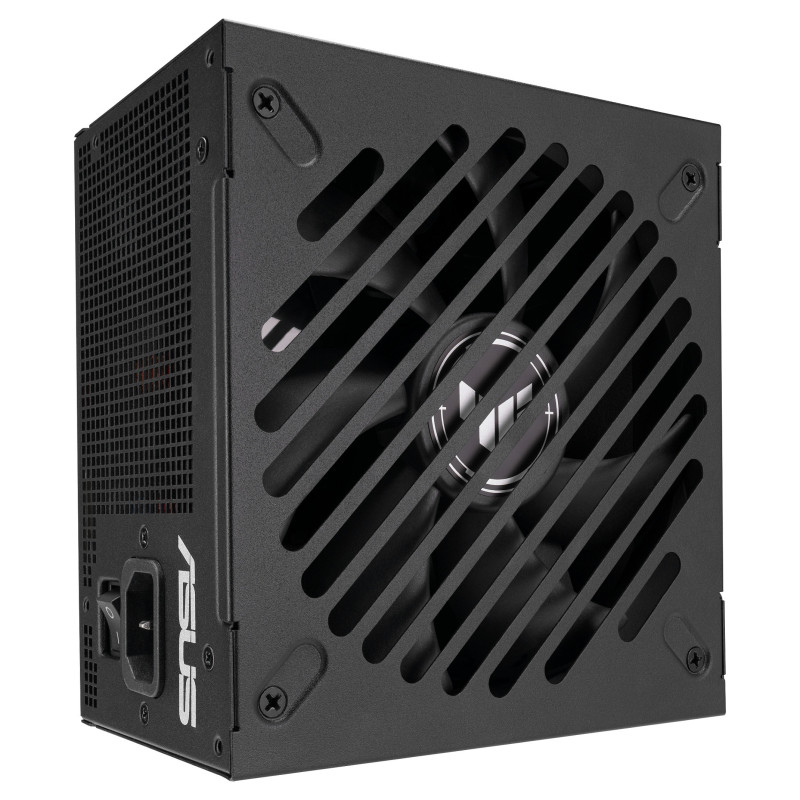

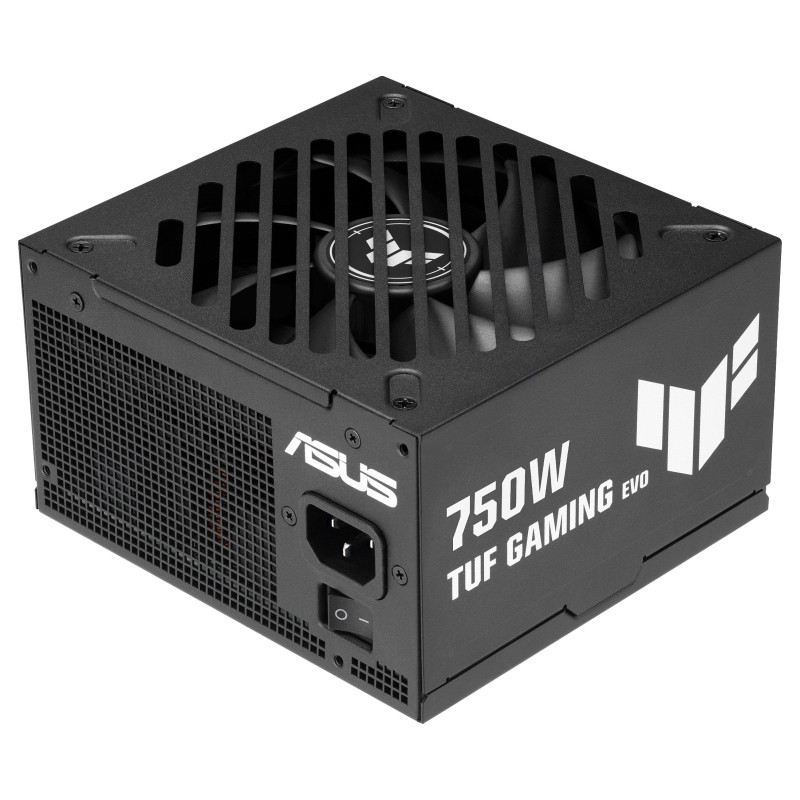

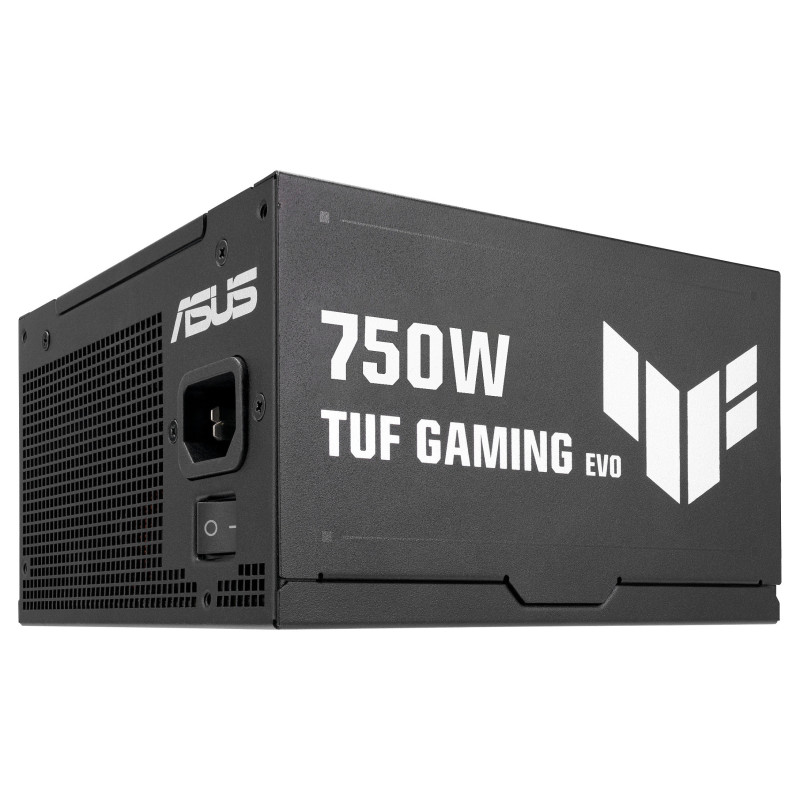

ASUS TUF-GAMING-750G-EVO power supply unit

ASUS TUF-GAMING-750G-EVO. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA
TUF Gaming Gold EVO Series
Built For The Long Haul
The ASUS TUF Gaming 750W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 750 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit

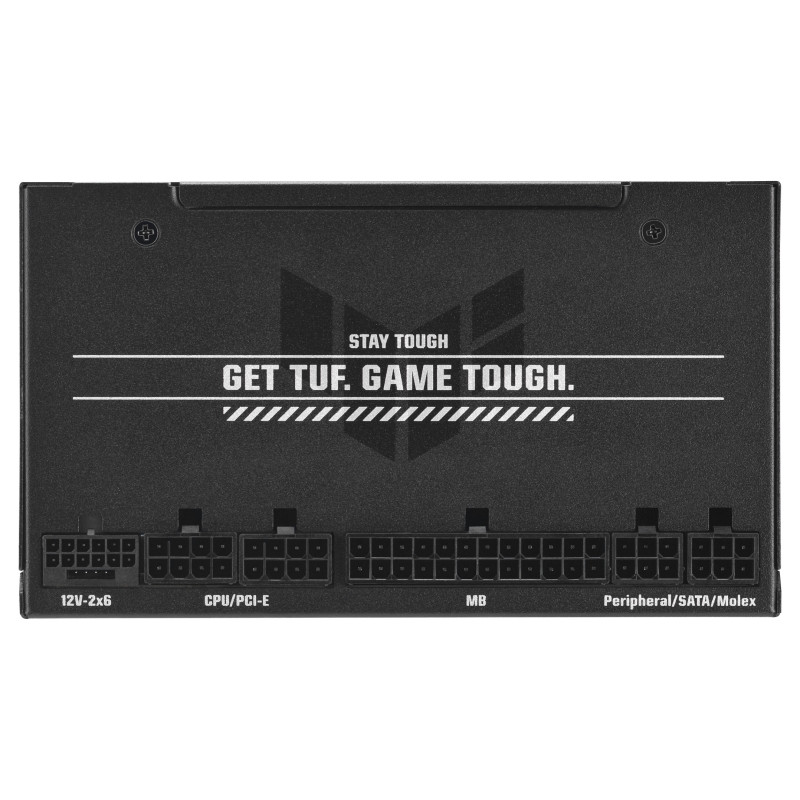

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 4
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 400,120 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (16-pin): 1
CPU power connector (4+4 pin): Yes
PCI Express connector: Yes

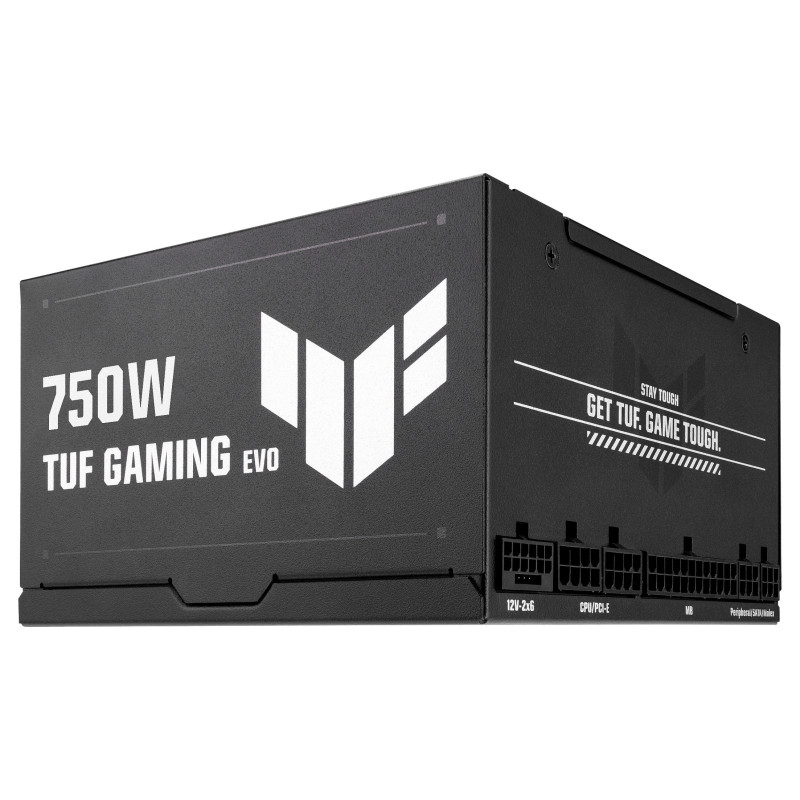

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black
Cooling type: Active

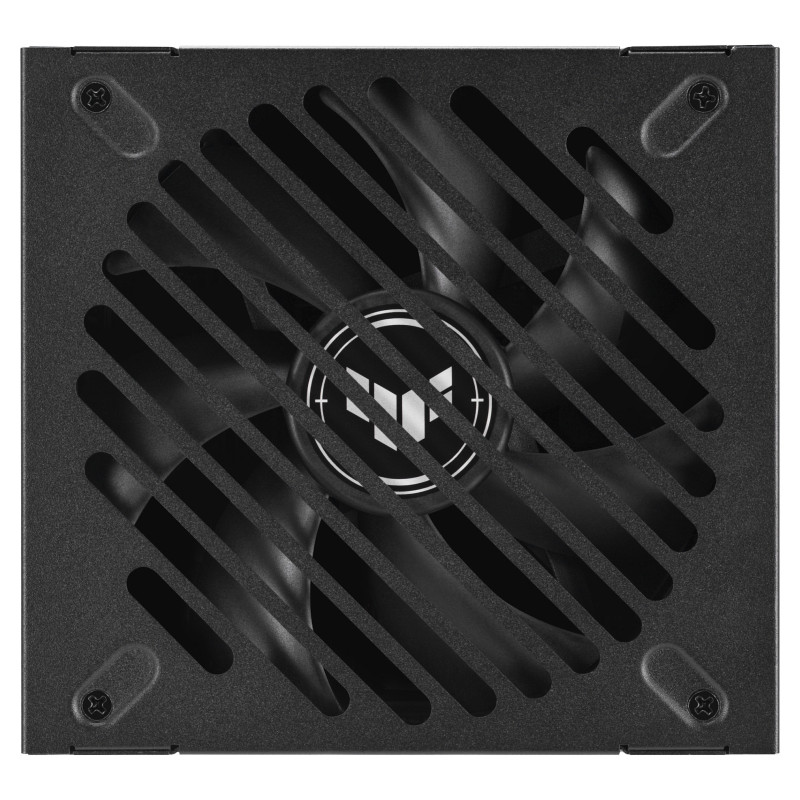

Number of fans: 1 fan(s)

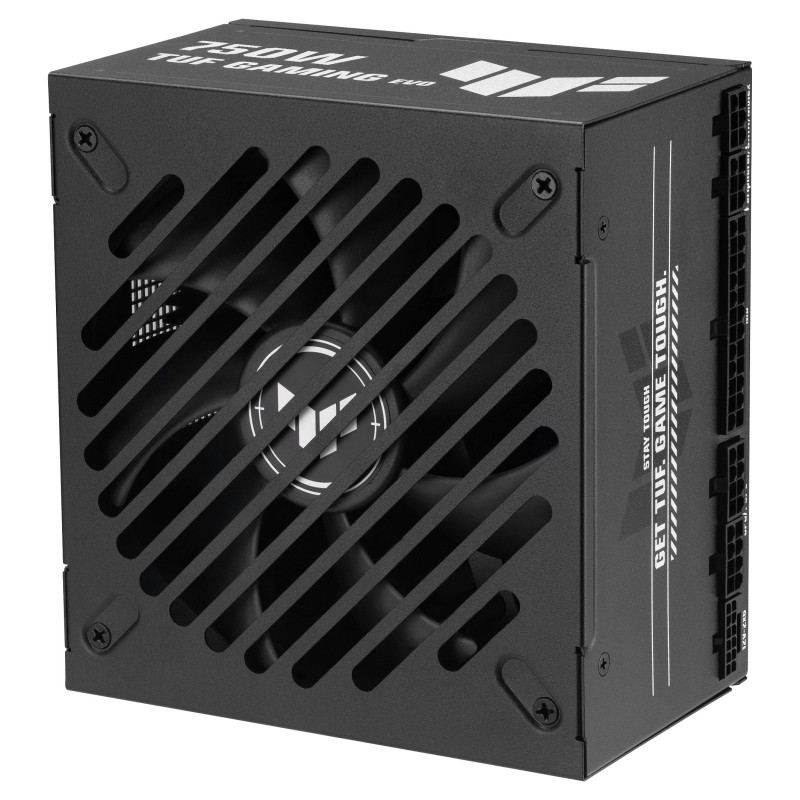

Fan location: Top
Illumination: No

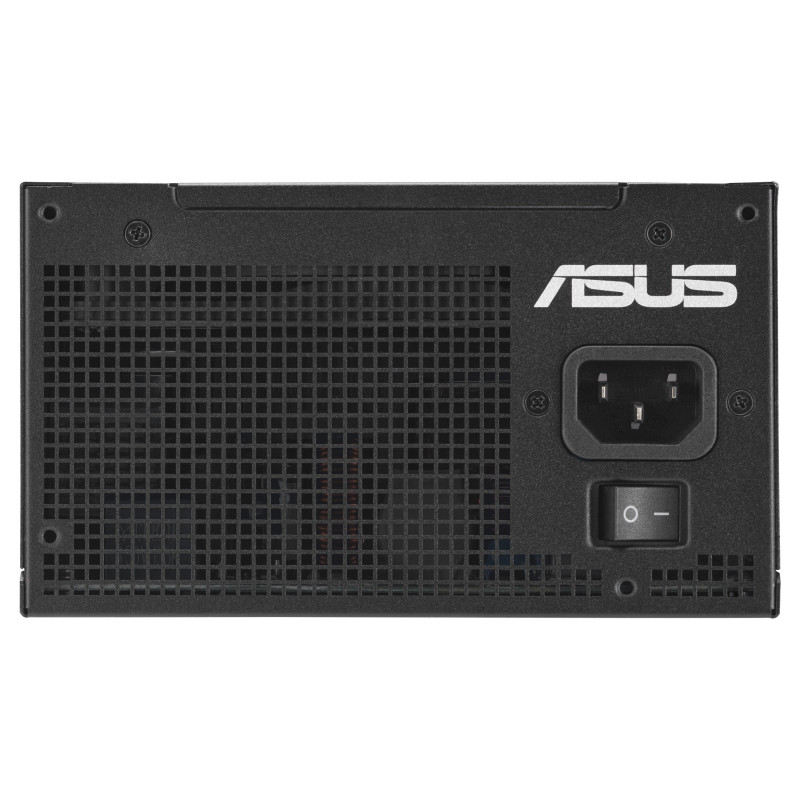

On/off switch: Yes

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.32 kg

Packaging data

Package width: 320 mm
Package depth: 182 mm
Package height: 127 mm
Package weight: 2.06 kg
Package type: Box
