ASUS TUF Gaming 1000W Gold power supply unit

ASUS TUF Gaming 1000W Gold. Total power: 1000 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 130 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Built For The Long Haul
The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
Durability
TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours' lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.
Dual Ball Fan Bearings
2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
ENGINEERING
80 Plus Gold Certification
Heart of gold
The TUF Gaming 1000W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.1 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

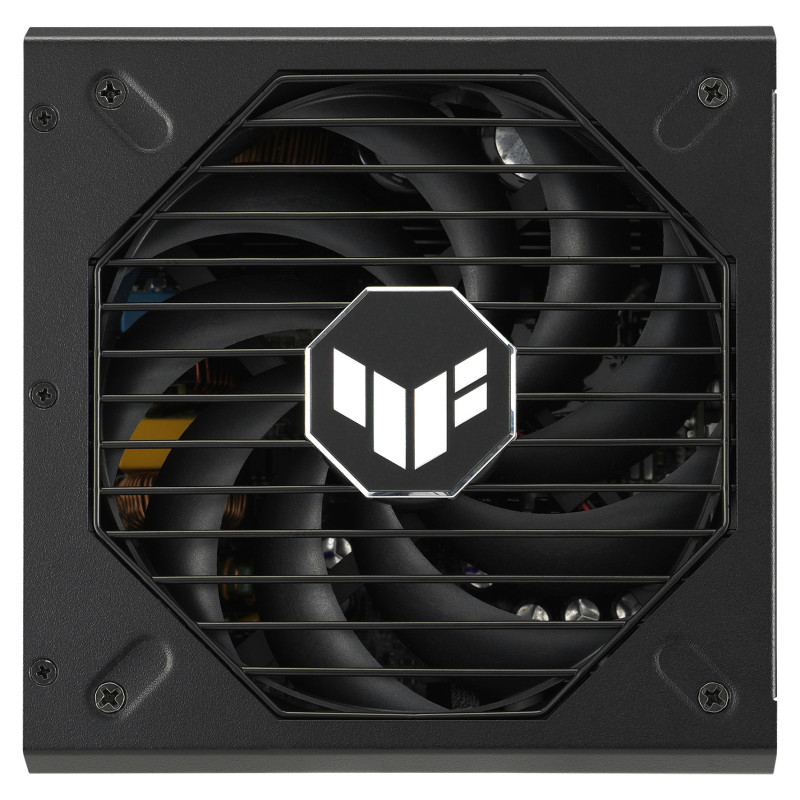

Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
EXPERIENCE
10-year Warranty
A decade of power
We're so confident about the reliability of the TUF Gaming 1000W Gold that we back it with a 10-year worldwide warranty.

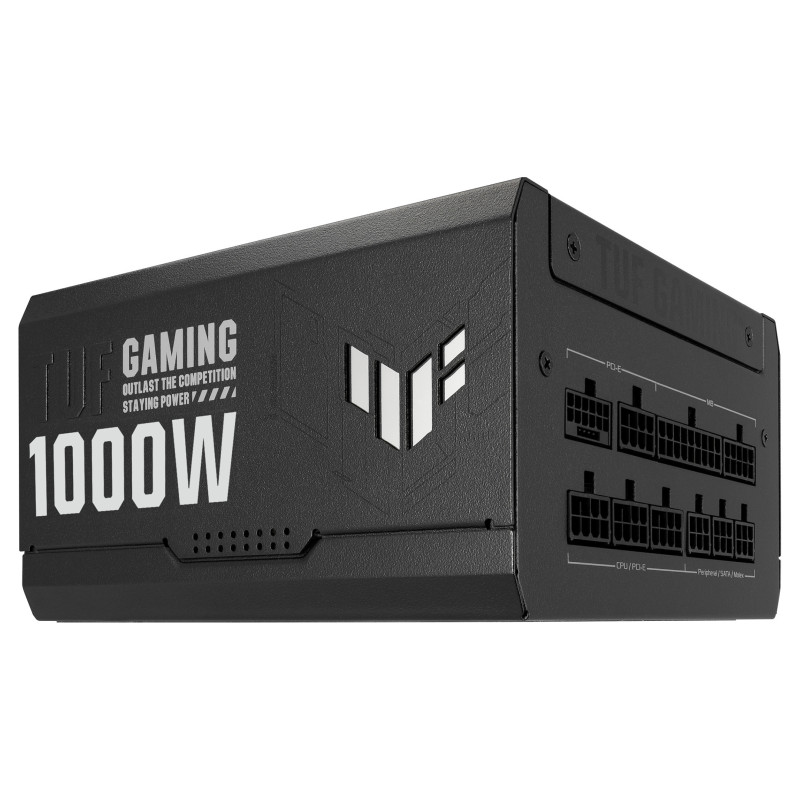

Fully Modular Etched Cables
Supple ply
The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
Combined power (+3.3V): 130 W
Combined power (+12V): 1000 W
Combined power (+5V): 130 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 83.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 3 A
Efficiency: 92%
Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage

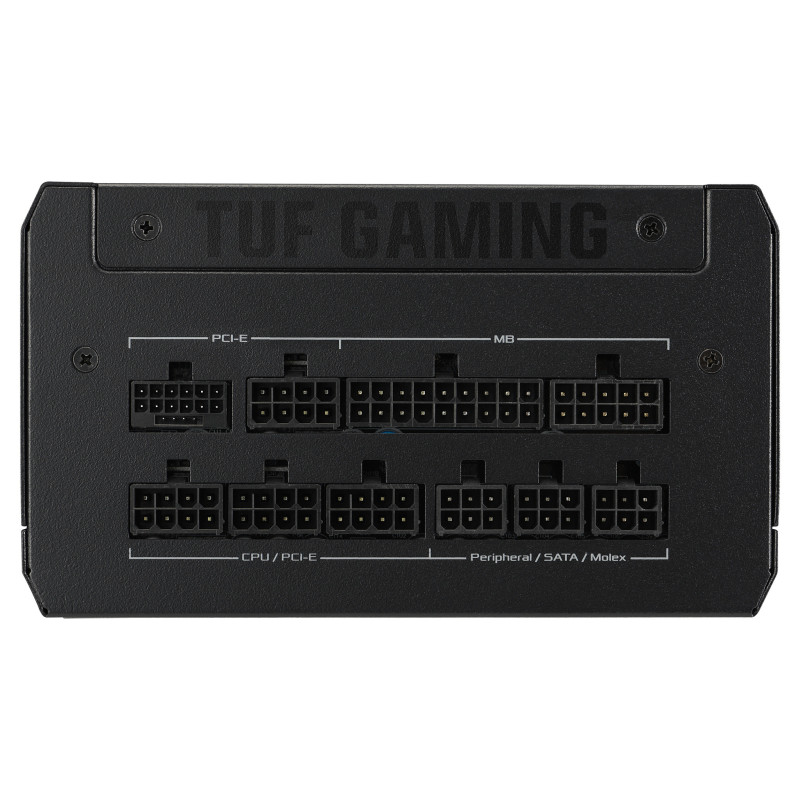

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 5
SATA power cable length: 120,400 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150,400 mm
PCI Express power connectors (8-pin): 4
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 67.5 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
ATX power connector (20+4 pin): Yes
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1

Design

Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Illumination: No
On/off switch: Yes

Packaging content

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included: Yes

Certificates

Compliance certificates: RoHS

Weight dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.48 kg

Packaging data

Package width: 310 mm
Package depth: 200 mm
Package height: 108 mm
Package weight: 3.17 kg
Package type: Box

Technical details

Sustainability compliance: Yes
