ASUS ROG -THOR-1200P3-GAMING power supply unit

ASUS ROG -THOR-1200P3-GAMING. Total power: 1200 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Featuring a GaN MOSFET, "GPU-First" patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build
ROG THOR 1200W PLATINUM III
ULTIMATE POWER. UNMATCHED STABILITY.
The ROG Thor 1200W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

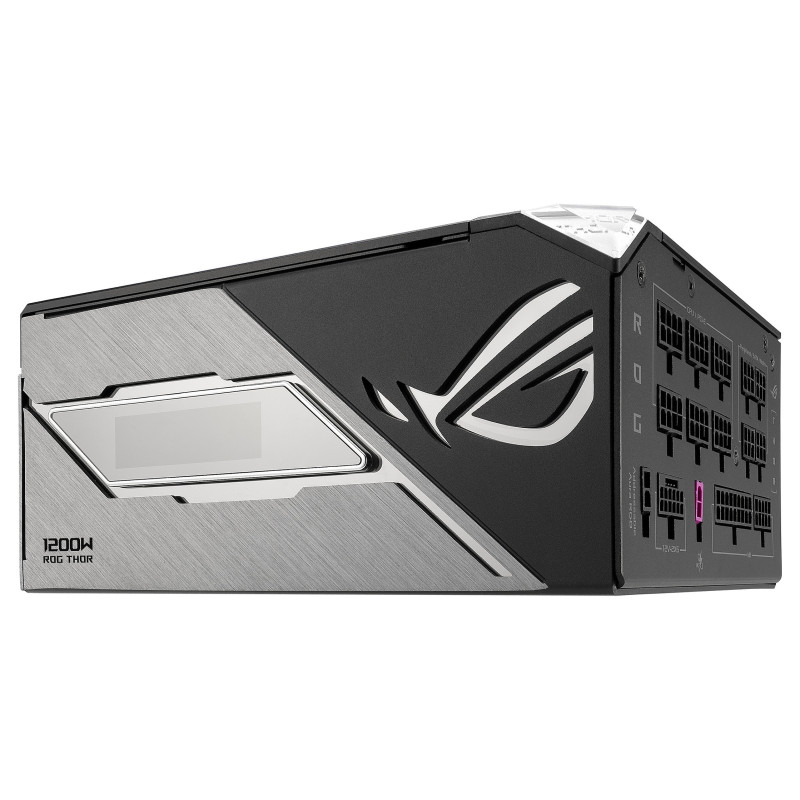

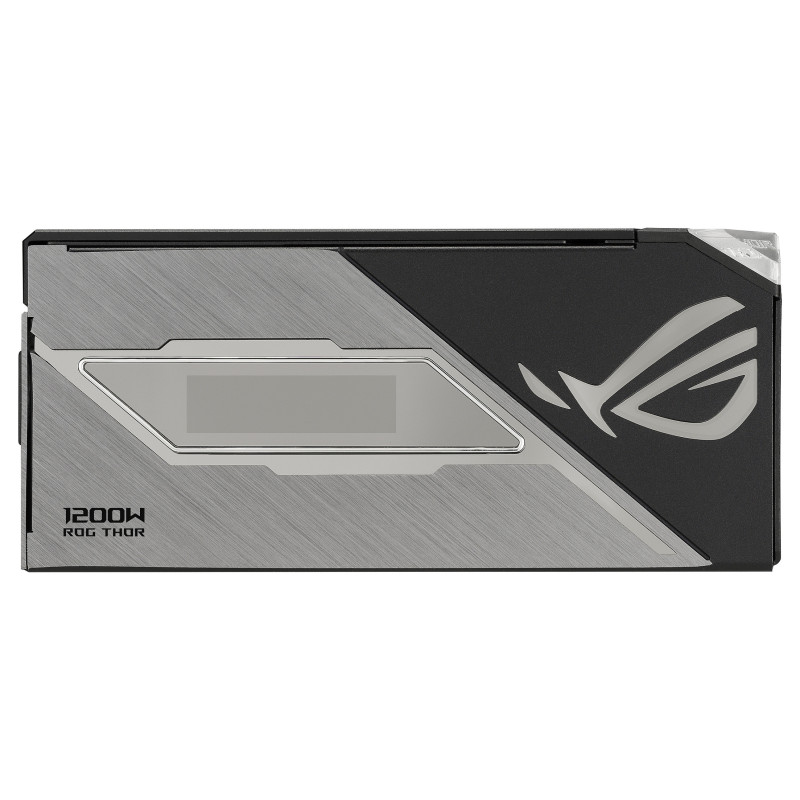

The ROG Thor 1200W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Power

Total power: 1200 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 1200 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 30 A
Max output current (+12V): 100 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Over current, Over power, Over voltage, Short circuit, Under power

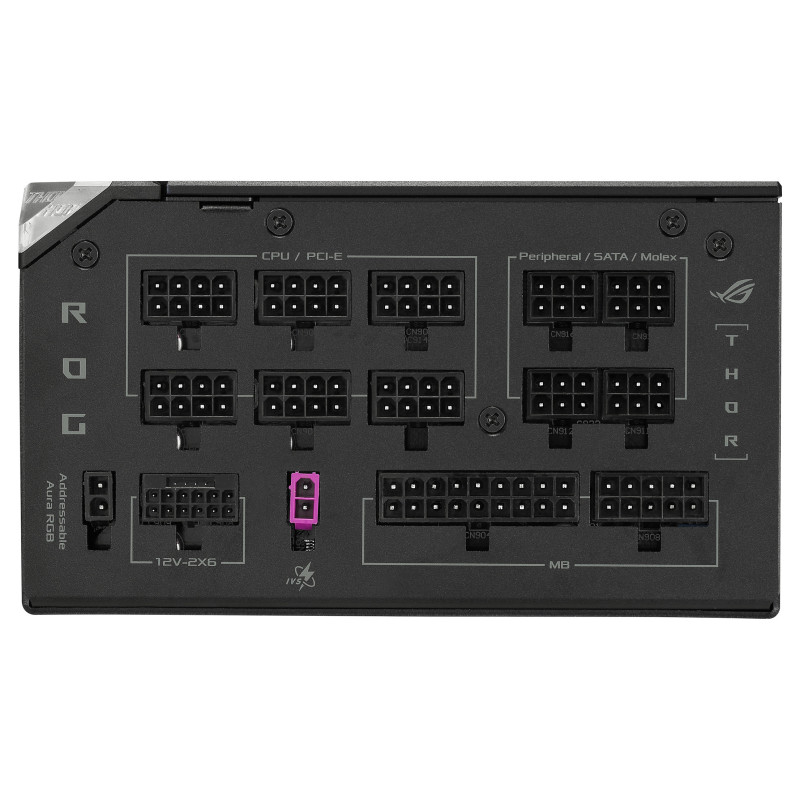

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 7
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 6
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 75 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 100 cm
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Illumination: Yes

Packaging content

Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Weight dimensions

Width: 190 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.37 kg

Packaging data

Package width: 379 mm
Package depth: 241 mm
Package height: 127 mm
Package weight: 5.14 kg
Package type: Box
