ASUS ROG -STRIX-1000P-GAMING-WHITE power supply unit

ASUS ROG -STRIX-1000P-GAMING-WHITE. Total power: 1000 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: White, Cooling type: Semi-passive, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
ROG Strix 1000W Platinum White Edition
Superior Stability.
Next-Level Efficiency
The ROG Strix Platinum White Edition PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 1000 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 83.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Over current, Over power, Over voltage, Short circuit, Under power

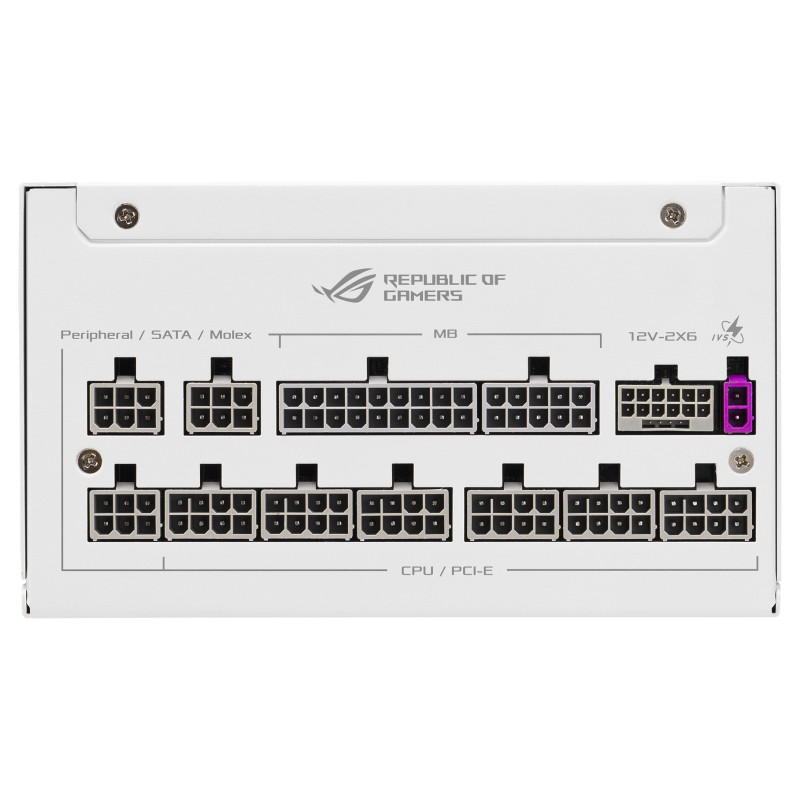

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 6
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 75 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 100 cm
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Mean time between failures (MTBF): 120000 h

Design

Product colour: White

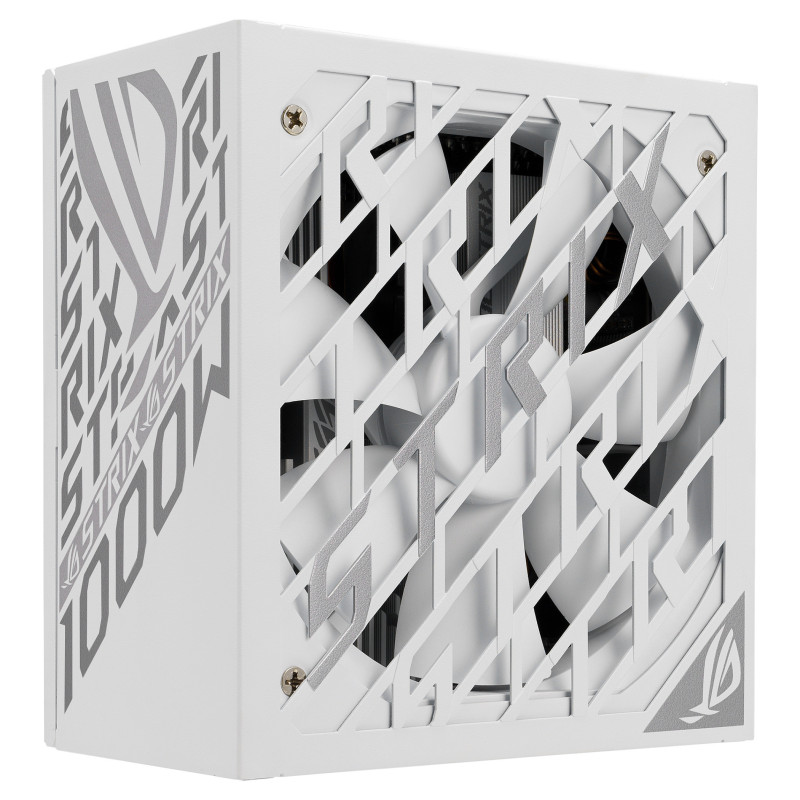

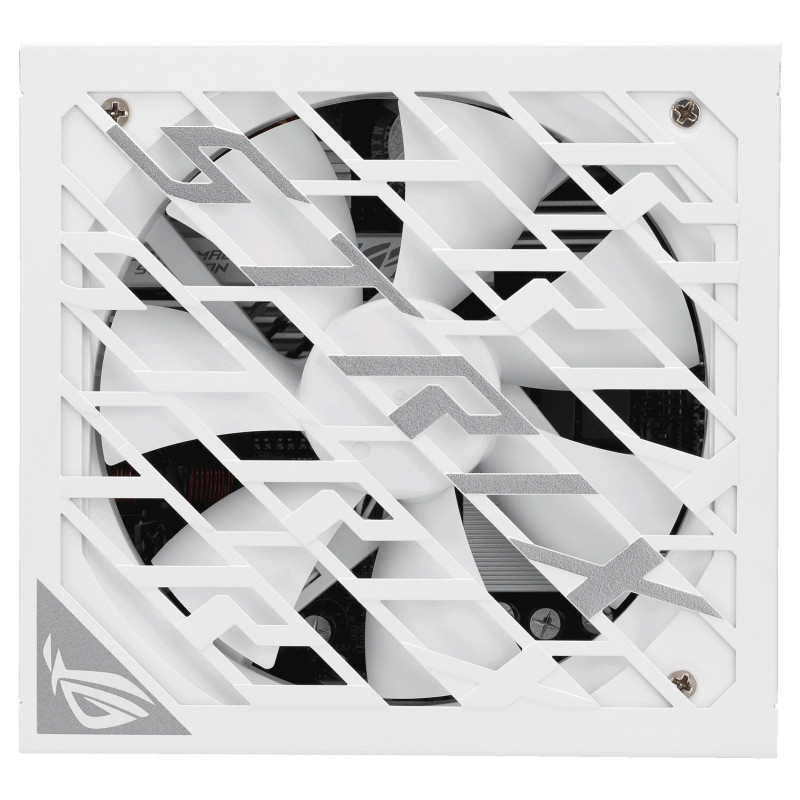

Cooling type: Semi-passive
Number of fans: 1 fan(s)
Fan location: Top
Illumination: No

Packaging content

Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Weight dimensions

Width: 160 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.81 kg

Packaging data

Package width: 320 mm
Package depth: 200 mm
Package height: 108 mm
Package weight: 2.91 kg
Package type: Box
