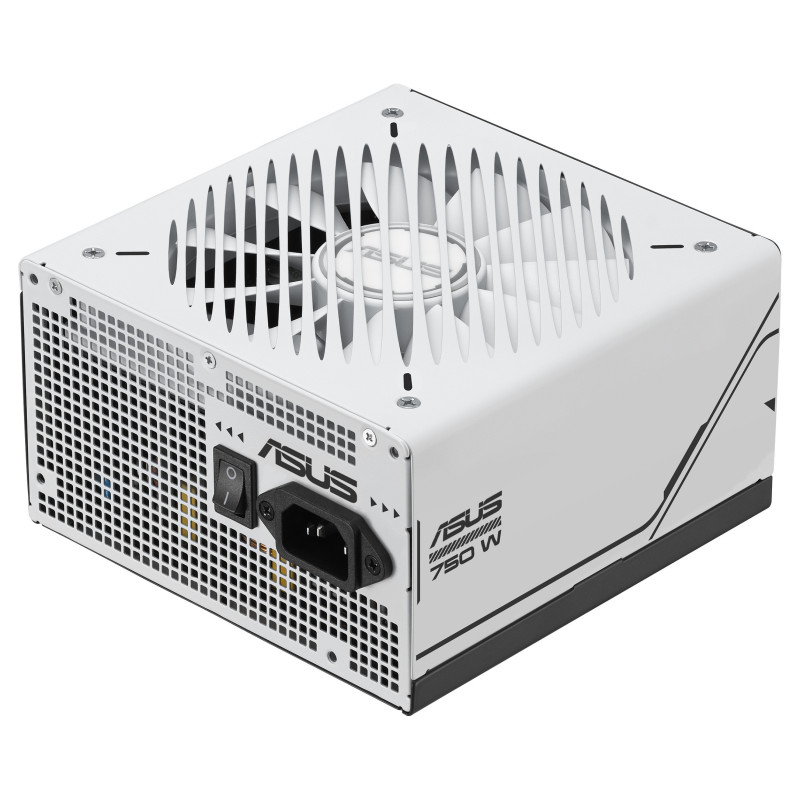

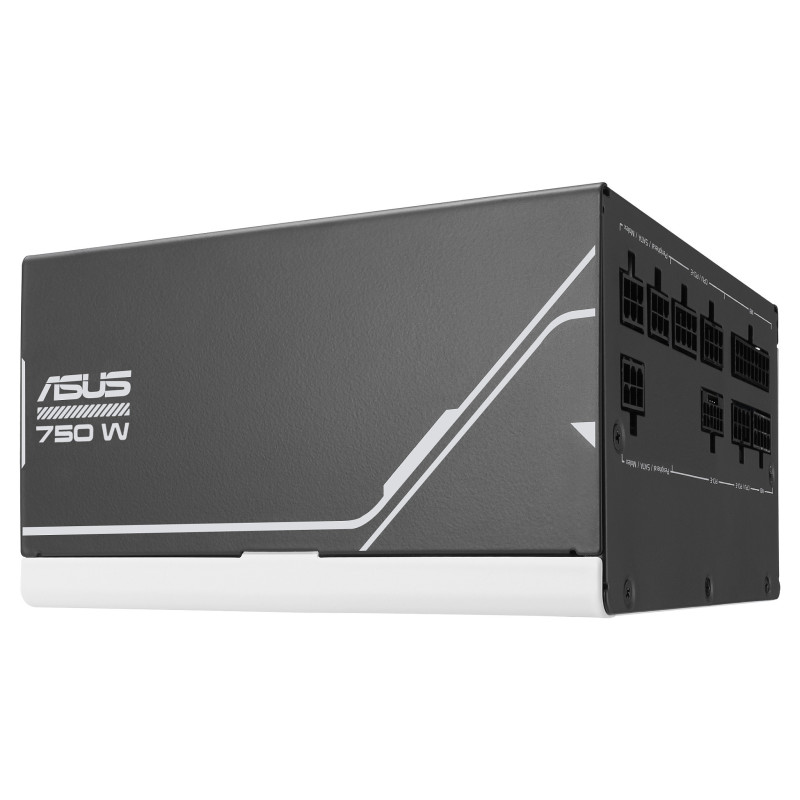

ASUS Prime AP-750G power supply unit

ASUS Prime AP-750G. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, White, Cooling type: Active. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Prime Performance
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

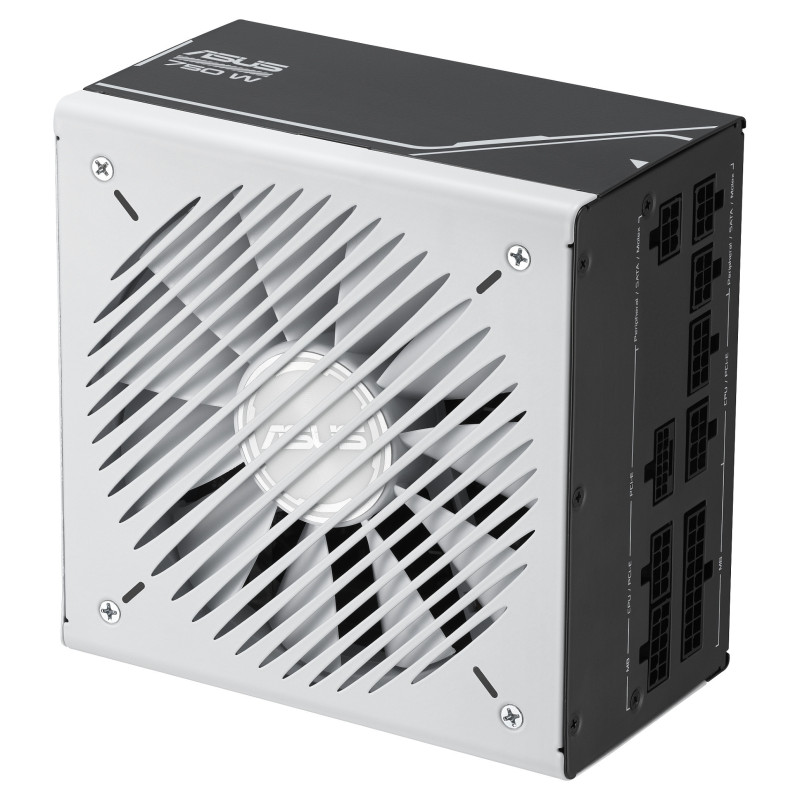

Dual Ball Fan Bearings
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.
80 Plus Gold Certification
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

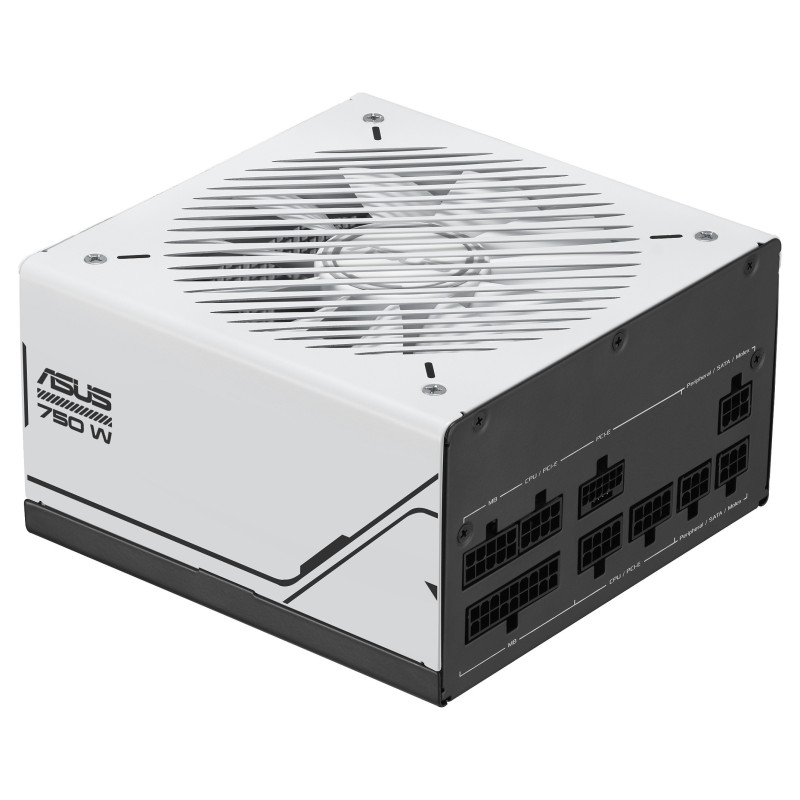

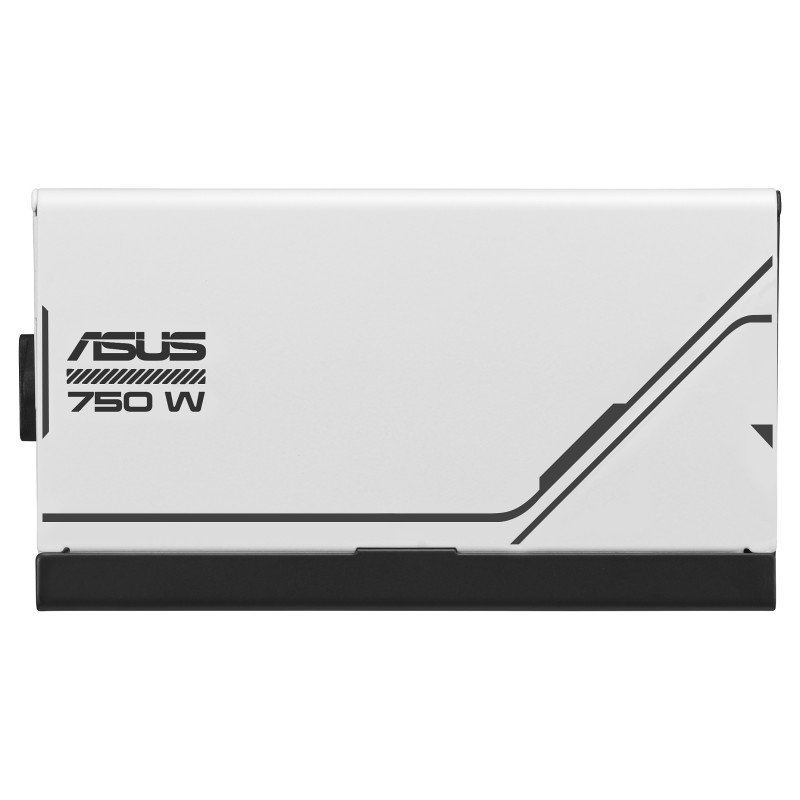

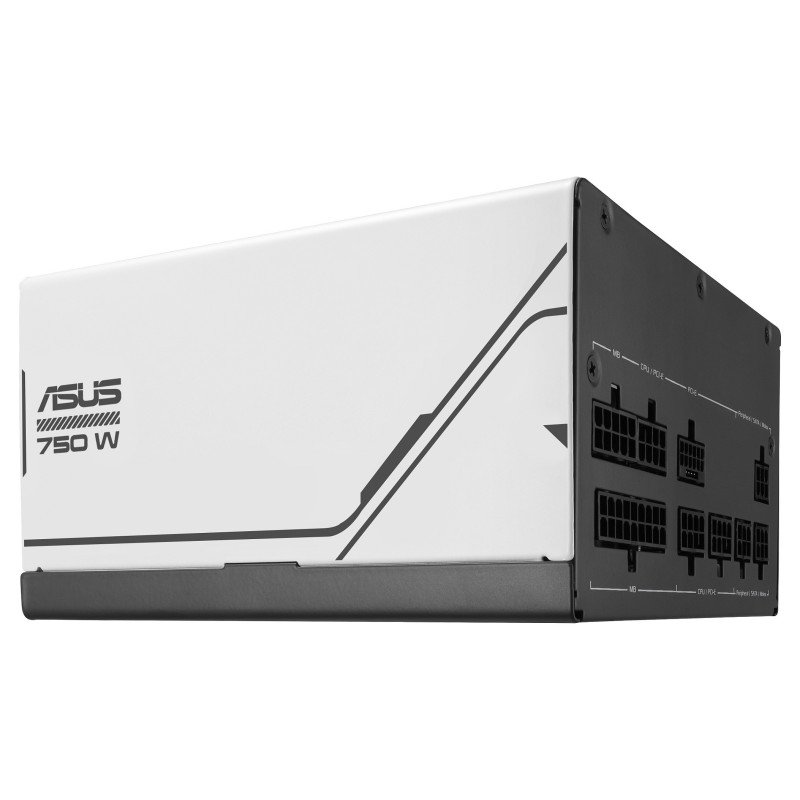

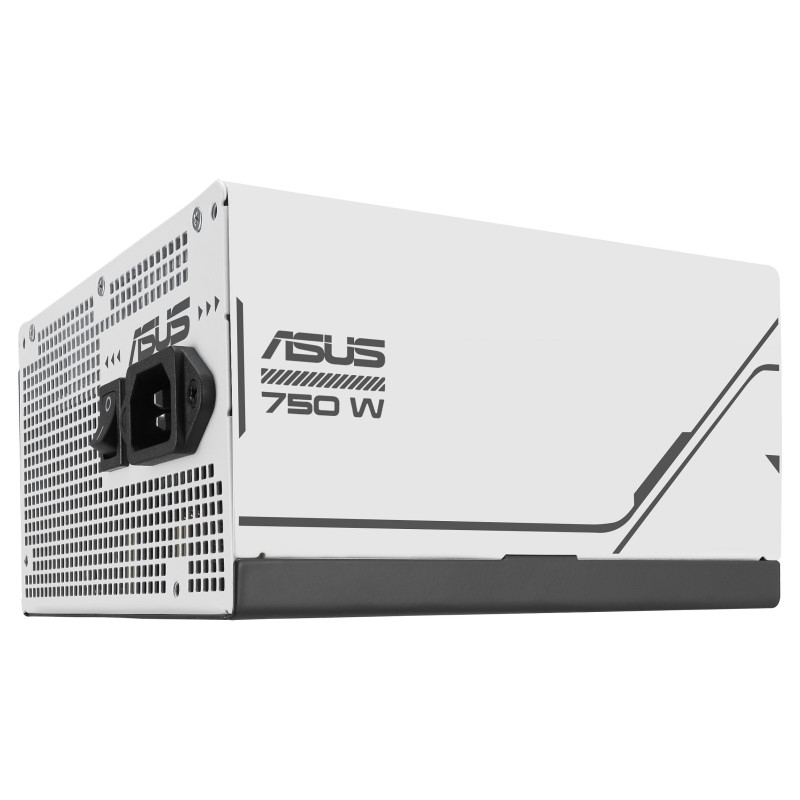

Choose Your Style

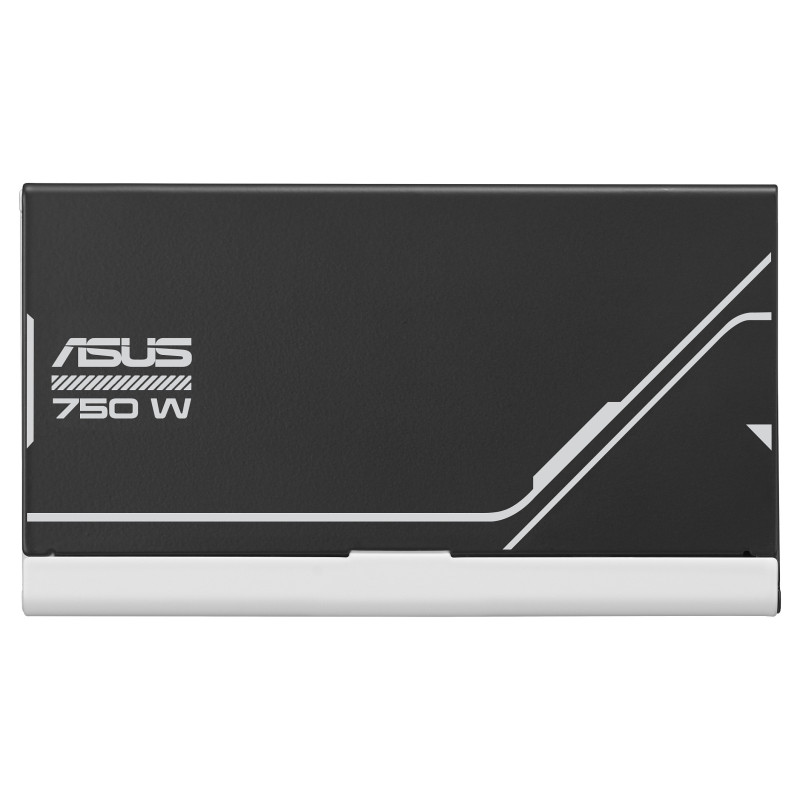

Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.
8-year Warranty
We're so sure about the reliability of the ASUS Prime 750W Gold that we back it with an 8-year warranty.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 744 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 92%
Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage

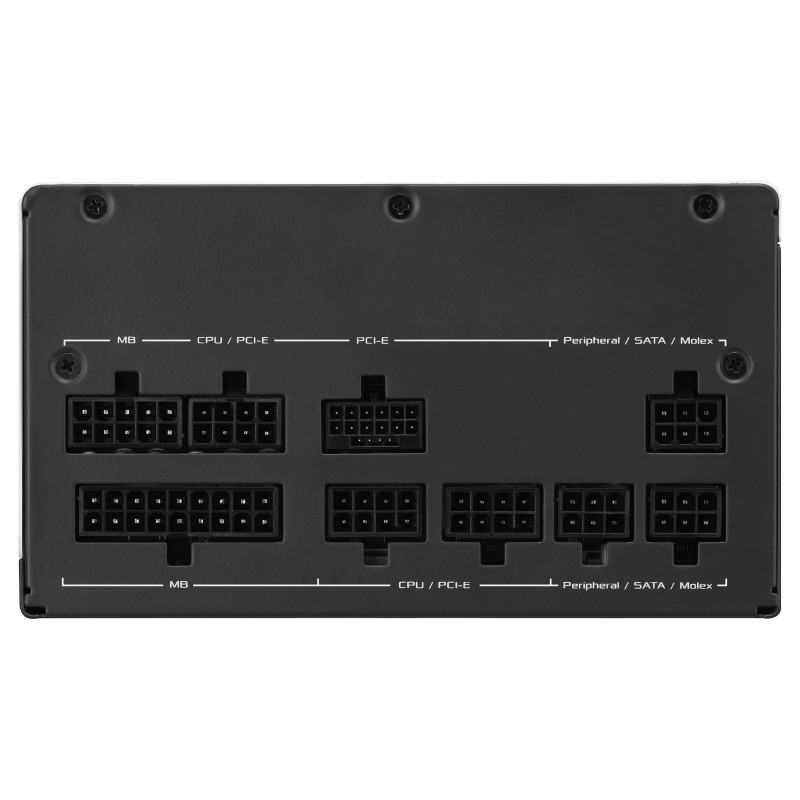

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 5
SATA power cable length: 120,400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,400 mm
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
CPU P4 connector (4-pin): 2
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
ATX power connector (20+4 pin): Yes
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: Ball bearing
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black, White
Cooling type: Active
Illumination: No

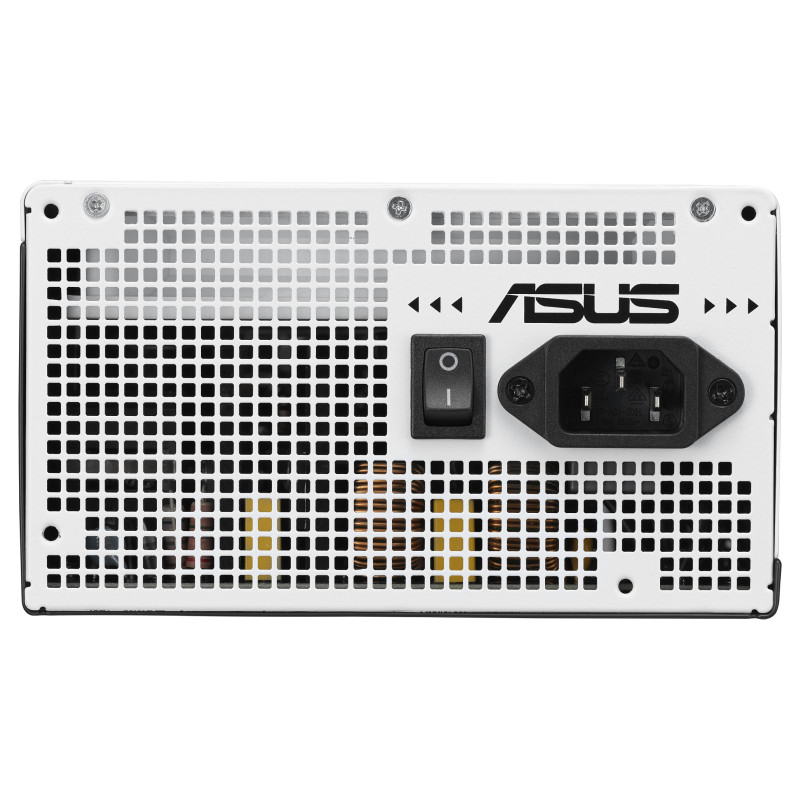

On/off switch: Yes

Packaging content

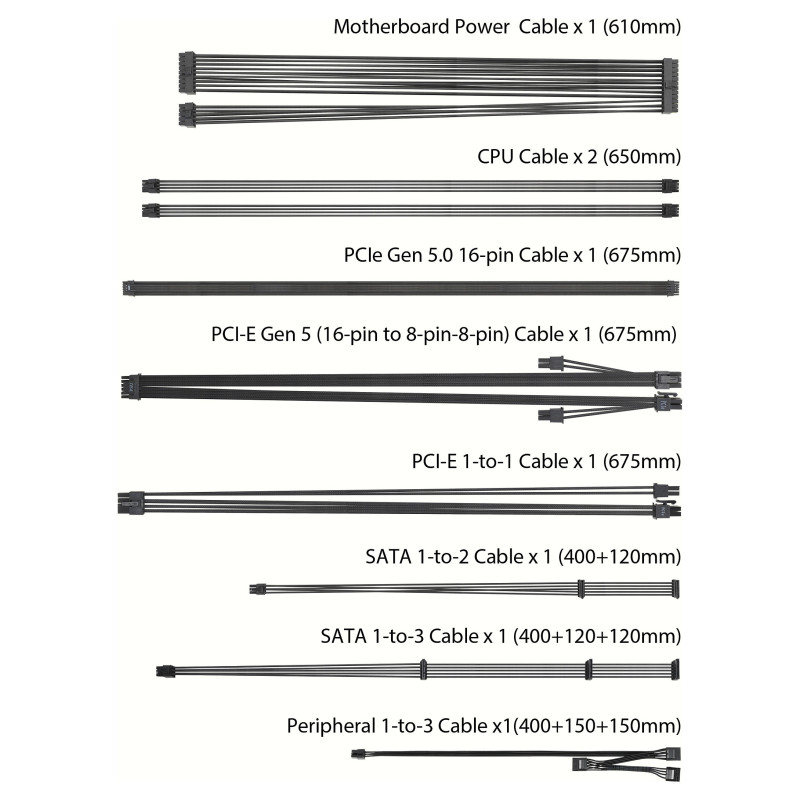

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Weight dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.47 kg

Packaging data

Package width: 346 mm
Package depth: 208 mm
Package height: 144 mm
Package weight: 2.88 kg
Package type: Box
