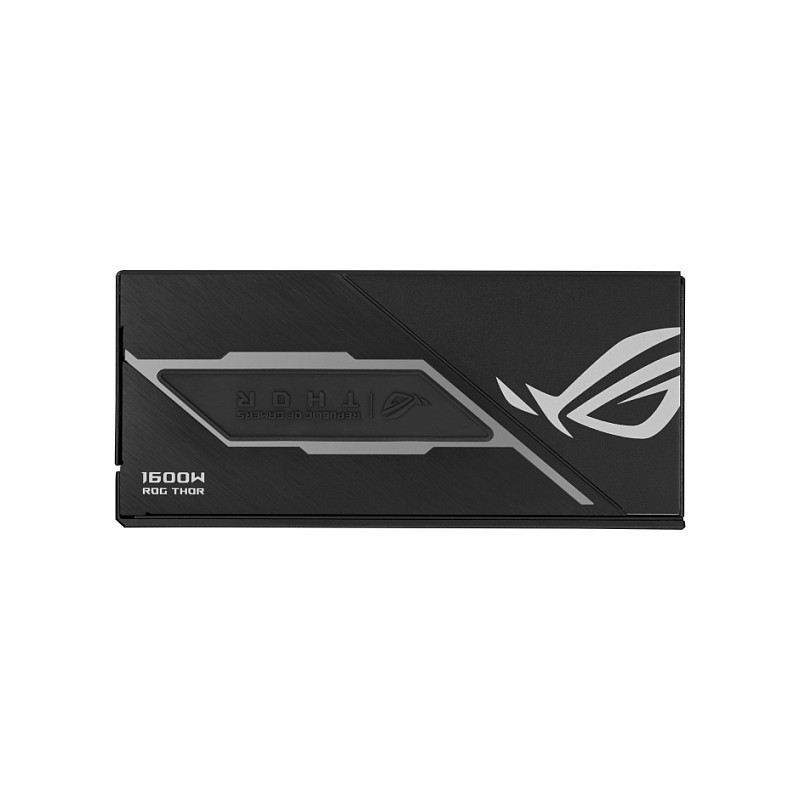

ASUS ROG -THOR-1600T3-GAMING-EVO power supply unit

ASUS ROG -THOR-1600T3-GAMING-EVO. Total power: 1600 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power cable length: 75 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Grey, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ultimate Power. Unmatched Stability

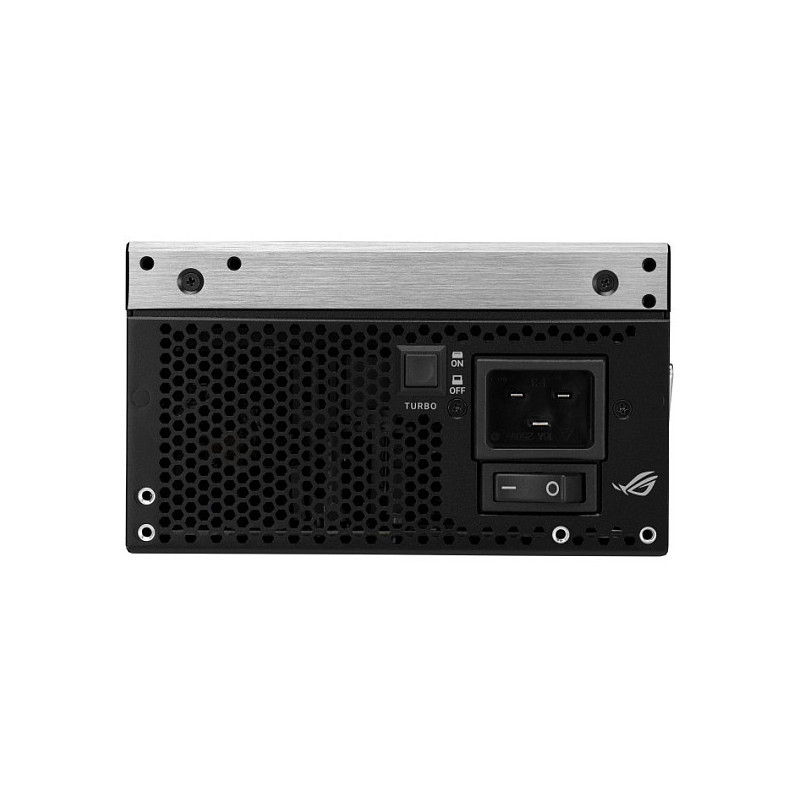

The ROG Thor 1600W Titanium III EVO delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.

The ROG Thor 1600W Titanium III EVO also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Titanium Series ensures your high-end rig has the power to conquer any challenge.

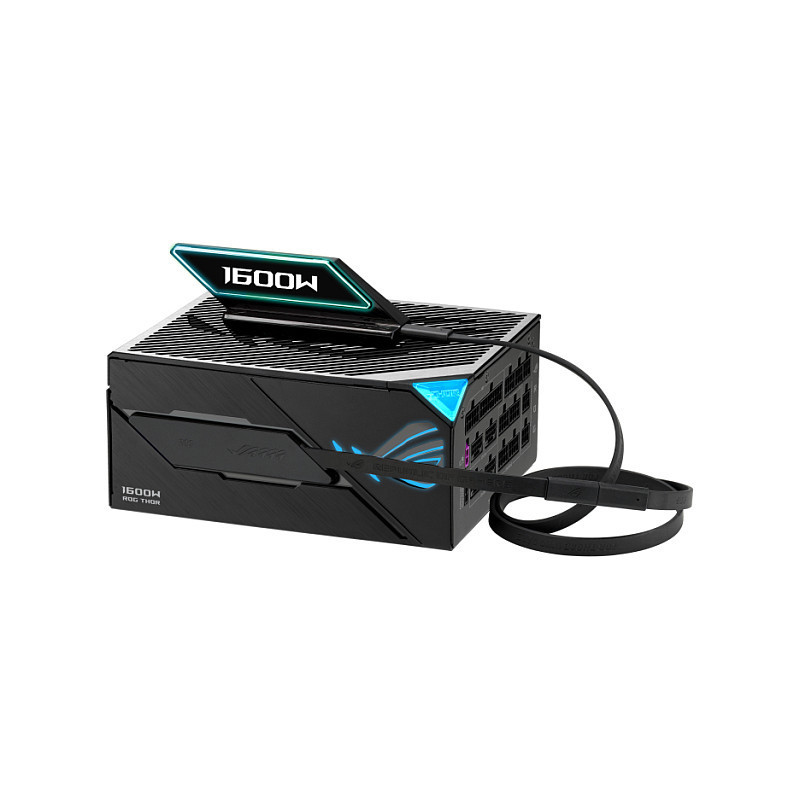

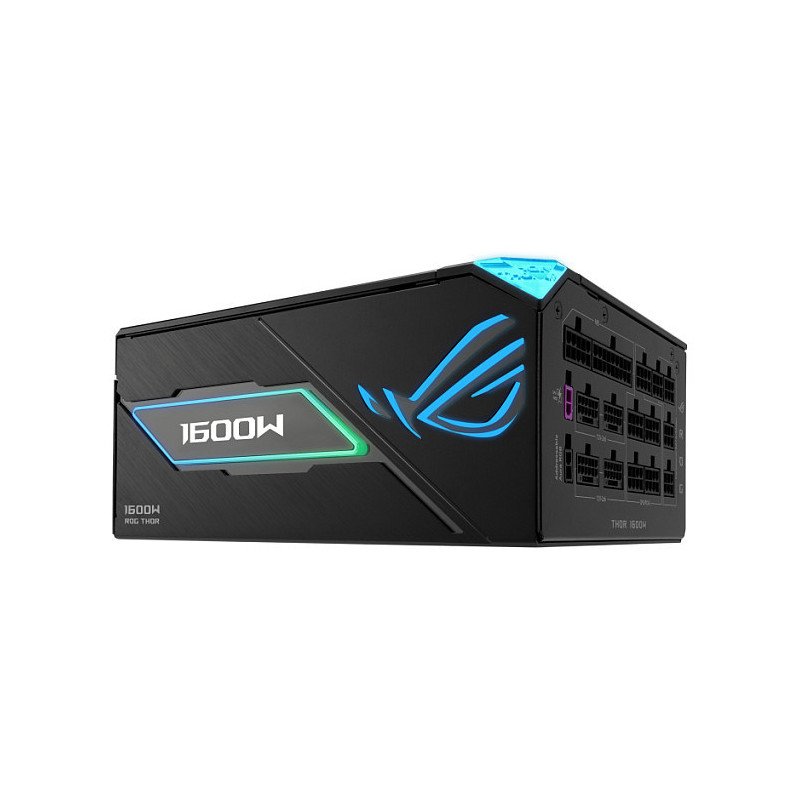

The ROG Thor 1600W Titanium III EVO retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations. An included Type-C extender further enables flexible relocation to the chassis front or exterior for maximum visibility.

Patented ROG Equalizer PCIe Cable
Engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card.

Power

Total power: 1600 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 1600 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 30 A
Max output current (+12V): 133.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

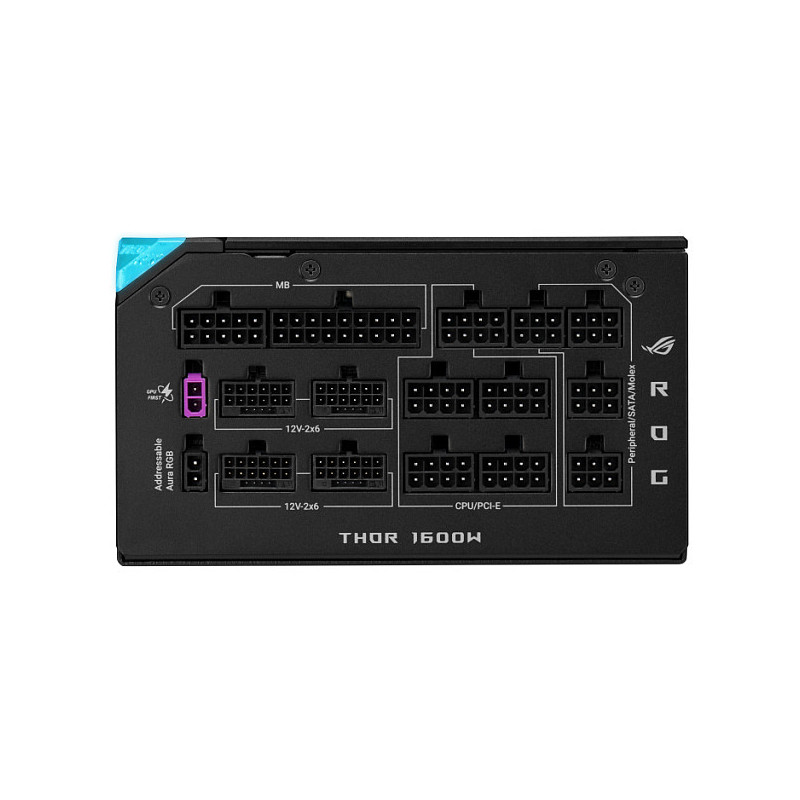

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 9
Number of SATA power cables: 3
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 2
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 100 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h

Design

Product colour: Grey
Cooling type: Active
Number of fans: 1 fan(s)
Feature: Illumination
Feature: Built-in display
Display type: OLED
Feature: On/off switch

Packaging content

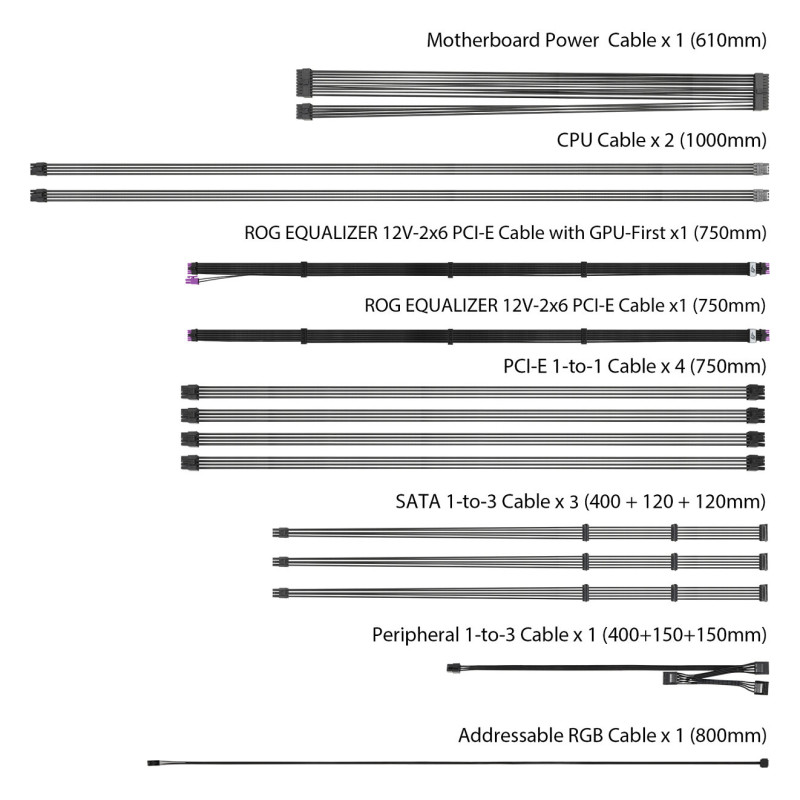

Cables included: CPU, PCIe, Peripheral (Molex), SATA
Feature: Cable tie(s) included

Weight & dimensions

Width: 190 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.5 kg

Packaging data

Package width: 397 mm
Package depth: 250 mm
Package height: 159 mm
Package weight: 5.91 kg
Package type: Box

Logistics data

Quantity per pack: 1 pc(s)
