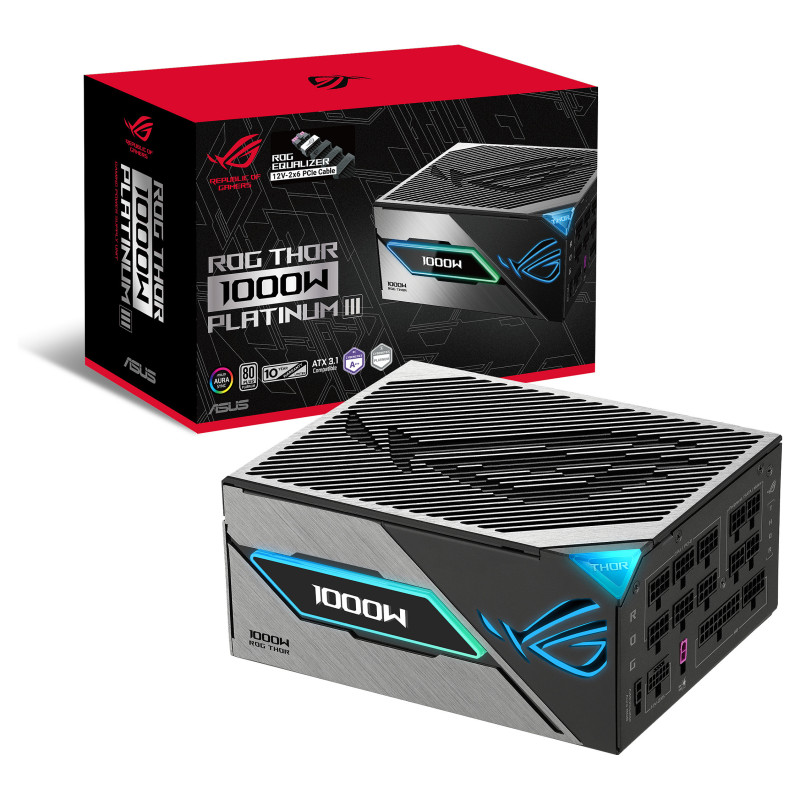

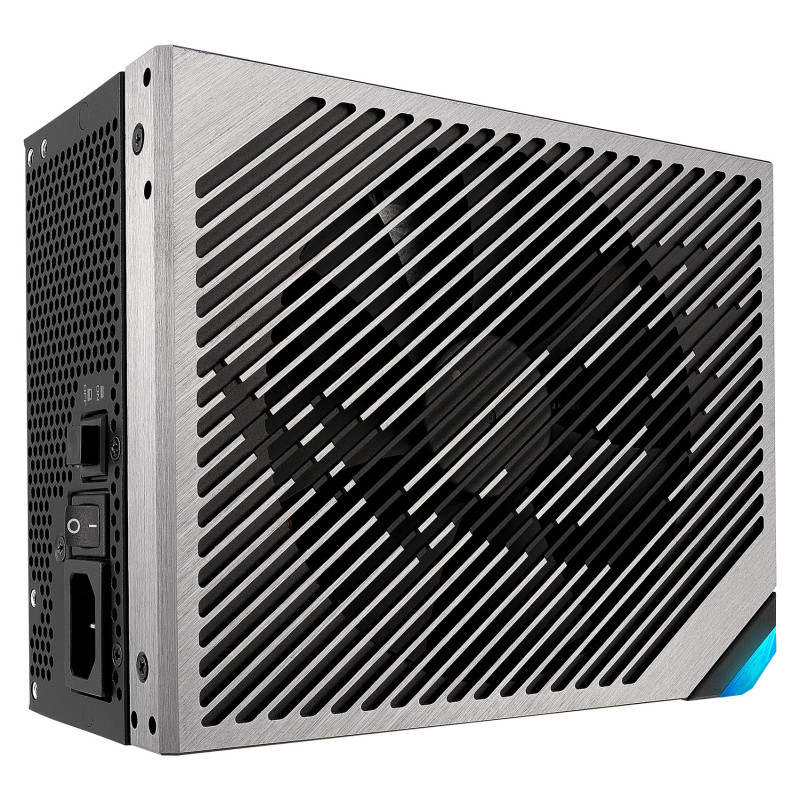

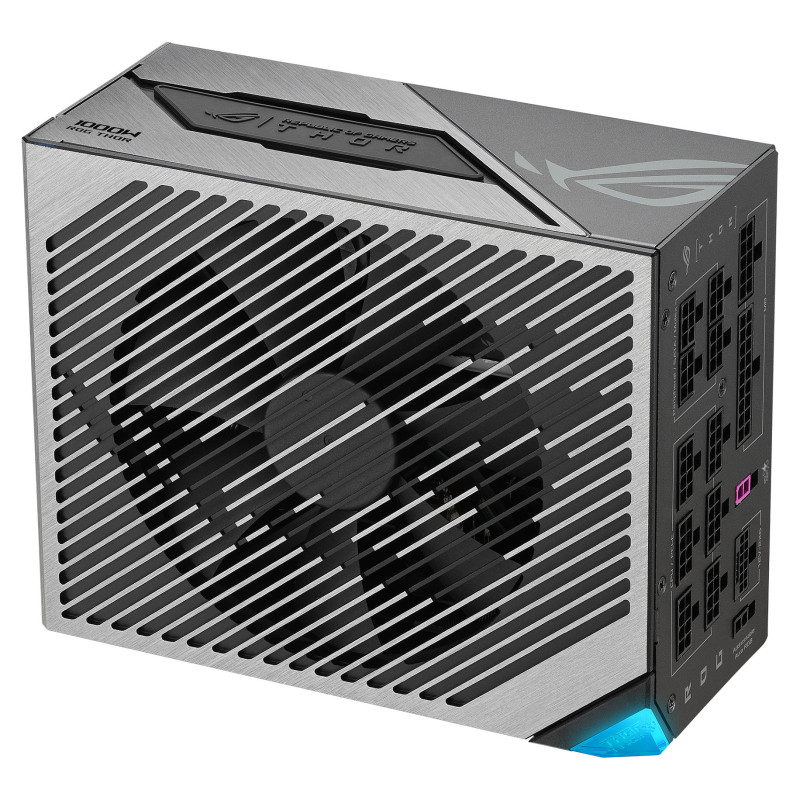

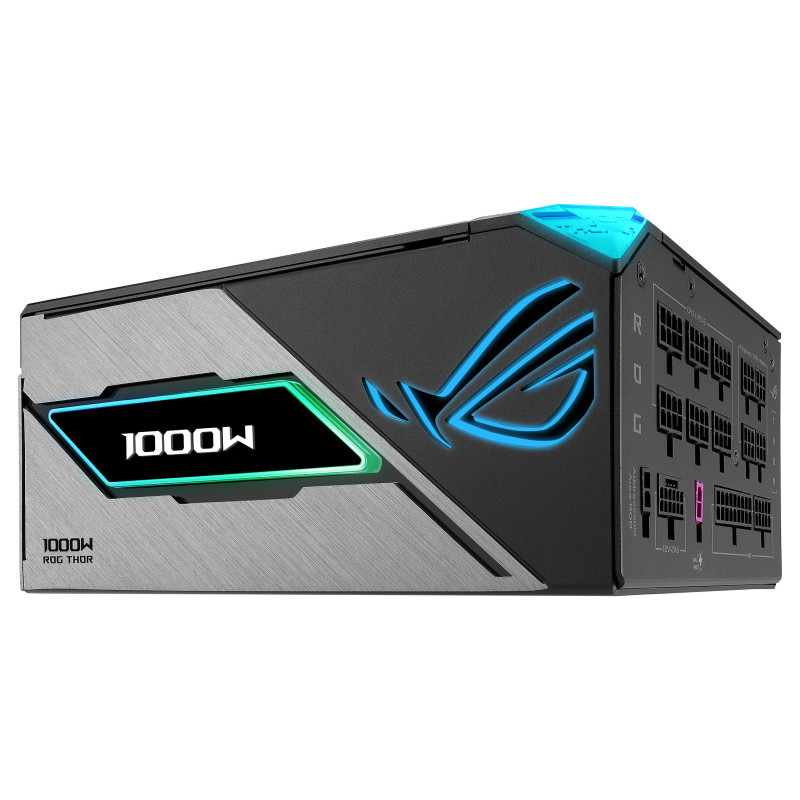

ASUS ROG -THOR-1000P3-GAMING-E power supply unit

ASUS ROG -THOR-1000P3-GAMING-E. Total power: 1000 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power cable length: 75 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Ultimate Power. Unmatched Stability

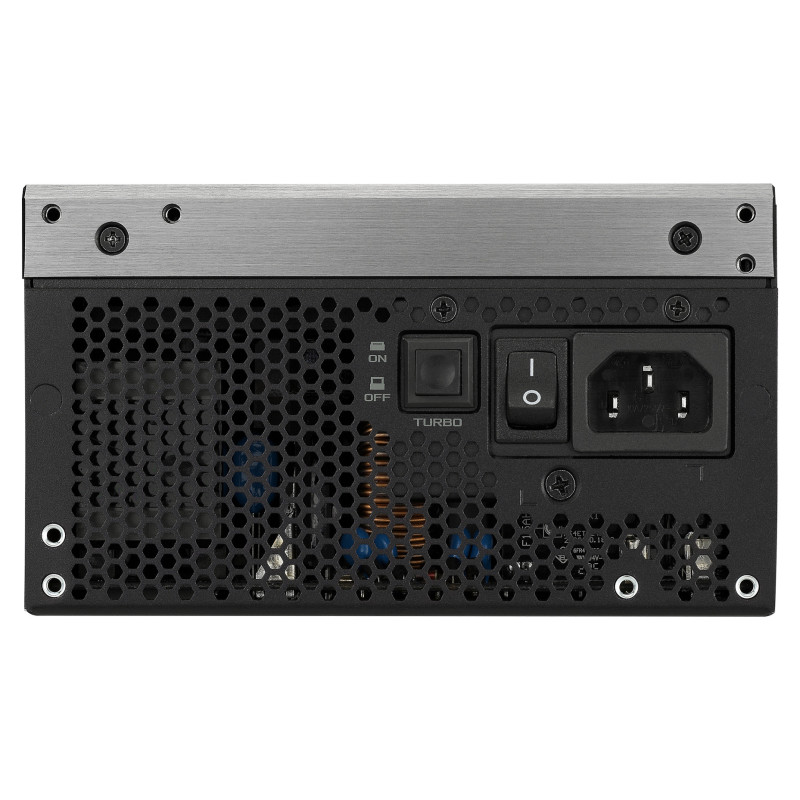

The ROG Thor 1000W Platinum III delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.
The ROG Thor 1000W Platinum III also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.

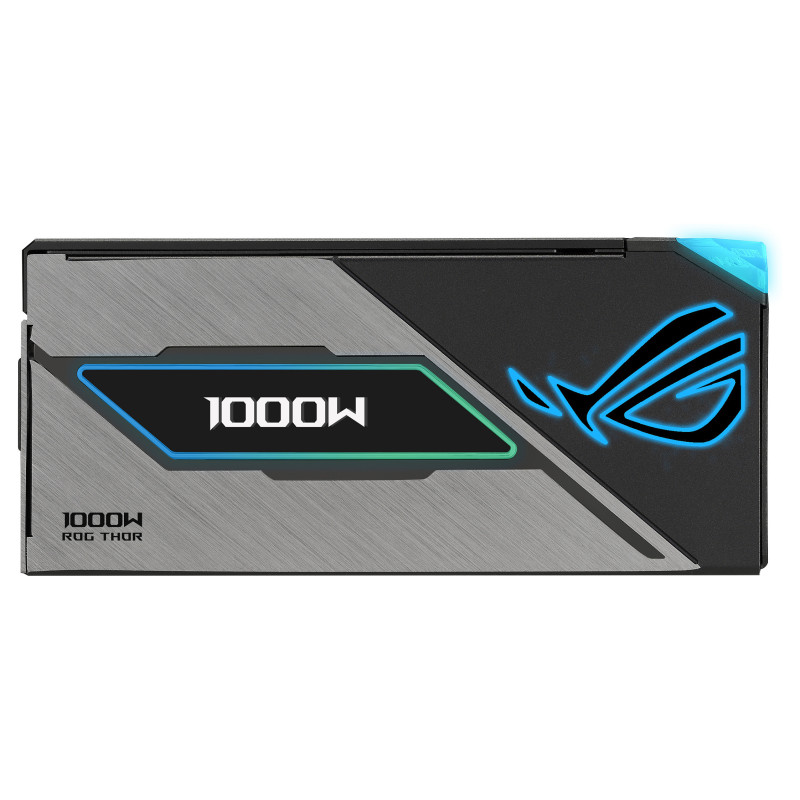

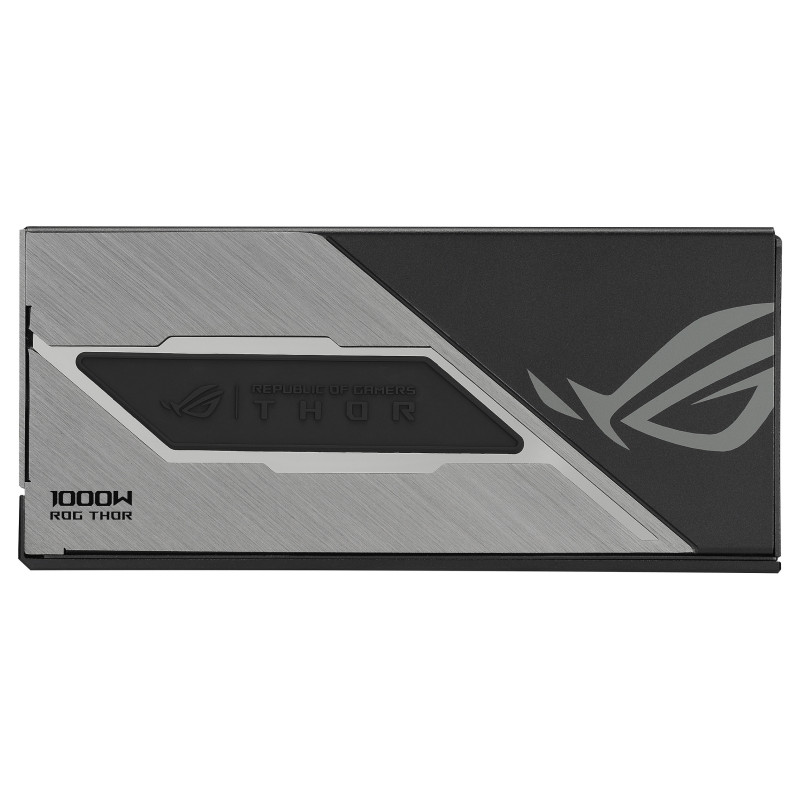

The ROG Thor 1000W Platinum III retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 1000 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 30 A
Max output current (+12V): 83.33 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under power

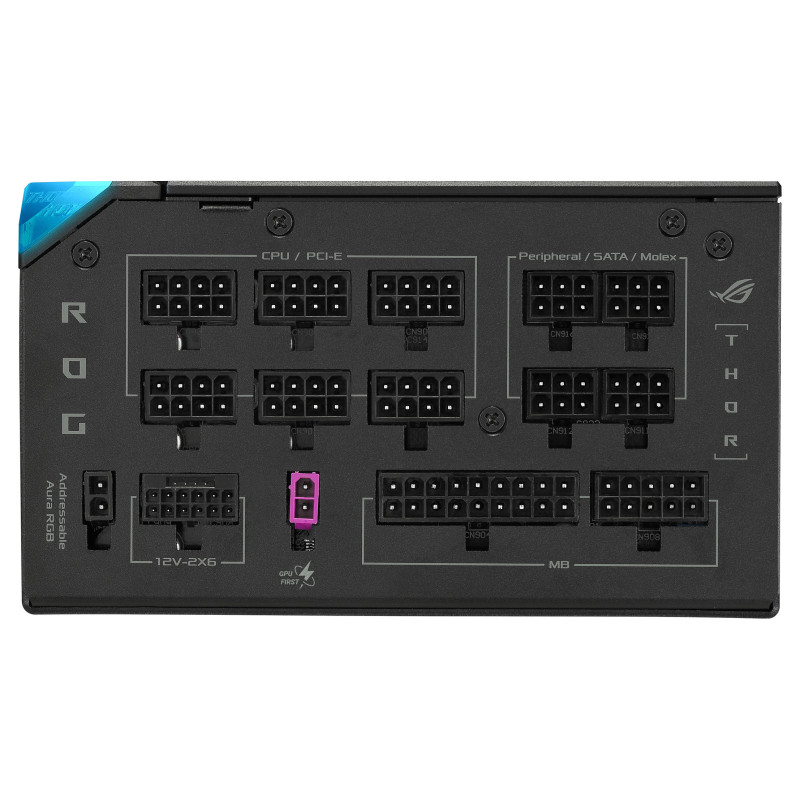

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 7
Peripheral (Molex) power connectors (4-pin): 6
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 100 cm
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black

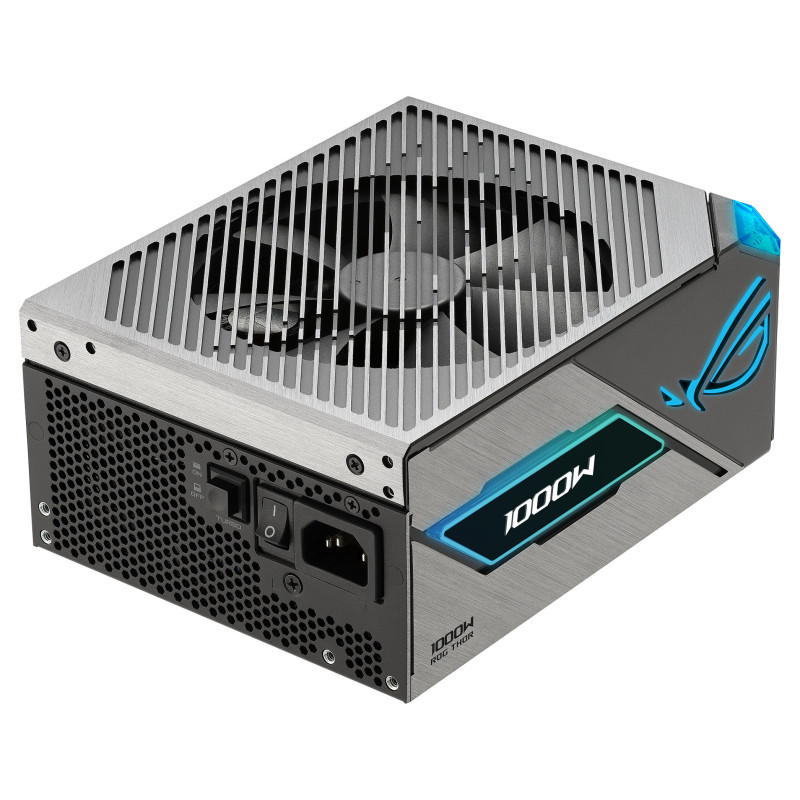

Cooling type: Active

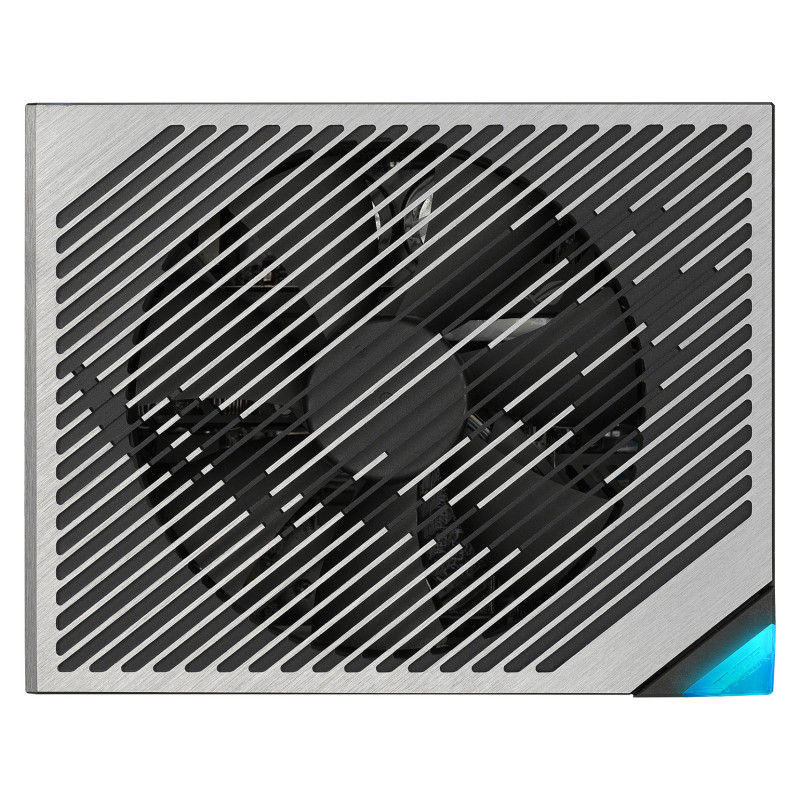

Number of fans: 1 fan(s)
Fan location: Top
Feature: Illumination
Feature: On/off switch

Packaging content

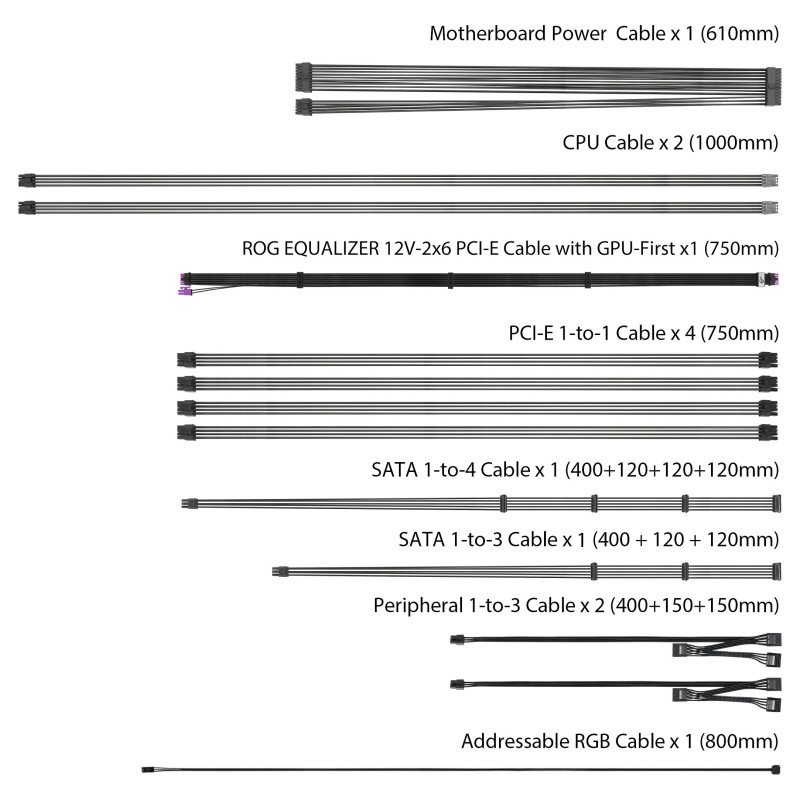

Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Weight dimensions

Width: 190 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.37 kg

Packaging data

Package width: 379 mm
Package depth: 241 mm
Package height: 127 mm
Package weight: 5.17 kg
Package type: Box
