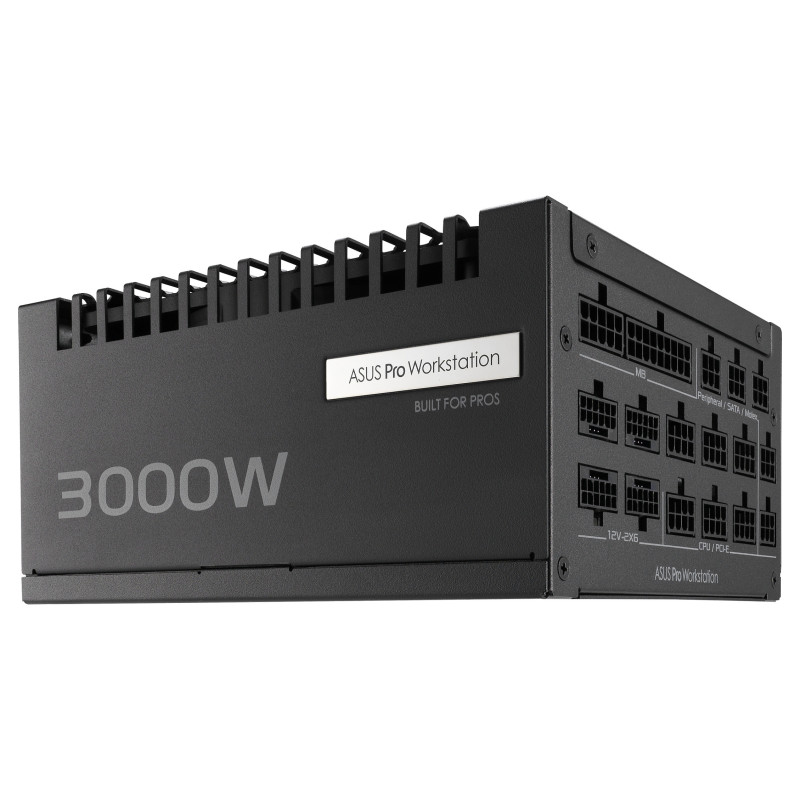

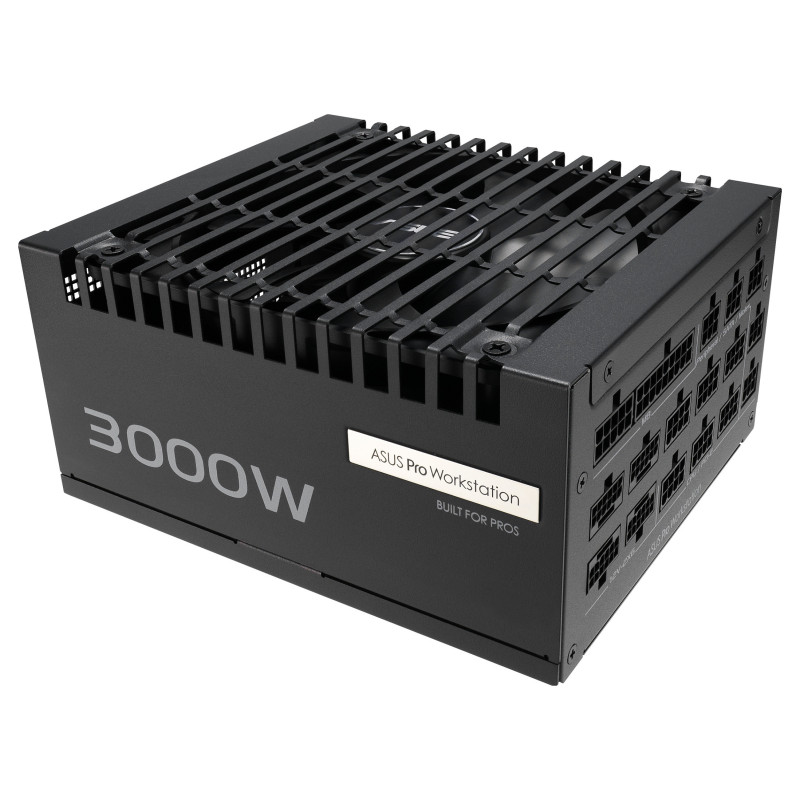

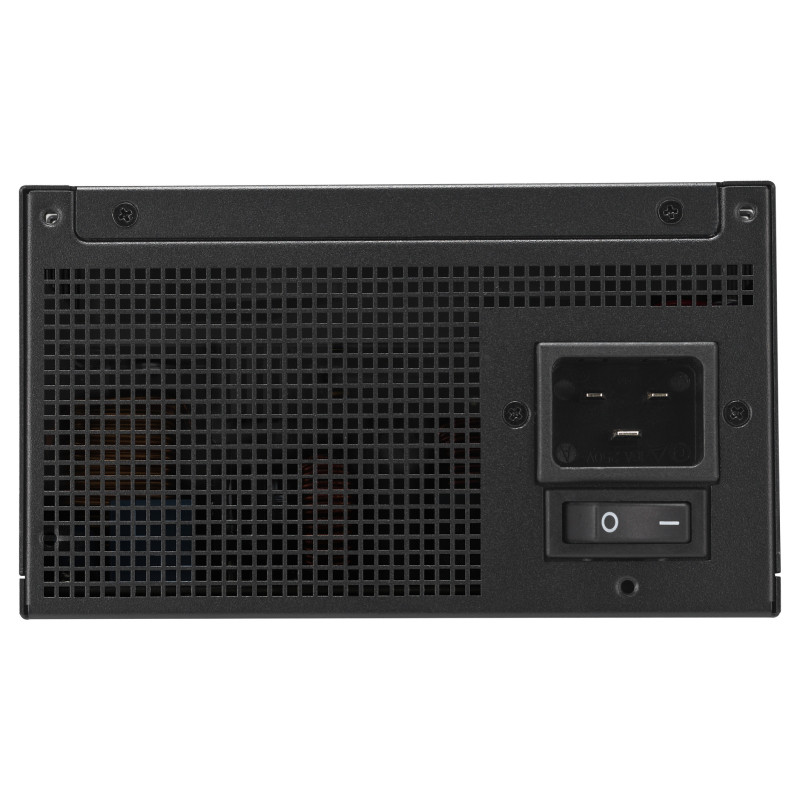

ASUS ASUS-PRO-WS-3000P power supply unit

ASUS -PRO-WS-3000P. Total power: 3000 W, AC input voltage: 220 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active. Width: 175 mm, Depth: 150 mm, Height: 86 mm
ASUS Pro WS 3000W Platinum
The ASUS Pro WS 3000W Platinum PSU is engineered to support up to four GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.

Power

Total power: 3000 W
AC input voltage: 220 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 3000 W
Combined power (+5V): 130 W
Combined power (-12V): 0.8 W
Combined power (+5Vsb): 3 W
Max output current (+3.3V): 25 A
Max output current (+12V): 250 A
Max output current (+5V): 25 A
Max output current (-12V): 9.6 A
Max output current (+5Vsb): 15 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

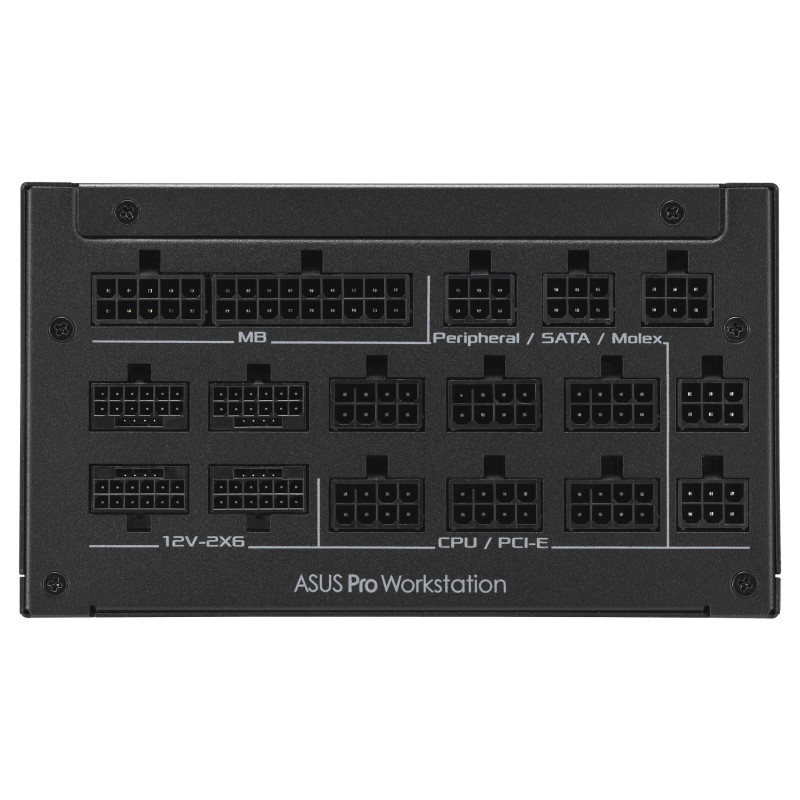

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 12
SATA power cable length: 120,400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,400 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 4
PCI Express power cable length: 75 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 100 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB

Design

Product colour: Black
Cooling type: Active
Illumination: No

Weight dimensions

Width: 175 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.16 kg

Packaging data

Package width: 346 mm
Package depth: 208 mm
Package height: 144 mm
Package weight: 5.09 kg
Package type: Box
