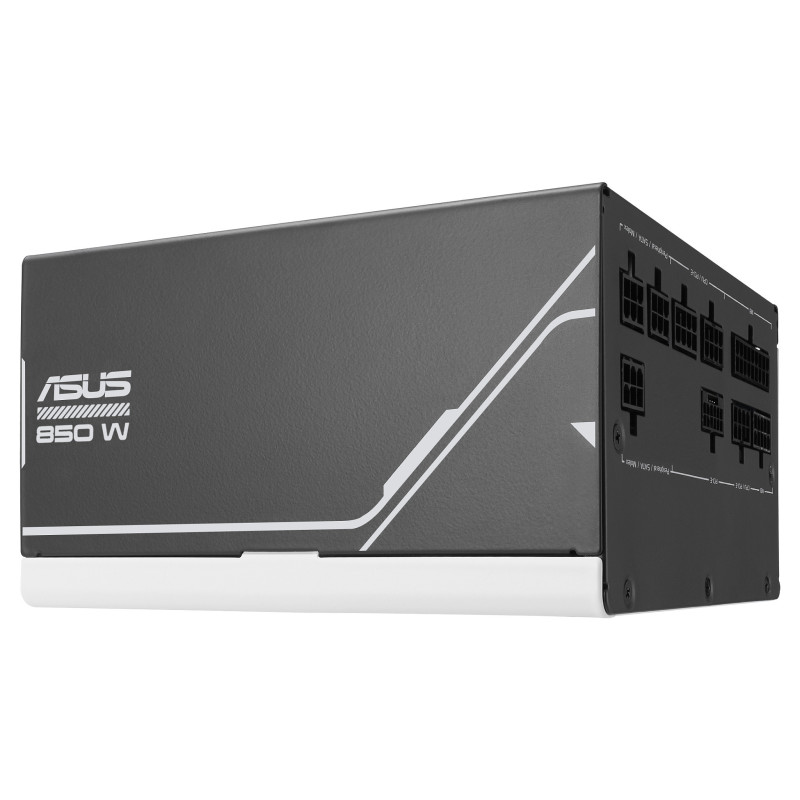

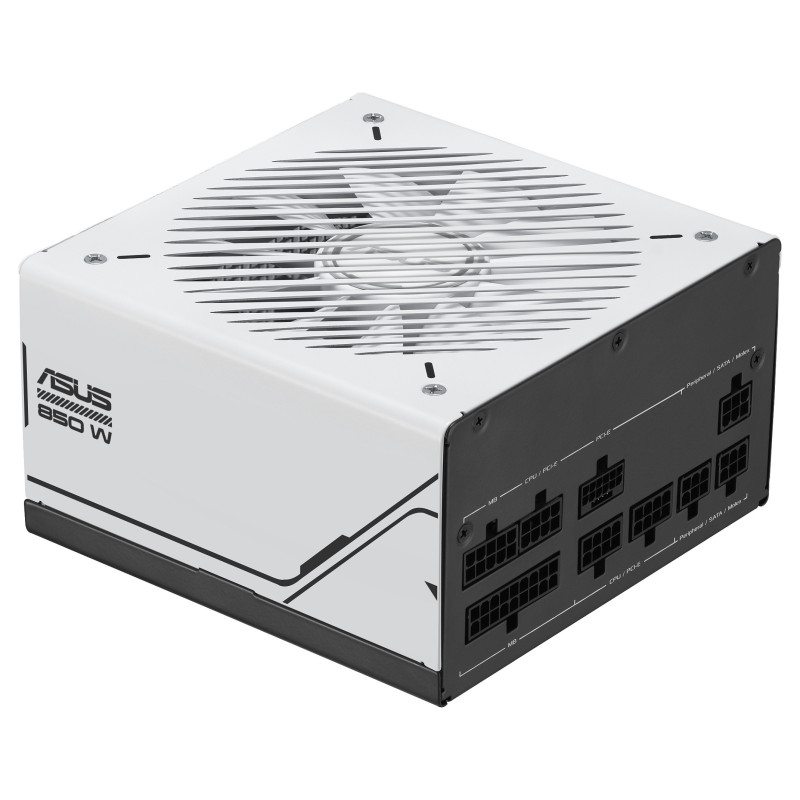

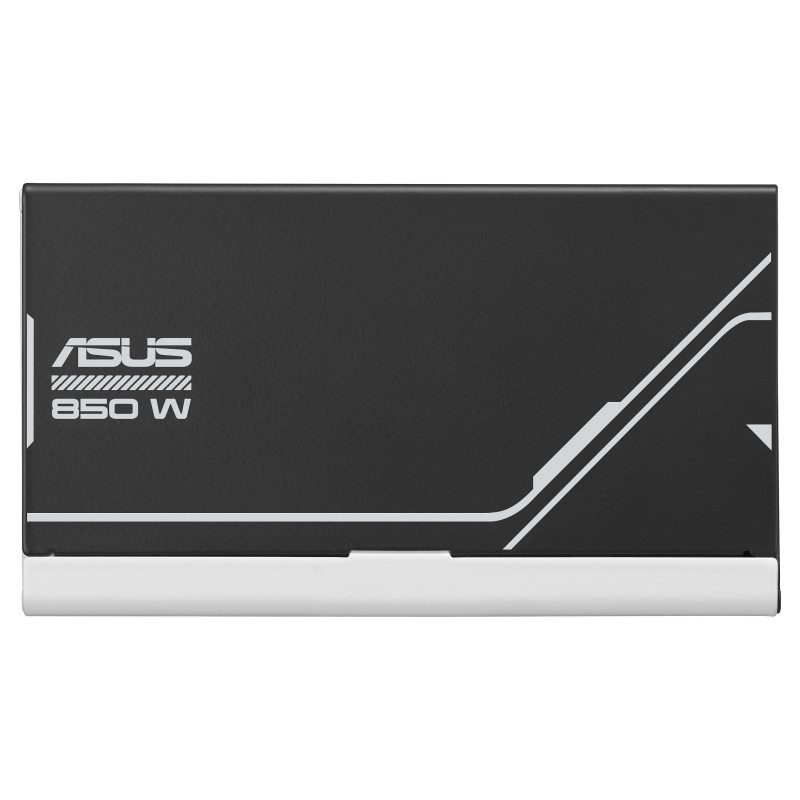

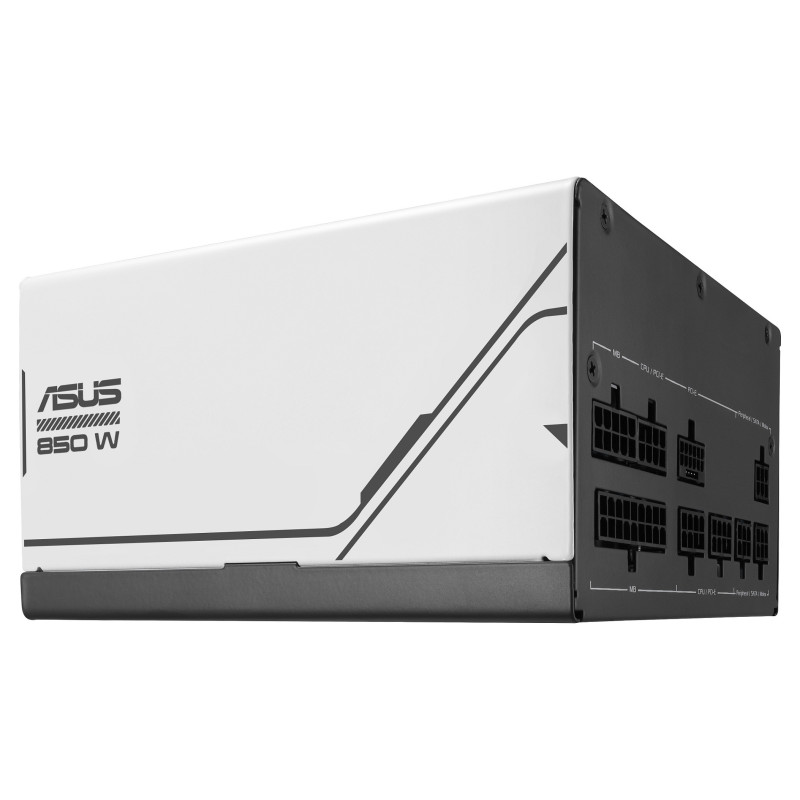

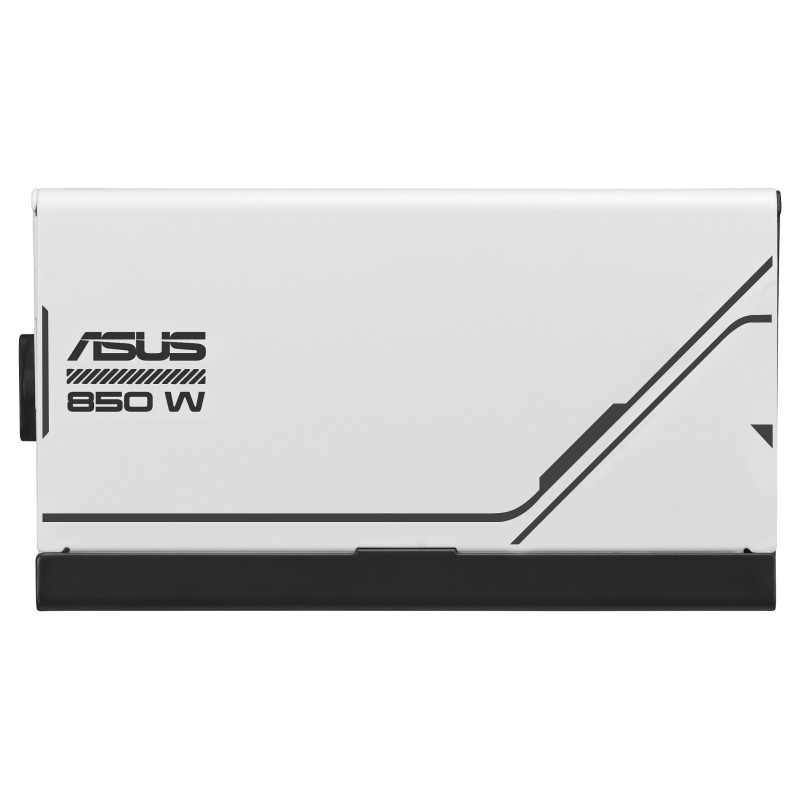

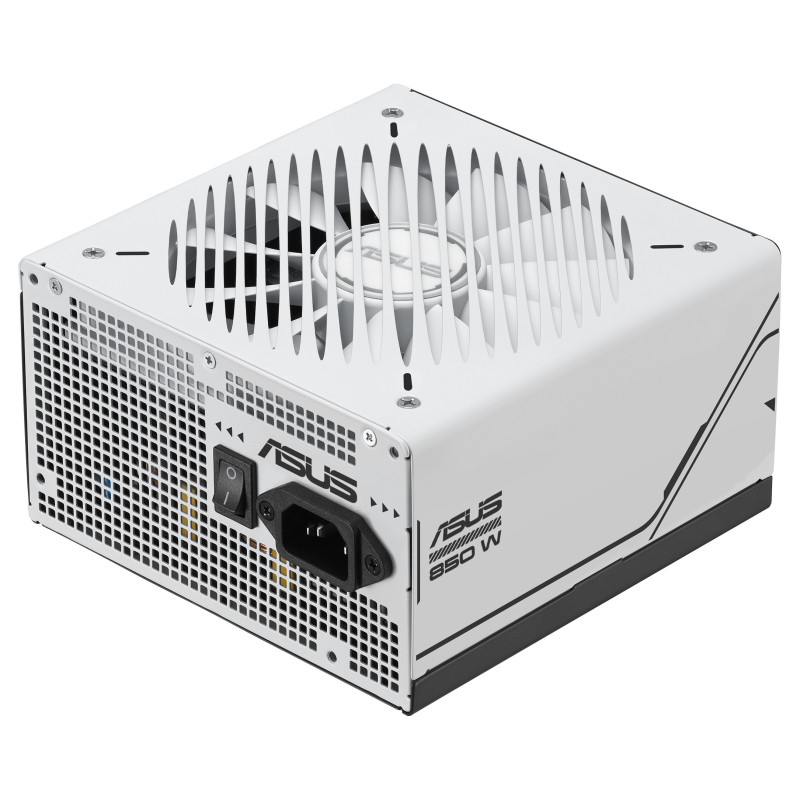

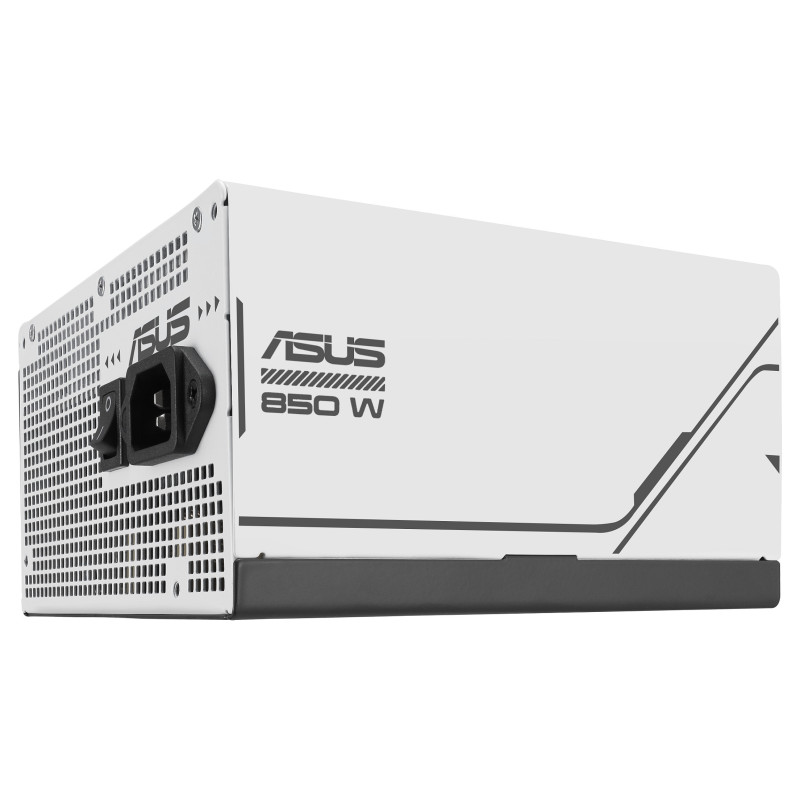

ASUS AP-850G power supply unit

ASUS AP-850G. Total power: 850 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, White, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Prime Performance
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

Power

Total power: 850 W

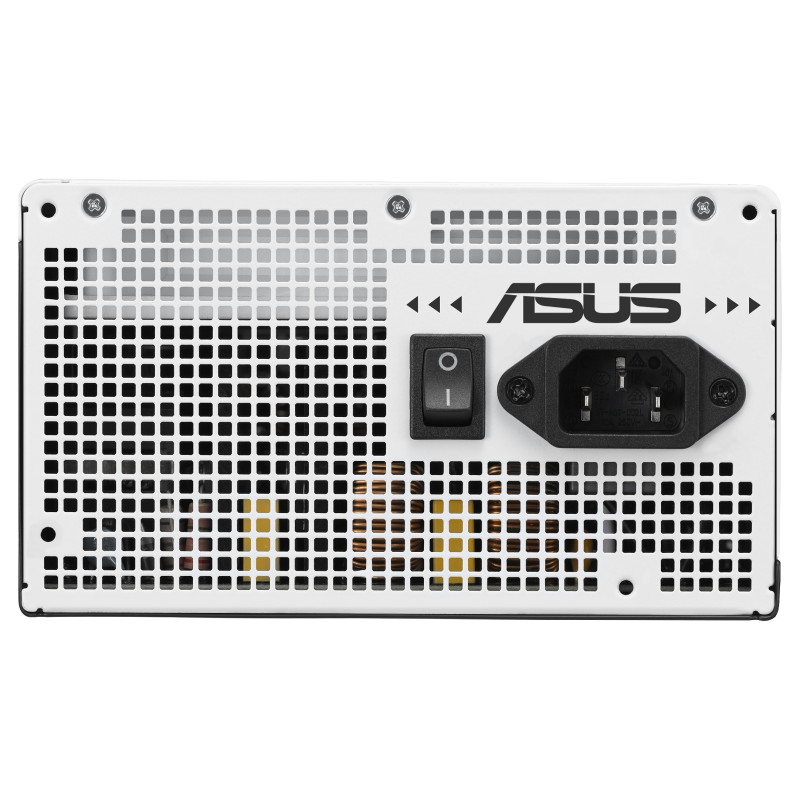

AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 846 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

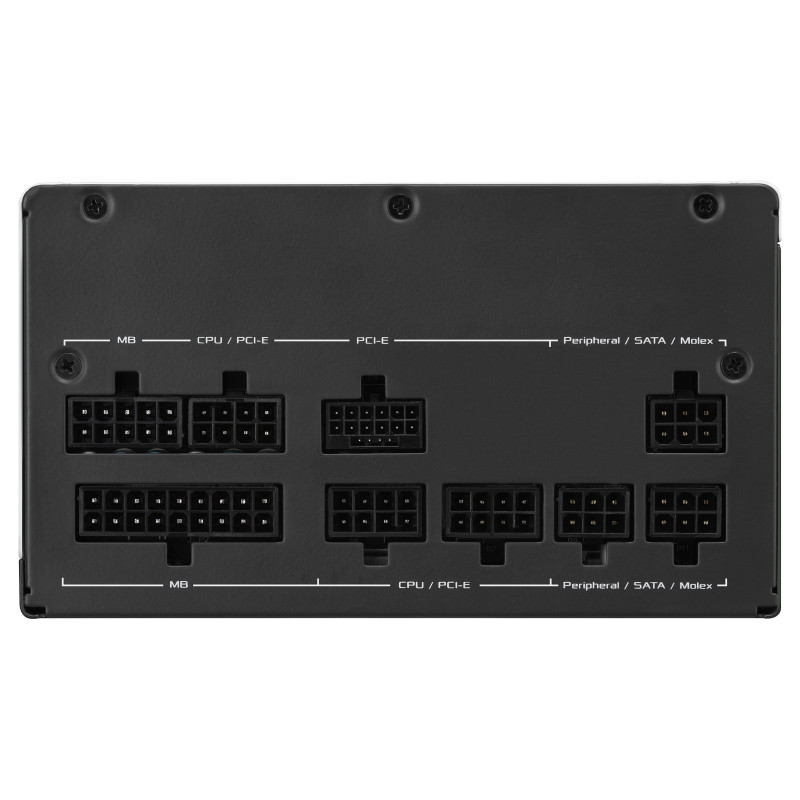

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 5
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 67.5 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black, White
Cooling type: Active
Number of fans: 1 fan(s)

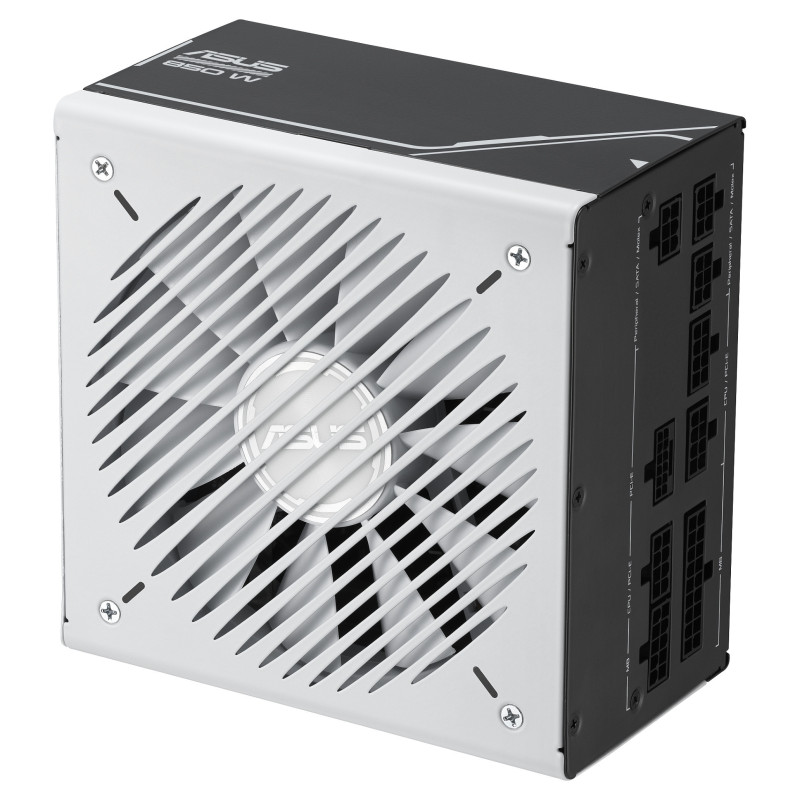

Fan location: Top
Illumination: Yes

Packaging content

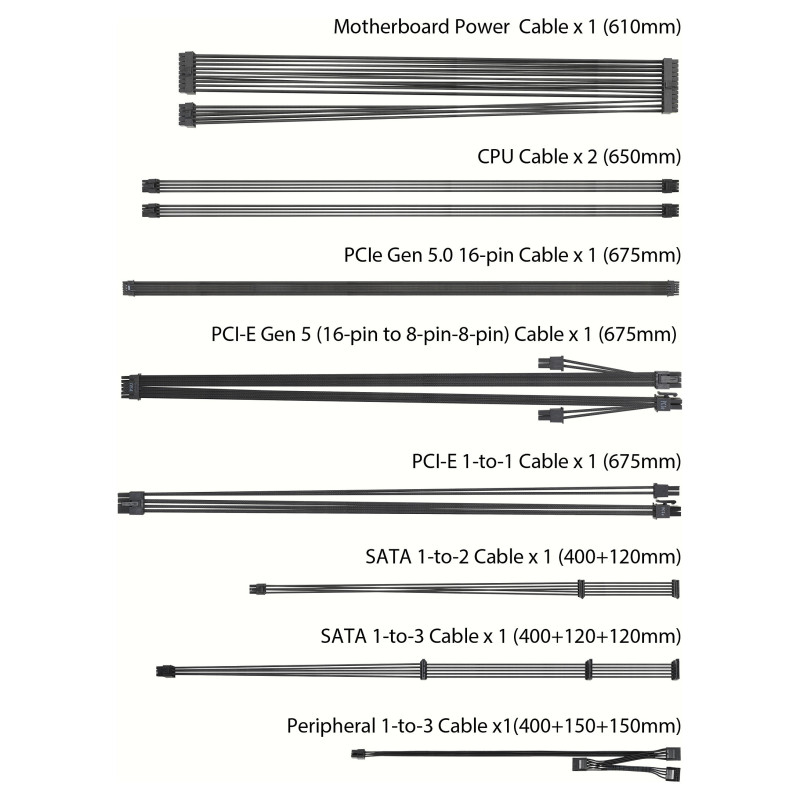

Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Certificates

Compliance certificates: RoHS

Weight dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.5 kg

Packaging data

Package width: 346 mm
Package depth: 208 mm
Package height: 144 mm
Package weight: 2.92 kg
Package type: Box
