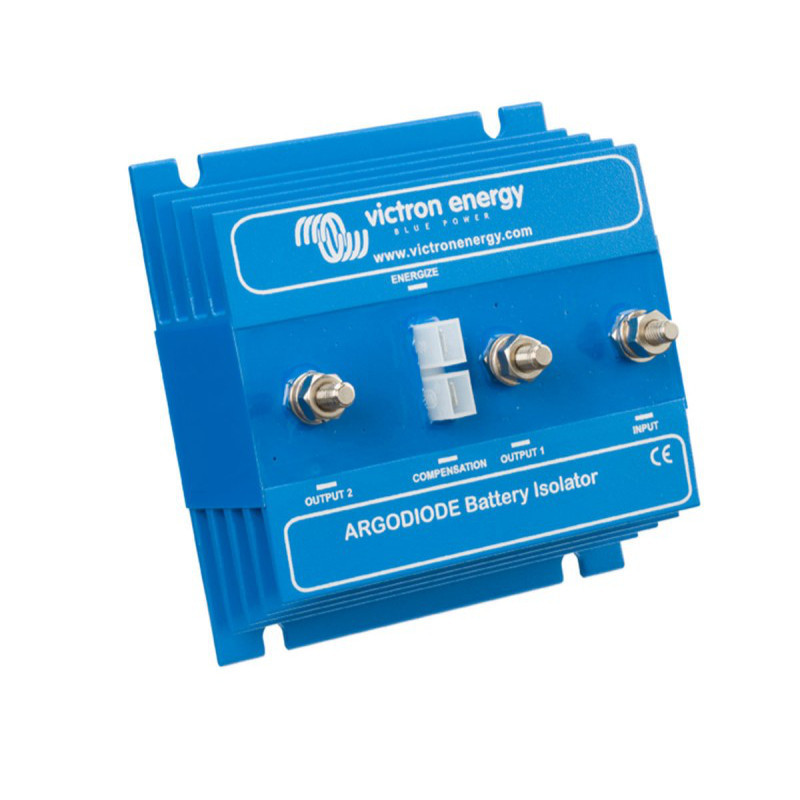

Argodiode 80-2SC 2 batteries 80A

Diode Battery Isolator Argodiode 80-2SC brands Victron Energy This advanced device is designed to manage power in systems that require simultaneous charging of two independent batteries. This device allows two batteries of different capacities to be powered from a single alternator, making the system more efficient and reliable. Argodiode 80-2SC ensures constant power to critical systems, such as electronic engine control systems, eliminating the risk of interruption in the event of a single power source failure. Independent management of two batteries without the need for physical connection makes the system more flexible and secure, especially in conditions where power stability is a priority.
Thanks to the use of technology Schottky diodes, Argodiode 80-2SC It features a very low voltage drop. At low current, it's just 0.3V, and at higher loads, it reaches 0.45V, minimizing energy loss during charging. This energy efficiency ensures better utilization of available energy, resulting in longer battery life and better management of energy resources. This solution is particularly useful in systems requiring uniform and rapid battery charging, such as emergency systems, marine installations, and recreational vehicles. Argodiode 80-2SC optimizes the charging process, which allows for maximum efficiency of the power supply system.

Surge Resistance and Durability of Construction

One of the key elements Argodiode 80-2SC is his resistance to surges, making it an ideal solution for applications in harsh environmental conditions. Thanks to its robust design and high-quality components, the device can withstand varying operating conditions, such as high humidity, temperature fluctuations, and sudden voltage spikes. These features make the isolator ideal for systems where power supply stability and reliability are crucial. Regardless of the operating conditions, Argodiode 80-2SC ensures reliable operation, which is especially important in systems requiring continuous access to energy.
Although this model is not equipped with the function Alternator Energize Input, which may be important for some installations, Argodiode 80-2SC It still provides excellent performance thanks to precise management of current flow between the batteries. The absence of this feature does not affect the overall performance of the device, which is able to effectively control current flow, eliminating the risk of alternator overload and protecting the batteries from excessive wear. Additionally, Argodiode 80-2SC has a connector for a compensation diode, which allows for increasing the voltage at the alternator output, which improves charging efficiency by compensating for voltage drops resulting from the operation of the diodes.

Energy Efficiency and System Protection

Diode Battery Isolator Argodiode 80-2SC is a device that provides exceptional energy efficiency thanks to low voltage drop, which minimizes energy loss and increases the efficiency of the entire power supply system. This is an optimal solution for systems that require constant, reliable power and must also operate in conditions where power stability is crucial. Argodiode 80-2SC allows for simultaneous charging of two batteries without the risk of overcharging one of them, which ensures even and efficient use of energy.
Thanks to the compensation diode, the device allows for increasing the voltage at the alternator output, which allows for compensating the voltage drop across the diodes, ensuring more efficient battery charging. Argodiode 80-2SC It not only optimizes the charging process but also protects the entire power system from overload, which translates into longer battery and alternator life. This advanced technology ensures stable power system operation, even in the most demanding conditions.

Technical Specifications

• Model: Argo 80-2SC


• Maximum charging current (A): 80


• Maximum alternator current (A): 80


• Number of batteries: 2


• Alternator Energize Input: NO


• Connection: M6 screws


• Compensation diode connection: 6.3 mm Faston


• Libra: 0.5 kg


• Dimensions (H x W x D): 60 x 120 x 75 mm

This advanced battery isolator ensures reliable and efficient charging of two batteries from a single alternator. Thanks to its low voltage drop, robust design, and voltage compensation capabilities, the device guarantees stable power even in challenging conditions. Its surge resistance and effective charging process optimization make it an ideal solution for systems that must operate reliably and efficiently for extended periods.
