APC Smart-UPS uninterruptible power supply (UPS)

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower. UPS topology: Line-Interactive, Output power capacity: 0.45 kVA, Output power: 280 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 108 VAh, Typical backup time at full load: 5.9 min. Form factor: Rackmount/Tower, Product colour: Grey, Rack capacity: 1U. Compliance certificates: RoHS, Certification: C-tick, CE, GOST, VDE, PEP, EOLI
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.

Features

UPS topology: Line-Interactive
Output power capacity: 0.45 kVA
Output power: 280 W
Waveform: Sine
Input operation voltage (min): 151 V
Input operation voltage (max): 302 V
Input frequency: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 320 J
Hold time (min): 4 ms
Hold time (max): 8 ms
Noise level: 38 dB
Surge protection: Yes
Surge protection features: Digital Subscriber Line (DSL), Fax, Modem, Network
Audible alarm(s): Yes
Audible alarm modes: Low battery alarm, Overload alarm
Auto-restart: Yes

Ports interfaces

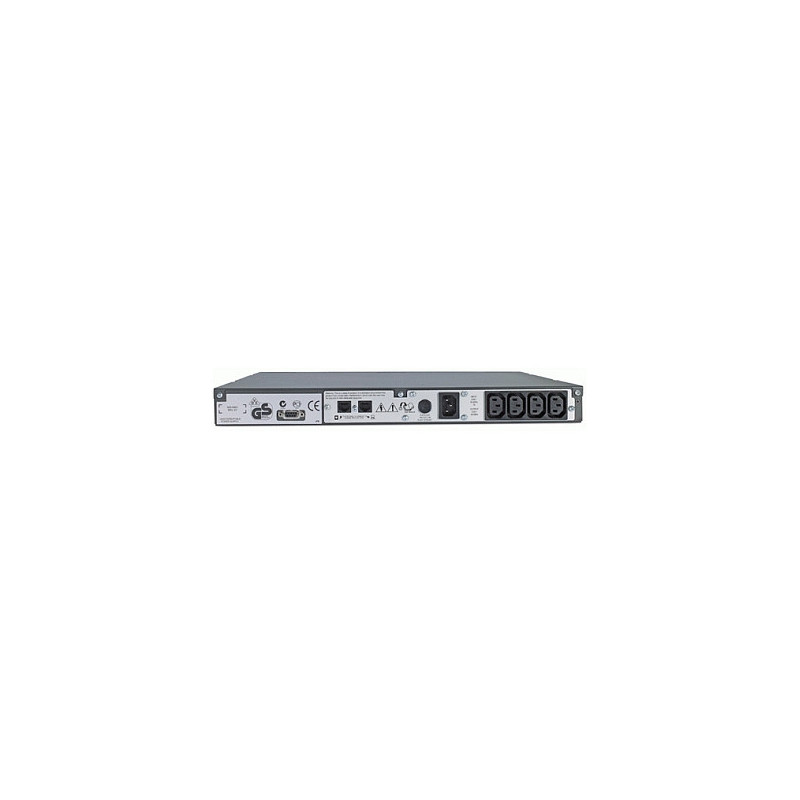

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
Number of output IEC jumpers: 2
Serial interface: Yes
Serial interface type: RS-232
Serial ports quantity: 1
SmartSlot: No
SmartConnect port: No

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 108 VAh

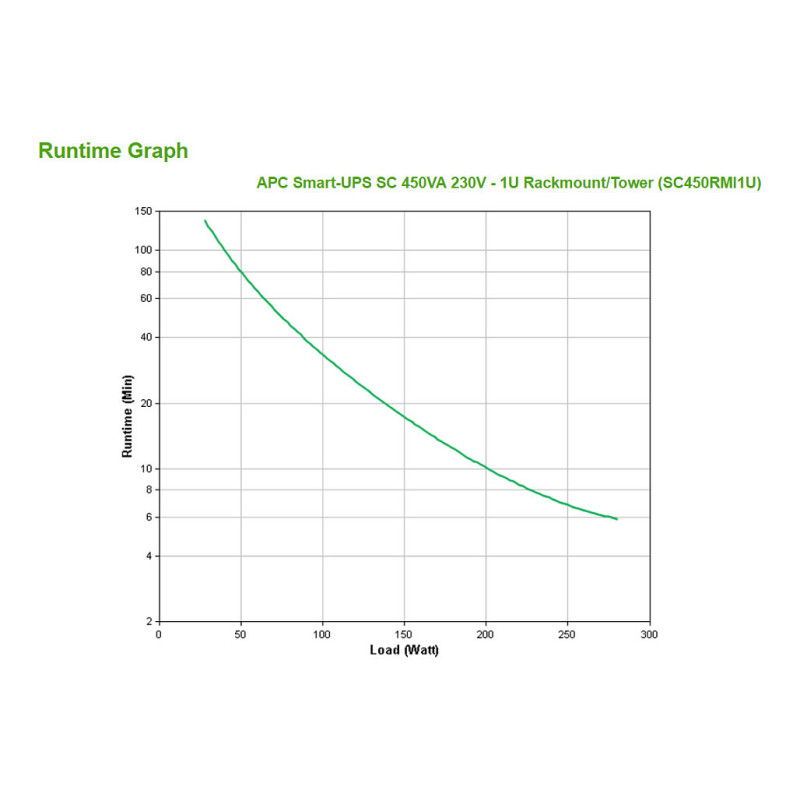

Typical backup time at full load: 5.9 min
Typical backup time at half load: 19.4 min
Battery life (max): 5 year(s)
Battery recharge time: 5 h
Hot-swap battery: Yes
Automatic battery test: Yes

Design

Form factor: Rackmount/Tower
Rack capacity: 1U
Product colour: Grey
LED indicators: Battery replacement

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: C-tick, CE, GOST, VDE, PEP, EOLI

Packaging content

Rack mount kit: Yes
Cables included: RS-232
Management card included: No
Manual: Yes

Weight dimensions

Width: 432 mm
Depth: 383 mm
Height: 44 mm
Weight: 10.2 kg

Packaging data

Software CD: Yes
Package width: 476 mm
Package depth: 589 mm
Package height: 164 mm
Package weight: 11.7 kg

Logistics data

Products per pallet: 24 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 484.92

Other features

Nominal output voltage: 230 V
