APC Smart-UPS SmartUPS (SMTL1500RMI3UC)

APC Smart-UPS, lithium-ion battery, small depth, 1500 VA, 230 V with SmartConnect function. Intelligent and effective protection of the power supply network from the basic level to the basic level of operation. Ideal UPS for servers, cash register systems, routers, switches, routers and other network devices.
Contains: Installation manual, Montage lišty, Signal cable Smart UPS RS-232, USB cable
Output
Max. adjustable power (W)
1.35kW / 1.5kVA
Skreslenie opsutpného veštná
Less than 5%
Output frequency (synchronised with network)
50/60 Hz +/- 3 Hz Synchronized with the mains
Other output voltage
220V, 240V
Topology
Line interactive
Curve type
Sinusoidal
Transition period
6 ms typical : 10 ms maximum
Entrance
Input frequency
50/60 Hz +/- 3 Hz Automatic sensing
The range of input voltage before the electrical network
160 - 286V
Number of power cables
1
Other input voltages
220V, 240V
Battery and operating time
Battery type
Li-Ion (lithium-ion)
Normal charging time
3 hours
Estimated battery life (roky)
8 - 10
Battery charging power (W)
100W
Battery capacity (VAh)
307
Operating hours

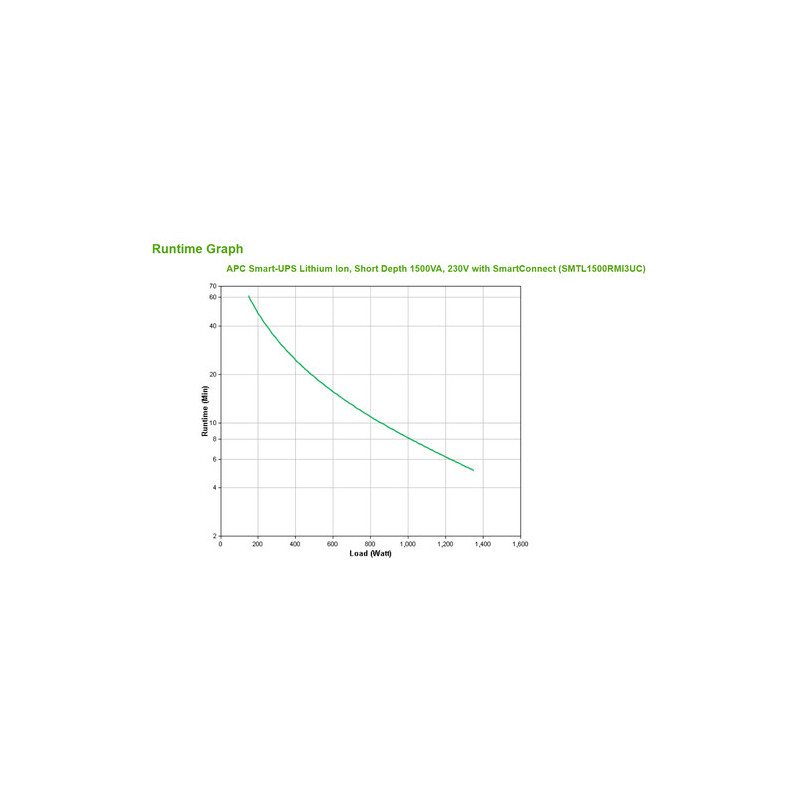

View graph of traffic
View the table of hours of operation
Efficiency
Show efficiency graph
Communication and administration
Control panel
Multifunctional LCD stand and control panel
Sound alerts
Warning when the system is powered by batteries: clear warning about low battery capacity: adjustable time

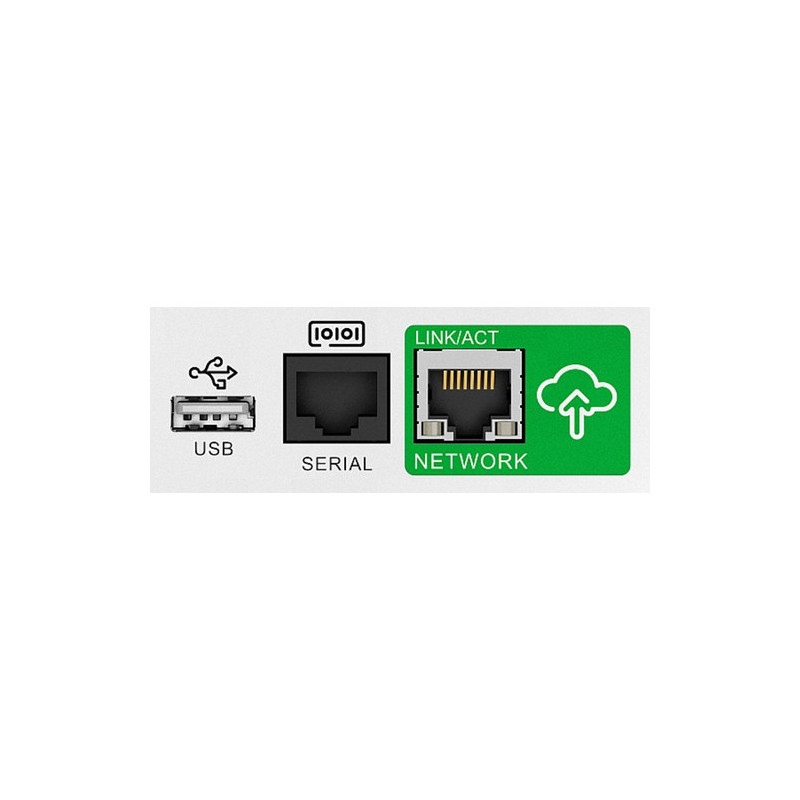

Start the SmartSlot™ interface
1
Ochrana proti prepätiu a filtrácia
Surge energy value
645 J
Filtration
Neustál viacpolová filtrácia mumu: 0.3 % priepustnosť prepätia podla IEEE: nulová doba odzvy pri obloktební: fulfills normu UL 1449
Physical dimensions
Maximum height
131 mm, 13.1 cm
Maximum width
438 mm, 43.8 cm
Maximum depth
302 mm, 30.2 cm
Net weight
19.5 kg
Shipping weight
22.68 kg
Shipping height
279 mm, 27.9 cm
Transport width
584 mm, 58.4 cm
Shipping depth
448 mm, 44.8 cm
Pallet dimensions
47.24 x 39.37 x 0.04 inches
Number of units per pallet
12.0
Okolie
Operating temperature
0 - 40 °C
Prevádzková relative humidity
0 - 95 (non-condensing) %
Prevádzková sea level
0 - 3048 meters
Ambient temperature during storage
-10 - 40 °C
Relative humidity during storage
0 - 95 (non-condensing) %
Nadmorská vácha pri skladovaní
0 - 7620 meters
Hlucnosť 1 meter od surface units
45.0 dBA
Heat losses in operation
135.0 BTU/hour
Protection class
IP20
Complies with standards
Approvals
CE, CSA, EAC, Mark GS, IEC 62040-1-1, IEC 62040-1-2, IEC 62040-2, RCM, UL 1973
Device protection rules
Lifetime: 150,000 USD
Standard warranty
5 rok na oparu alebo tämänu
