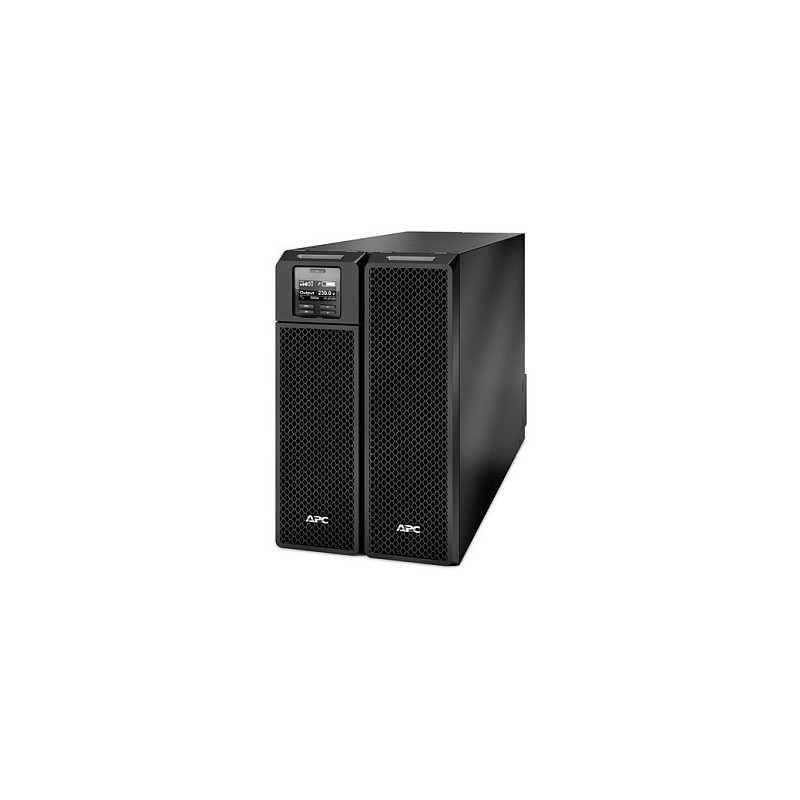

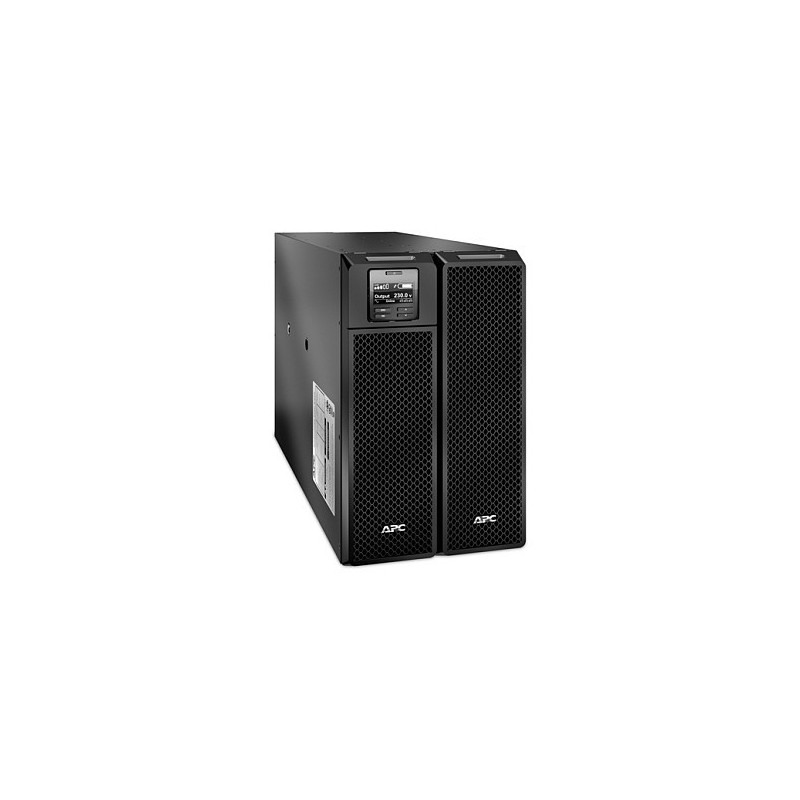

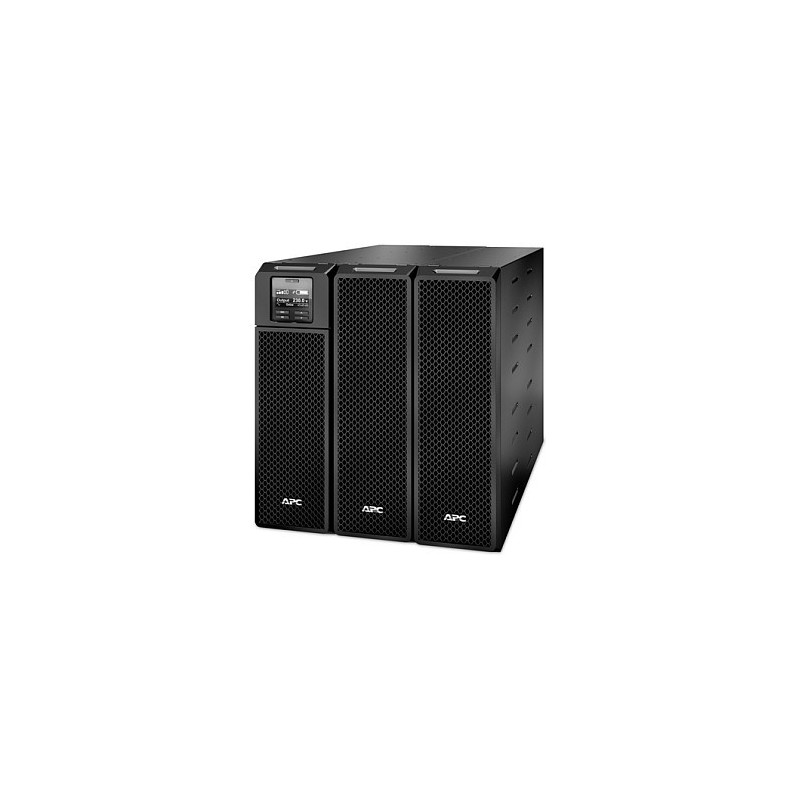

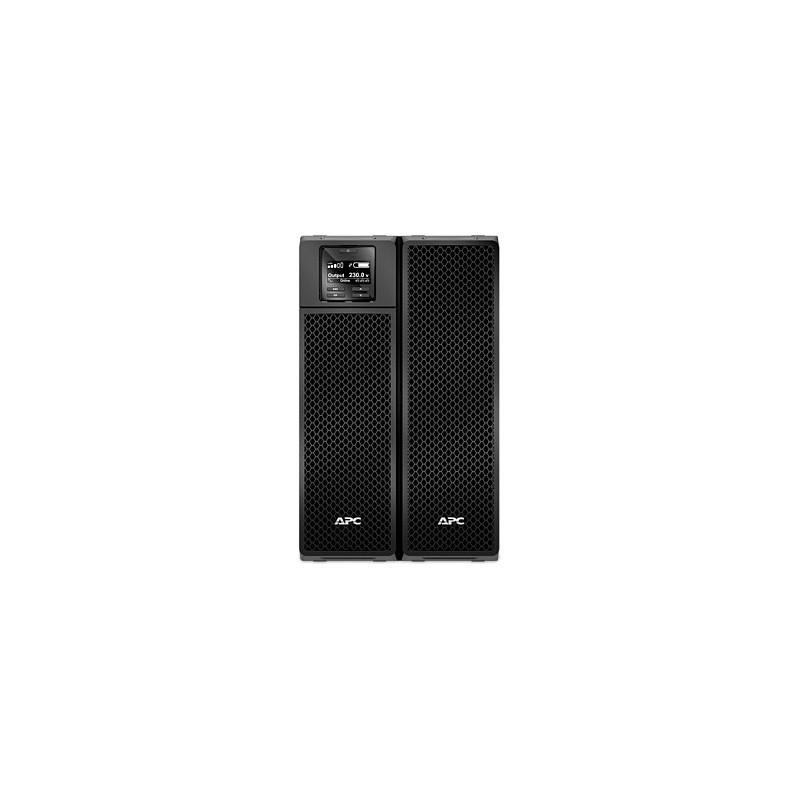

APC Smart-UPS On-Line uninterruptible power supply (UPS)

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1805 VAh, Typical backup time at full load: 3.8 min. Form factor: Rackmount/Tower, Product colour: Black, International Protection (IP) code: IP20. Compliance certificates: RoHS, Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

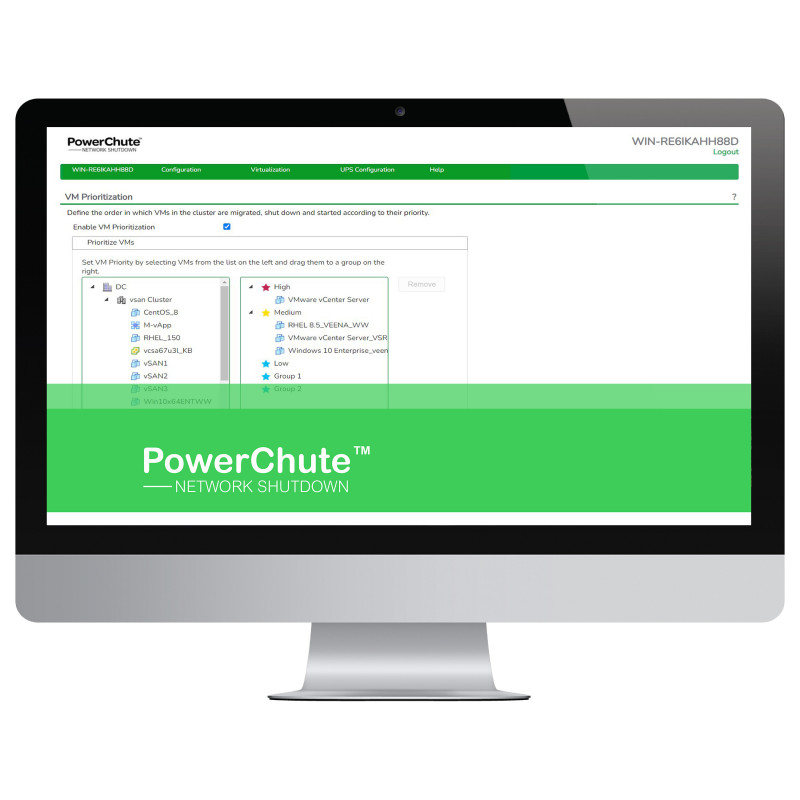

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 10 kVA
Output power: 10000 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 476 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Surge energy rating: 480 J
Number of output phases: 1
Efficiency: 94.6%
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Noise level: 55 dB
Feature: Audible alarm(s)
Feature: Auto-restart

Ports & interfaces

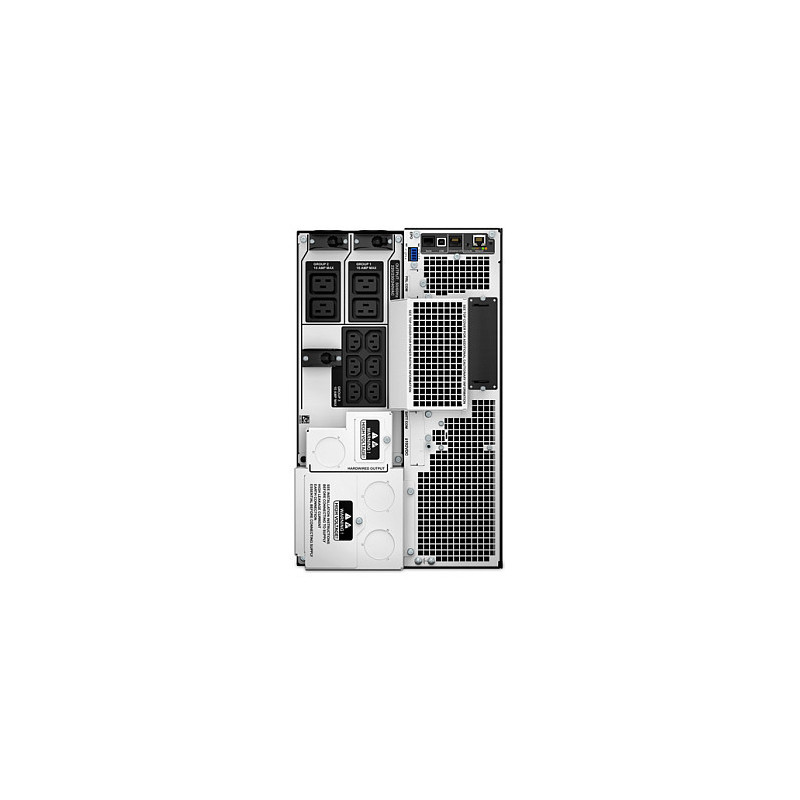

AC outlet types: C13 coupler, C19 coupler
Power plug: Hardwire
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 3
Feature: USB port
Feature: Serial interface
Serial interface type: RJ-45
Feature: SmartSlot

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 1805 VAh

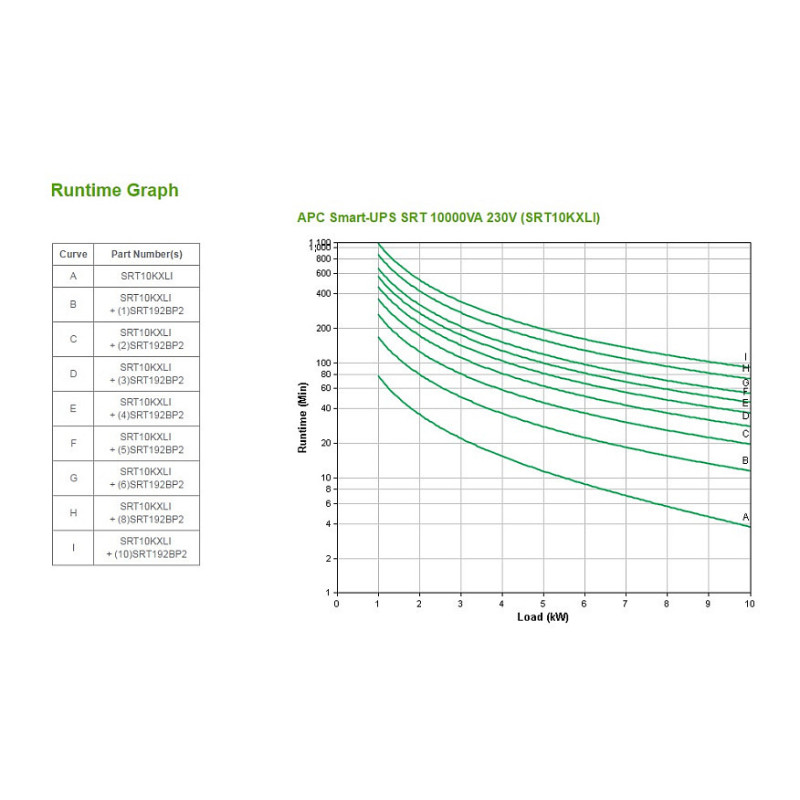

Typical backup time at full load: 3.8 min
Typical backup time at half load: 11.5 min
Battery life (max): 5 year(s)
Battery recharge time: 1.5 h
Feature: Hot-swap battery
Feature: Automatic battery test
Feature: Cold start

Design

Form factor: Rackmount/Tower
Product colour: Black
LED indicators: Yes
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

Packaging content

Cables included: USB cable
Feature: Management card included
Feature: Quick installation guide

Sustainability

Sustainability certificates: ENERGY STAR

Weight & dimensions

Width: 263 mm
Depth: 715 mm
Height: 432 mm
Weight: 111.8 kg

Packaging data

Feature: Temperature sensor
Feature: Warranty card
Feature: Software CD
Package width: 600 mm
Package depth: 1000 mm
Package height: 461 mm
Package weight: 126.8 kg

Logistics data

Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 22851.99

Other features

Interface: RJ-45 10/100 Base-T
Nominal output voltage: 230 V
Nominal input voltage: 230 V
Packaging content: Web/SNMP Management Card
