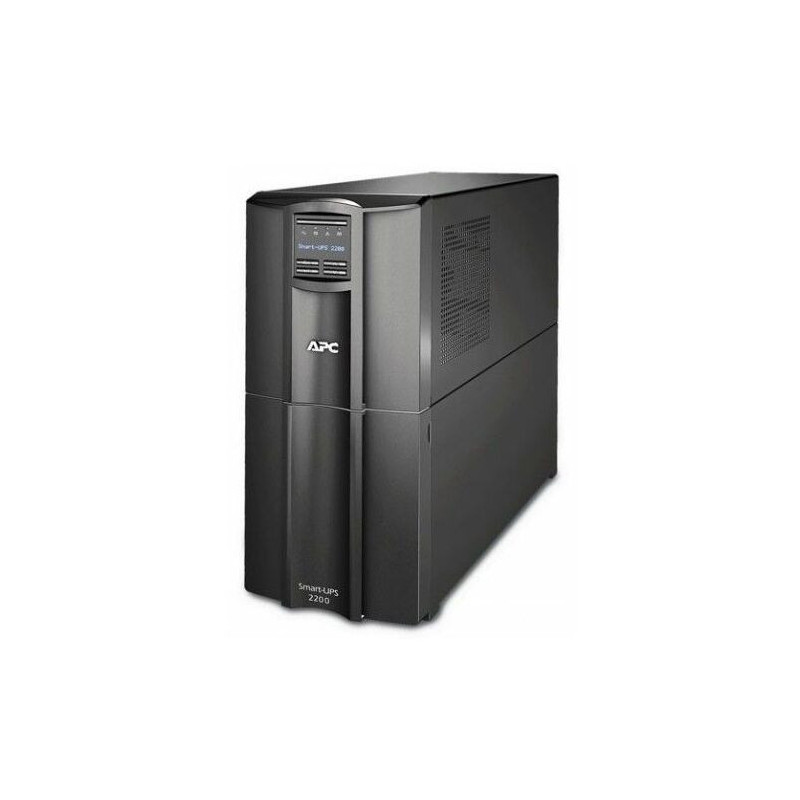

APC Smart-UPS 2200 VA LCD 230 V with SmartConnect feature

The award-winning APC Smart-UPS® is the world’s most popular UPS for servers, storage and networks. Reliable protection of critical data and devices against power outages by delivering stable and reliable power at the network level. In addition to unmatched reliability and manageability, the Smart-UPS product delivers high efficiency at low, medium and high load levels and is the ideal solution for today’s multi-processor servers and servers with virtualization support that have changing performance requirements.
The APC Smart-UPS 2200VA is APC’s uninterruptible power supply that extends the life of your battery through intelligent precision charging.
In addition, the front panel includes a multilingual LCD display that shows the status of the network, battery and more. With separate outlet groups, you can restart and control devices independently
of your uninterruptible power supply.
The uninterruptible power supply can be conveniently managed remotely over the network.
Advantages:
- LCD display
- automatic voltage regulation
- network management
- SmartSlot cards for UPS management
- in addition to the classic C13 outlets, there is also 1 C19 outlet
- easy battery replacement
- battery replacement time indicator
- intelligent battery management
Technical specifications:
Type:
Tower type
Technology:
Line-Interactive
Output power:
2200VA/1980W
Input voltage:
230V AC
Output voltage:
230V
Outputs:
8x C13, 1x C19 (all outputs are for backup power)
Inputs:
1x C14
Battery:
Operating time at full power (1980W): 9min
Operating time at half power (990W): 22min
Charging time: 3h

Operating time chart at different loads

Communication interfaces:
SmartSlot
Weight:
48.80 kg
Dimensions(cm):
43.5 x 19.7 x 54.4
Warranty:
Standard warranty 3 years for UPS and 2 years for batteries.
- when purchasing an extended warranty for 1 or 3 years, the standard UPS warranty is extended + the battery warranty is equated to the UPS warranty
The package includes:
CD with software, CD with documentation, Smart UPS RS-232 signal cable, USB cable
Useful links:
Suitable uninterruptible power supply selection:
http://www.apc.com/tools/ups_selector/index.cfm
Backup battery configurator:
http://www.apc.com/tools/upgrade_selector/index.cfm
