APC Service Bypass PDU 230V 16AMP W / (6) IEC C13 And (1) C19

APC Service Bypass PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19. Rack capacity: 2U. Input connections: IEC 60320 C20. AC input voltage: 230 V, AC output voltage: 230 V. Compliance certificates: RoHS, REACH, WEEE, Certification: VDE, REACH. Width: 432 mm, Depth: 76 mm, Height: 89 mm

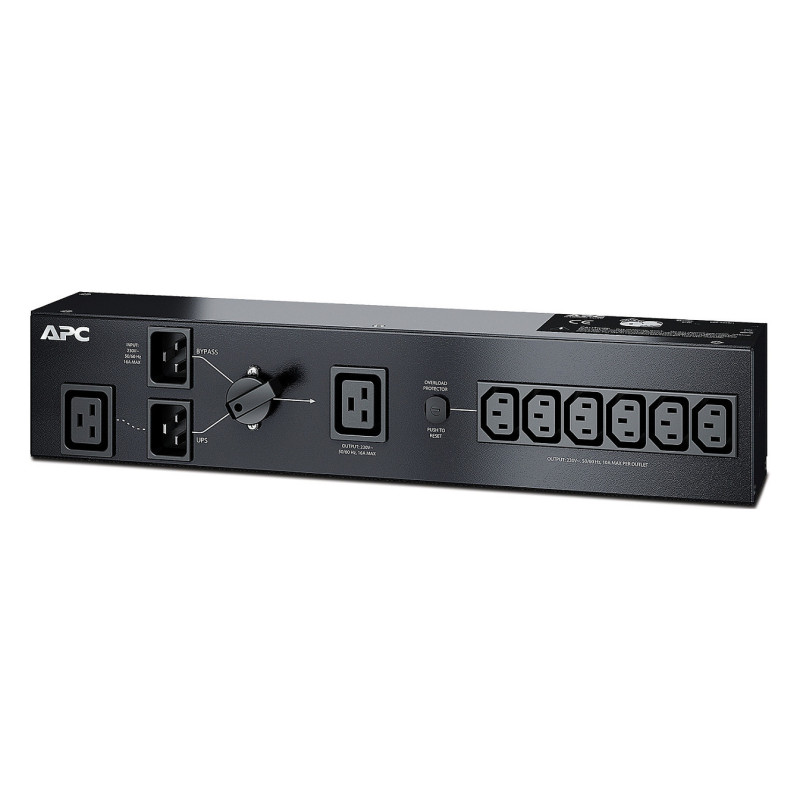

The APC SBP3000RMI Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (6) IEC C13, (1) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

Features

Rack capacity: 2U

Ports & interfaces

Input connections: IEC 60320 C20

Power

AC input voltage: 230 V
AC output voltage: 230 V

Certificates

Compliance certificates: RoHS, REACH, WEEE
Certification: VDE, REACH

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 432 mm
Depth: 76 mm
Height: 89 mm
Weight: 2.09 kg

Technical details

Sustainable packaging: No
Packaging recycled materials: Recycled cardboard
SCIP number: 7a19864b-8bf5-40ac-85e8-7678b0910185
Mounting: front
