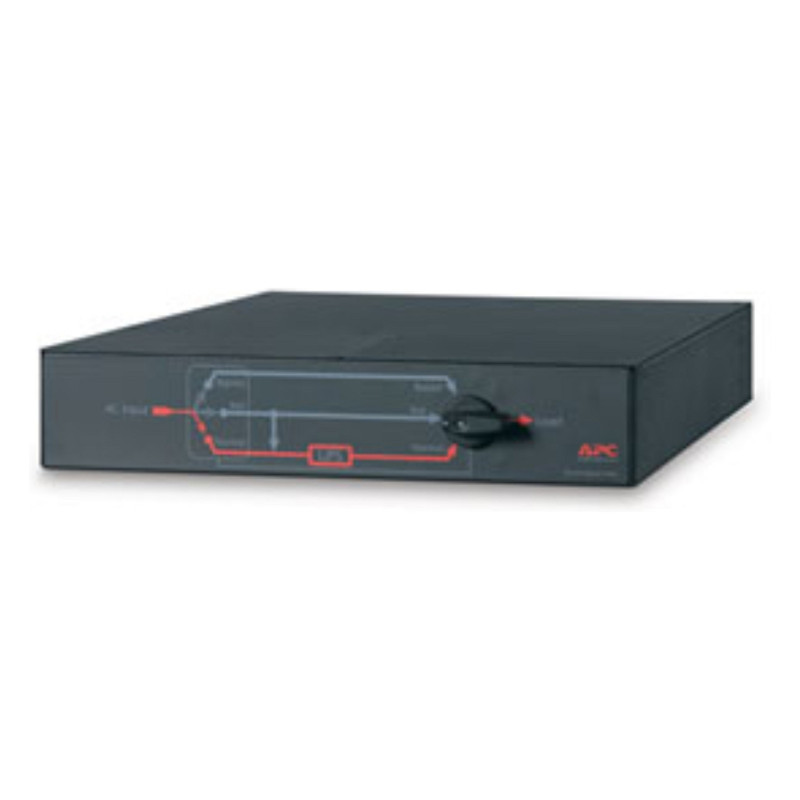

APC SBP5000RMI2U maintenance bypass panel (MBP)

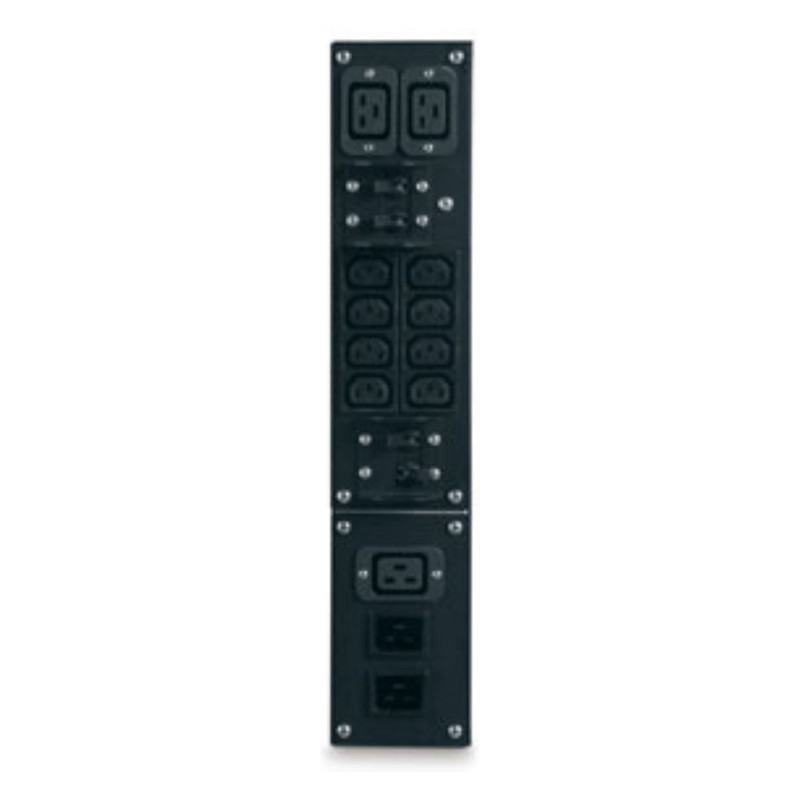

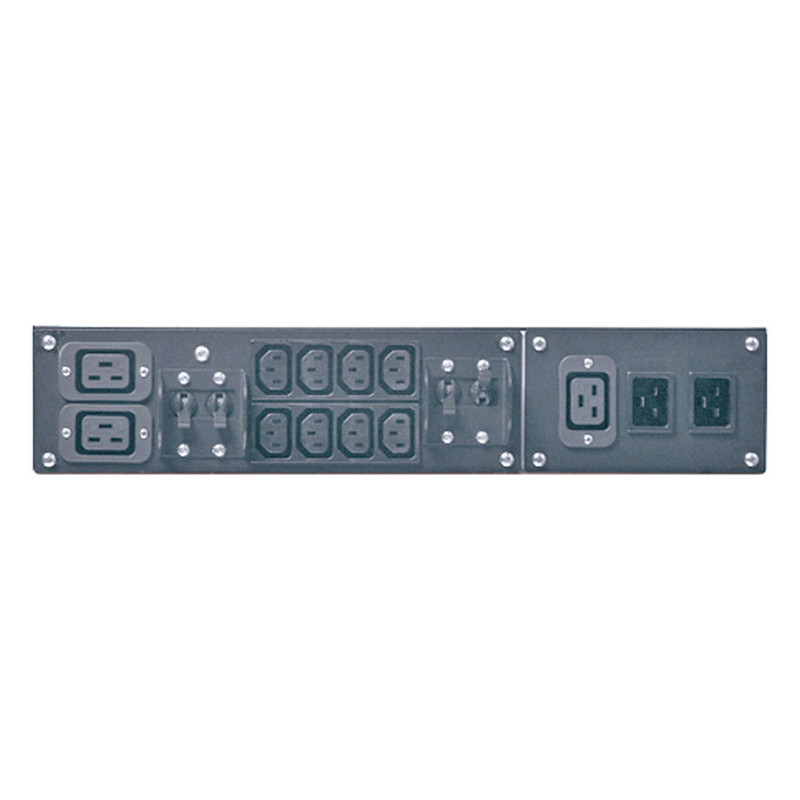

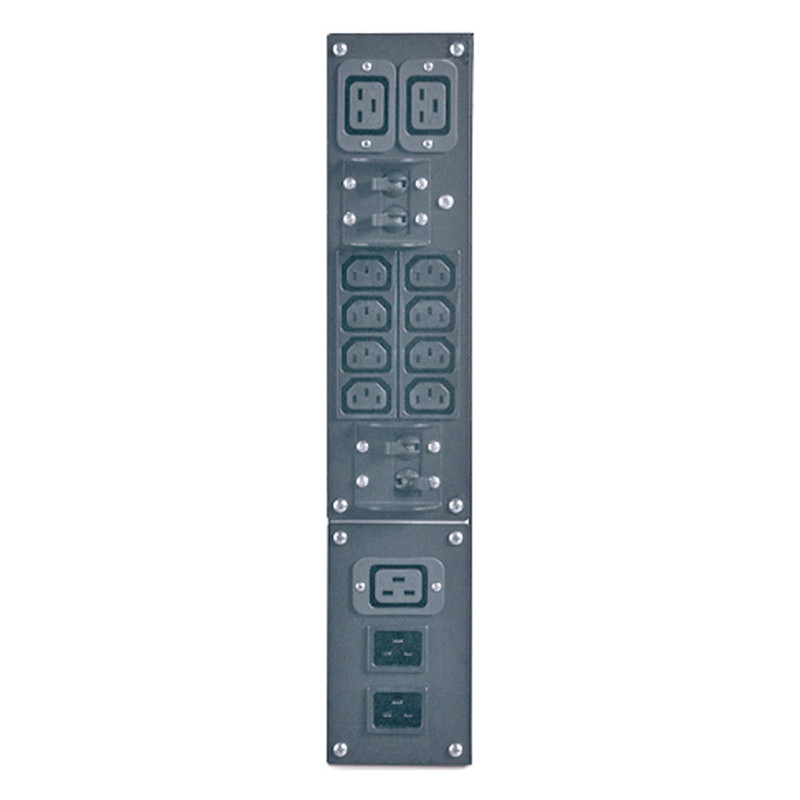

APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13. Rack capacity: 2U, Country of origin: China. Input connections: IEC 60320 C20. AC input voltage: 230 V, AC output voltage: 230 V. Compliance certificates: RoHS, REACH, WEEE, Certification: CSA; GOST. Width: 432 mm, Depth: 660 mm, Height: 89 mm

The APC SBP5000RMI2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (8) IEC C13, (2) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty.

Features

Rack capacity: 2U
Country of origin: China

Ports & interfaces

Input connections: IEC 60320 C20

Power

AC input voltage: 230 V
AC output voltage: 230 V

Certificates

Compliance certificates: RoHS, REACH, WEEE
Certification: CSA; GOST

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 432 mm
Depth: 660 mm
Height: 89 mm
Weight: 11.4 kg

Technical details

Packaging recycled materials: Recycled cardboard
SCIP number: 7a19864b-8bf5-40ac-85e8-7678b0910185
Mounting: front
Preferred mounting position: lower

Logistics data

Customs product code (TARIC): 8537109899
