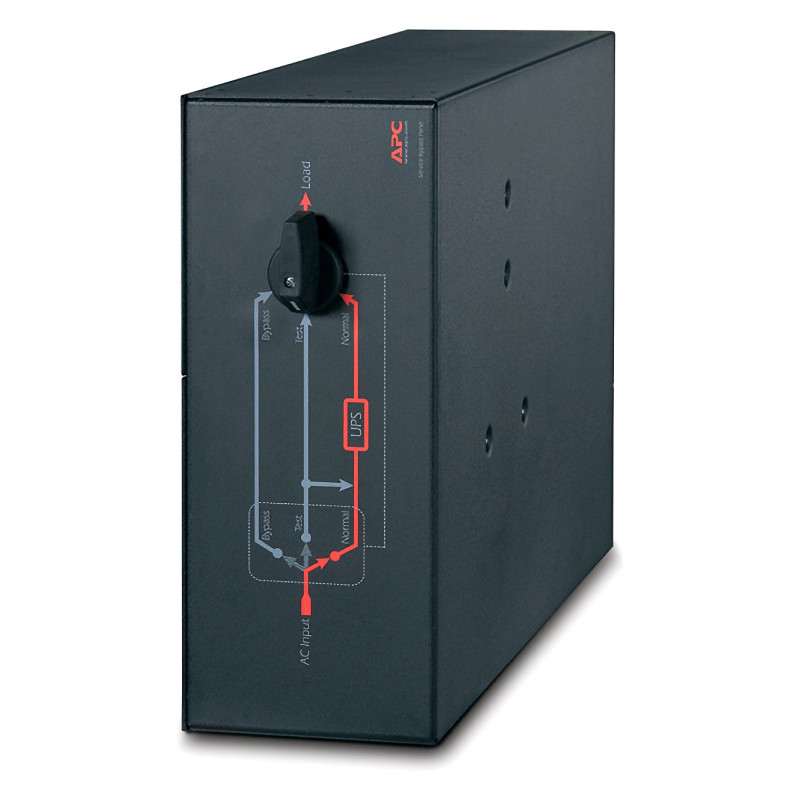

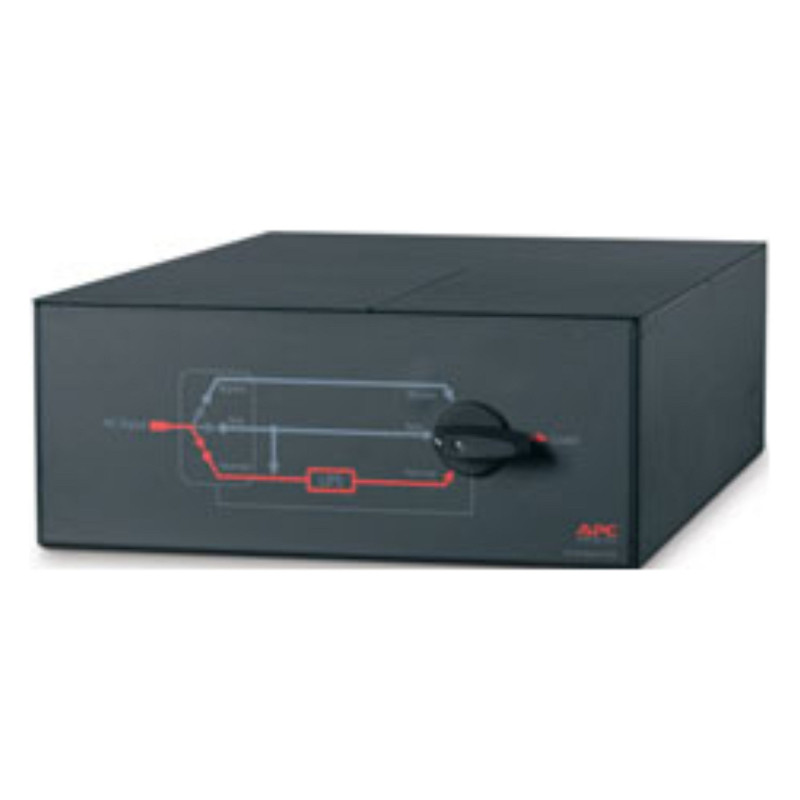

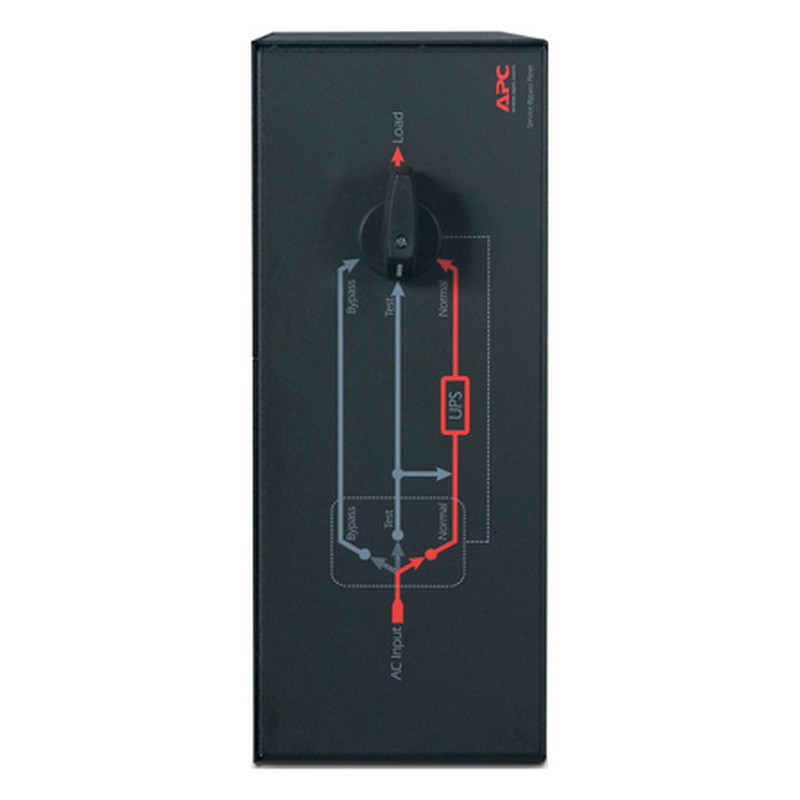

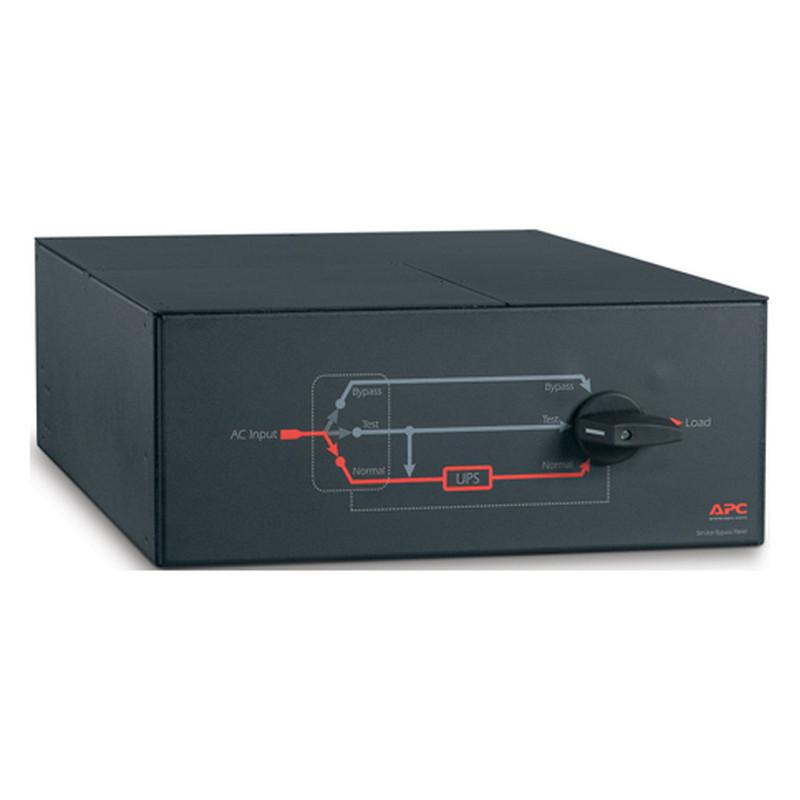

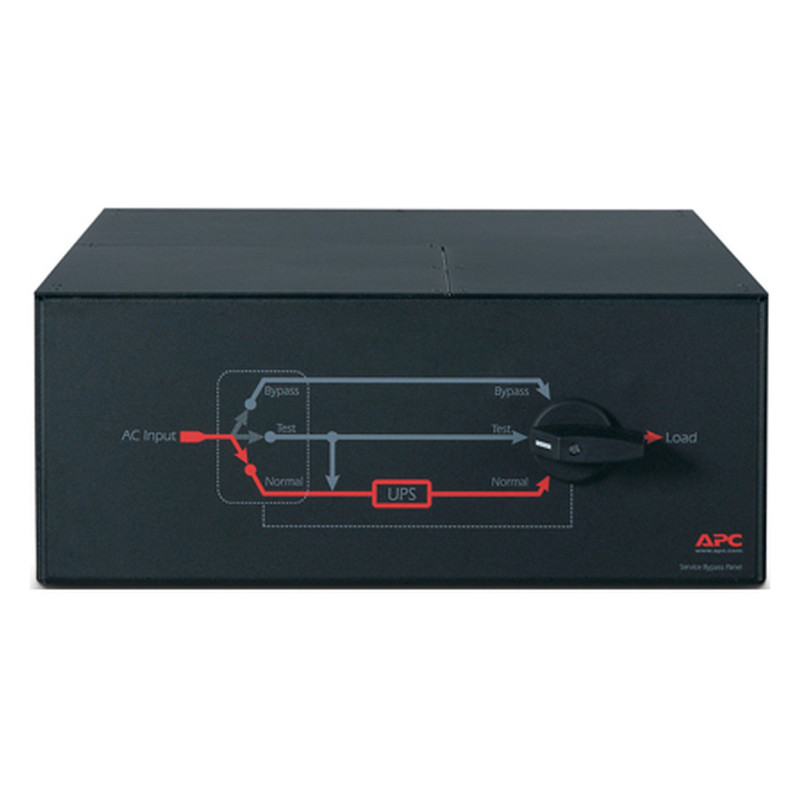

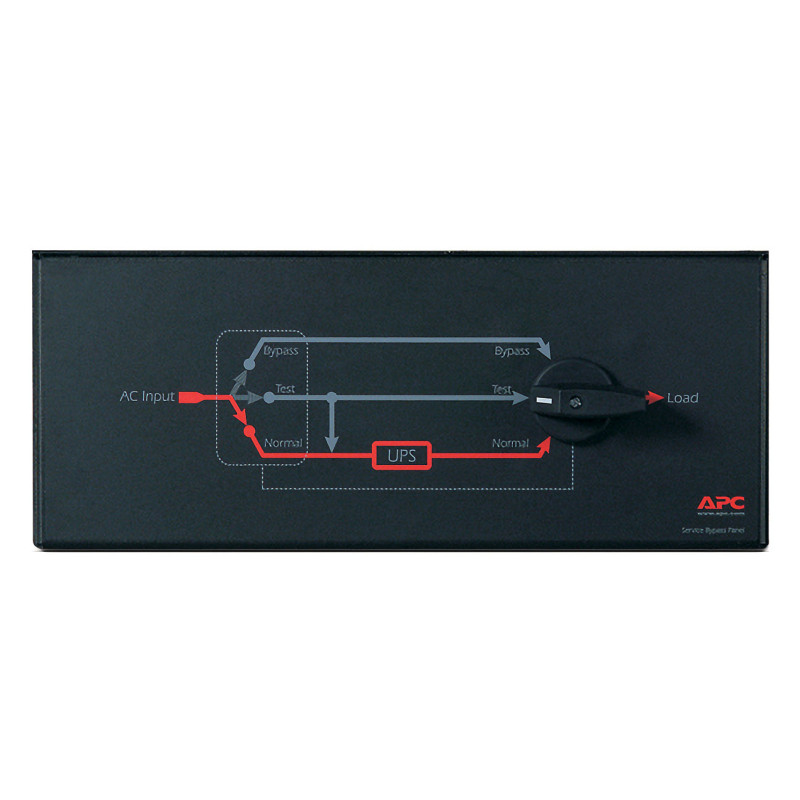

APC SBP16KRMI4U UPS accessory

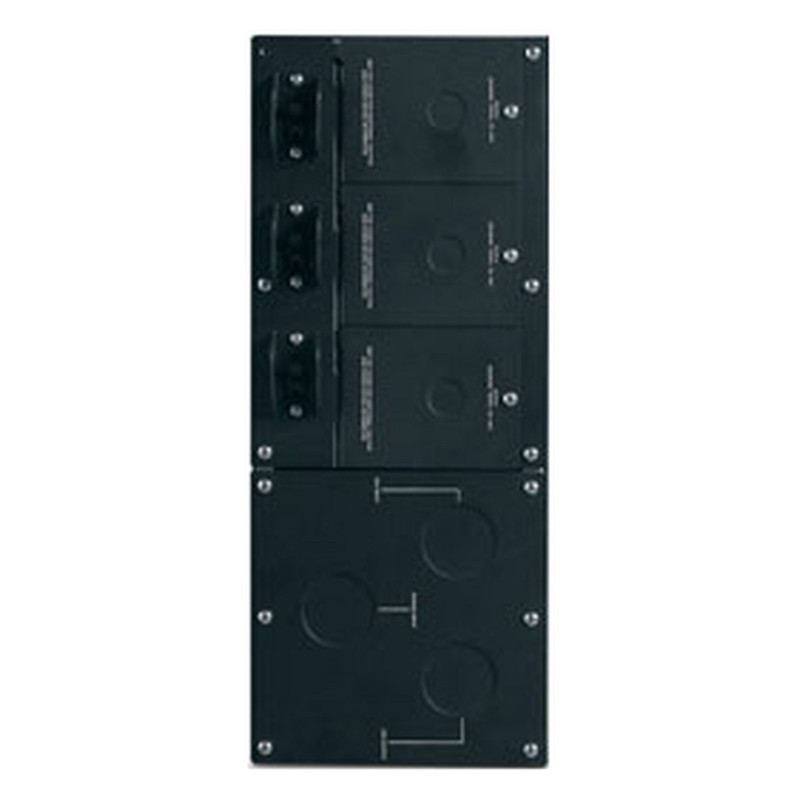

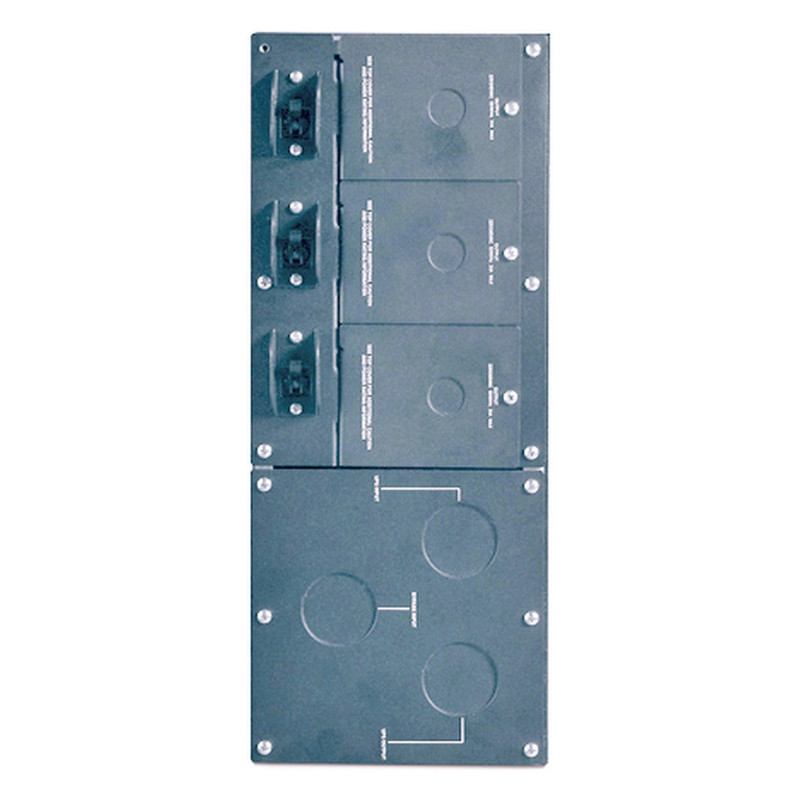

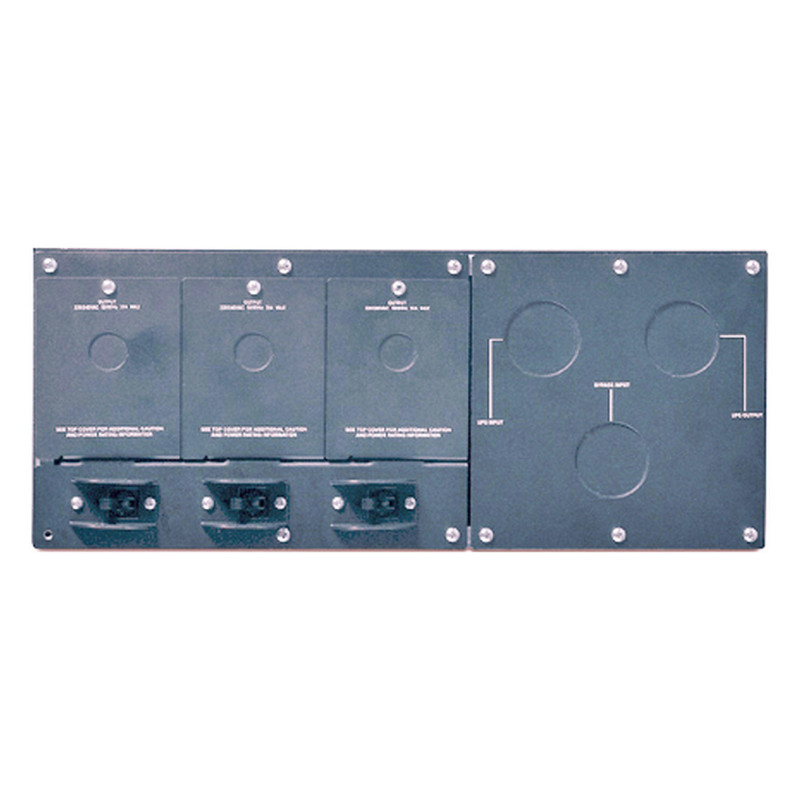

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output. Product type: Bypass switch, Mounting type: Rack-mount, Product colour: Black. Load capacity: 20000 VA, Input voltage: 230 V, Input frequency: 50/60 Hz. Compliance certificates: RoHS, REACH, WEEE, Certification: CSA; GOST. Width: 432 mm, Depth: 673 mm, Height: 178 mm. Package width: 610 mm, Package depth: 991 mm, Package height: 305 mm

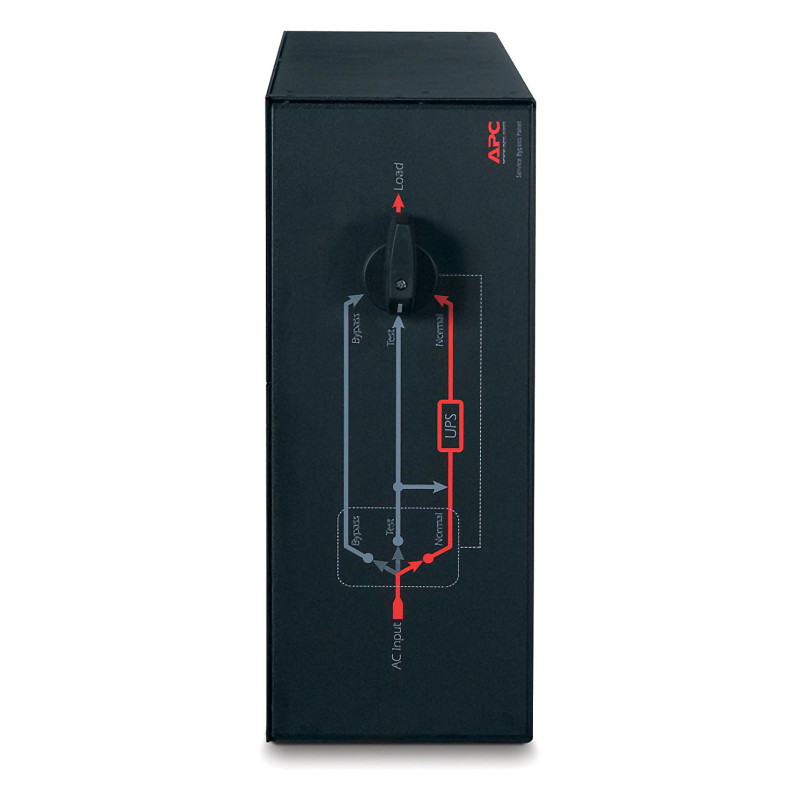

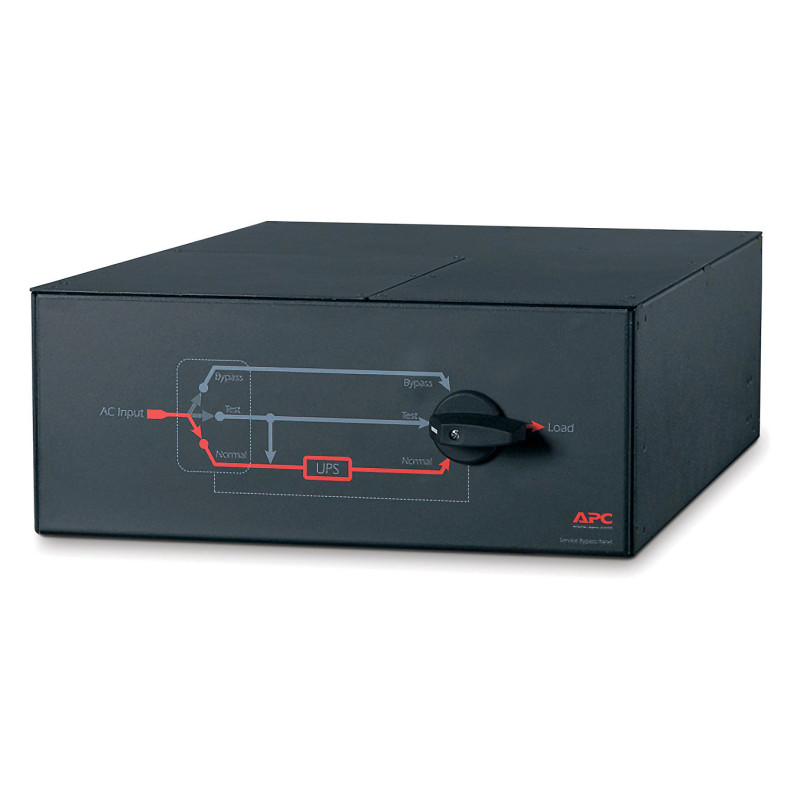

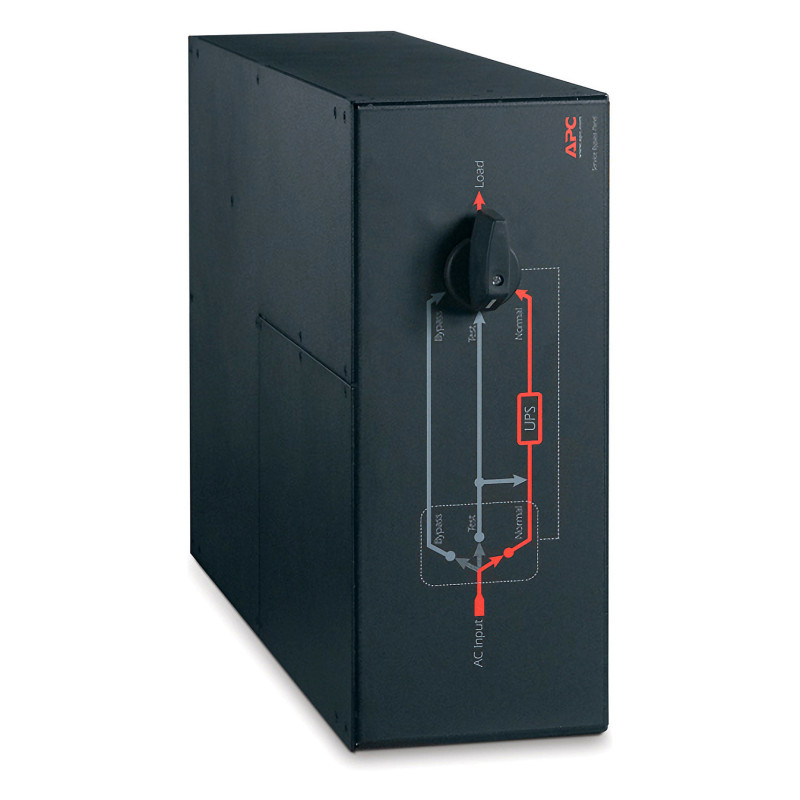

The APC Service Bypass Panel support voltage of 230V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.

Features

Product type: Bypass switch
Mounting type: Rack-mount
Product colour: Black
Rack capacity: 4U
Compatibility: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778

Power

Load capacity: 20000 VA
Input voltage: 230 V
Input frequency: 50/60 Hz
Number of phases: 1
Maximum total current draw per phase: 100 A

Certificates

Compliance certificates: RoHS, REACH, WEEE
Certification: CSA; GOST

Operational conditions

Operating temperature (T-T): -20 - 45 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 4500 m
Non-operating altitude: 0 - 15000 m

Weight & dimensions

Width: 432 mm
Depth: 673 mm
Height: 178 mm
Weight: 21.8 kg

Packaging data

Package width: 610 mm
Package depth: 991 mm
Package height: 305 mm
Package weight: 31.8 kg

Technical details

Sustainable packaging: No
SCIP number: 7a19864b-8bf5-40ac-85e8-7678b0910185
Mounting: front

Logistics data

Harmonized System (HS) code: 85079080
