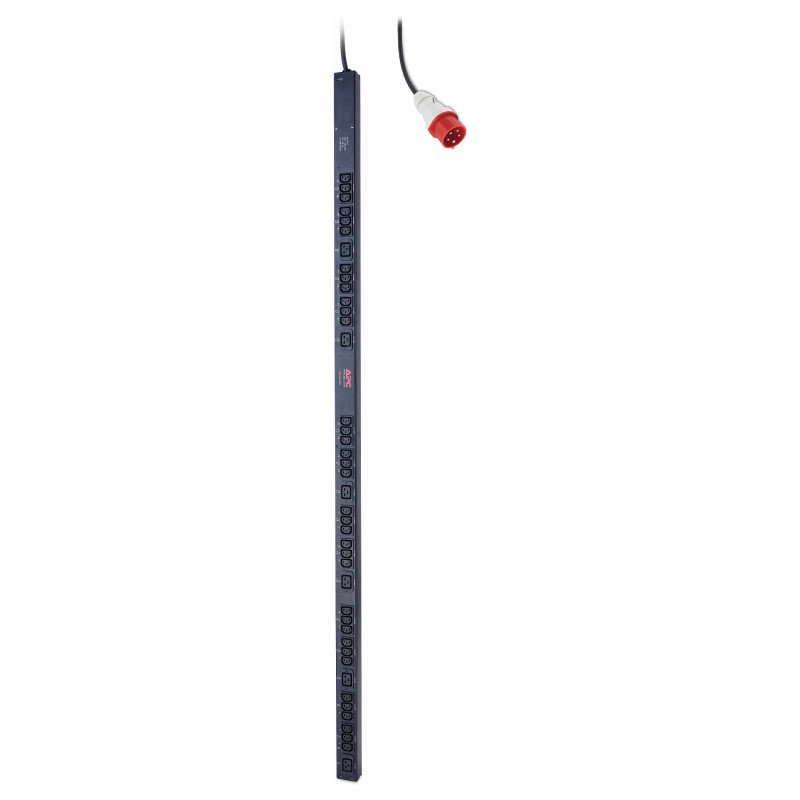

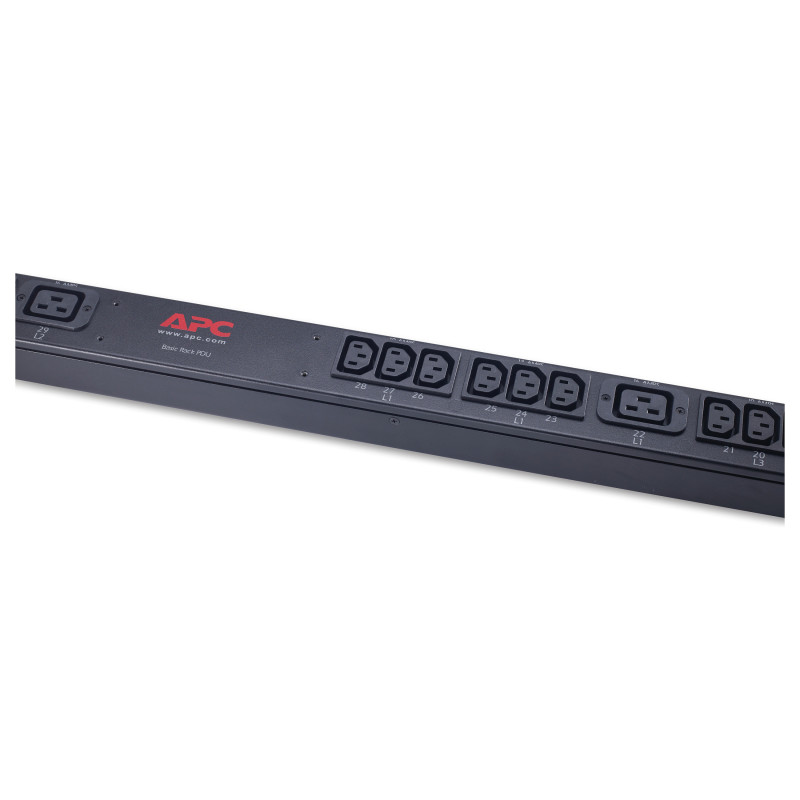

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 (6) C19 power distribution unit (PDU)

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 (6) C19. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 16A 3P+N+PE. Cable length: 0.91 m. Nominal input voltage: 400 V, AC input frequency: 47/63 Hz, Nominal output voltage: 230 V. Certification: C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD
APC Basic Rack PDU, Input: 400V 3PH, Input Connections: IEC 309 16A 3P+N+PE, Cord Length: 3 feet ( 0.91 meters ), Output: 230V, Output Connections: IEC 320 C13,IEC 320 C19.
- Low Cost Power Distribution.
- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input.

Design

PDU types: Basic
Rack capacity: 0U
Mounting: Vertical
Product colour: Black

Ports interfaces

AC outlets quantity: 42 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Input connection type: IEC 309 16A 3P+N+PE
Output connections: (36) IEC 320 C13 (6) IEC 320 C19

Features

Cable length: 0.91 m

Power

Nominal input voltage: 400 V
AC input frequency: 47/63 Hz
Nominal output voltage: 230 V
Load capacity: 11040 VA
Maximum input current per phase: 16 A
Maximum total current draw per phase: 16 A
Maximum power: 11000 W

Certificates

Certification: C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 56 mm
Depth: 44 mm
Height: 1619 mm
Weight: 5.45 kg
