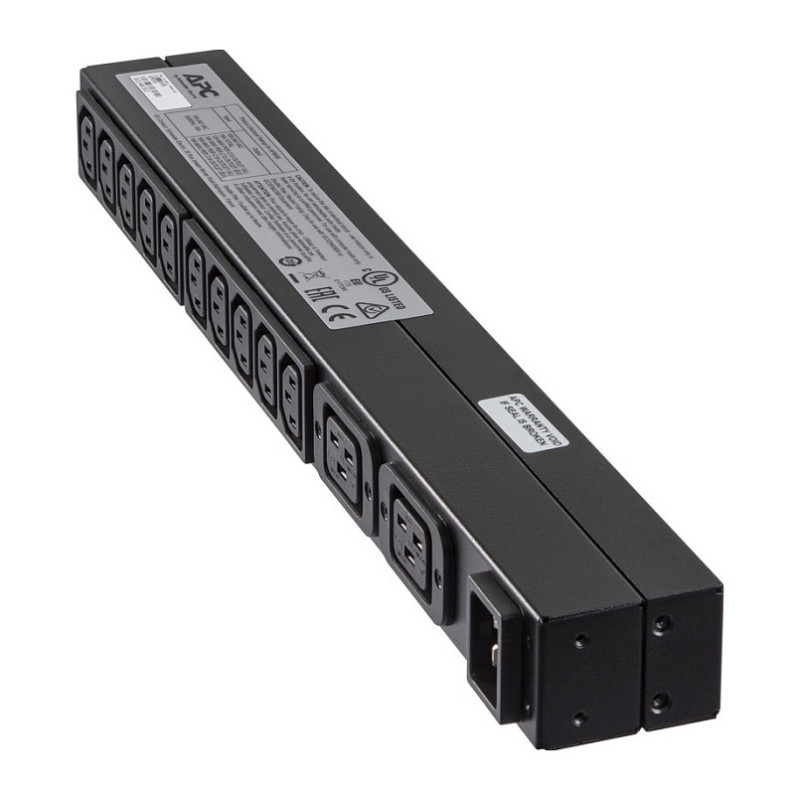

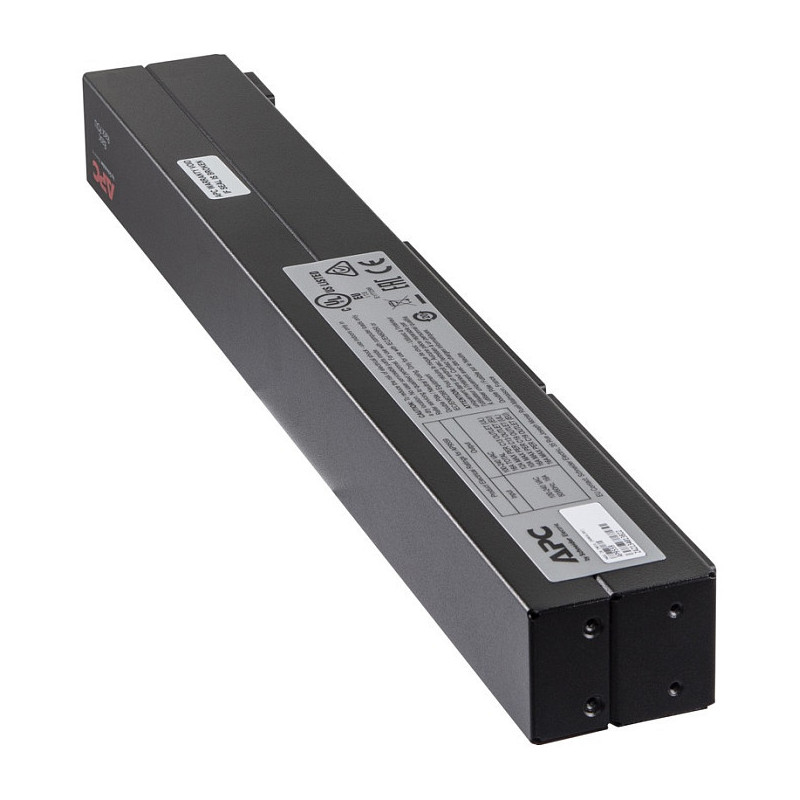

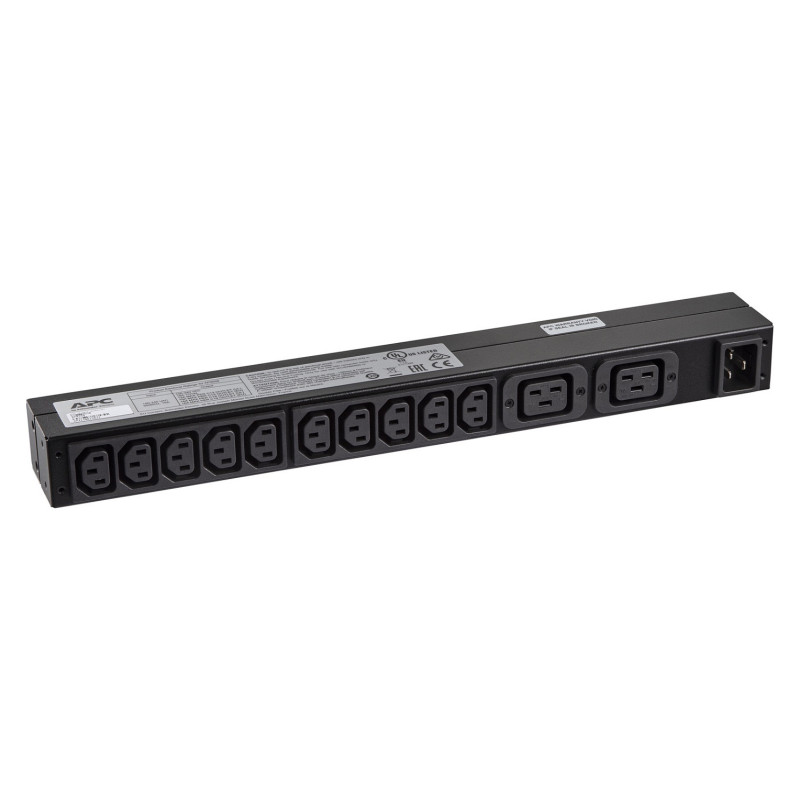

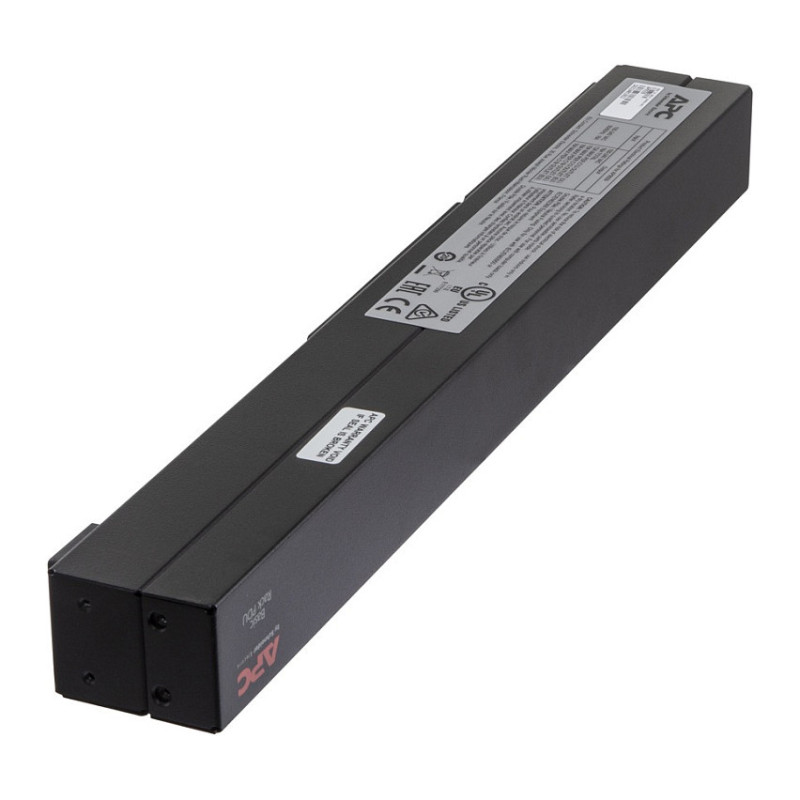

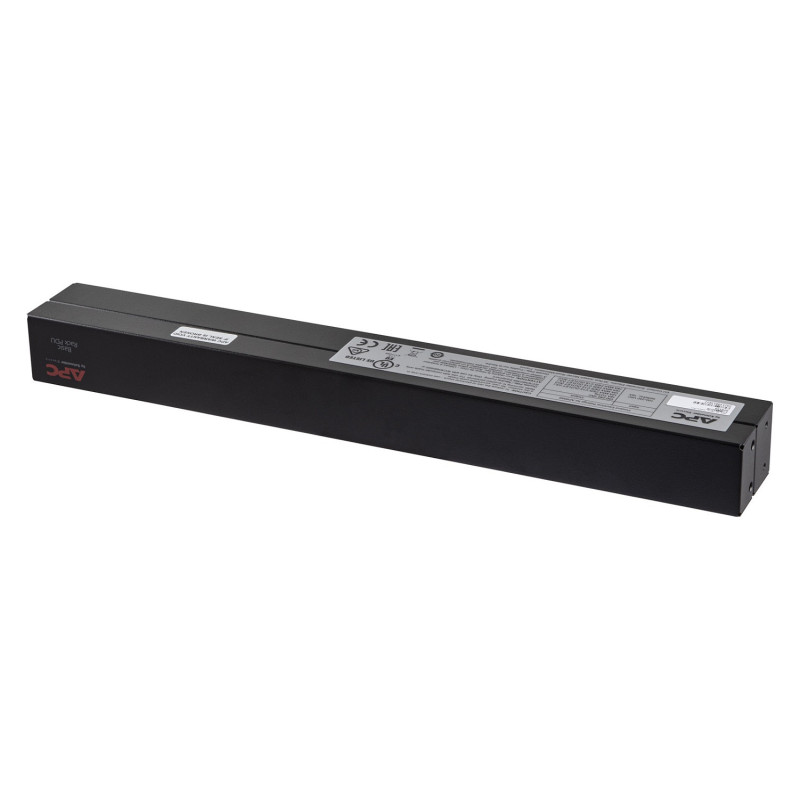

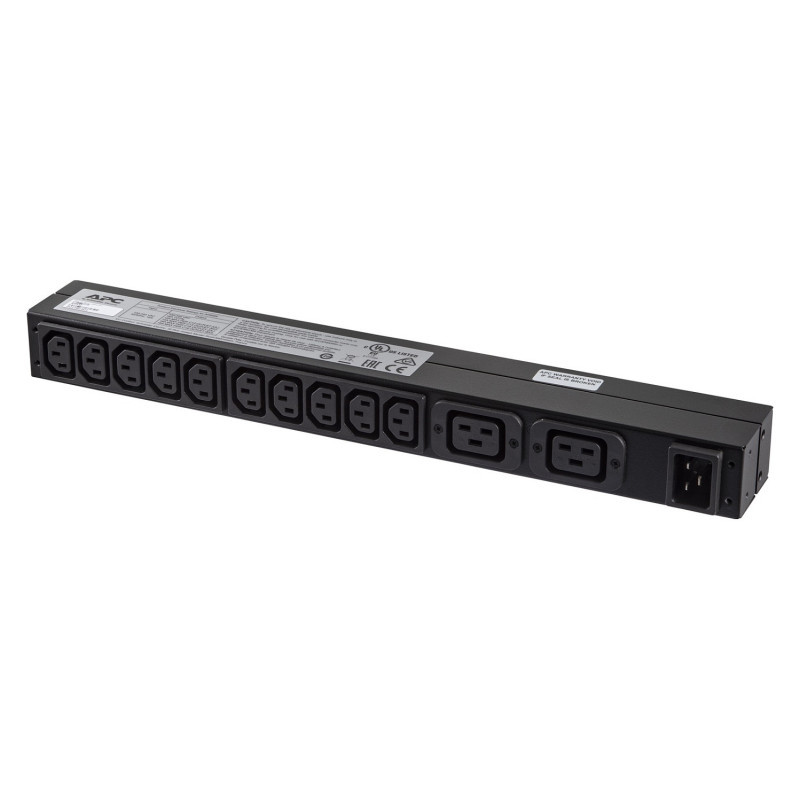

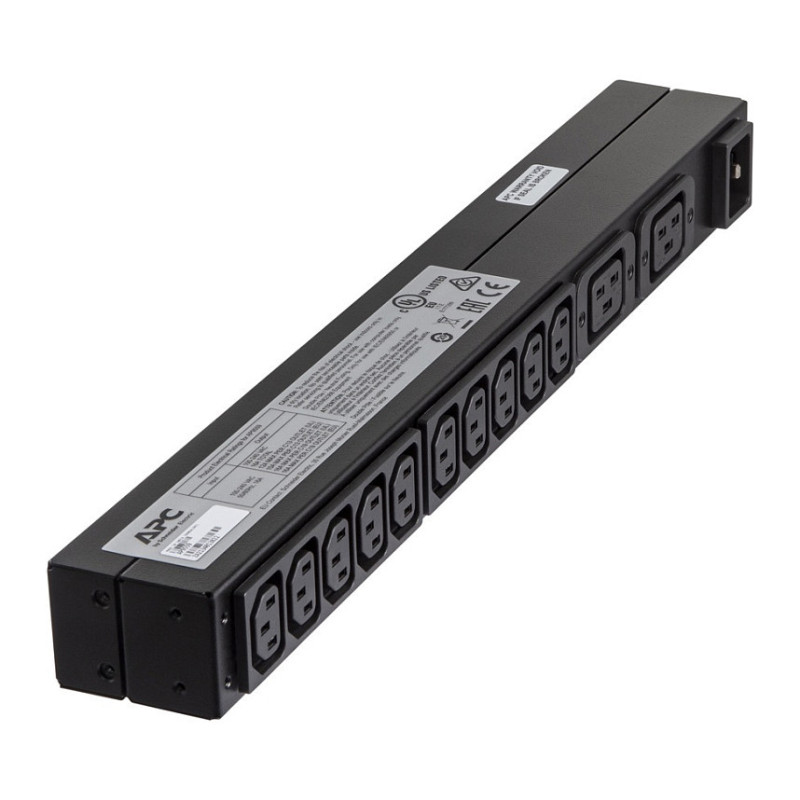

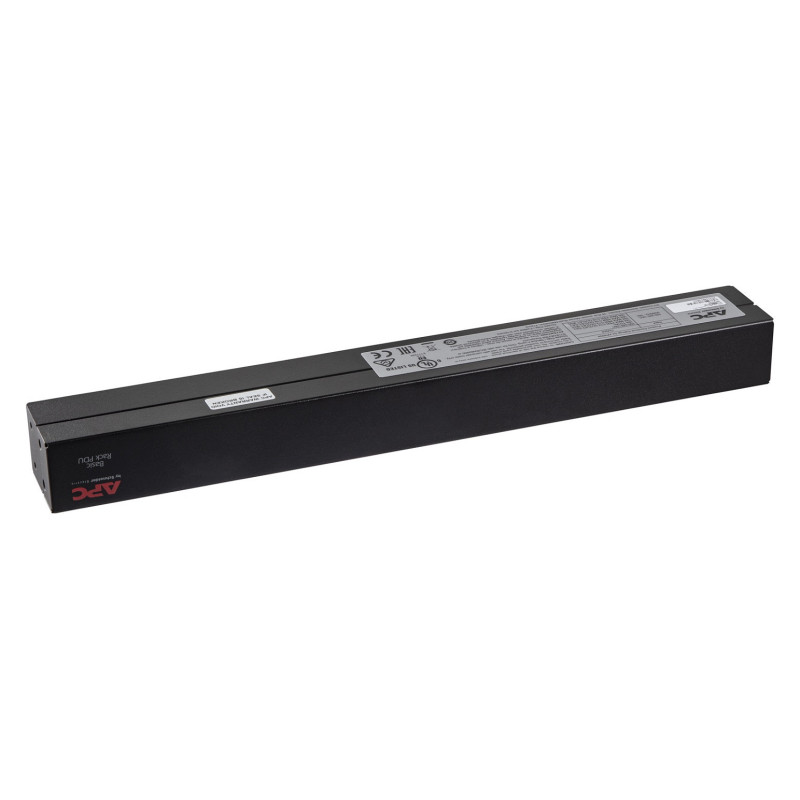

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU)

APC RACK PDU BASIC 1 U 16A 230V. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Load capacity: 3680 VA, Maximum input current per phase: 16 A, Maximum power: 3680 W. Width: 447 mm, Depth: 57.2 mm, Height: 44.5 mm
Description:
APC Basic Rack PDU, Input : 120, 208, 230V, Input Connection Type : IEC-320 C20, Cord Length : 8.2 feet ( 2.5 meters ), Output : 120, 208, 230V, Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities

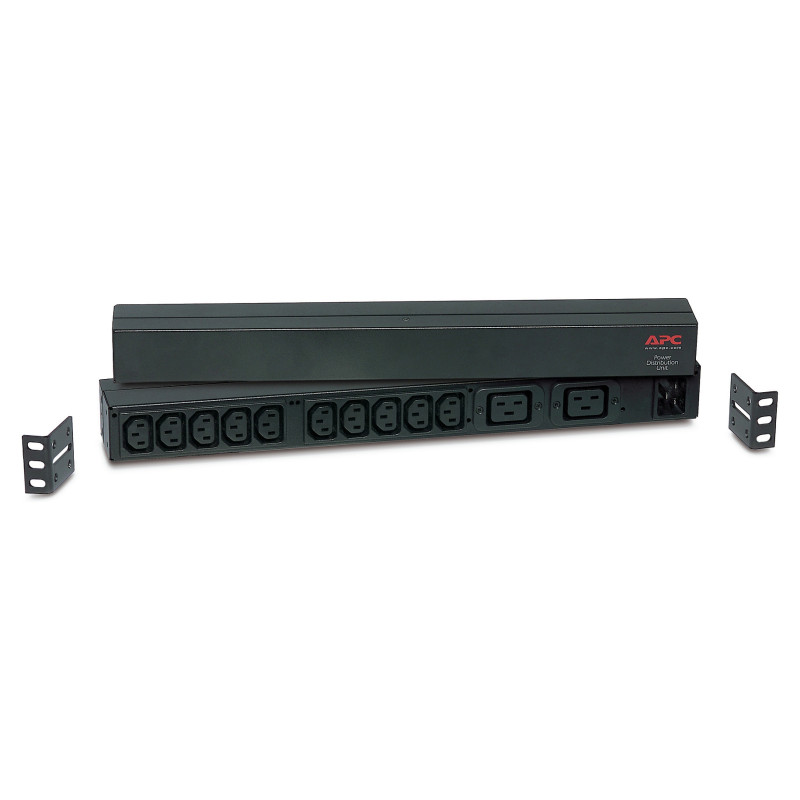

Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual

Output Voltage(s) (main only) - 120, 208, 230 V
Maximum Total Current Draw per Phase - 16 A
Output Connections - (10)IEC 320 C13; (2)IEC 320 C19
Always on Outlets - 12
Overload Protection
Input:
Nominal input voltage - 120, 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C20
Cord Length 8.2 feet ( 2.5 meters )
Acceptable Input Voltage - 90-250 VAC
Maximum Line Current per phase - 16.0 A
Maximum Input Current per phase - 16.0 A
Load Capacity - 3680

Design

PDU types: Basic
Type: Single-phase
Rack capacity: 0U/1U
Mounting: Horizontal/Vertical
Product colour: Black

Ports interfaces

AC outlets quantity: 12 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler, C19 coupler
I/O ports: Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20

Features

Cable length: 2.5 m

Power

Load capacity: 3680 VA
Maximum input current per phase: 16 A
Maximum power: 3680 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight dimensions

Width: 447 mm
Depth: 57.2 mm
Height: 44.5 mm
Weight: 980 g
