APC Power Cords

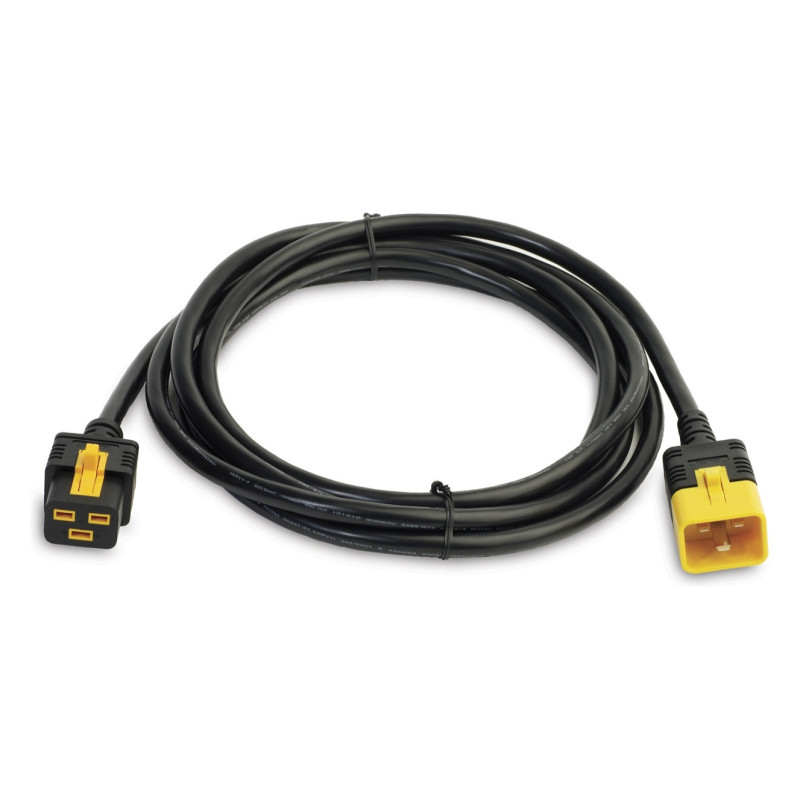

APC Power Cord, Locking C19 to C20, 3.0m. Cable length: 3 m, Connector 1: IEC C20, Connector 2: C20 coupler. Input voltage: 230 V, Input current: 16 A
AP8760 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 9.84ft (3.0m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Features

Product colour: Black
Connector 1 gender: Male
Connector 2 gender: Female
Cable length: 3 m
Connector 1: IEC C20
Connector 2: C20 coupler

Power

Input voltage: 230 V
Input current: 16 A

Operational conditions

Operating temperature (T-T): 0 - 75 °C
Storage temperature (T-T): -25 - 75 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: RoHS, REACH, WEEE
Certification: CCC; CSA; PSE; UL listed; VDE

Weight dimensions

Width: 230 mm
Depth: 45 mm
Height: 230 mm
Weight: 510 g

Packaging data

Package width: 230 mm
Package depth: 45 mm
Package height: 230 mm
Package weight: 510 g

Technical details

SCIP number: 1cdb2fed-a06f-4574-913d-8df8e70936b2
Feature: Proposition 65
Preferred mounting position: no preference

Logistics data

Customs product code (TARIC): 8544429090
Harmonized System (HS) code: 84733080
Total carbon footprint (kg of CO2e): 59.27608845625331

Other features

Input connection type: IEC 60320 C20
Dimensions (WxDxH): 230 x 45 x 230 mm
Weight (imperial): 0.51 kg (1.12 lbs)
Country of origin: India
