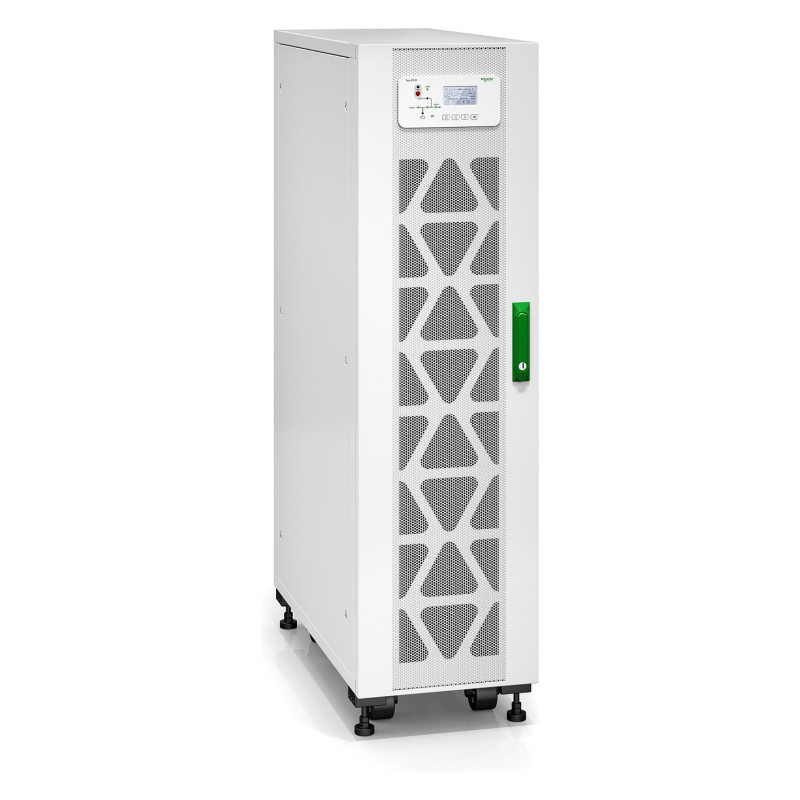

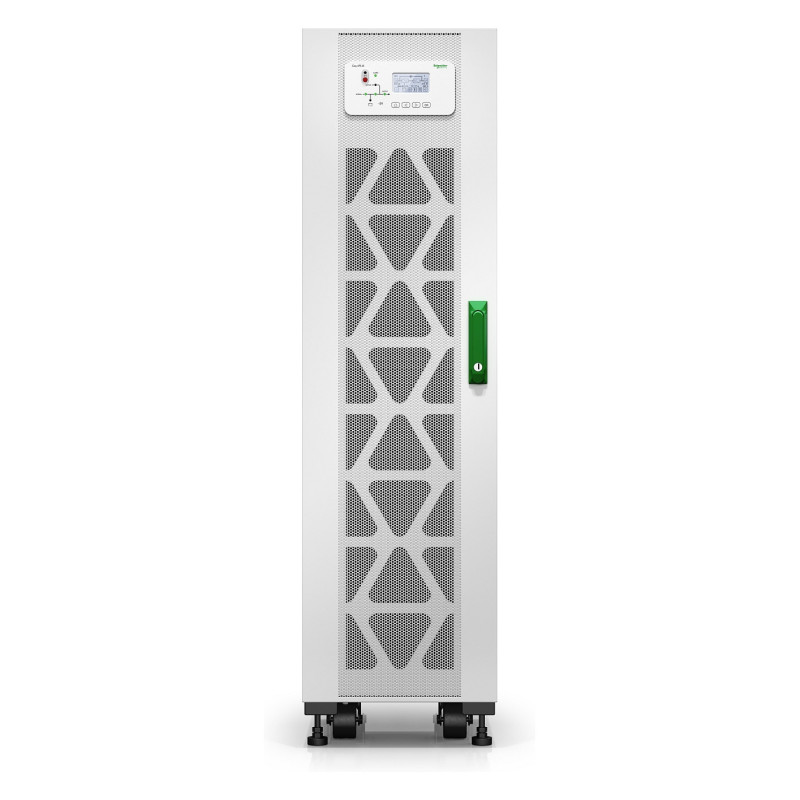

APC E3SUPS15K3IB1 uninterruptible power supply (UPS)

APC Easy UPS 3S 15 kVA 400V 3:1 UPS, 1 internal 7Ah modular battery string, expandable to 3. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 15000 W. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 40 Ah, Battery voltage: 240 V. Product colour: White, International Protection (IP) code: IP20. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE. Width: 380 mm, Depth: 907 mm, Height: 1400 mm
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 15 kVA 3:1 UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 1 internal 7 Ah modular battery strings, expandable to 3 strings for extended runtime.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 15 kVA
Output power: 15000 W
Input operation voltage (min): 380 V
Input operation voltage (max): 415 V
Input frequency: 45/65 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Power factor: 0.99
Crest factor: 3:1
Noise level: 60 dB

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 40 Ah
Battery voltage: 240 V
Number of batteries supported: 1

Design

Product colour: White
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Certificates

Compliance certificates: RoHS
Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Weight dimensions

Width: 380 mm
Depth: 907 mm
Height: 1400 mm
Weight: 71.2 kg

Packaging data

Package width: 563 mm
Package depth: 1014 mm
Package height: 1640 mm
Package weight: 173 kg

Logistics data

Harmonized System (HS) code: 85078000
