APC BV800I-GR uninterruptible power supply (UPS)

APC BV800I-GR. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 450 W. AC outlet types: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, Cable length: 1.52 m. Compliance certificates: RoHS, Certification: CE REACH
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

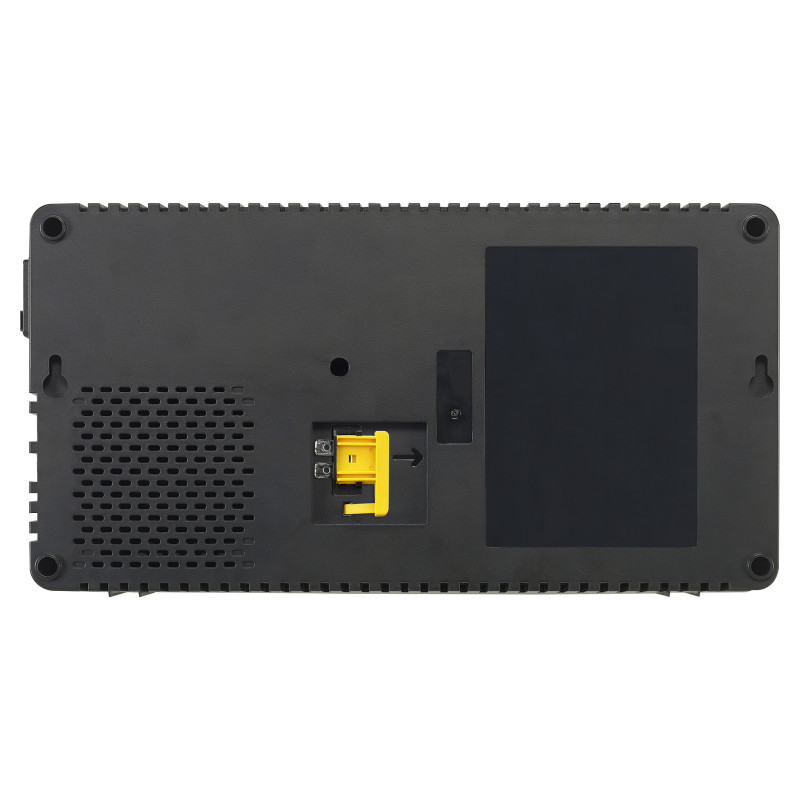

Wall-mount holes
Allow flexibility for setup in tight locations and mounting on wall or other surfaces.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Features

UPS topology: Line-Interactive
Output power capacity: 0.8 kVA
Output power: 450 W
Waveform: Sine
Input operation voltage (min): 170 V
Input operation voltage (max): 280 V
Input frequency: 50/60 Hz
Output frequency: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 156 J
Transfer time (Line Mode to Battery Mode): 6 ms
Number of input phases: 1
Number of output phases: 1
Noise level: 40 dB
Surge protection: Yes
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm

Ports interfaces

AC outlet types: Type F
AC outlets quantity: 4 AC outlet(s)
SmartSlot: No
SmartConnect port: No

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 7 Ah
Battery voltage: 12 V
Battery recharge time: 8 h
Cold start: Yes

Design

Form factor: Compact
Cable length: 1.52 m
Product colour: Black
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 1968.3 m

Certificates

Compliance certificates: RoHS
Certification: CEREACH

Packaging content

Management card included: No

Weight dimensions

Width: 160 mm
Depth: 305 mm
Height: 92 mm
Weight: 5.3 kg

Packaging data

Package width: 373 mm
Package depth: 143 mm
Package height: 237 mm
Package weight: 5.6 kg

Logistics data

Harmonized System (HS) code: 85078000

Other features

Nominal output voltage: 230 V
