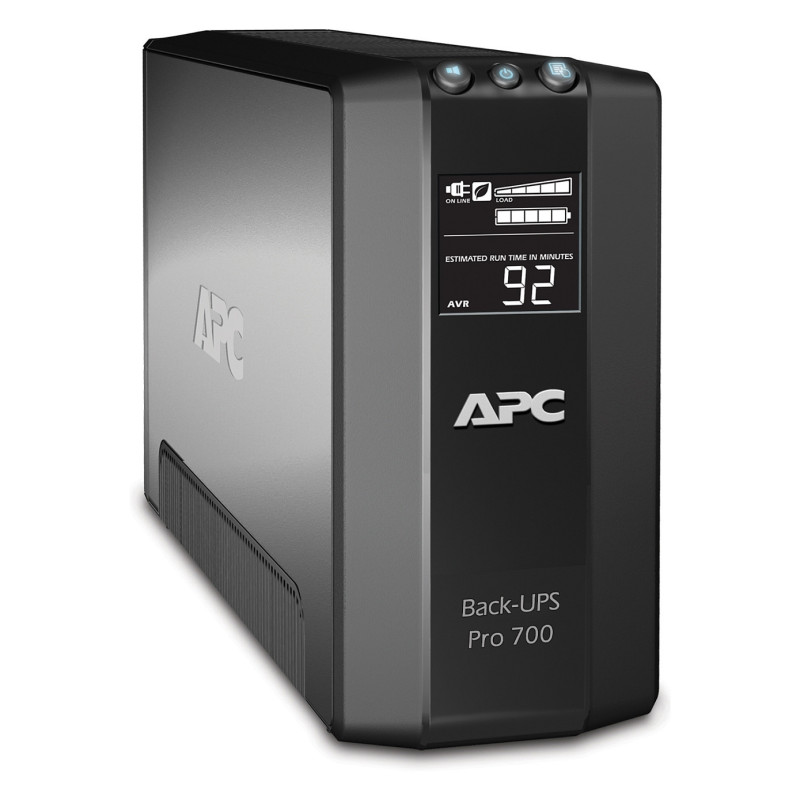

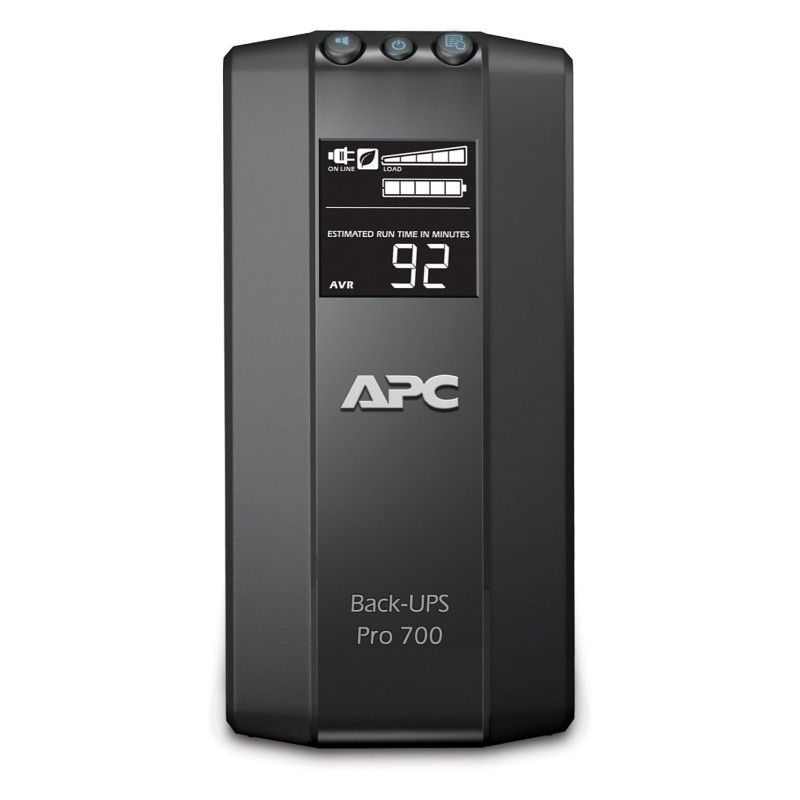

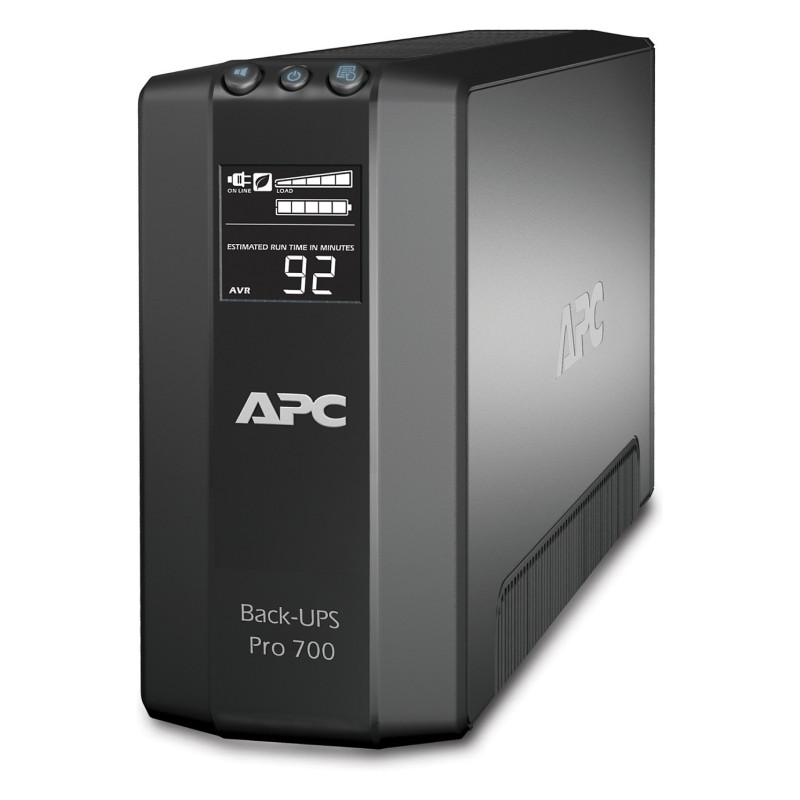

APC BR700G uninterruptible power supply (UPS)

APC BR700G. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: NEMA 5-15P, NEMA 5-15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Cable length: 1.8 m. Certification: FCC Part 15 Class B, FCC Part 68, NOM, UL 1778

Features

UPS topology: Line-Interactive
Output power capacity: 0.7 kVA
Output power: 420 W
Waveform: Sine
Input operation voltage (min): 88 V
Input operation voltage (max): 143 V
Input frequency: 50/60 Hz
Output operation voltage (max): 120 V
Surge energy rating: 354 J
Response time: 12 ms
Heat dissipation: 48.5 BTU/h
Noise level: 45 dB
Audible alarm(s): Yes

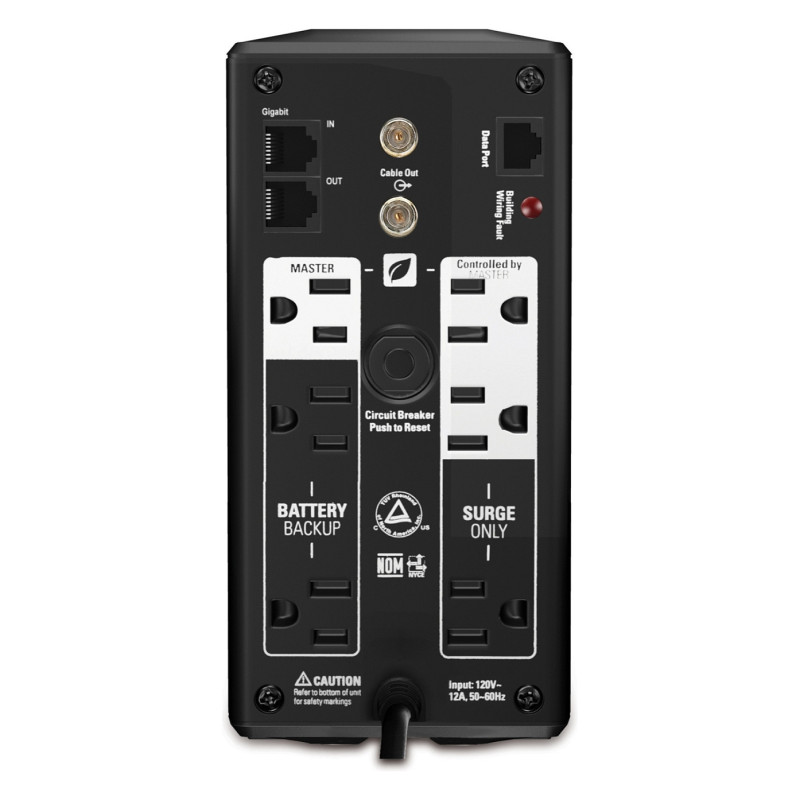

Ports interfaces

AC outlet types: NEMA 5-15P, NEMA 5-15R
Power plug: NEMA 5-15P
AC outlets quantity: 6 AC outlet(s)
Ethernet LAN (RJ-45) ports: 2

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery voltage: 12 V
Battery life (max): 5 year(s)
Battery recharge time: 12 h

Design

Form factor: Tower
Cable length: 1.8 m
Product colour: Black
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Certificates

Certification: FCC Part 15 Class B, FCC Part 68, NOM, UL 1778

Weight dimensions

Width: 91 mm
Depth: 310 mm
Height: 190 mm
Weight: 7.15 kg

Packaging data

Package width: 442 mm
Package depth: 138 mm
Package height: 252 mm
Package weight: 8 kg
