APC BR650MI uninterruptible power supply (UPS)

APC BR650MI. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 390 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 12 h. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Certification: A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Security through emergency power
The APC Back-UPS PRO BR650MI has a built-in battery that ensures that all connected equipment, such as a PC, NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.
Safety and convenience
In addition, this safe APC Back-UPS PRO protects valuable equipment against peak voltage caused by lightning strikes, for example. With these UPS you can secure both your power and network connections (1Gbit). Because the APC Back-UPS PRO is also equipped with an LCD screen, it is easy to use.
Insurance
Despite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:
- Equipment protection policy of 150,000 euros
Extend the lifespan
The internal battery cartridge (APCRBC110) can be replaced easily, safely and independently by the user. This without having to switch off the APC BR650MI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Back-UPS.
Warranty extension
The factory warranty of the BR650MI is 3 years and can be upgraded to 6 years with the APC service pack (WBEXTWAR3YR-SP-01).
Save on operational costs
The BR650MI features a customizable AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. In addition, the UPS has Greenmode, a smart power-saving operating mode that optimally combines efficiency and protection. Furthermore, the emergency power supply has 6 Battery+surge protected outputs. PowerChute Serial Shutdown software and a USB cable are also included.

Features

UPS topology: Line-Interactive
Output power capacity: 0.65 kVA
Output power: 390 W
Waveform: Sine
Input operation voltage (min): 176 V
Input operation voltage (max): 294 V
Input frequency: 50/60 Hz
Output frequency: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Maximum current: 10 A
Response time: 12 ms
ECO mode: Yes
Noise level: 45 dB
Surge protection: Yes
Surge protection features: Network
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm

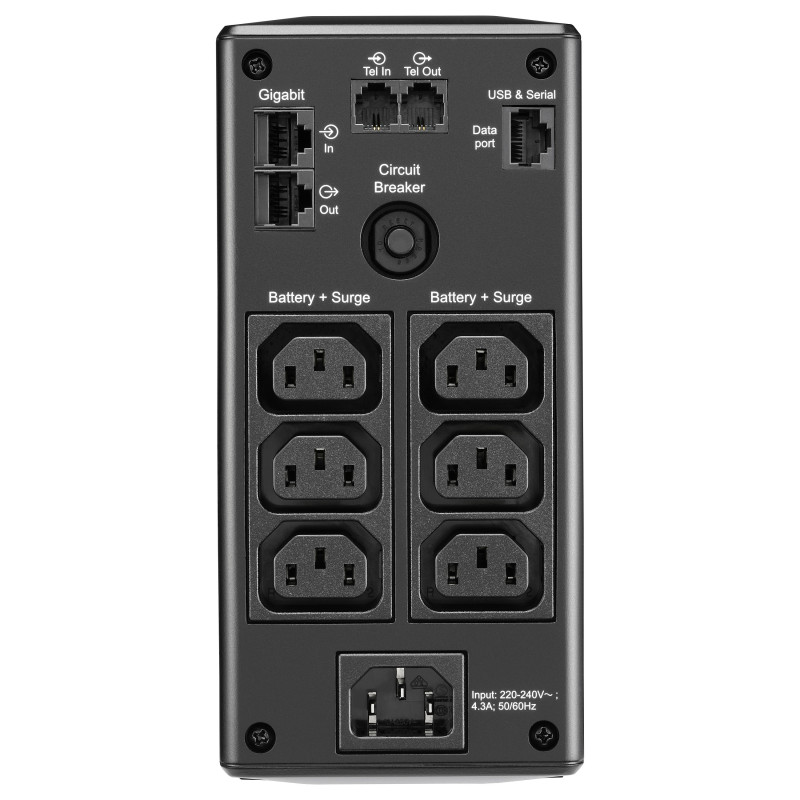

Ports interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
USB port: Yes
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Cabling technology: 10/100/1000Base-T(X)
SmartSlot: No
SmartConnect port: No

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery life (max): 5 year(s)
Battery recharge time: 12 h
Hot-swap battery: Yes
Automatic battery test: Yes
Cold start: Yes

Design

Form factor: Tower
Cable length: 1.83 m
Cooling type: Passive
Product colour: Black
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Certification: A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI

Packaging content

Cables included: USB cable
Management card included: No
Manual: Yes

Sustainability

Sustainability certificates: Green Premium

Weight dimensions

Width: 91 mm
Depth: 310 mm
Height: 190 mm
Weight: 6.4 kg

Packaging data

Package width: 440 mm
Package depth: 143 mm
Package height: 255 mm
Package weight: 7.4 kg

Logistics data

Harmonized System (HS) code: 85078000

Other features

Nominal output voltage: 230 V
Nominal input voltage: 230 V
