APC Back-UPS uninterruptible power supply (UPS)

APC Back-UPS 500VA, 230V, AVR, IEC Sockets. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 12 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: RoHS, Certification: CE, EAC, EN/IEC 62040-1
500VA / 300W line-interactive UPS Controls LED brightness, Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use

Features

UPS topology: Line-Interactive
Output power capacity: 0.5 kVA
Output power: 300 W
Waveform: Sine
Input operation voltage (min): 140 V
Input operation voltage (max): 300 V
Input frequency: 50/60 Hz
Output frequency: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 273 J
Efficiency: 96.1%
Input power factor: 0.63
Noise level: 40 dB
Surge protection: Yes
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm

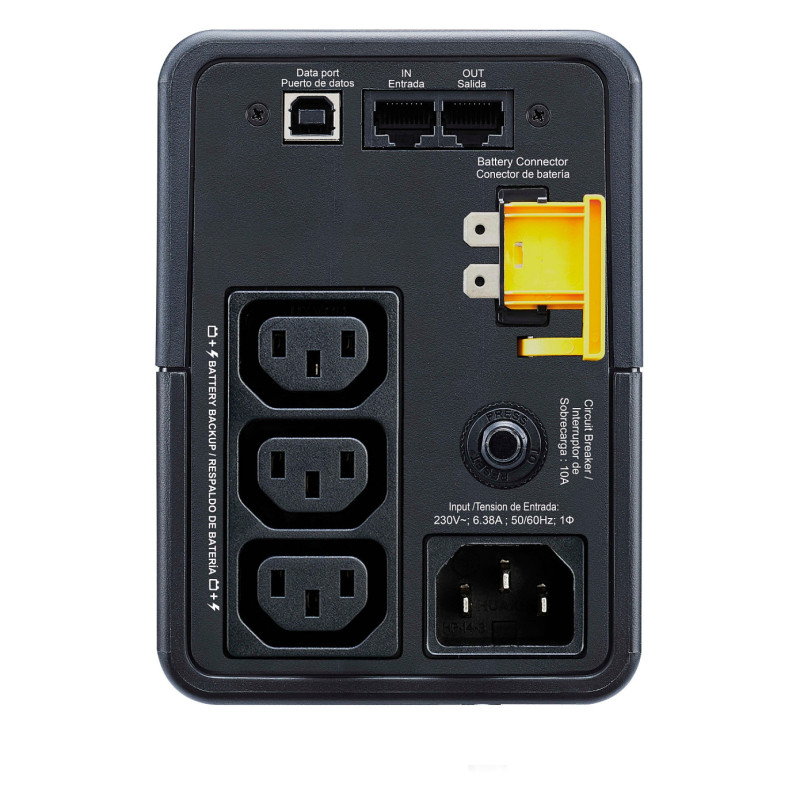

Ports interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 3 AC outlet(s)
Number of output IEC jumpers: 1
Ethernet LAN (RJ-45) ports: 2
Cabling technology: 10/100/1000Base-T(X)
SmartSlot: No
SmartConnect port: No

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 12 V
Battery life (max): 5 year(s)
Battery recharge time: 8 h
Automatic battery test: Yes

Design

Form factor: Tower
Cable length: 1.5 m
Product colour: Black
LED indicators: Battery replacement
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Certificates

Compliance certificates: RoHS
Certification: CE, EAC, EN/IEC 62040-1

Packaging content

Management card included: No

Weight dimensions

Width: 98 mm
Depth: 310 mm
Height: 138 mm
Weight: 4.2 kg

Packaging data

Package width: 142 mm
Package depth: 346 mm
Package height: 222 mm
Package weight: 4.5 kg

Logistics data

Harmonized System (HS) code: 85078000
