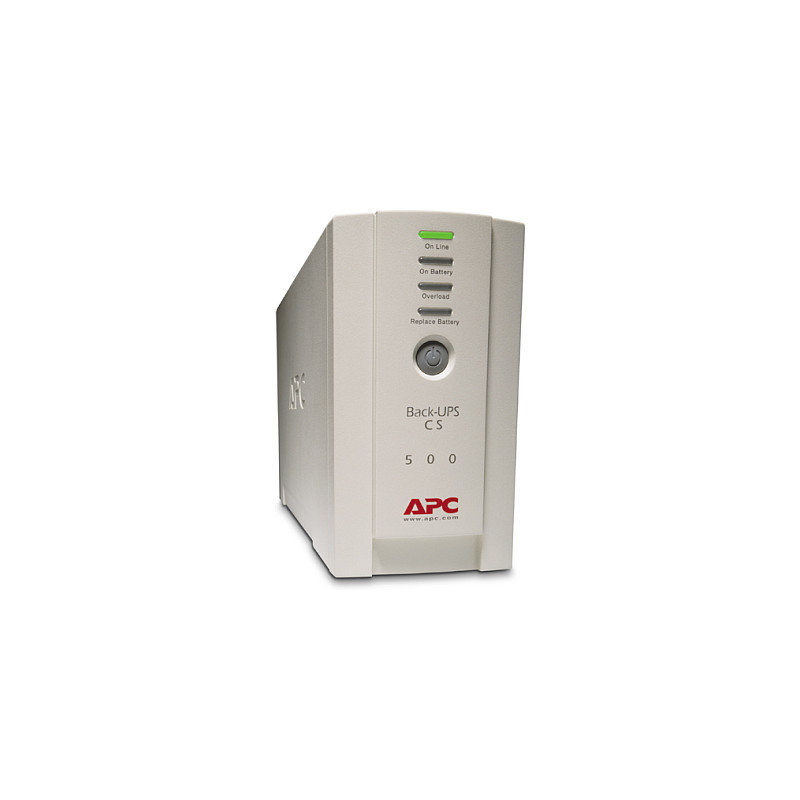

APC Back-UPS uninterruptible power supply (UPS)

APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery. UPS topology: Standby (Offline), Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery capacity: 83 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.83 m. Compliance certificates: RoHS, Certification: C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH

This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Features

UPS topology: Standby (Offline)
Output power capacity: 0.5 kVA
Output power: 300 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 300 V
Input frequency: 50/60 Hz
Output frequency regulation: 47 - 63 Hz
Surge energy rating: 310 J
Hold time (min): 6 ms
Hold time (max): 10 ms
Efficiency: 99%
Noise level: 40 dB
Feature: Surge protection
Surge protection features: Digital Subscriber Line (DSL), Fax, Modem, Telephone
Power protection features: Overload
Feature: Audible alarm(s)
Audible alarm modes: Low battery alarm, Overload alarm

Ports & interfaces

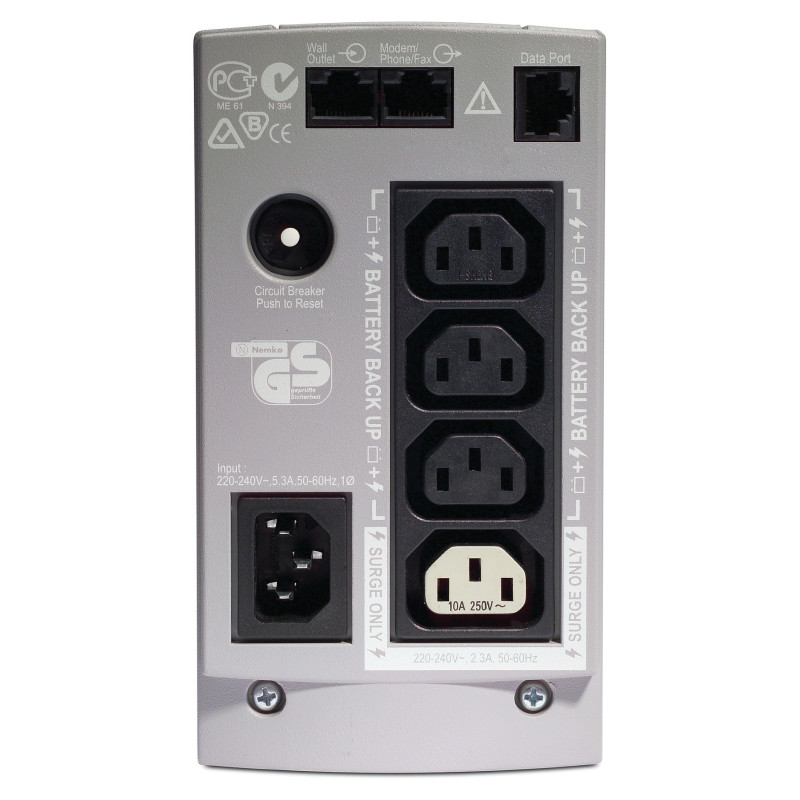

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
Number of output IEC jumpers: 2
Feature: USB port

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 7 Ah
Battery capacity: 83 VAh
Battery voltage: 12 V

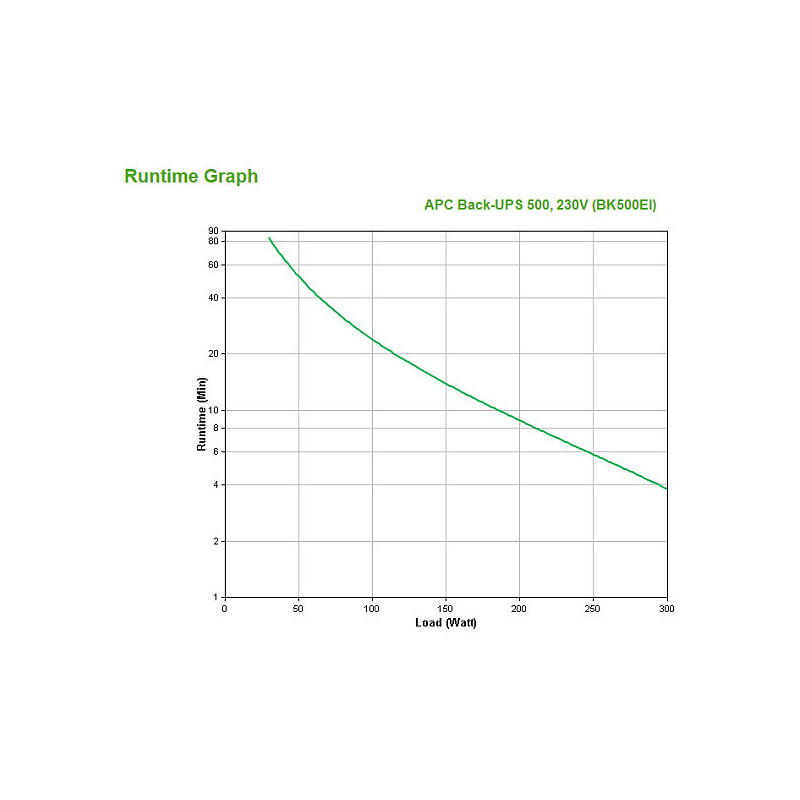

Typical backup time at full load: 3.8 min
Typical backup time at half load: 13.8 min
Battery life (max): 6 year(s)
Battery recharge time: 8 h
Feature: Automatic battery test

Design

Form factor: Tower
Cable length: 1.83 m
Product colour: Beige
LED indicators: Battery replacement

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH

Packaging content

Cables included: Phone (RJ-11), USB cable
Feature: Quick installation guide

Sustainability

Sustainability certificates: ENERGY STAR, Green Premium

Weight & dimensions

Width: 91 mm
Depth: 284 mm
Height: 165 mm
Weight: 6.32 kg

Packaging data

Feature: Warranty card
Feature: Software CD

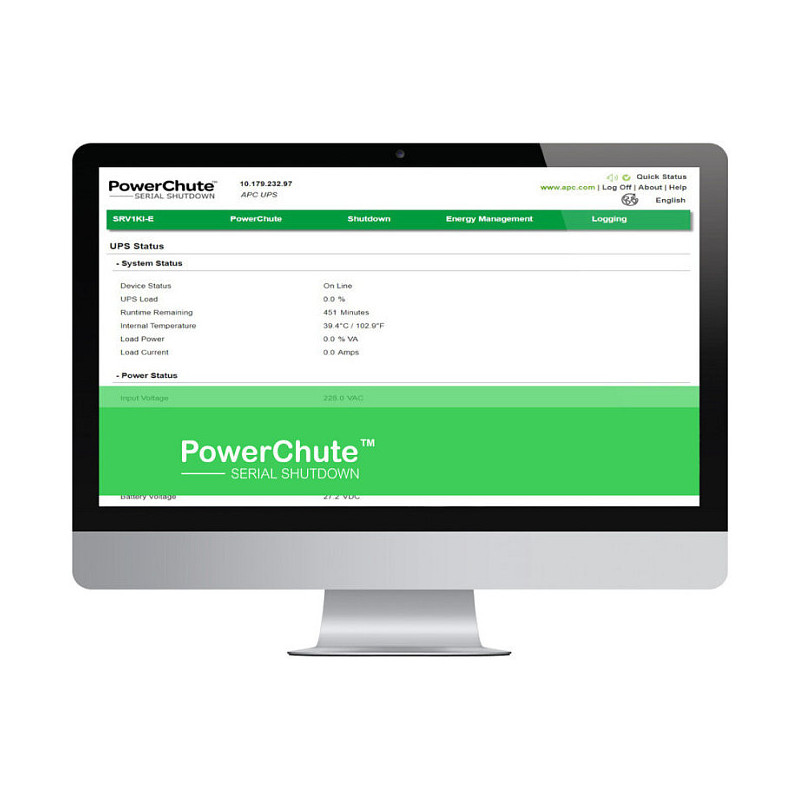

Bundled software: PowerChute Serial Edition
Package width: 241 mm
Package depth: 368 mm
Package height: 178 mm
Package weight: 7.05 kg

Logistics data

Products per pallet: 48 pc(s)
Harmonized System (HS) code: 85078000
Products per master (outer) case: 1 pc(s)

Other features

Nominal output voltage: 230 V
Nominal input voltage: 230 V
Feature: Filtering
Packaging content: Detachable 1.2m IEC power cordDetachable 1.8 m IEC power cord
