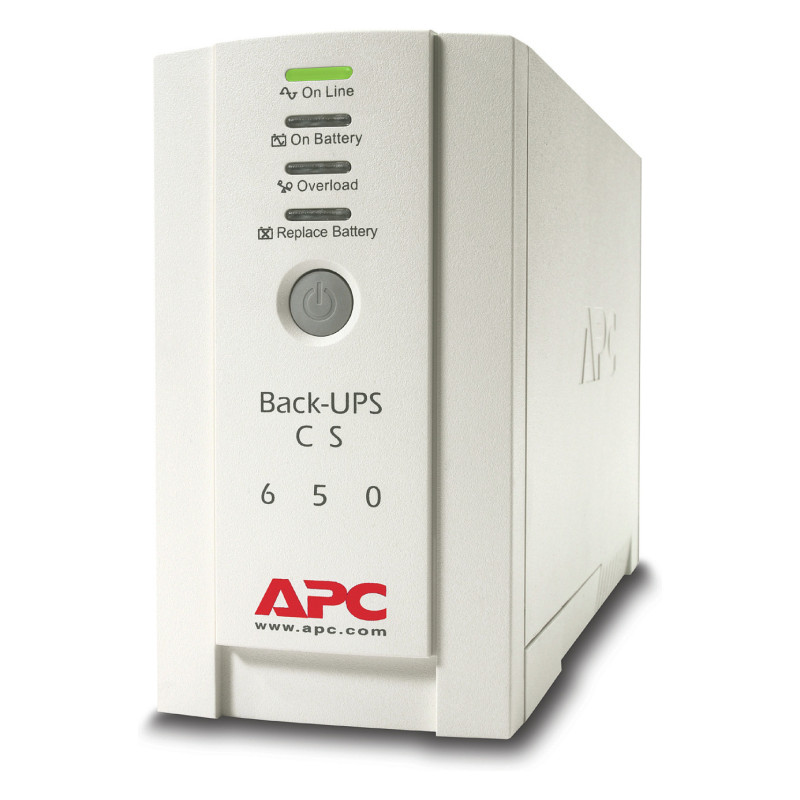

APC Back-UPS uninterruptible power supply (UPS)

APC Back-UPS BK650EI - 650VA, 4x C13 output, USB. UPS topology: Standby (Offline), Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery capacity: 111 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.8 m. Compliance certificates: RoHS, Certification: A-tick, C-tick, CE, GOST, NEMKO
Security through emergency power
An APC Back-UPS has a built-in battery that ensures that all connected equipment, such as a NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.
Safety
In addition, this safe APC Back-UPS protects valuable equipment against peak voltage caused by lightning strikes, for example.
Insurance
Despite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:
- Equipment protection policy of 100,000 euros
Extend the lifespan
The internal battery cartridge (RBC17) can be replaced easily, safely and independently by the user. This way you can easily and cheaply extend the lifespan of the APC Back-UPS BK650EI.
Warranty extension
The factory warranty of the BK650EI is 2 years and you can upgrade to 5 years with the APC service pack (WBEXTWAR3YR-SP-01A).
The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

Features

UPS topology: Standby (Offline)
Output power capacity: 0.65 kVA
Output power: 400 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 286 V
Input frequency: 50/60 Hz
Output frequency regulation: 47 - 63 Hz
Maximum current: 7 A
Surge energy rating: 310 J
Hold time (min): 6 ms
Hold time (max): 10 ms
Efficiency: 98.9%
Noise level: 45 dB
Surge protection: Yes
Surge protection features: Digital Subscriber Line (DSL), Fax, Modem, Telephone
Audible alarm(s): Yes
Audible alarm modes: Low battery alarm, Overload alarm

Ports interfaces

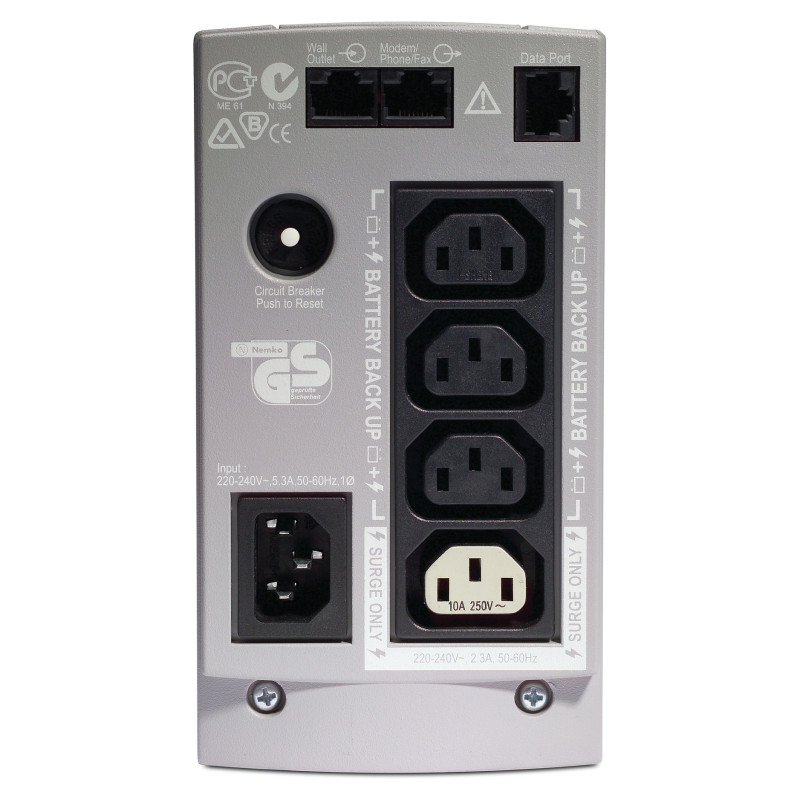

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
Number of output IEC jumpers: 2
USB port: Yes
SmartSlot: No
SmartConnect port: No

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery capacity: 111 VAh
Battery voltage: 12 V

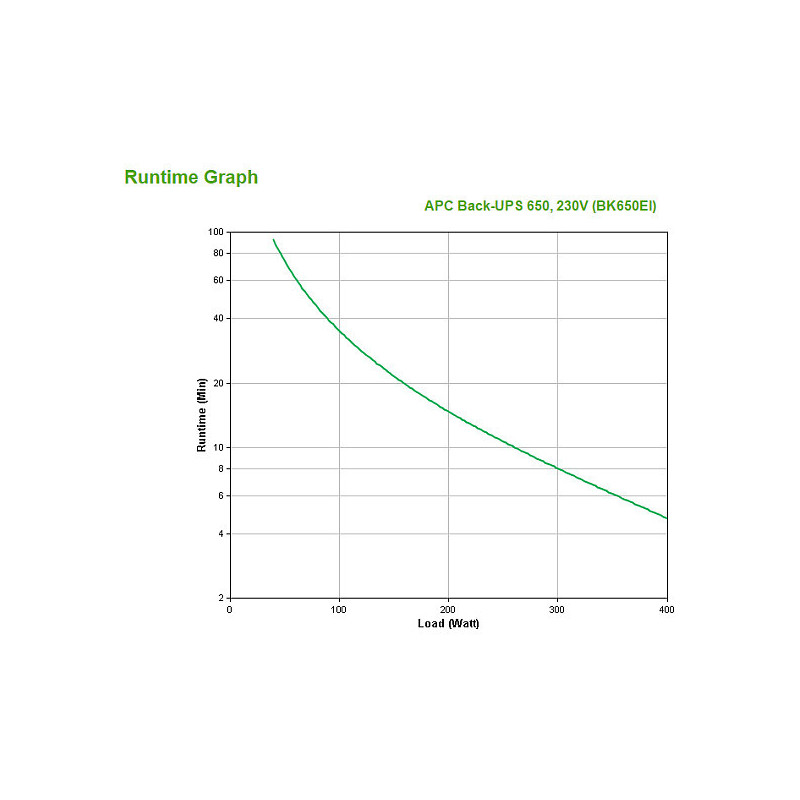

Typical backup time at full load: 4.7 min
Typical backup time at half load: 14.7 min
Battery life (max): 6 year(s)
Battery recharge time: 8 h
Automatic battery test: Yes
Replacement battery cartridge: 1

Design

Form factor: Tower
Cable length: 1.8 m
Product colour: Beige
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 15240 m

Certificates

Compliance certificates: RoHS
Certification: A-tick, C-tick, CE, GOST, NEMKO

Packaging content

Cables included: USB cable
Management card included: No
Quick installation guide: Yes

Sustainability

Sustainability certificates: ENERGY STAR, Green Premium

Weight dimensions

Width: 91 mm
Depth: 284 mm
Height: 165 mm
Weight: 6.03 kg

Packaging data

Software CD: Yes

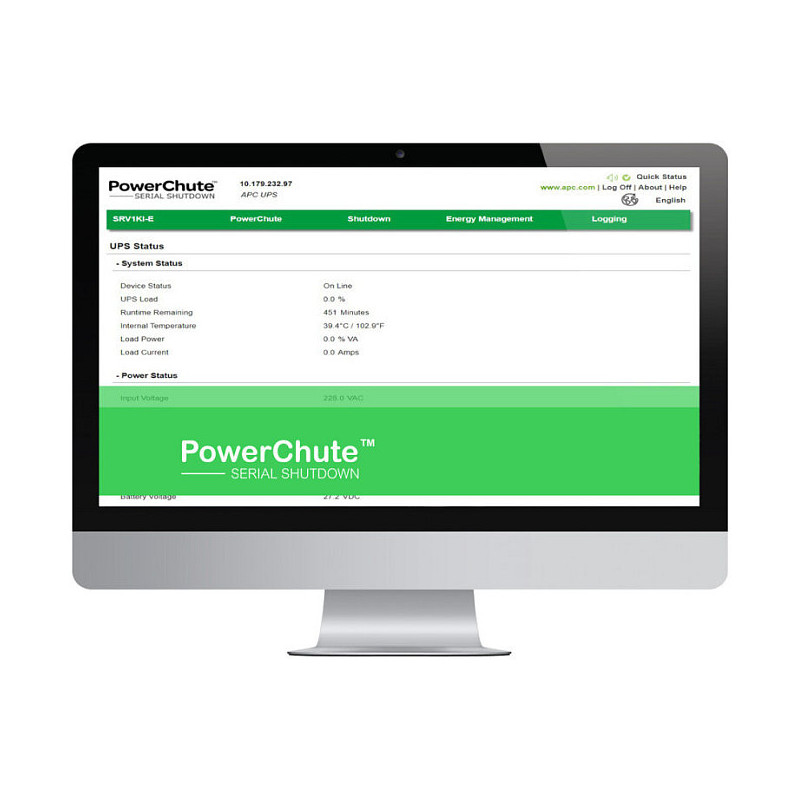

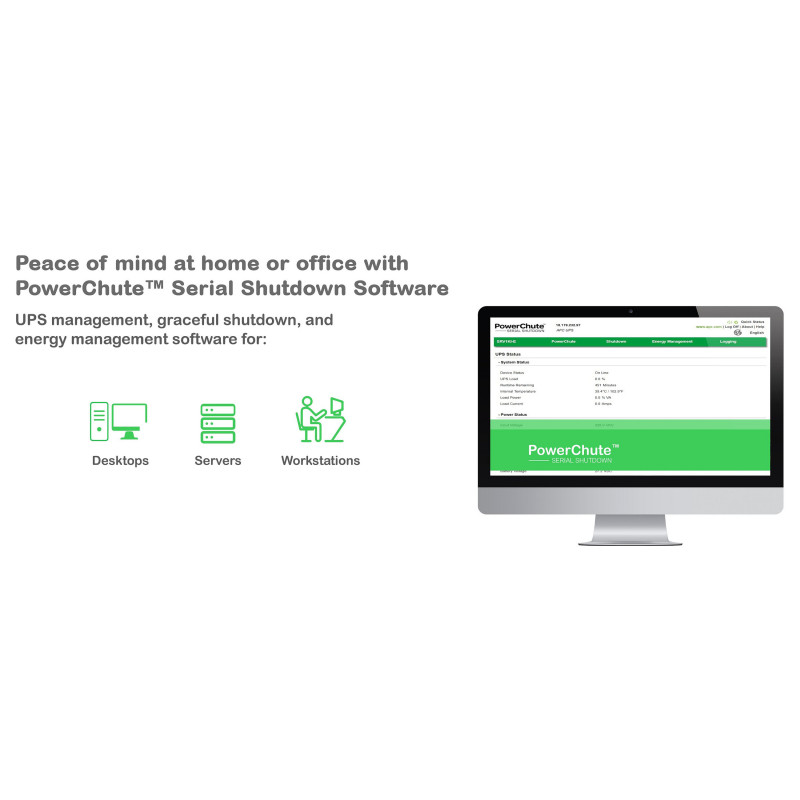

Bundled software: PowerChute Serial Edition
Package width: 185 mm
Package depth: 415 mm
Package height: 494 mm
Package weight: 7.31 kg

Logistics data

Products per pallet: 48 pc(s)
Harmonized System (HS) code: 85078000
Products per master (outer) case: 1 pc(s)

Other features

Nominal output voltage: 230 V
Nominal input voltage: 230 V
Filtering: Yes
Packaging content: Detachable IEC C13 to IEC C14 power cords
