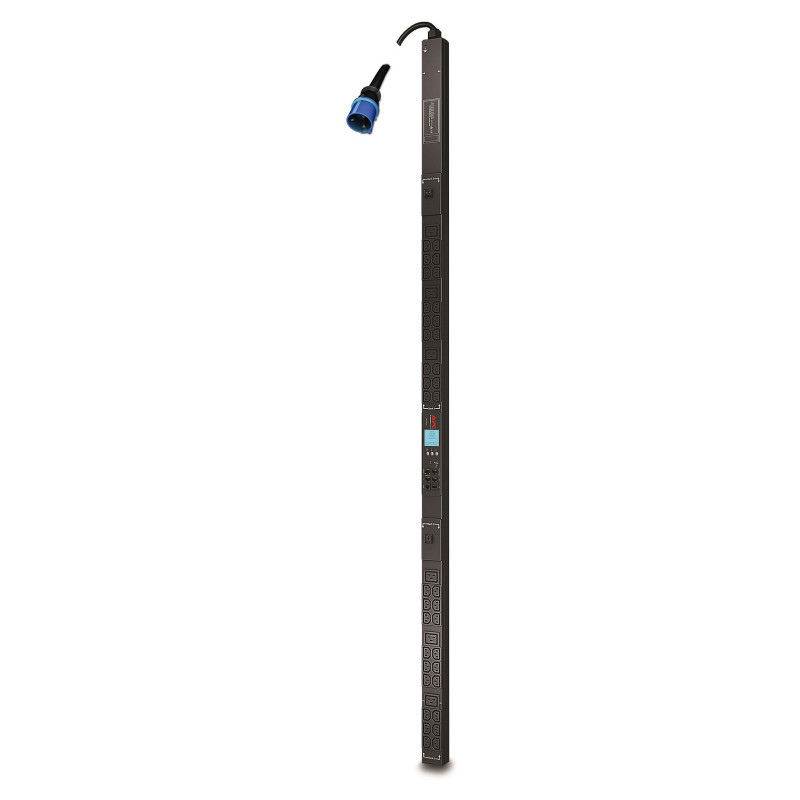

APC AP8853 power distribution unit (PDU)

APC AP8853. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m. Monitoring: Current, Power, Voltage. AC input frequency: 50 - 60 Hz, Nominal output voltage: 230 V, Load capacity: 7680 VA
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Design

PDU types: Metered
Type: Single-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black

Ports interfaces

AC outlets quantity: 42 AC outlet(s)
Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler

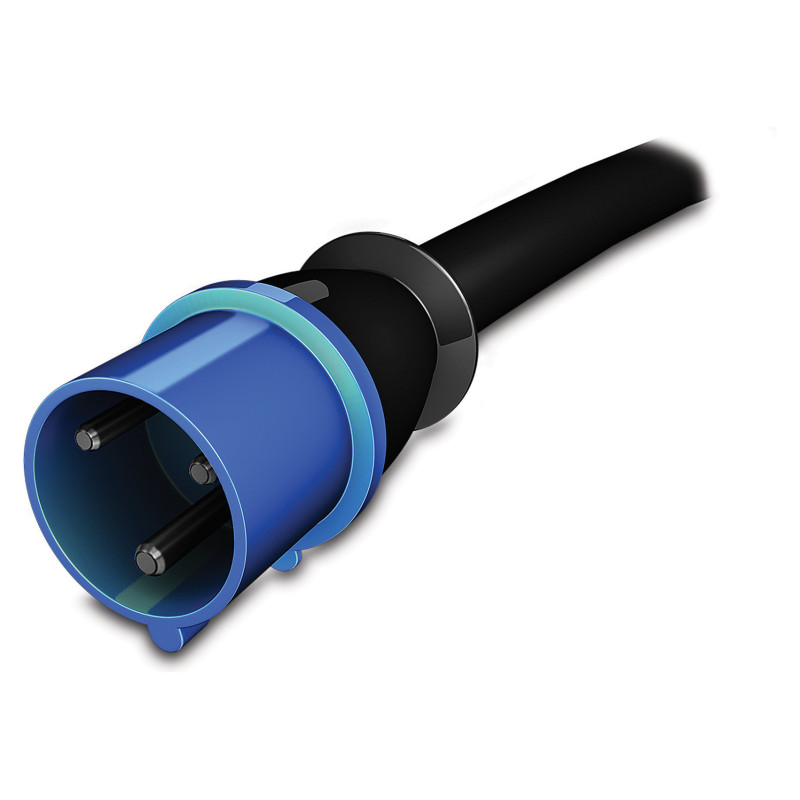

Input connection type: IEC 309 32A 2P+E
Output connections: 36x IEC 320 C13 6x IEC 320 C19

Features

Cable length: 3 m

Management features

Monitoring: Current, Power, Voltage

Power

AC input frequency: 50 - 60 Hz
Nominal output voltage: 230 V
Load capacity: 7680 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Maximum power: 7680 W

Certificates

Certification: RoHS, REACHIEC 60950,VDE

Operational conditions

Operating temperature (T-T): 5 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 56 mm
Depth: 44 mm
Height: 1791 mm
Weight: 6.93 kg

Logistics data

Total carbon footprint (kg of CO2e): 28921.23
