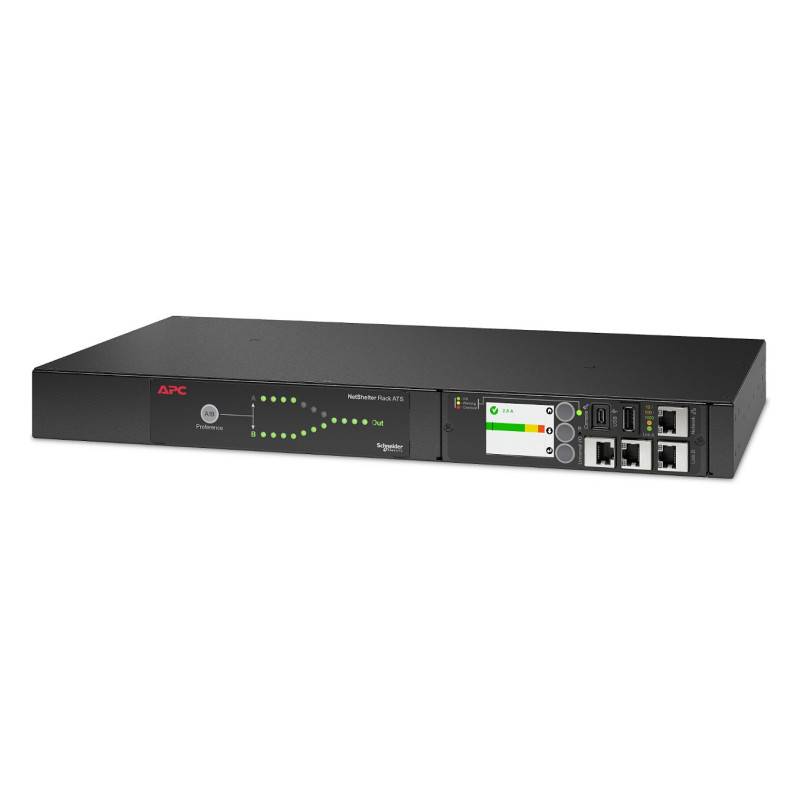

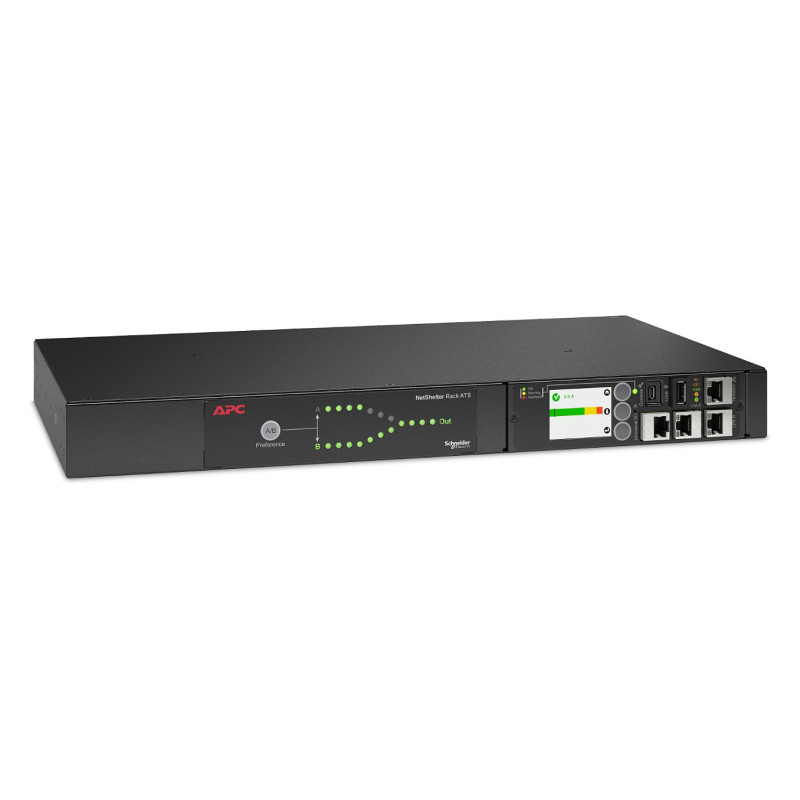

APC AP4421A Automatic Transfer Switch (ATS)

APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz. Input operation voltage (min): 207 V, Input operation voltage (max): 253 V, AC input frequency: 50 - 60 Hz. Form factor: Rackmount, Rack capacity: 1U, Product colour: Black. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler. Width: 432 mm, Depth: 236 mm, Height: 44 mm

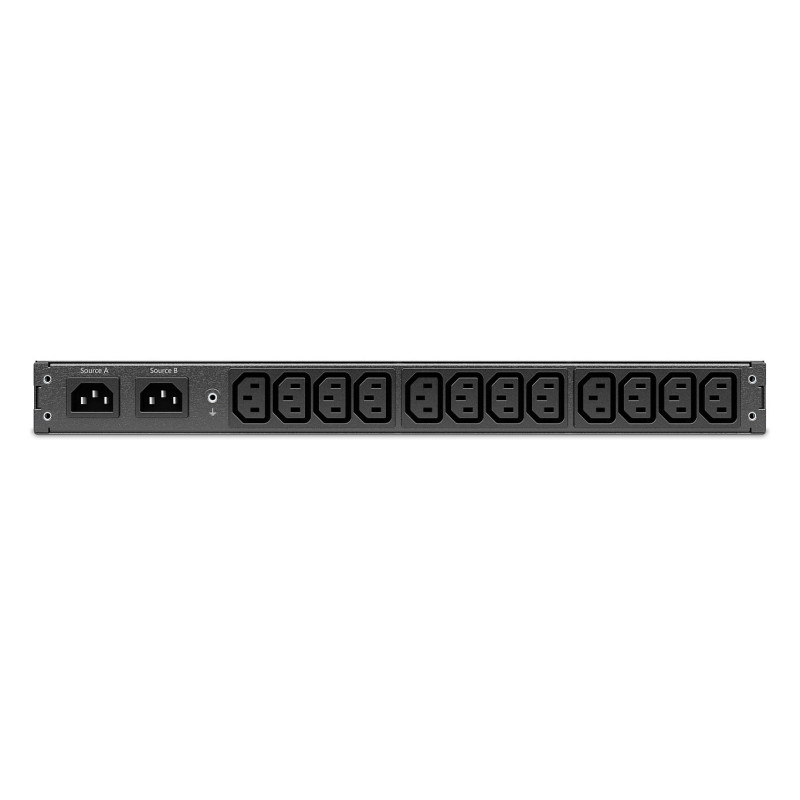

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Power

Input operation voltage (min): 207 V
Input operation voltage (max): 253 V
AC input frequency: 50 - 60 Hz
Input current: 10 A
Output current: 10 A

Design

Form factor: Rackmount
Rack capacity: 1U
Product colour: Black
Display: LCD

Ports interfaces

AC outlets quantity: 12 AC outlet(s)
AC outlet types: C13 coupler

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%

Technical details

Total carbon footprint (kg of CO2e): 450.72

Weight dimensions

Width: 432 mm
Depth: 236 mm
Height: 44 mm
Weight: 3.93 kg
