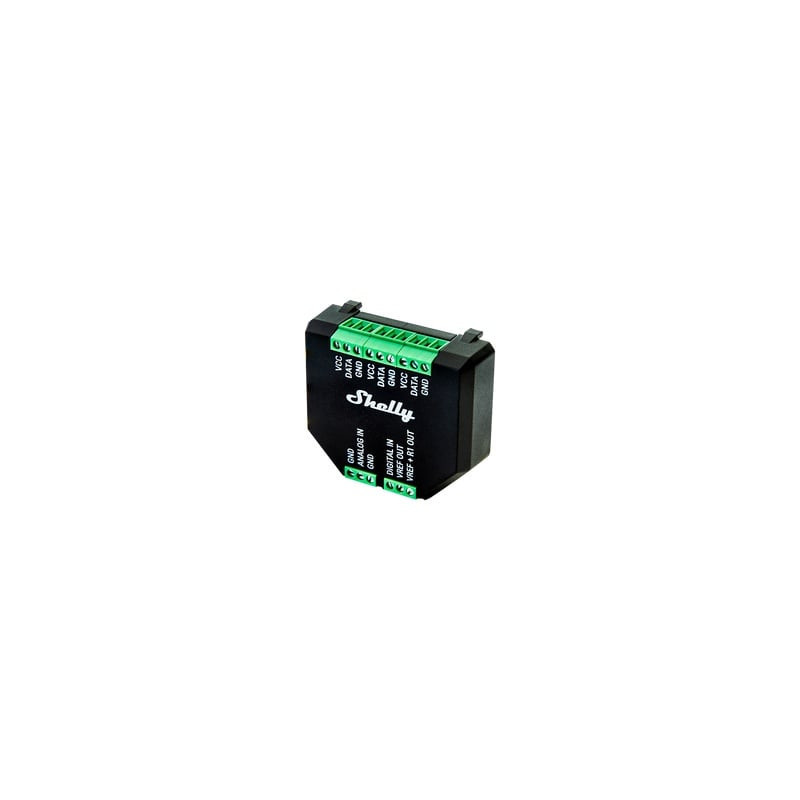

Additional module Shelly Plus 1 / 1PM Add-on
Product reference: 26-3800235266427
  • Type: Add-on module
  • Brand: Shelly
  • Model: Plus 1/1PM Add-on
  • Compatibility: Shelly Plus and Gen3 devices
  • Interface: 1-Wire
  • Inputs: Analog and digital
  • Supported sensors: Up to 5 × DS18B20 temperature sensors or 1 × DHT22 (temperature and humidity sensor)
Additional module Shelly Plus 1 / 1PM Add-on

Additional module Shelly Plus 1 / 1PM Add-on

Product reference: 26-3800235266427
  • Type: Add-on module
  • Brand: Shelly
  • Model: Plus 1/1PM Add-on
  • Compatibility: Shelly Plus and Gen3 devices
  • Interface: 1-Wire
  • Inputs: Analog and digital
  • Supported sensors: Up to 5 × DS18B20 temperature sensors or 1 × DHT22 (temperature and humidity sensor)
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
19,80 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General characteristics
  • Size (Height × Width × Depth) 37x42x15 ±0.5 mm / 1.46 × 1.65 × 0.59 ±0.02 in
  • Weight 105g / 3.70oz
  • Housing material Plastic
  • Maximum torque of screw terminals 0.1 Nm / 0.89 lbIn
  • Wire cross-sectional area max. 1 mm² / 17 AWG
  • Length of stripped wire insulation 4.5 mm / 0.18 in
  • Color Black
  • Temperature -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity 30% to 70% RH
  • Max height 2000 m / 6562 ft
  • Power supply voltage AC N/A
  • Power supply voltage DC 3.3 V (from Shelly Plus device)
  • Energy consumption < 0.5 W (without sensors)
  • VCC max. current 10 mA
  • VREF OUT max. current 1mA
  • VREF+R1 OUT resistor 10 kΩ
  • Supported Shelly Plus devices Shelly Plus 1, 1PM, 1 UL, 1PM UL, 2PM, 2PM UL, i4, i4DC, 0-10V Dimmer PM, RGBW PM
  • Supported Shelly Gen3 devices Shelly 1 Gen3, 1PM Gen3, 2PM Gen3, Shutter, i4 Gen3, DALI Dimmer Gen3, Dimmer 0/1-10V PM Gen3, EM Gen3
  • Supported Shelly Gen4 devices Shelly 1 Gen4, 1PM Gen4, 2PM Gen4
  • Temperature reading Depends on the DS18B20 or DHT22 sensors
  • Humidity reading Depends on the DHT22 sensor
  • Digital input threshold -15 V to 0.5 V (True) / 2.5 V to 15 V (False)*
  • Analog input range 0 to 100%
  • Analog input report threshold 1%**
  • Voltmeter range 0 to 10 V
  • Voltmeter report threshold 0.1V**
  • Analog input / Voltmeter accuracy Better than ±5%

Manufacturer codeSHELLYPLUS11PMADDON
ManufacturerShelly
Weight0 kg
