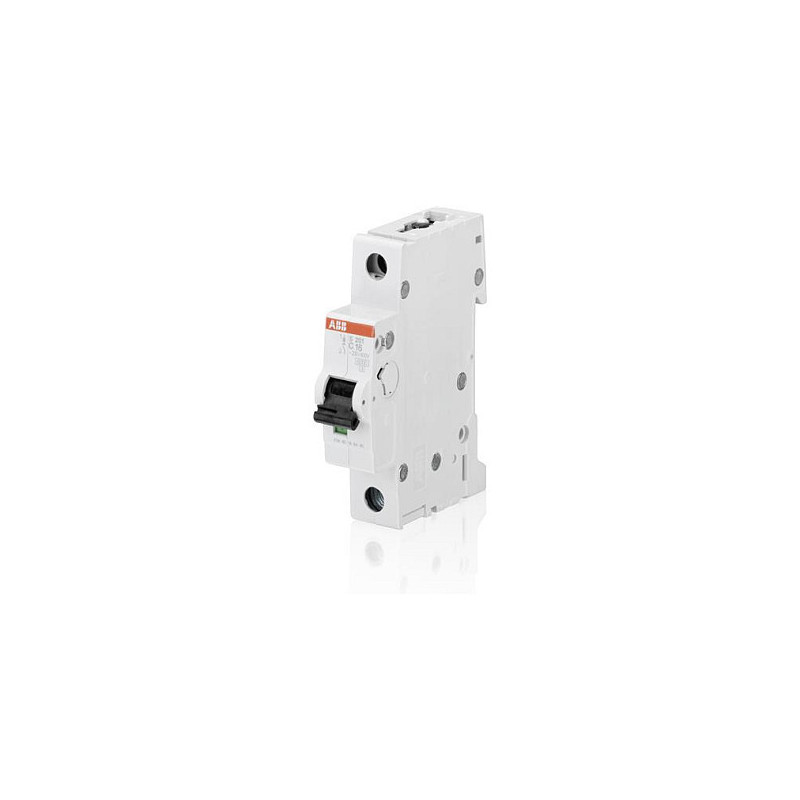

ABB S201-C2 circuit breaker

ABB S201-C2. Rated current: 2 A, Input voltage: 230 - 400 V. Circuit breaker type: Miniature circuit breaker, Type: Type C, International Protection (IP) code: IP20. Width: 17.5 mm, Depth: 69 mm, Height: 88 mm. Package width: 92 mm, Package depth: 183 mm, Package height: 80 mm. Minimum order quantity: 10 pc(s)
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Power

Input voltage: 230 - 400 V
Rated current: 2 A

Features

Circuit breaker type: Miniature circuit breaker
Type: Type C
Number of poles: 1
International Protection (IP) code: IP20
Product colour: Grey
Certification: IEC/EN 60898-1IEC/EN 60947-2UL 1077

Operational conditions

Operating temperature (T-T): -25 - 55 °C
Storage temperature (T-T): -40 - 70 °C

Weight dimensions

Width: 17.5 mm
Depth: 69 mm
Height: 88 mm
Weight: 125 g

Packaging data

Package width: 92 mm
Package depth: 183 mm
Package height: 80 mm
Package weight: 1.29 kg

Technical details

Compliance certificates: RoHS

Logistics data

Minimum order quantity: 10 pc(s)
